LED Recessed Downlight, 17/21/25W, 4000K, 2100lm, round, IP54, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Versatile LED Recessed Downlight for Modern Lighting

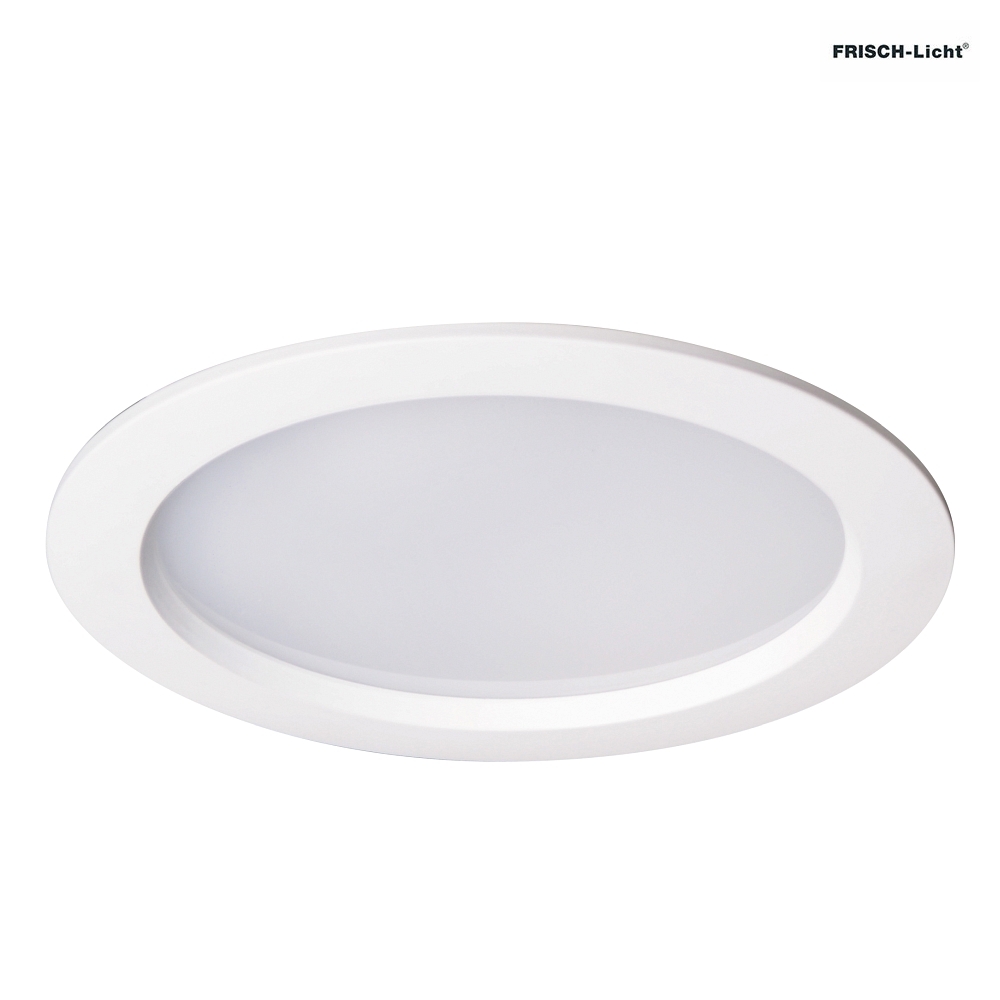

The LED recessed downlight from Frisch-Licht impresses with its round shape and high-quality manufacturing from die-cast aluminum, as well as an opal flat light diffuser made of PMMA. With a diameter of 23 cm and a mounting depth of only 9.2 cm, the luminaire integrates unobtrusively into any ceiling. Installation is simple and time-saving via recessed mounting with integrated spring clips, while the robust housing reliably protects the luminaire and ensures a long service life.

Efficient Light Output and Flexible Brightness Adjustment

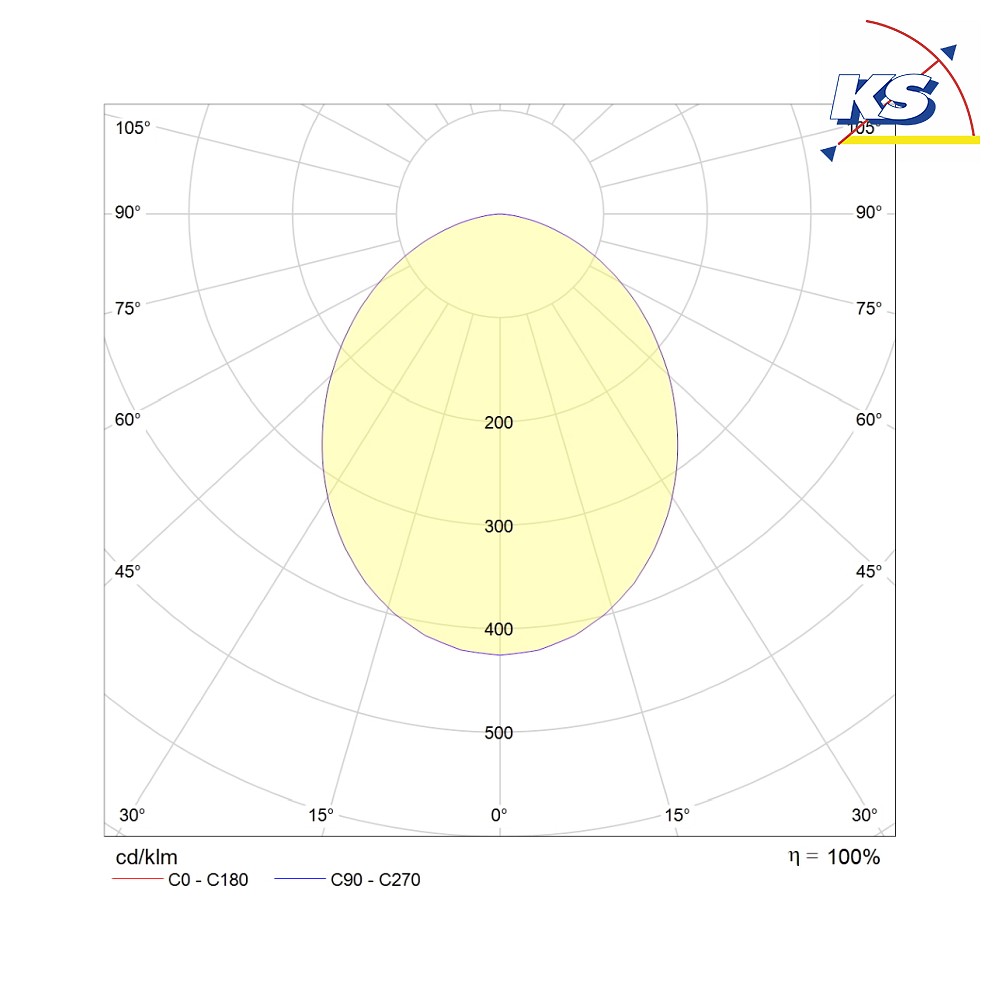

This downlight offers a multipower function that allows power and brightness to be adjusted directly on the fixture. Three power levels of 17, 21, and 25 watts are available, producing a luminous flux of 1500 to 2100 lumens. The light color is neutral white at 4000 Kelvin, providing pleasant and natural illumination. The light distribution is direct and uniformly symmetrical with a beam angle of 95°, ideal for even general lighting.

High Protection Classes and Durable Technology

With an IP54 rating, the downlight is protected against dust and splashing water, while the IK06 classification provides solid impact protection against vandalism and accidents. The integrated, ENEC-certified LED driver operates with low-voltage direct current (SELV) and ensures safe and interference-free operation. The average lifespan of the LEDs is an impressive 50,000 hours, which results in low maintenance and replacement costs over the long term.

Optimal Color Rendering and Energy-Efficient Operation

The luminaire features a color rendering index of over 80 Ra, meaning colors are rendered naturally and brilliantly. This is especially important for spaces where precise color perception is desired. With a luminous efficacy of 84 to 88 lumens per watt, the downlight operates energy-efficiently with a consumption of only 25 kWh per 1,000 operating hours. Thus, it is ideal for a sustainable and cost-effective lighting solution.

Comprehensive Accessories and Versatile Applications

The scope of delivery includes spring clips for quick mounting as well as the suitable LED driver. Optionally, a recessed mounting frame can be purchased to facilitate installation in various ceiling types. The luminaire is available in various designs and with different reflectors to enable individual lighting concepts. Thanks to the neutral white light color and modern design, the LED downlight is ideal for numerous applications such as offices, hotels, hospitals, gastronomy, and many other areas.

Colour:
white
Glass color:
opal

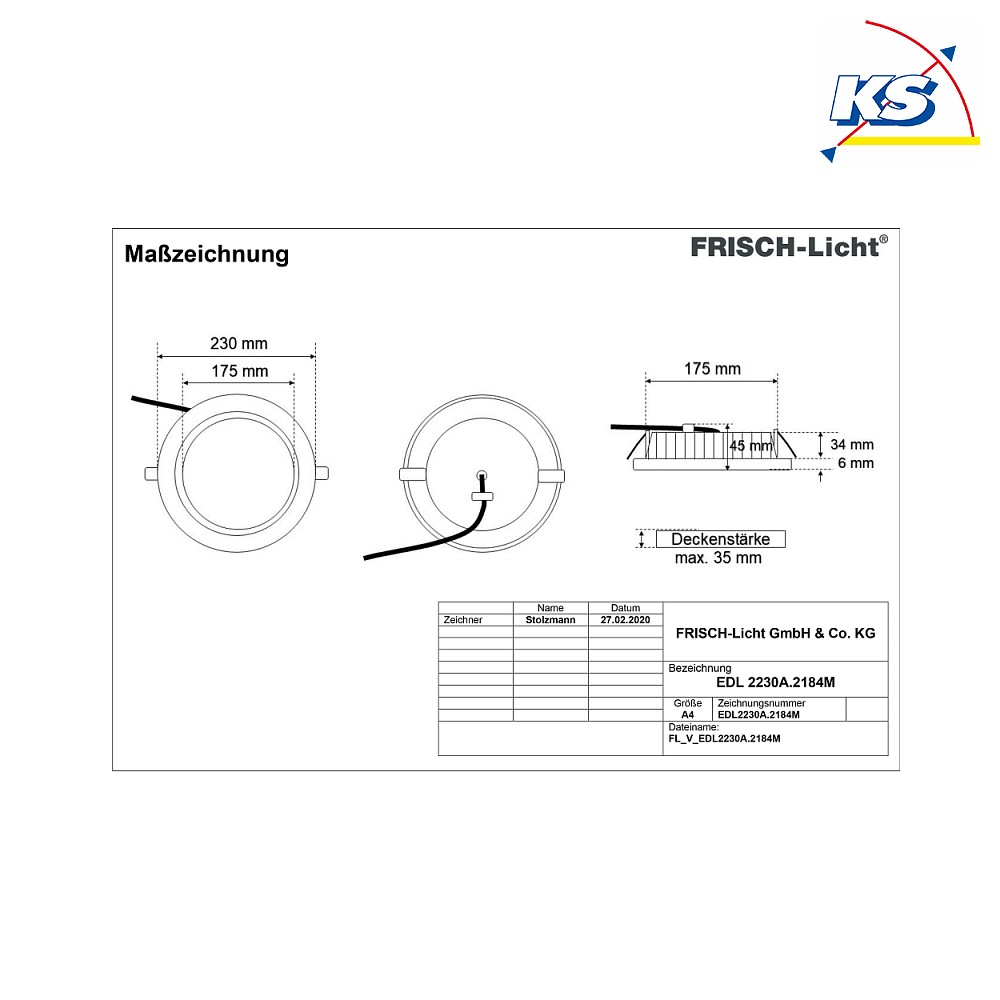

Dimension:
Ø∕ H: 23∕ 4 cm
visible part-Ø∕ H: 23∕ 0,6 cm
light output-Ø: 17,5 cm
max. material thickness-H: 3,5 cm
Material:
die-cast aluminium
polymethylmethacrylat (PMMA)
Weight:
1,2 kg
Product type:
recessed downlight
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for indoor use
limited suitable for outdoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
Dimmability:
integrated switch
Power frequency:
50-60 Hz
Power consumption:
17/21/25 W
Emitting angle:
95 °
LED can be replaced :
no
Bulb type:
LED
Temperature range:
-20 - +35 °C
Light colour:
neutral white
Light emission:
direct
Beam direction:
down
Light flux:
1500/1800/2100 lm
Light yield:
84-88 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>80 Ra
1B
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
9,2 cm
Fitting opening circle :
20 cm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP54
Accessories:
clip springs - included in delivery
driver - included in delivery
mounting pot - not included in delivery
ambient temperature:
-20 ... +35 °C
Energy efficiency category:
E
Energy consumption:
25 kWh/1.000 h
Article number:
FL-EDL2230A.2184M
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Manufacturer:
Frisch-Licht
