LED Recessed Downlight, 25W, 4000K, 2100lm, round, IP54, DALI dimmable, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

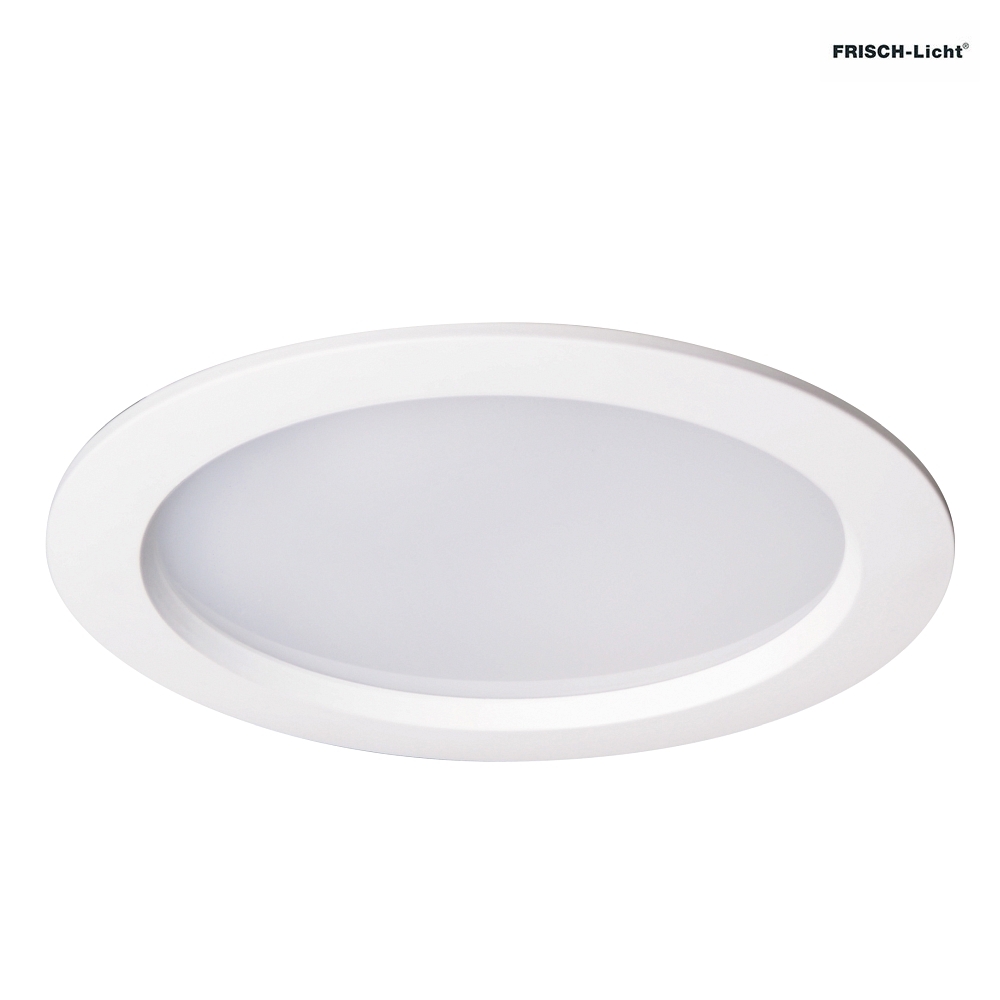

High-Quality LED Recessed Downlight with Robust Design

The LED recessed downlight from Frisch-Licht impresses with a solid housing made of die-cast aluminum and an opal flat light diffuser made of high-quality PMMA (acrylic). The round luminaire with a diameter of 23 cm is specially designed for recessed ceiling installation and, thanks to its IP54 protection class, offers reliable protection against dust and splashing water. Additionally, the IK06 impact protection provides high resistance to mechanical influences, making the downlight particularly durable and robust.

Efficient and Pleasant Lighting with Neutral White Light

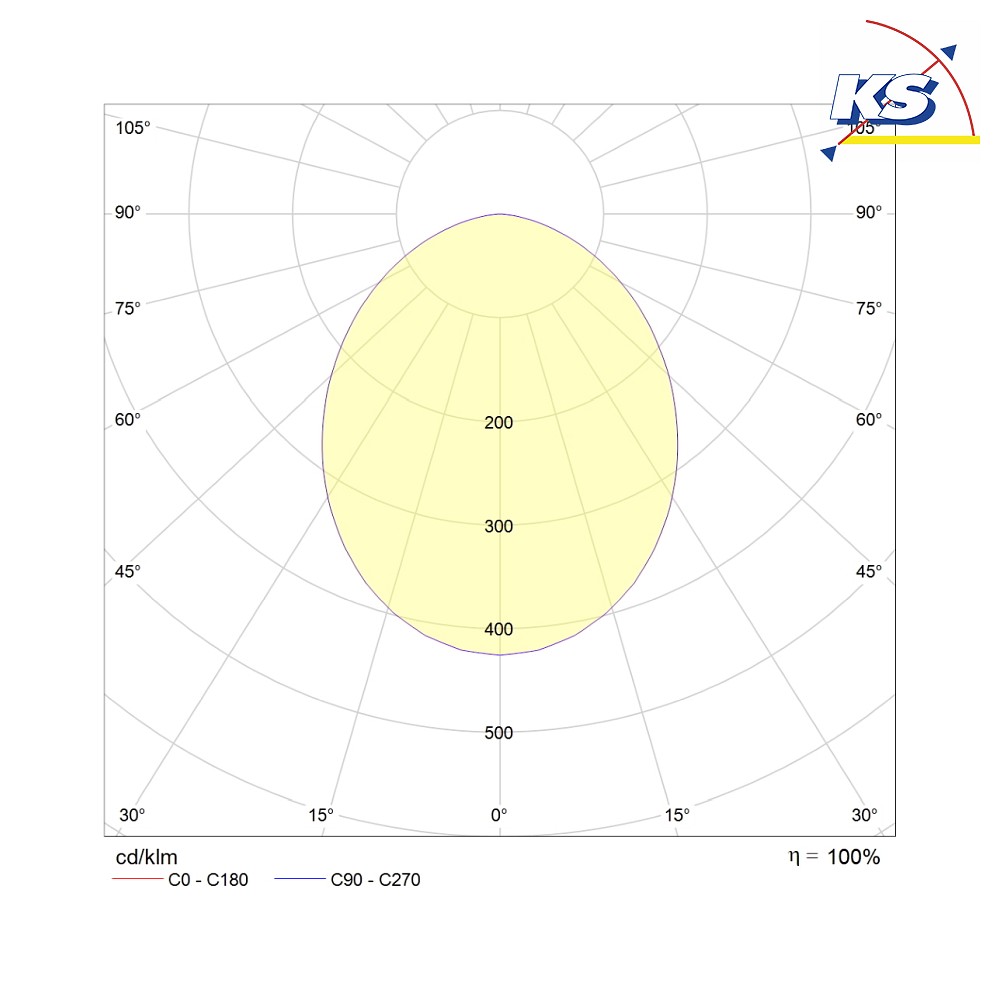

The downlight emits a neutral white light with a color temperature of 4000 Kelvin, ideal for pleasant and natural lighting. With a luminous flux of 2100 lumens and a luminous efficacy of 84 lumens per watt, the luminaire ensures bright and even illumination. The broad symmetric light distribution with a beam angle of 95° guarantees direct and glare-free lighting, making it perfect for modern general lighting applications.

DALI Dimmable Technology for Flexible Light Control

The LED downlight is equipped with a DALI dimming function that allows seamless adjustment of the light intensity. The included ENEC-certified LED driver operates with low-voltage direct current (SELV) and ensures energy-efficient and safe power supply at 220-240 volts. With a power consumption of only 25 watts, the downlight offers a long service life of up to 40,000 hours, reducing maintenance and replacement costs.

Simple and Time-Saving Installation

The installation of the recessed downlight is particularly quick and easy thanks to integrated spring clips. It is suitable for installation in ceilings with a maximum material thickness of 3.5 cm and requires a mounting depth of 9.2 cm as well as a round opening with a diameter of 20 cm. Optionally, the luminaire can be complemented with suitable concrete mounting pots, which facilitate installation in various ceiling types and expand the range of applications.

Versatile Applications and Modern Design

The white LED downlight from Frisch-Licht is ideal for diverse applications such as educational institutions, offices, hotels, hospitals, and gastronomy businesses. With its simple round shape and neutral white light, the luminaire blends harmoniously into different room concepts. The good color rendering (CRI >80) ensures natural color perception and makes the downlight the perfect solution for functional and appealing lighting concepts.

Colour:
white
Glass color:
opal

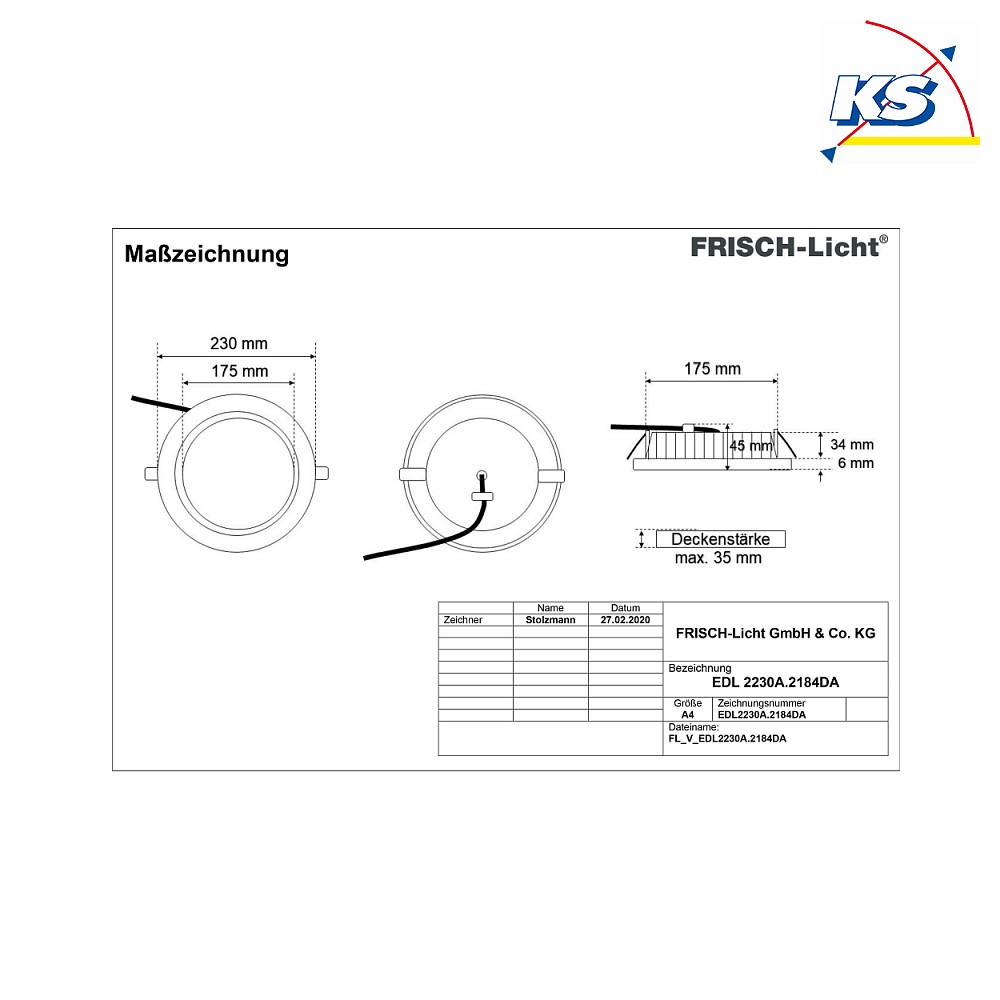

Dimension:
Ø∕ H: 23∕ 4 cm
visible part-Ø∕ H: 23∕ 0,6 cm
light output-Ø: 17,5 cm
max. material thickness-H: 3,5 cm
Material:
die-cast aluminium
polymethylmethacrylat (PMMA)
Weight:
1,2 kg
Product type:
recessed downlight
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for indoor use
limited suitable for outdoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI
Power frequency:
50-60 Hz
Power consumption:
25 W
Emitting angle:
95 °
LED can be replaced :
no
Bulb type:
LED
Temperature range:
-20 - +35 °C
Light colour:
neutral white
Light emission:
direct
Beam direction:
down
Light flux:
2100 lm
Light yield:
84 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
40000 h
Colour rendering index:
>80 Ra
1B
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
9,2 cm
Fitting opening circle :
20 cm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP54
Accessories:
clip springs - included in delivery
driver - included in delivery
mounting pot - not included in delivery
ambient temperature:
-20 ... +35 °C
Energy efficiency category:
E
Energy consumption:
25 kWh/1.000 h
Article number:
FL-EDL2230A.2184DA
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Manufacturer:
Frisch-Licht
