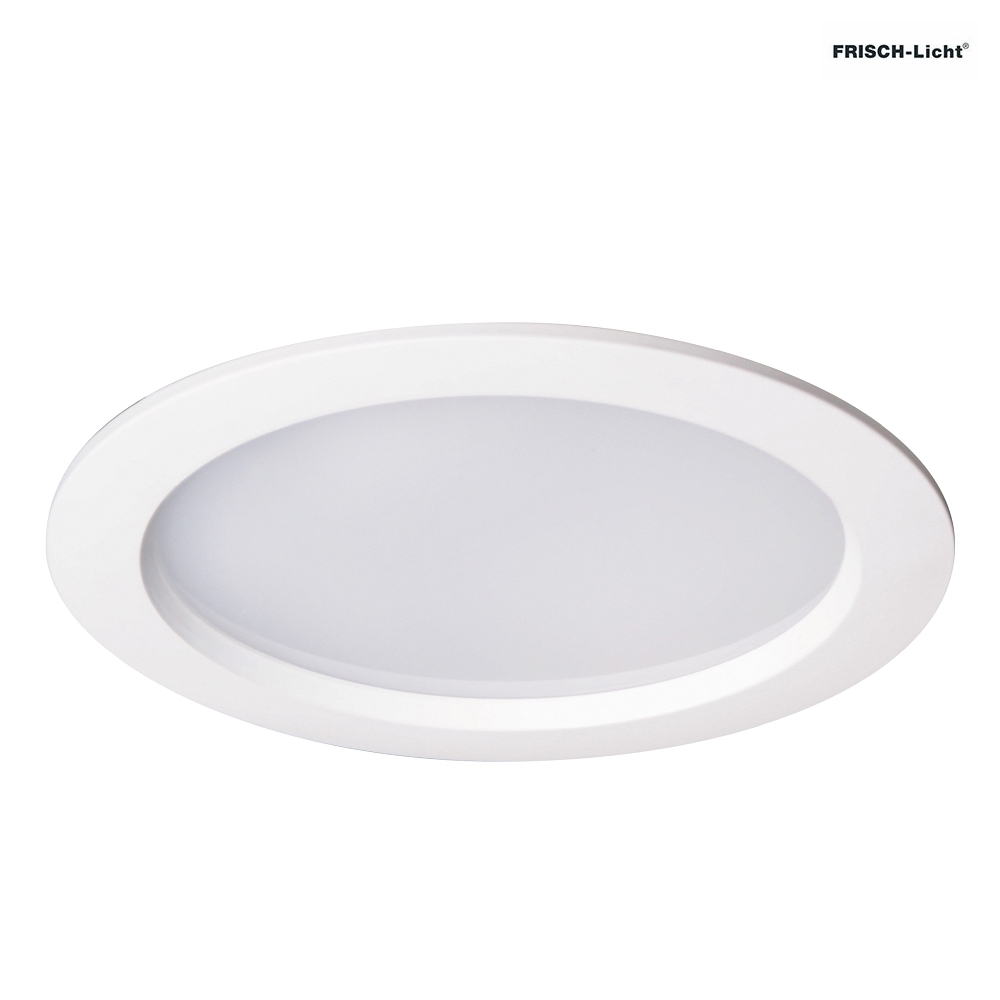

LED Recessed Downlight, 17/21/25W, 3000K, 2100lm, round, IP54, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Versatile LED Recessed Downlight with Multipower Function

The LED recessed downlight from Frisch-Licht impresses with its round shape and innovative multipower technology, allowing power and brightness to be adjusted directly on the fixture. With a diameter of 23 cm and an installation depth of 9.2 cm, it fits perfectly into various ceilings. The fixture is designed in an elegant white and features an opal surface light diffuser made of durable PMMA, which distributes the light pleasantly warm white (3000K) and evenly.

Robust Design with High Protection Standard

The housing of the recessed light is made of durable die-cast aluminum and, thanks to the IP54 protection rating, provides reliable protection against dust and splashing water. Additionally, the IK06 impact resistance rating ensures high durability against shocks and vandalism. This makes the downlight not only visually appealing but also particularly robust and long-lasting, ideal for use in various environments.

Energy Efficiency and Long Service Life

With a power consumption of 17, 21, or 25 watts and a luminous flux ranging from 1500 to 2100 lumens, the fixture offers a high luminous efficacy of up to 88 lumens per watt. The modern LED technology enables an average service life of up to 50,000 hours, eliminating the need to replace bulbs as the LEDs are permanently installed. The integrated dimming function allows for comfortable adjustment of light intensity as needed.

Easy Installation and Practical Features

Installation is straightforward as a recessed fixture using spring clips, which are included in the scope of delivery. A suitable LED driver is also integrated, ensuring stable and secure power supply. Optional mounting pots are available to further facilitate installation. The fixture is suitable for material thicknesses up to 3.5 cm and can be installed time-saving thanks to quick mounting.

Optimal Light Quality for Various Applications

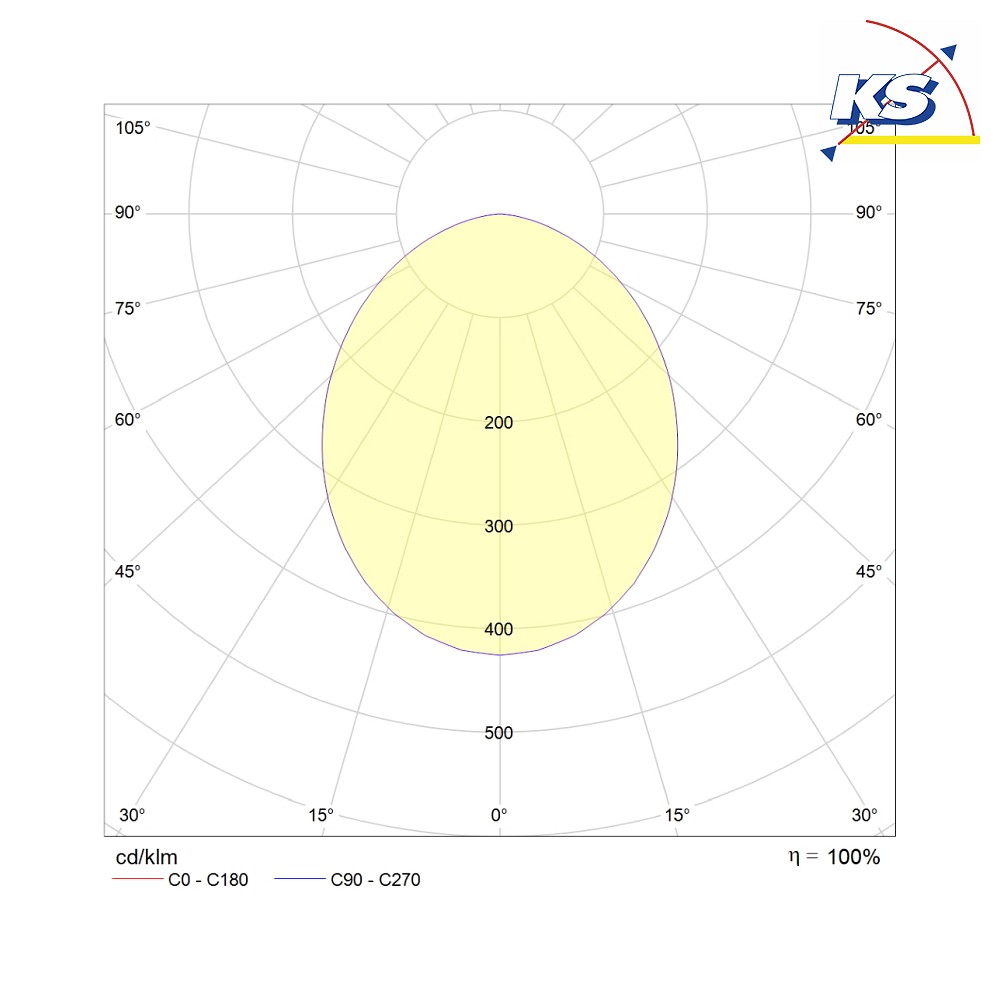

The downlight impresses with a broad symmetrical light distribution and a beam angle of 95°, providing even and pleasant illumination of rooms. The color rendering index of over 80 Ra ensures natural colors and a comfortable atmosphere. The product is especially suitable for areas such as offices, hospitals, hotels, or educational institutions where modern and efficient general lighting is required.

Colour:
white
Glass color:
opal

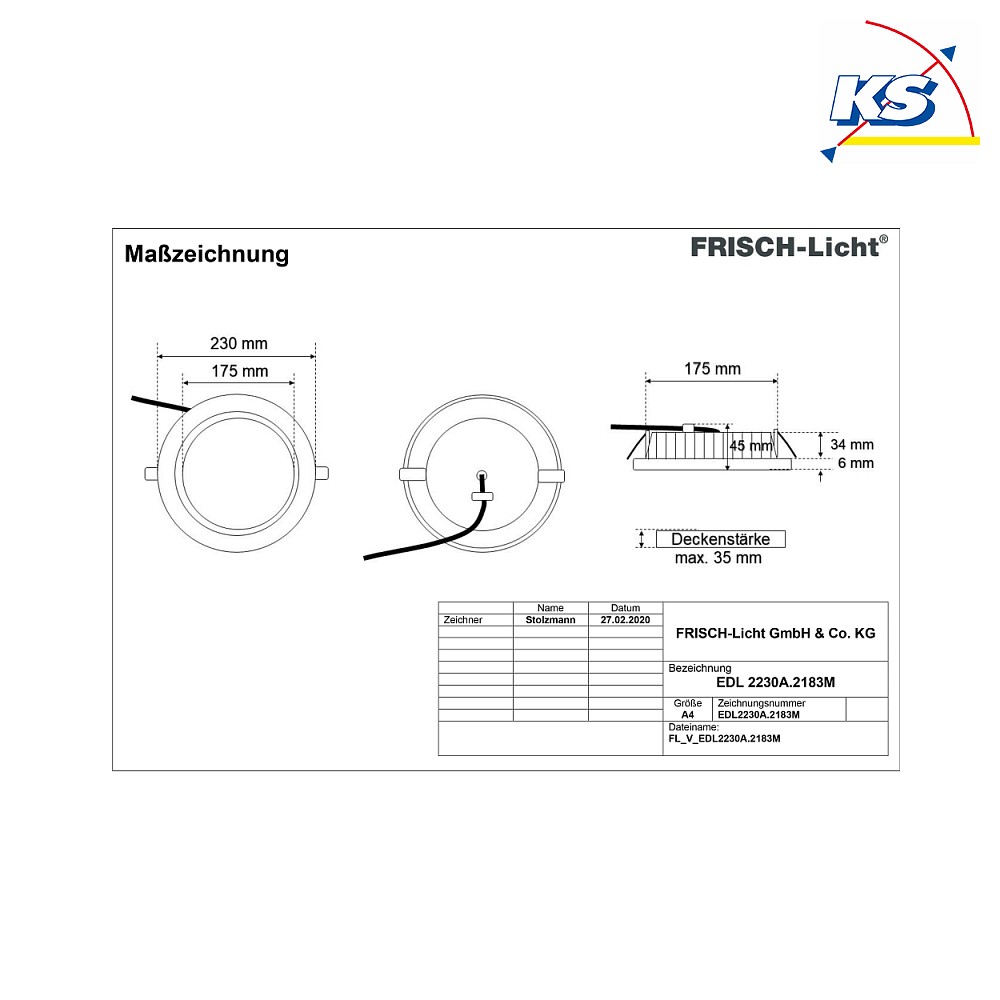

Dimension:
Ø∕ H: 23∕ 4 cm
visible part-Ø∕ H: 23∕ 0,6 cm
light output-Ø: 17,5 cm
max. material thickness-H: 3,5 cm
Material:
die-cast aluminium
polymethylmethacrylat (PMMA)
Weight:
1,2 kg
Product type:
recessed downlight
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for indoor use
limited suitable for outdoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
Dimmability:
integrated switch
Power frequency:
50-60 Hz
Power consumption:
17/21/25 W
Emitting angle:
95 °
LED can be replaced :
no
Bulb type:
LED
Temperature range:
-20 - +35 °C
Light colour:
warm white
Light emission:
direct
Beam direction:
down
Light flux:
1500/1800/2100 lm
Light yield:
84-88 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>80 Ra
1B
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
9,2 cm
Fitting opening circle :
20 cm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP54
Accessories:
clip springs - included in delivery
driver - included in delivery
mounting pot - not included in delivery
ambient temperature:
-20 ... +35 °C
Energy efficiency category:
E
Energy consumption:
25 kWh/1.000 h
Article number:
FL-EDL2230A.2183M
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Manufacturer:
Frisch-Licht
Manufacturer information
FRISCH-Licht GmbH & Co. KG, Schlachthofweg 2, 59755, Arnsberg, Germany, info@frisch-licht.de
