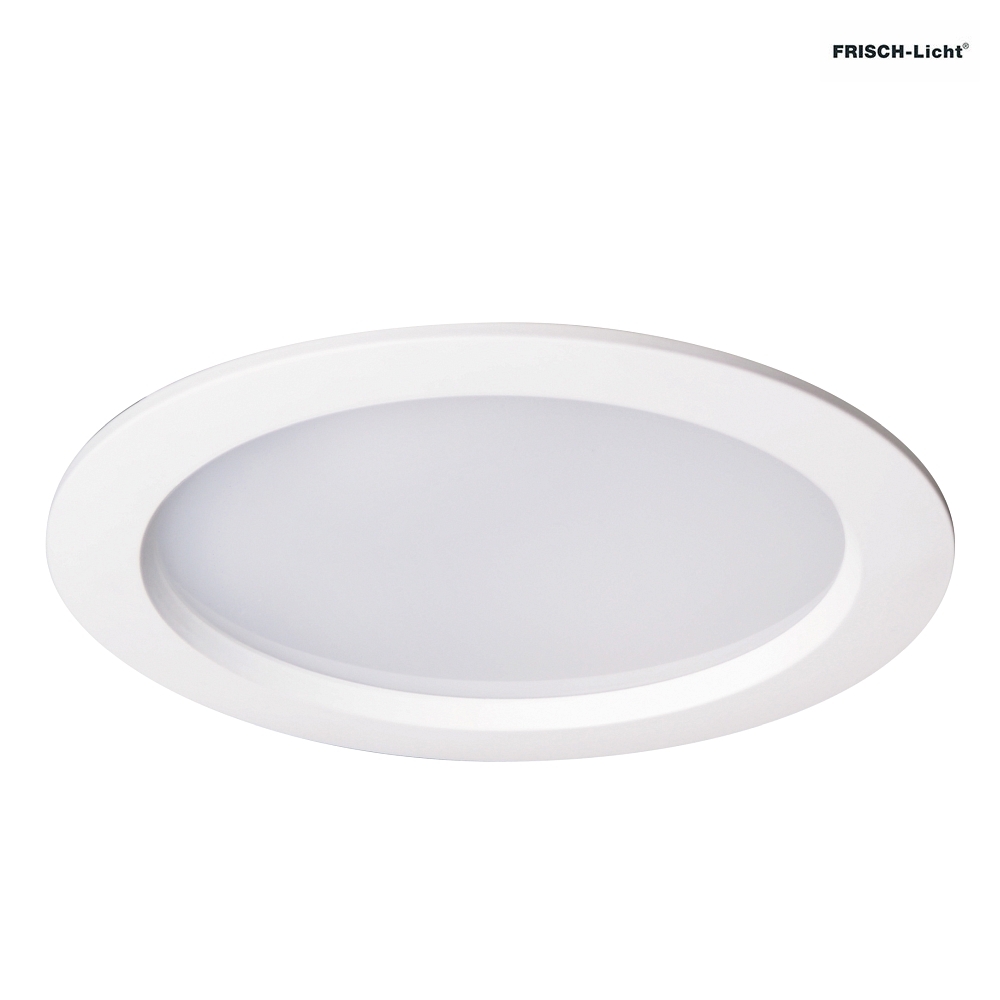

LED Recessed Downlight, 12W, 4000K, 1100lm, round, IP54, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality LED Recessed Downlight for Versatile Lighting Requirements

The LED recessed downlight from Frisch-Licht impresses with its robust and modern design. The fixture is round and features a switchable function that allows flexible light control. With a diameter of 14 cm and an installation depth of only 5.5 cm, the downlight can be optimally integrated into ceilings. The housing is made of durable die-cast aluminum, while the opal surface-light diffuser made of PMMA (acrylic) ensures pleasant and even light distribution.

Efficient and Long-Lasting LED Technology

The downlight operates with a fixed LED that provides a luminous flux of 1100 lumens at an energy consumption of just 12 watts. The light color is neutral white with a color temperature of 4000 Kelvin, which creates a friendly and natural room lighting. Thanks to a high luminous efficacy of 91 lumens per watt and a lifespan of up to 50,000 hours, this fixture is particularly energy-efficient and low-maintenance. The LED is included in the delivery, but replacement is not intended.

High-Level Protection and Safety

With an IP54 protection rating, the downlight is protected against dust and splashing water, allowing reliable use in various environments. Additionally, the IK06 impact protection ensures resistance against shocks and vandalism. The integrated, ENEC-certified LED driver operates with low-voltage direct current (SELV), thus guaranteeing safe and stable operation. Installation is done via time-saving quick mounting with clip springs, which are included in the delivery.

Optimal Light Distribution and Color Rendering

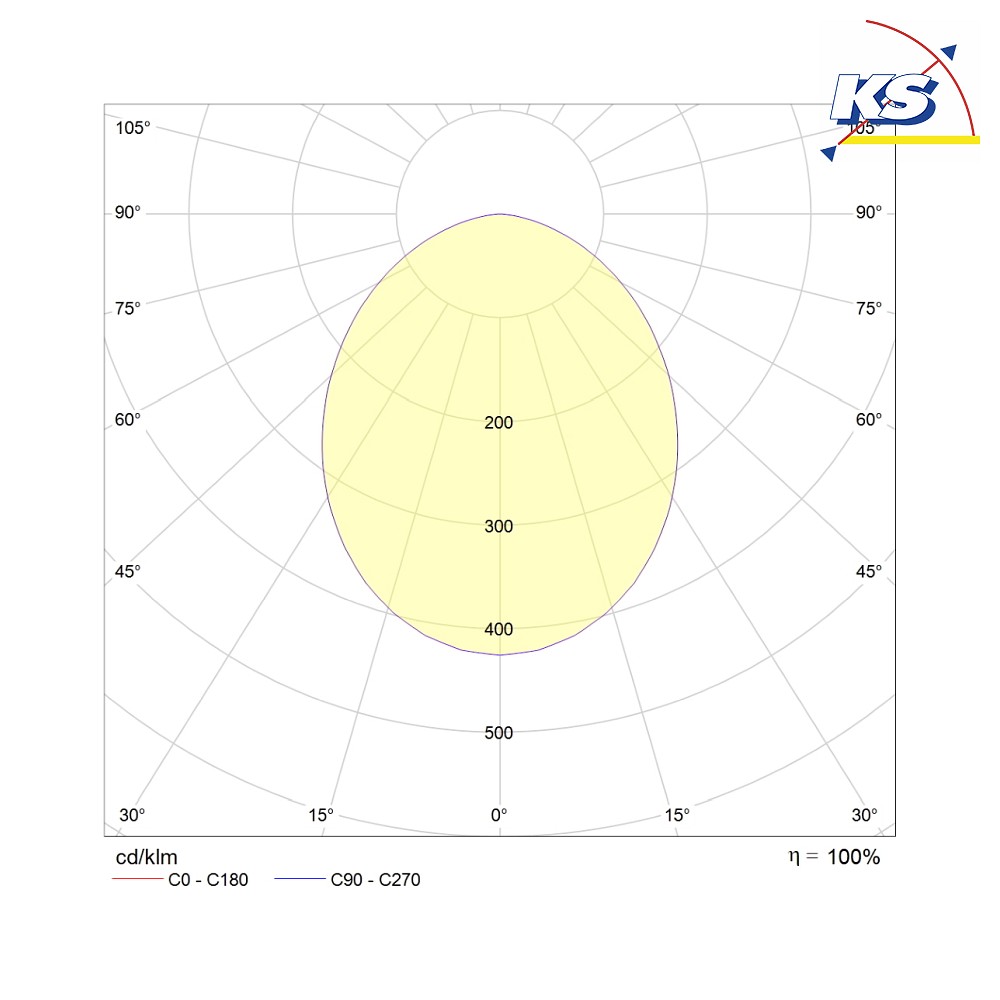

The downlight features a beam angle of 95 degrees, emitting light directly and evenly downward. The area-symmetrical light distribution provides pleasant general lighting without disturbing shadows. With a color rendering index (CRI) of over 80 and color rendering class 1B, colors are displayed naturally and vividly. This makes the fixture ideal for various applications such as offices, hotels, educational institutions, or retail.

Practical Accessories and Versatile Applications

The scope of delivery includes not only the LED driver but also the necessary clip springs for secure mounting. Optional matching concrete mounting pots are available to facilitate installation in different ceiling types. The fixture is available in various sizes and with different reflectors and can also be chosen in a square shape. Thanks to its neutral white light color and robust construction, the LED recessed downlight is an ideal solution for modern lighting concepts in many areas.

Colour:
white
Glass color:
opal

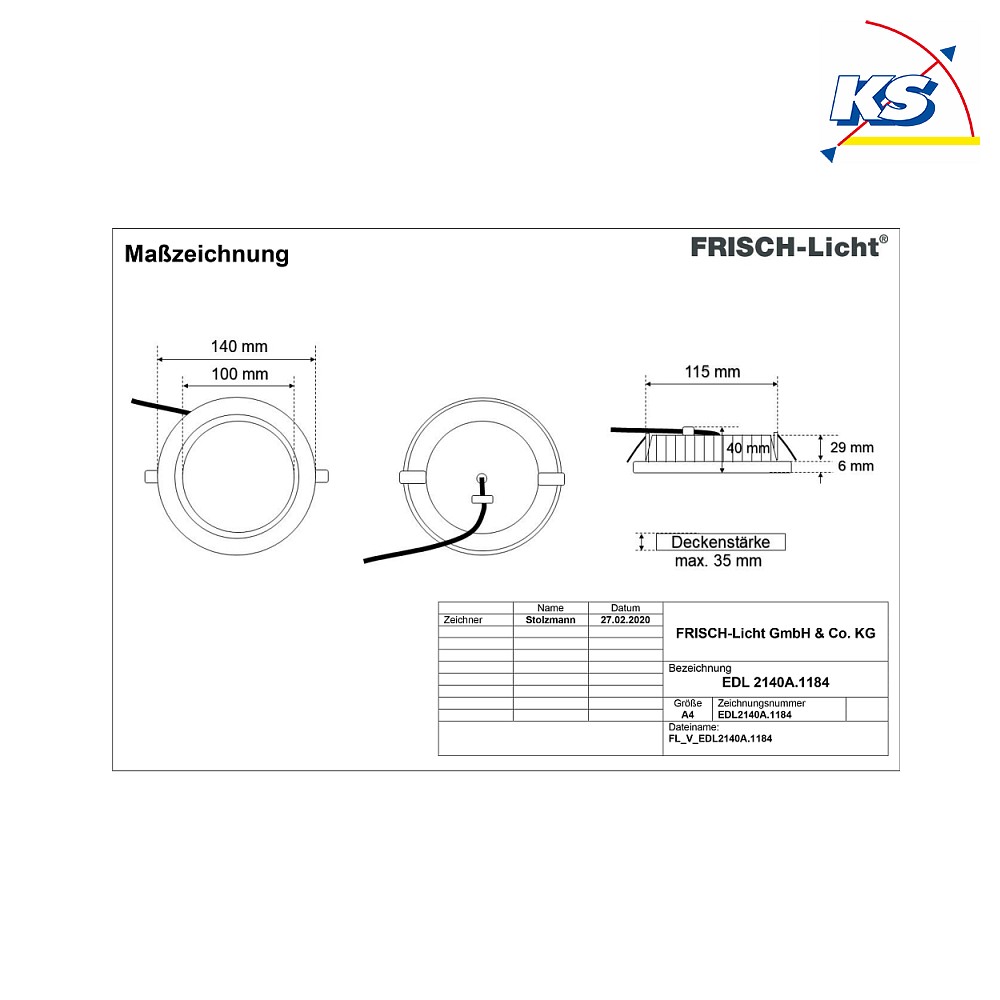

Dimension:
Ø∕ H: 14∕ 3,5 cm
visible part-Ø∕ H: 14∕ 0,6 cm
light output-Ø: 10 cm
max. material thickness-H: 3,5 cm
Material:
die-cast aluminium
polymethylmethacrylat (PMMA)
Weight:
0,7 kg
Product type:
recessed downlight
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for indoor use
limited suitable for outdoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
Power frequency:
50-60 Hz
Power consumption:
12 W
Emitting angle:
95 °
LED can be replaced :
no
Bulb type:
LED
Temperature range:
-20 - +35 °C
Light colour:
neutral white
Light emission:
direct
Beam direction:
down
Light flux:
1100 lm
Light yield:
91 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>80 Ra
1B
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
5,5 cm
Fitting opening circle :
12 cm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP54
Accessories:
clip springs - included in delivery
driver - included in delivery
mounting pot - not included in delivery
ambient temperature:
-20 ... +35 °C
Energy efficiency category:
F
Energy consumption:
12 kWh/1.000 h
Article number:
FL-EDL2140A.1184
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Manufacturer:
Frisch-Licht
Manufacturer information
FRISCH-Licht GmbH & Co. KG, Schlachthofweg 2, 59755, Arnsberg, Germany, info@frisch-licht.de
