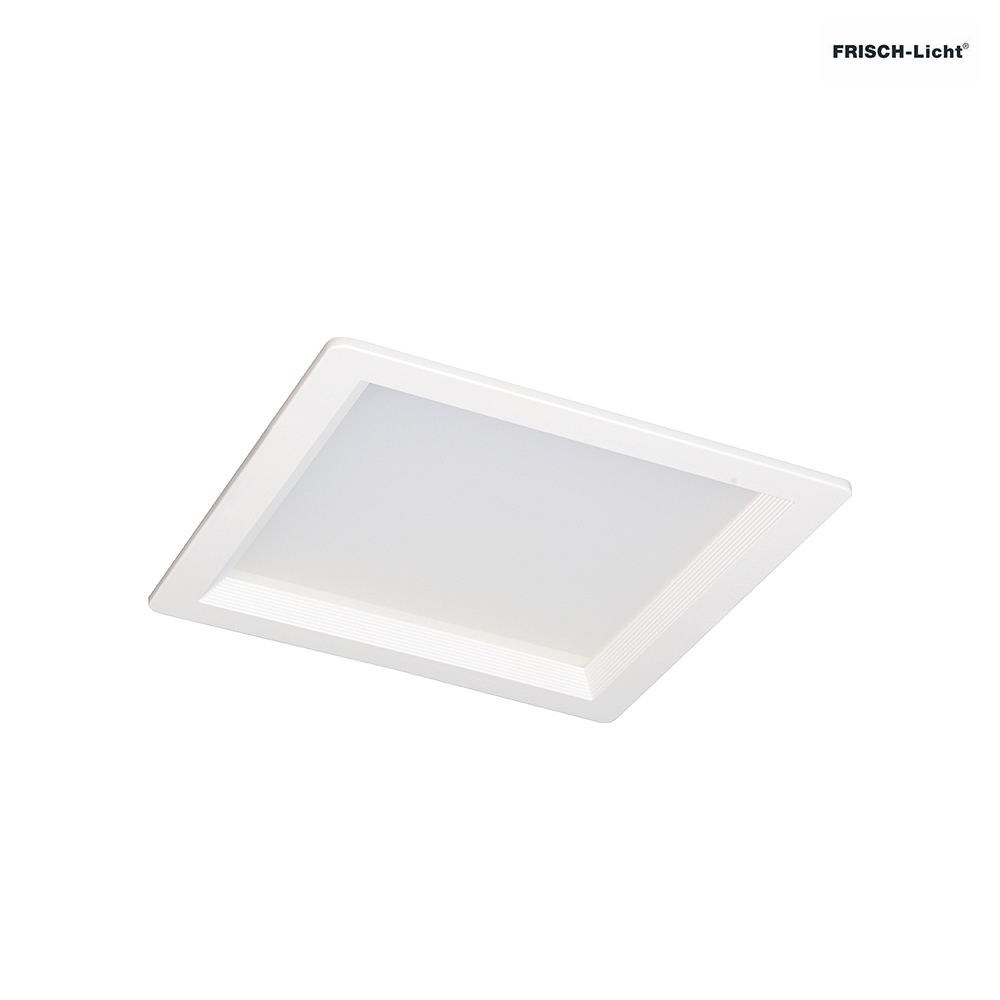

LED Recessed Downlight, 25W, 3000K, 2100lm, square, IP54, DALI dimmable, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality LED Recessed Downlight with Modern Design

The square LED recessed downlight from Frisch-Licht impresses with its slim and functional design. With dimensions of 22 x 22 cm, the luminaire integrates discreetly into any ceiling and ensures uniform illumination. The housing is made of robust die-cast aluminum, which guarantees long-lasting durability. The opal surface light diffuser made of polymethyl methacrylate (PMMA) distributes the light pleasantly soft and glare-free. The white color of the luminaire fits perfectly with modern interior styles.

Efficient and Long-Lasting LED Technology

The downlight is equipped with a permanently installed LED that cannot be replaced but offers an impressive lifespan of up to 50,000 hours. With a power consumption of 25 watts and a luminous flux of 2100 lumens, the light source delivers a high luminous efficacy of 84 lumens per watt. The color temperature of 3000 Kelvin provides warm white light that creates a pleasant atmosphere. The color rendering index of over 80 Ra guarantees natural colors and high-quality lighting.

Flexible Control and Protection Classes for Maximum Safety

The LED downlight is DALI-dimmable, allowing stepless adjustment of light intensity for increased comfort and energy savings. The integrated, ENEC-certified LED driver operates with low-voltage direct current (SELV), ensuring safe operation. The IP54 protection rating reliably protects the luminaire against dust and splashing water, while the IK06 impact protection safeguards it from shocks and vandalism. This combination makes the downlight particularly robust and durable.

Easy Installation and Versatile Applications

The installation of the recessed downlight is quick and uncomplicated thanks to the included spring clips, which enable secure mounting in hollow ceilings. The installation depth of 8.9 cm and the rectangular cut-out of 22 x 22 cm ensure a precise fit. Optional matching concrete mounting pots are available to facilitate installation in special ceiling structures. The downlight is ideal for numerous applications such as offices, hotels, hospitals, educational institutions, or gastronomy.

Optimal Light Distribution and Versatile Variants

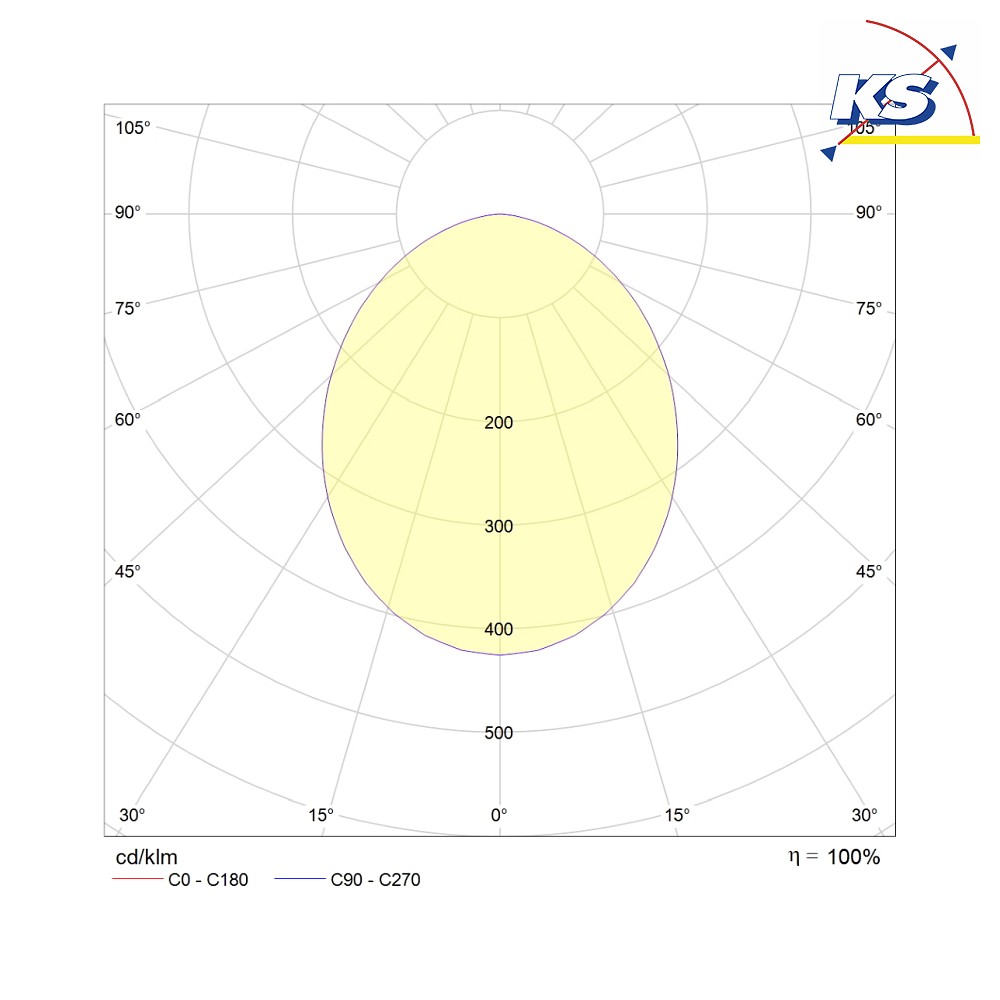

The square downlight emits light directly downward at an angle of 95 degrees, providing broad and symmetrical illumination. The warm white light color creates a pleasant atmosphere and is excellent for general lighting. Additionally, the product is available in various sizes and shapes, including round, as well as with different reflectors and light colors. This allows lighting to be customized to individual needs.

Colour:
white
Glass color:
opal

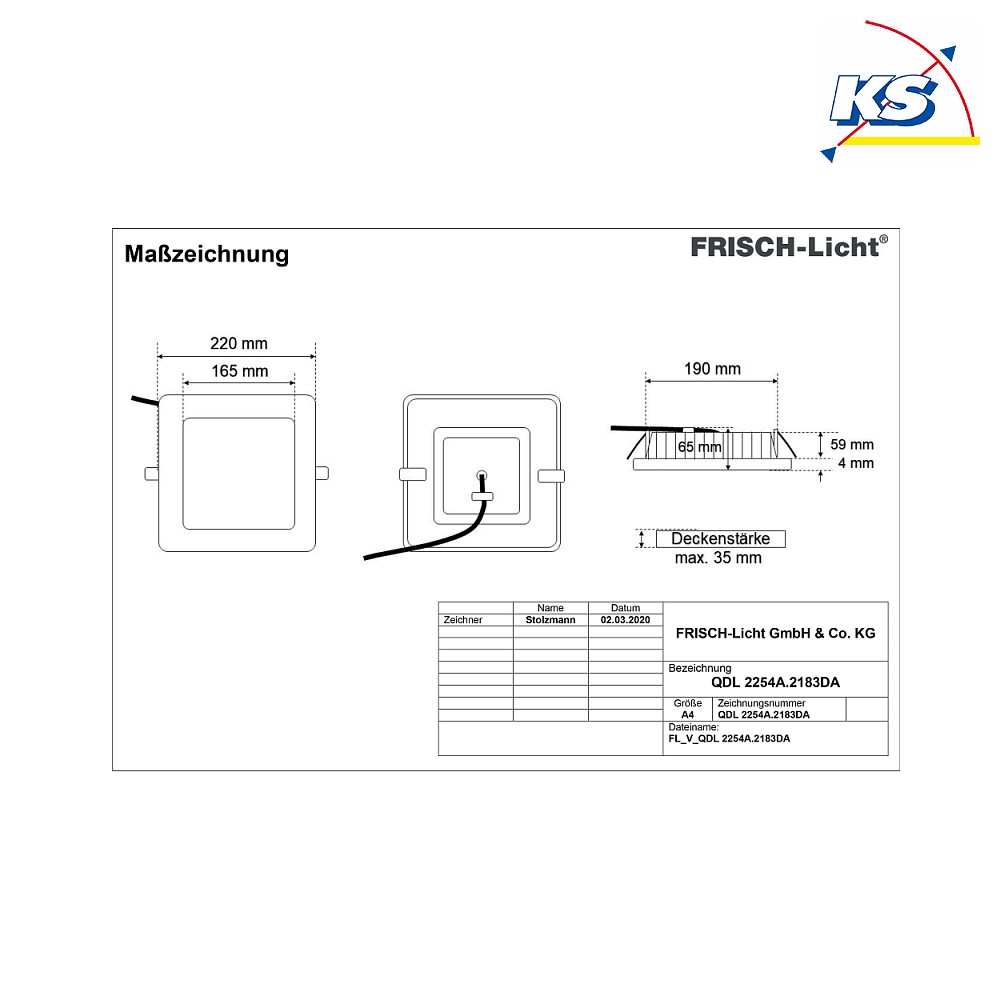

Dimension:
L∕ B∕ H: 22∕ 22∕ 6,1 cm
visible part-L∕ W∕ H: 22∕ 22∕ 0,4 cm
light output-L∕ W: 16,5∕ 16,5 cm
max. material thickness-H: 3,5 cm
Material:
die-cast aluminium
polymethylmethacrylat (PMMA)
Weight:
1,5 kg
Product type:
recessed downlight
Lamp shape:
square
Bulbs in delivery:
yes
Accessories:
clip springs - included in delivery
driver - included in delivery
mounting pot - not included in delivery
Application area:
suitable for indoor use
limited suitable for outdoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI
Power frequency:
50-60 Hz
Power consumption:
25 W
Emitting angle:
95 °
LED can be replaced :
no
Bulb type:
LED
Temperature range:
-20 - +35 °C
Light colour:
warm white
Light emission:
direct
Beam direction:
down
Light flux:
2100 lm
Light yield:
84 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>80 Ra
1B
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
8,9 cm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP54
ambient temperature:
-20 ... +35 °C
Energy efficiency category:
F
Energy consumption:
25 kWh/1.000 h
Article number:
FL-QDL2254A.2183DA
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Manufacturer:
Frisch-Licht
Manufacturer information
FRISCH-Licht GmbH & Co. KG, Schlachthofweg 2, 59755, Arnsberg, Germany, info@frisch-licht.de
