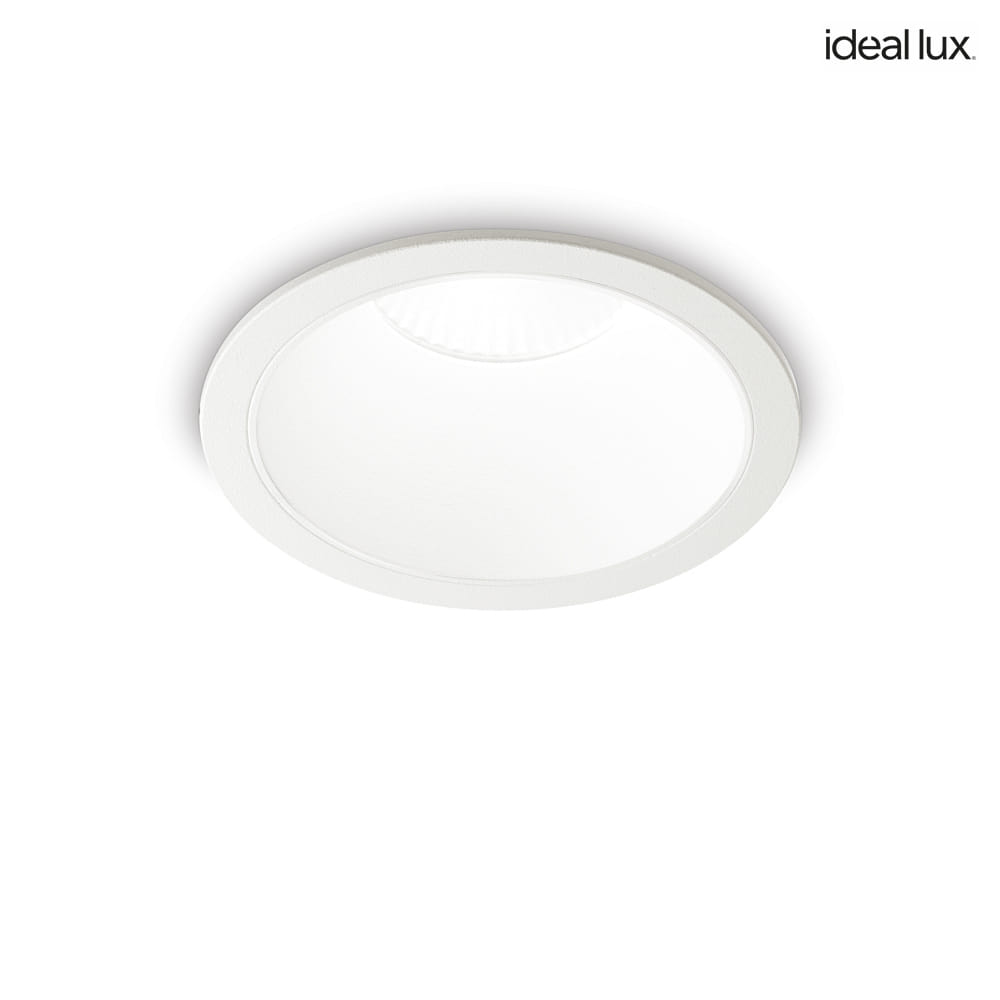

ceiling recessed luminaire GAME TRIM ROUND 120MM round, rigid, UGR < 19, switchable IP40/IP20, white

Ideal Lux



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Ceiling Recessed Luminaire GAME TRIM ROUND, IP40 IK06, Ø 12cm, 20W 2700K 1420lm 27°, CRi >90, UGR <19, on-off

The LED Ceiling Recessed Luminaire GAME TRIM ROUND is a high-quality recessed luminaire made of die-cast aluminum. It is ideal for glare-free, true-color point lighting in demanding private areas, retail spaces, offices, reception desks, or other commercial areas.

Color: white

The color of the ceiling recessed luminaire is white, which fits into a modern and timeless design. The round TRIM version with visible, protruding trim provides an elegant look in any room.

Technical Details

The LED Ceiling Recessed Luminaire has a power consumption of 20W and a luminous flux of 1510lm. With a color rendering index of >90Ra, it offers high color rendering. The beam angle is 27° and the color temperature is 2700K.

Dimmability and Accessories

The luminaire is dimmable, but requires a suitable external constant current driver (500mA, >20W) for this function. Included in the delivery are clip springs and a switchable ON/OFF driver. The connection cable and driver must be purchased separately.

Additional Information

The LED Ceiling Recessed Luminaire GAME TRIM ROUND has an IP protection rating of IP40/IP20 and is suitable for recessed installation in cavity and panel ceilings in dry indoor areas. With low glare (UGR <19), it is particularly suitable for lighting at screen workstations.

Colour:
white
Glass color:
transparent
Reflector color:
white matt
Dimension:
total-Ø∕ H: 12∕ 10,5 cm
visible part-Ø∕ B: 12∕ 0,5 cm
min. material thickness-T: 0,1 cm
max. material thickness-T: 2 cm
Material:
die-cast aluminium
Weight:
0,65 kg
Product type:
ceiling recessed luminaire
Operating voltage:
220-240 V
Dimmable:
no
Dimmability:
with optional features only,depending on the control gear
Power frequency:
50/60 Hz
Power consumption:
20 W
Emitting angle:
27 °
Number of bulbs:
1
Beam direction:
down
Light flux:
1510 lm
Colour temperature:
2700 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
20 cm
Fitting opening circle :
11 cm
Protection class:
2
IP-protection class:
IP40/IP20
Accessories:
clip springs - included in delivery
driver - included in delivery
connection cable - not included in delivery
ambient temperature:
0 … +40 °C
Energy consumption:
20 kWh/1.000 h
Article number:
IDEA-341408
Purchasing quantity:
1 piece
Brand:
Ideal Lux
Manufacturer:
Ideal Lux
Manufacturer information
Ideal Lux S.r.l., Via Taglio Destro, 32, 30035, Mirano, Italy, info@ideal-lux.com, http://www.ideal-lux.com
