ceiling recessed luminaire GAME TRIM ROUND 120MM round, rigid, UGR < 19, switchable IP40/IP20, black

Ideal Lux



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

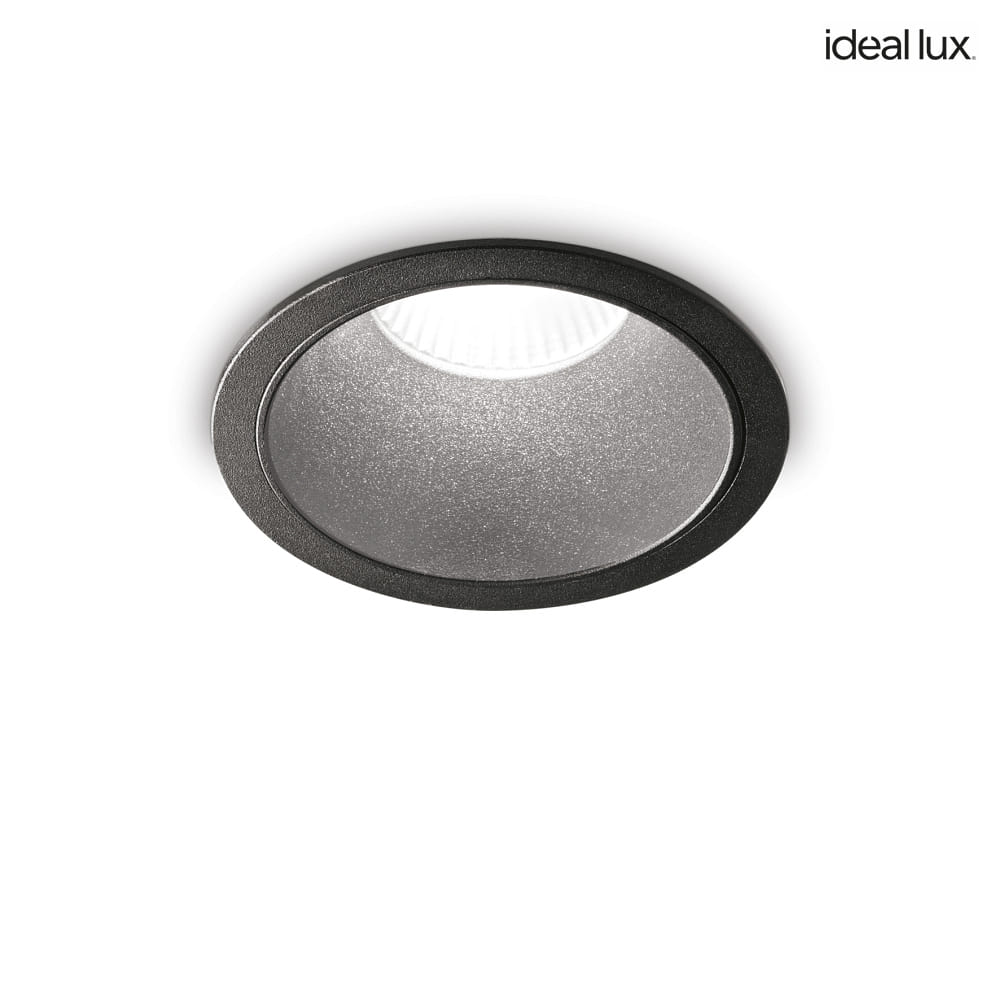

LED Recessed Ceiling Light GAME TRIM ROUND, IP40 IK06, Ø 12cm, 20W 2700K 1420lm 27°, CRi >90, UGR <19, on-off

The LED Recessed Ceiling Light GAME TRIM ROUND in black with the item number IDEA-341378 has a beam angle of 27° and an energy consumption of 20kWh/1,000 h. The color temperature is 2700K and the color rendering index is >90Ra. With a power consumption of 20W and a light output of 1340lm, this recessed light offers high efficiency.

Technical Details and Accessories

The LED Recessed Ceiling Light GAME TRIM ROUND has an average lamp life of 50,000 hours and can operate in a temperature range of 0 to +40°C. The product has a recess depth of 20 cm and a cutout with a diameter of 11 cm. Accessories include clip springs and a driver, while the connection cable must be purchased separately. The power connection is made via a clamp to an external operating device.

Design and Applications

The recessed spotlight made of die-cast aluminum is ideal for glare-free and true color point lighting in demanding private areas, retail spaces, offices, reception desks, and other commercial areas. The recessed light is specially designed for installation in cavity and panel ceilings in dry indoor areas, and impresses with its round TRIM design and recessed Bridgelux COB LED module.

Features and Customization Options

The LED Recessed Ceiling Light has low glare with a UGR value of <19 and is therefore ideal for lighting at screen workstations. With a color consistency of 3 SDCM, the light offers very low tolerance for deviations in light color. Additionally, the light is dimmable and can be customized with different light colors and housing colors.

Additional Information and Availability

The LED Recessed Ceiling Light GAME TRIM ROUND is part of the GAME series and can be combined with other lights in the series. There are also round outdoor versions with protruding trim available. The light comes with a switchable ON/OFF driver, but can also be dimmed if a suitable external constant current driver is purchased separately and replaced. With its versatile customization options and high-quality features, this recessed light is an ideal choice for various lighting requirements.

Colour:
black
Glass color:
transparent
Reflector color:
black matt
Dimension:
total-Ø∕ H: 12∕ 10,5 cm
visible part-Ø∕ B: 12∕ 0,5 cm
min. material thickness-T: 0,1 cm
max. material thickness-T: 2 cm
Weight:
0,65 kg
Product type:
ceiling recessed luminaire
Operating voltage:
220-240 V
Dimmable:
no
Dimmability:
with optional features only,depending on the control gear
Power frequency:
50/60 Hz
Power consumption:
20 W
Emitting angle:
27 °
Number of bulbs:
1
Beam direction:
down
Light flux:
1340 lm
Colour temperature:
2700 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
20 cm
Fitting opening circle :
11 cm
Protection class:
2
IP-protection class:
IP40/IP20
Accessories:
clip springs included
driver included
connection cable excluded
ambient temperature:
0 … +40 °C
Energy consumption:
20 kWh/1.000 h
Article number:
IDEA-341378
Purchasing quantity:
1 piece
Brand:
Ideal Lux
Manufacturer:
Ideal Lux
Manufacturer information
Ideal Lux S.r.l., Via Taglio Destro, 32, 30035, Mirano, Italy, info@ideal-lux.com, http://www.ideal-lux.com
