ceiling recessed luminaire GAME TRIM ROUND 120MM round, rigid, UGR < 19, switchable IP40/IP20, gold, white

Ideal Lux



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

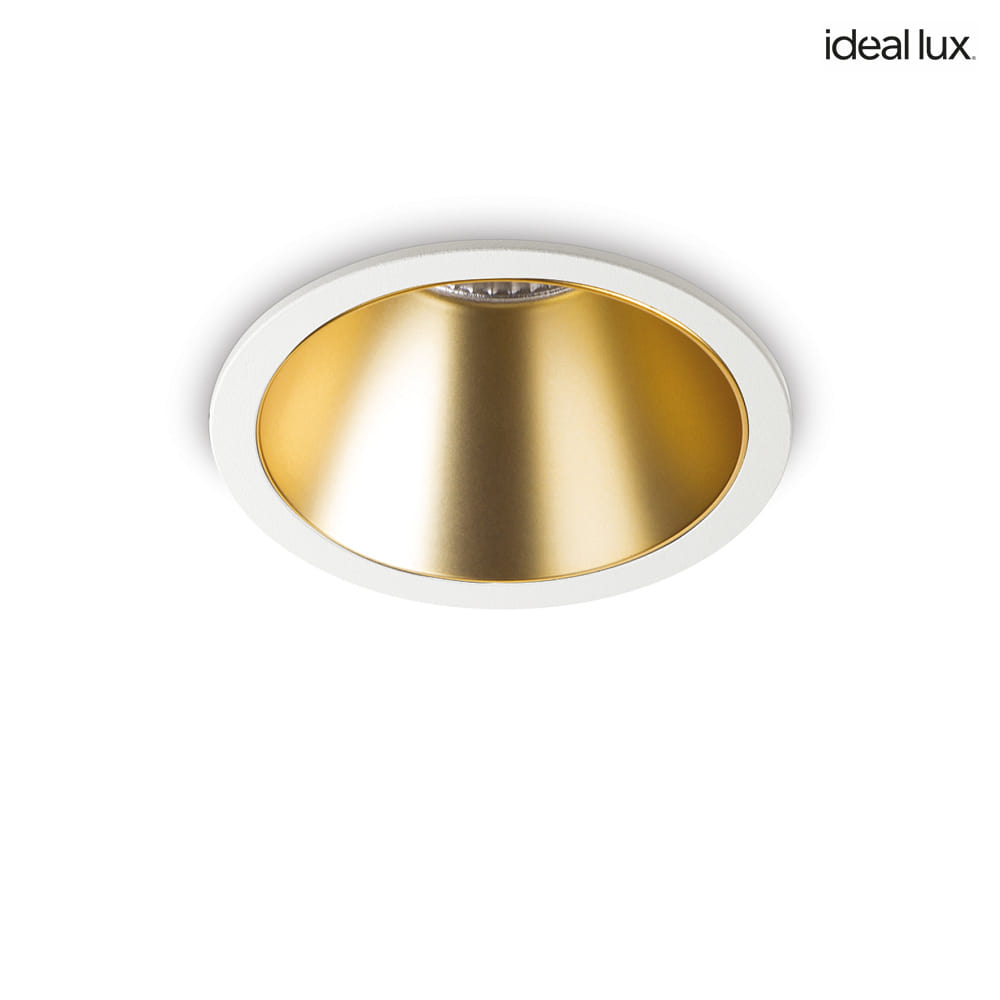

LED Ceiling Recessed Light GAME TRIM ROUND

The LED Ceiling Recessed Light GAME TRIM ROUND is a high-quality recessed spotlight made of die-cast aluminum. It is perfect for glare-free, true-color point lighting in demanding private areas, retail spaces, offices, reception desks, or other commercial areas. The luminaire is designed for recessed installation in cavity and panel ceilings in dry indoor areas.

Technical Details

The LED Ceiling Recessed Light has a diameter of 12 cm and a power of 20W. With a luminous flux of 1420lm and a color rendering index of >90Ra, it provides excellent lighting. The beam angle is 27° and the color temperature is 2700K. The luminaire has an average lamp lifespan of 50000 hours.

Design and Functionality

The round TRIM version of the Ceiling Recessed Light features a visible, protruding trim. With the recessed Bridgelux COB LED module and low glare effect (UGR <19), the luminaire is ideal for lighting at screen workstations. The color consistency (MacAdam) is 3 SDCM, ensuring a very low tolerance of light color deviations.

Accessories and Connection Options

The LED Ceiling Recessed Light comes with a switchable ON/OFF driver. The luminaire is dimmable, but requires a suitable external constant current driver (500mA, >20W) to use this function. A connection cable is not included, but can be purchased separately. The luminaire is connected to an external operating device via a terminal block.

Versatility and Expandability

The LED Ceiling Recessed Light is available in various light colors and housing colors. Additionally, other spotlights from the GAME series are available, with visible or flush trim, square or round. There are also round outdoor versions with protruding trim (TRIM) for outdoor use. With its modern design and high-quality construction, the Ceiling Recessed Light is an ideal solution for demanding lighting requirements.

Colour:
gold
white
Glass color:
transparent
Reflector color:
gold matt
Dimension:
total-Ø∕ H: 12∕ 10,5 cm
visible part-Ø∕ B: 12∕ 0,5 cm
min. material thickness-T: 0,1 cm
max. material thickness-T: 2 cm
Weight:
0,65 kg
Product type:
ceiling recessed luminaire
Operating voltage:
220-240 V
Dimmable:
no
Dimmability:
with optional features only,depending on the control gear
Power frequency:
50/60 Hz
Power consumption:
20 W
Emitting angle:
27 °
Number of bulbs:
1
Beam direction:
down
Light flux:
1420 lm
Colour temperature:
2700 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
20 cm
Fitting opening circle :
11 cm
Protection class:
2
IP-protection class:
IP40/IP20
Accessories:
clip springs included
driver included
connection cable excluded
ambient temperature:
0 … +40 °C
Energy consumption:
20 kWh/1.000 h
Article number:
IDEA-341392
Purchasing quantity:
1 piece
Brand:
Ideal Lux
Manufacturer:
Ideal Lux
Manufacturer information
Ideal Lux S.r.l., Via Taglio Destro, 32, 30035, Mirano, Italy, info@ideal-lux.com, http://www.ideal-lux.com
