ceiling recessed luminaire GAME TRIM ROUND 58MM round, rigid, UGR < 19, switchable IP40/IP20, white

Ideal Lux



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

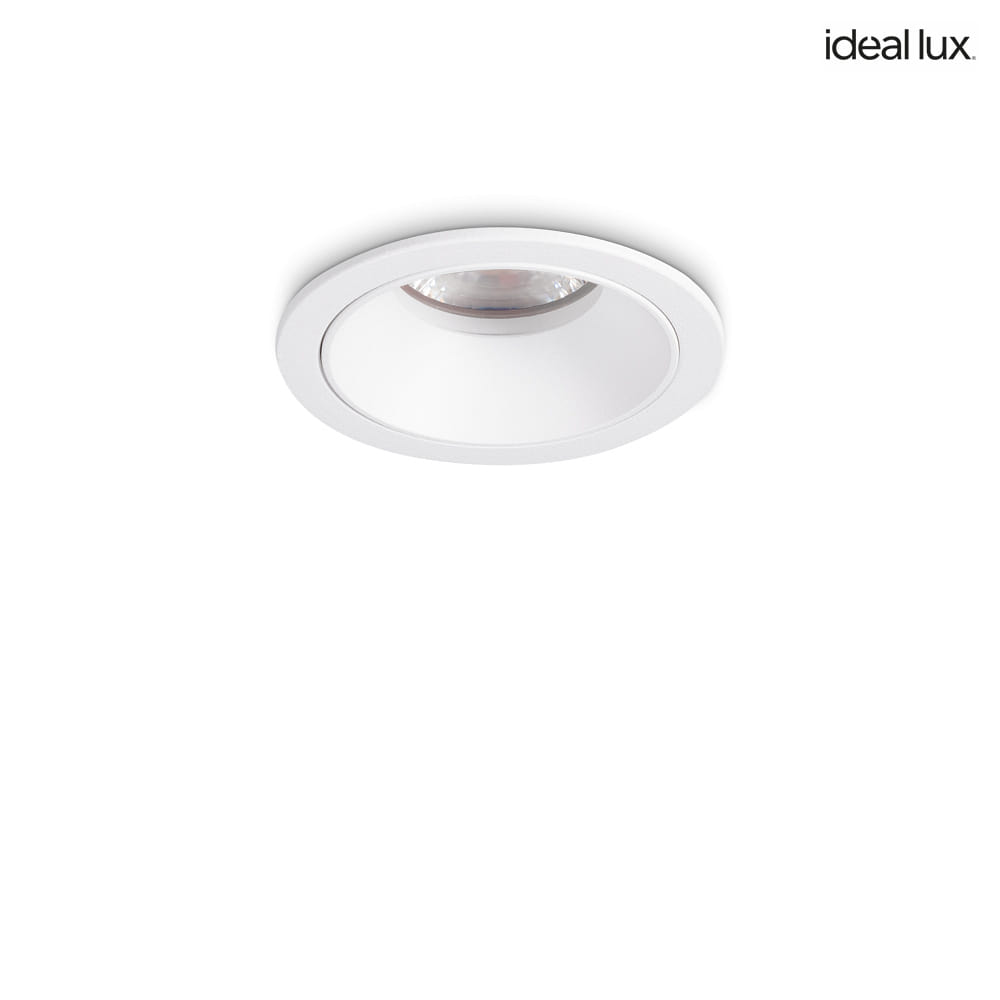

LED Ceiling Recessed Luminaire GAME TRIM ROUND, IP40 IK06, Ø 5.8cm, 5.5W 3000K 36°, CRi >90, UGR <19, on-off

The LED ceiling recessed luminaire GAME TRIM ROUND is a high-quality recessed spotlight made of die-cast aluminum. With a diameter of 5.8 cm and a power consumption of 5.5W, it is ideal for glare-free spot lighting in living spaces, offices, or other commercial areas.

Technical Details

The luminaire has a color rendering index of >90Ra, a luminous flux of 480lm, and an average lamp life of 50000 hours. Thanks to the recessed CREE COB LED module and low glare effect (UGR <19), the luminaire is also ideal for lighting screen workstations.

Design and Customization

The ceiling recessed luminaire is available in various light colors and housing colors. Furthermore, other luminaires from the GAME series are available, with either visible or flush trims, square or round. There is also a round outdoor version with an overhanging trim (TRIM).

Dimmability and Accessories

The luminaire is dimmable and comes with a switchable ON/OFF driver. To use the dimming function, a suitable external constant current driver must be ordered separately and replaced. Accessories such as clip springs and drivers are included in the delivery.

Installation and Application

The ceiling recessed luminaire is suitable for recessed installation in cavity and panel ceilings in dry indoor areas. With an IP protection rating of IP40 and IP20, as well as protection class 2, the luminaire is safe and efficient for use in various environments.

Colour:
white
Glass color:
transparent
Reflector color:
white matt
Dimension:
total-Ø∕ H: 5,8∕ 4 cm
visible part-Ø∕ B: 5,8∕ 0,4 cm
min. material thickness-T: 0,1 cm
max. material thickness-T: 2 cm
Weight:
0,2 kg
Product type:
ceiling recessed luminaire
Operating voltage:
220-240 V
Dimmable:
no
Dimmability:
with optional features only,depending on the control gear
Power frequency:
50/60 Hz
Power consumption:
5,5 W
Emitting angle:
36 °
Number of bulbs:
1
Beam direction:
down
Light flux:
480 lm
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
9,7 cm
Fitting opening circle :
5 cm
Protection class:
2
IP-protection class:
IP40/IP20
Accessories:
clip springs included
driver included
connection cable excluded
ambient temperature:
0 … +40 °C
Energy efficiency category:
F
Energy consumption:
6 kWh/1.000 h
Article number:
IDEA-337142
Purchasing quantity:
1 piece
Brand:
Ideal Lux
Manufacturer:
Ideal Lux
Manufacturer information
Ideal Lux S.r.l., Via Taglio Destro, 32, 30035, Mirano, Italy, info@ideal-lux.com, http://www.ideal-lux.com
