LED Ceiling luminaire SOLID 1.0, 10W 3000K, CRi >90, rotatable/swivelling, DALI dimmable, bronze black

High-Quality LED Surface-Mounted Downlight SOLID 1.0

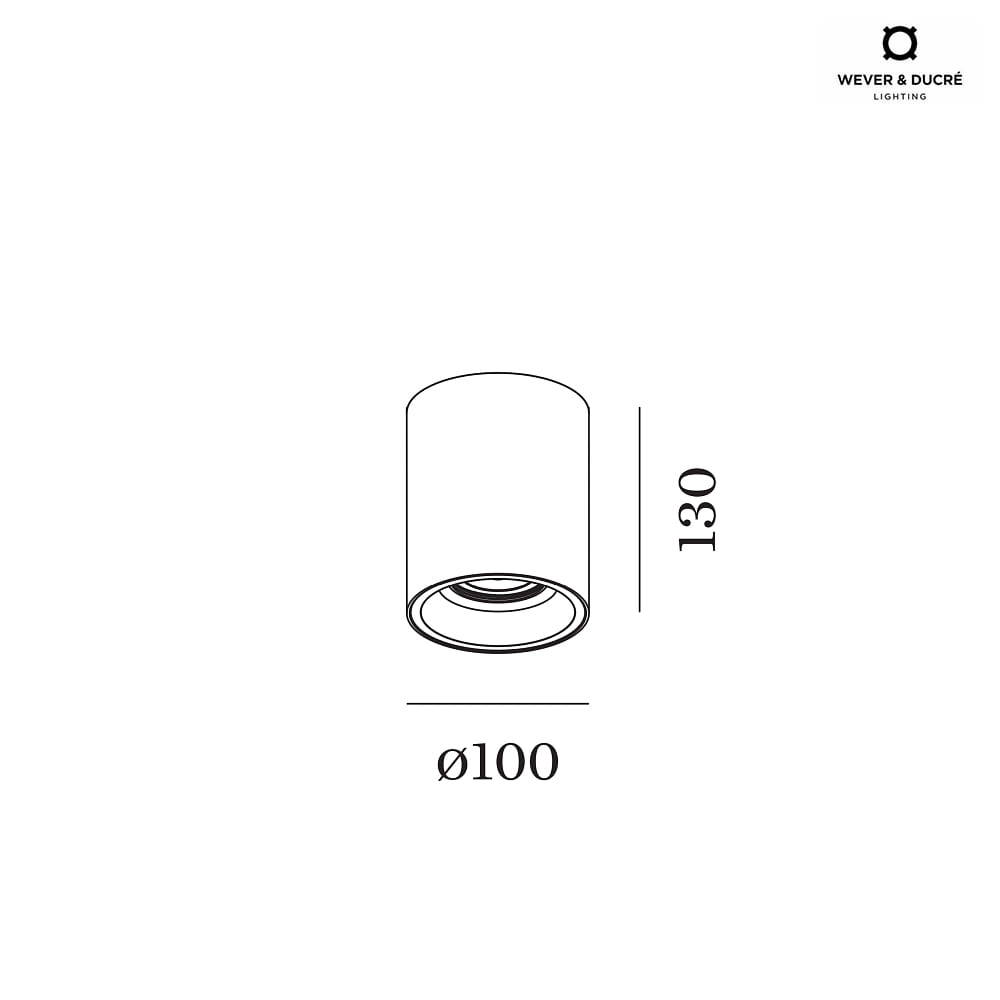

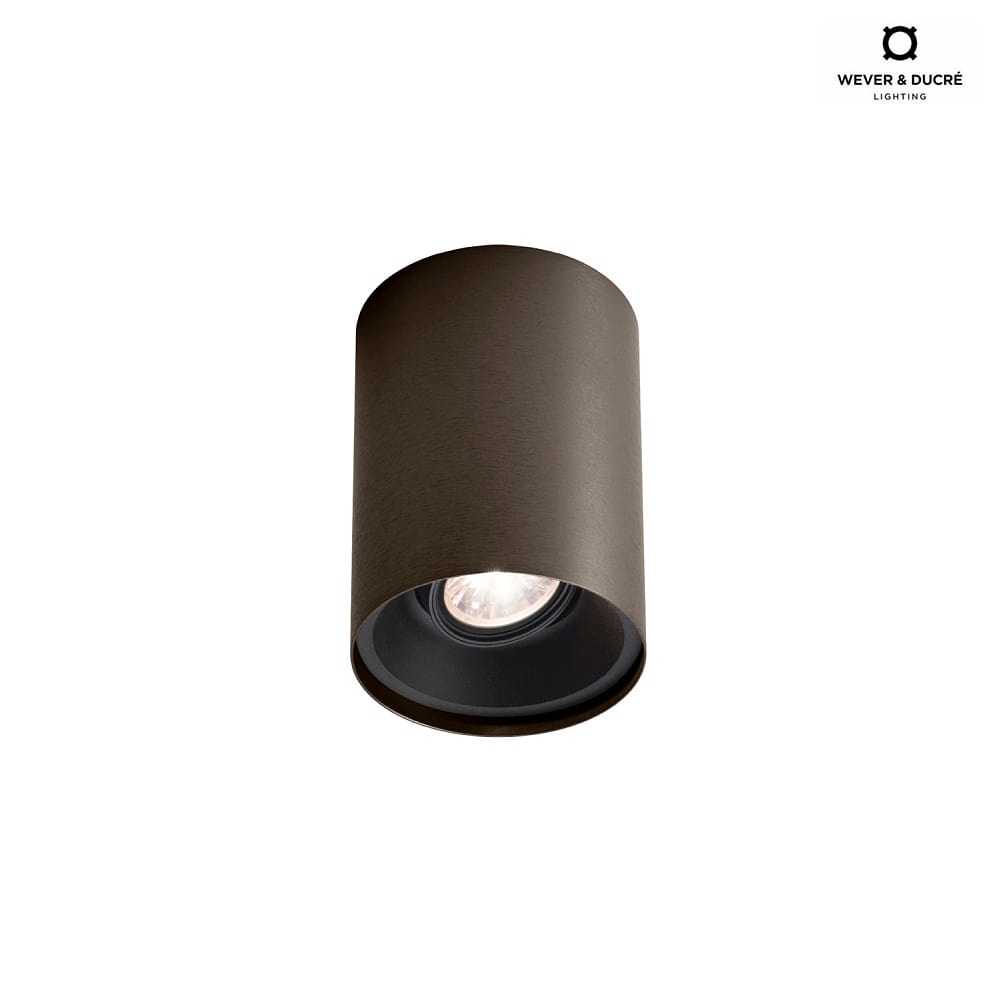

The LED surface-mounted downlight SOLID 1.0 from Wever & Ducré impresses with its robust construction made of powder-coated and wet-painted die-cast aluminum. Weighing only 0.65 kg and with a compact size of 10 cm in diameter and 13 cm in height, the round luminaire integrates elegantly into any room concept. The elegant bronze-colored housing provides a modern and stylish appearance, available in various color shades. Installation is simple as a surface-mounted fixture, with the LED module being gimbal-mounted and rotatable up to 355°, allowing flexible adjustment of the light beam.

Efficient and Long-Lasting LED Technology

The luminaire features a fixed COB LED with a power of 12.2 watts and a luminous efficacy of 73 lumens per watt. This results in a luminous flux of 900 lumens at a warm white color temperature of 3000 Kelvin, which creates a pleasant and natural atmosphere. The average lifespan of the LED is an impressive 50,000 hours, ensuring infrequent lamp changes. The LED is not replaceable; however, the driver can be replaced by the end user, facilitating maintenance.

Excellent Color Rendering and Light Quality

With a color rendering index of over 90 Ra, the SOLID 1.0 offers very good color rendering of grade 1A. This means colors appear particularly natural and vivid, which is especially important in demanding environments. The light distribution is direct with a beam angle of 34°, allowing targeted and concentrated use of the light. Color consistency is ensured by a low MacAdam ellipse of 2 SDCM, guaranteeing uniform light color across multiple luminaires.

Intelligent Control via DALI-2 Dimmability

The surface-mounted downlight is equipped with a DALI-2 interface that enables digital and stepless dimming. This allows the light to be optimally adjusted to various requirements and moods. The integrated LED driver permits direct connection to 230V mains voltage, simplifying installation. The scope of delivery includes terminal block, LED module, plug, and driver; however, a dimmer is sold separately. The luminaire is ideal for integration into modern building automation systems and ensures flexible and energy-efficient light control.

Versatile Use and Practical Details

The SOLID 1.0 downlight is ideal for ceiling installation and was specially designed for dry indoor areas. Thanks to protection class 1 and IP20, it is suitable for protection against foreign objects larger than 12 mm. The luminaire operates at a mains frequency of 50-60 Hz and a supply voltage of 220-240 volts. Robust manufacturing and high-quality workmanship guarantee durable and reliable use. Furthermore, the product is part of the SOLID series, which offers additional variants in different housing colors, light colors, and beam angles to realize individual lighting concepts.
