DALI controllable Luminaire adapter for S-TRACK, white

Versatile 3-Phase Adapter for S-TRACK Rail Systems

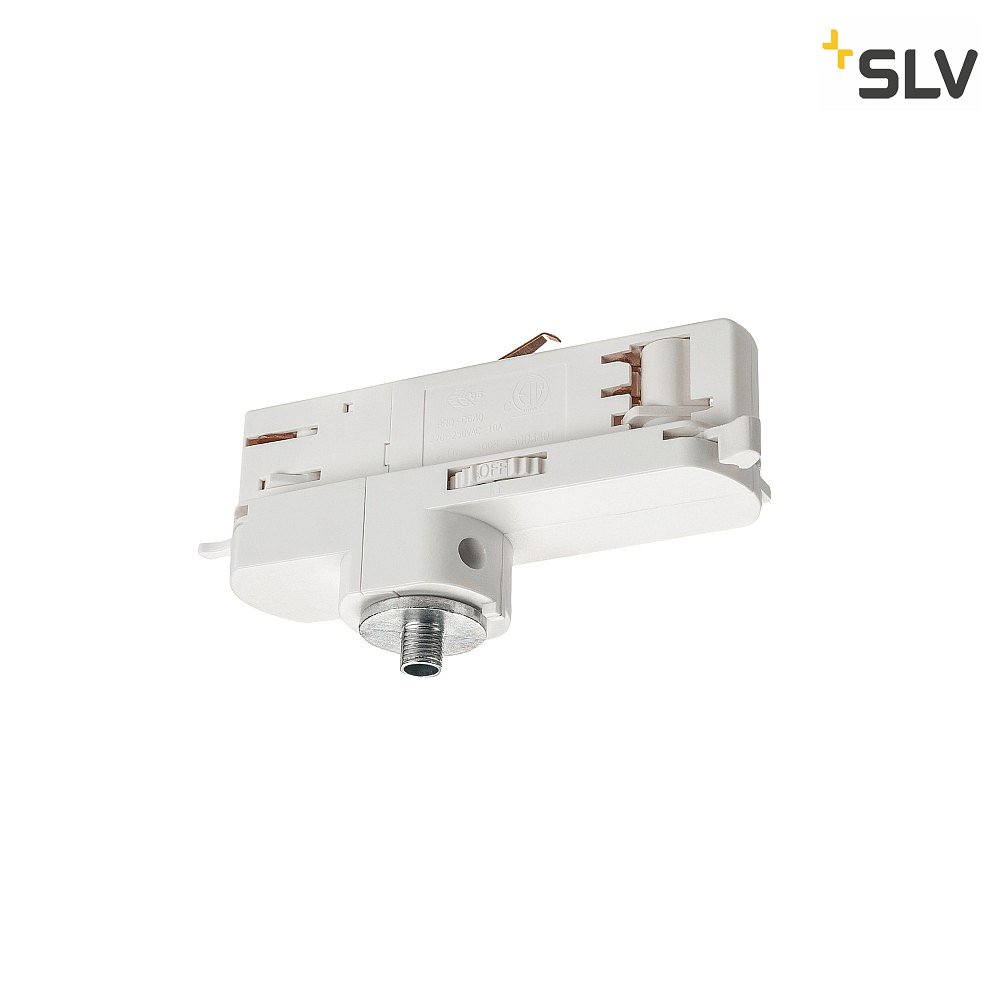

The 3-phase power rail adapter from SLV is specifically designed for the S-TRACK PHASE & DALI system. It allows pendant lights with exposed cables to be easily and safely integrated into the rail system. Thanks to its universal design, the adapter is suitable for both recessed and surface-mounted rails. It provides a reliable connection and enables flexible positioning of the lights along the power rail.

Technical Details and Material Quality

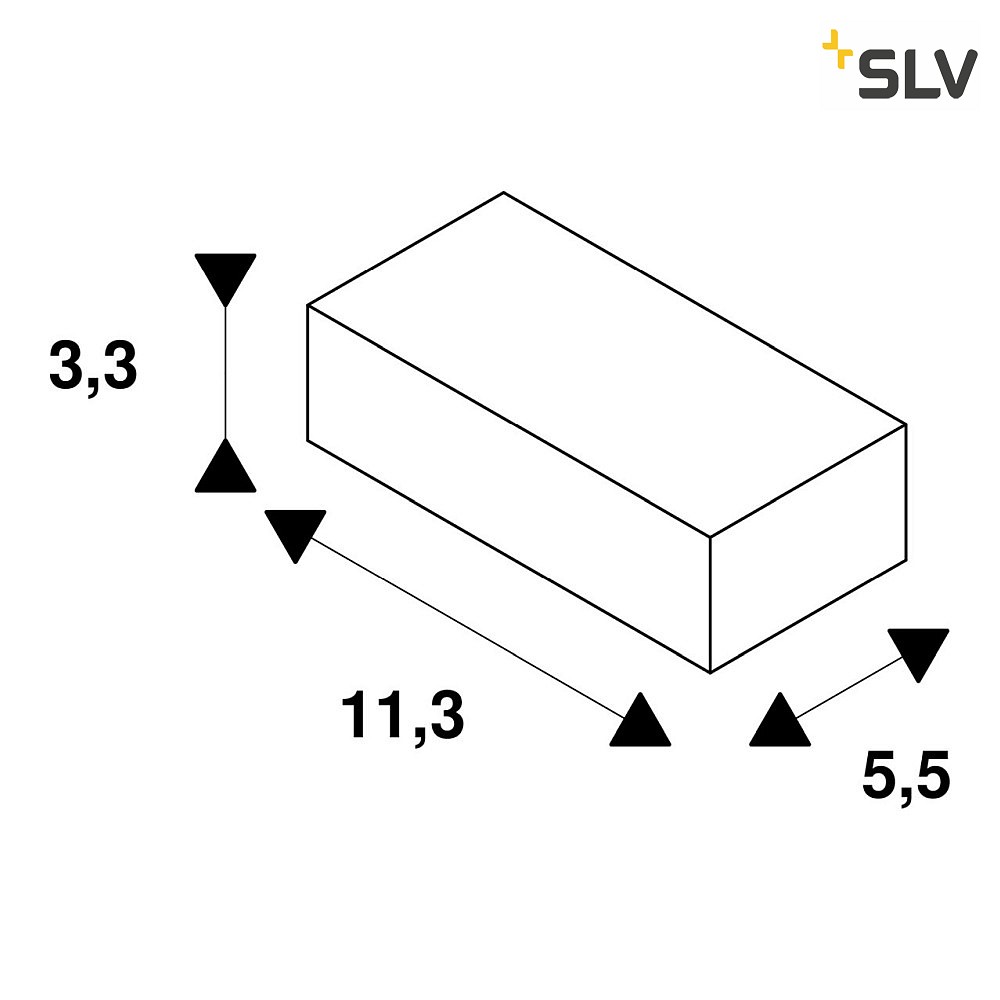

The adapter is made of robust polycarbonate (PC) and comes in a modern white finish that discreetly blends into many room concepts. Measuring 11.3 x 5.5 x 3.3 cm and weighing only 85 grams, it is compact and lightweight. Protection class 1 and IP20 rating ensure safe use. The maximum current load is 16 amperes, while the weight load capacity is up to 10 kg, guaranteeing secure mounting of various lights.

Integration into Digital Control Systems

The SLV adapter is DALI-dimmable, making it ideal for modern lighting controls. Thanks to the integrated mode switch, it is compatible with DALI-controllable rail systems as well as ON/OFF switching functions. DALI-compatible components can be digitally addressed and evaluated individually, allowing for customized lighting control and adjustment. This makes the adapter perfect for integration into digital building automation systems.

Convenient Features for Easy Installation

Included in the delivery are a switch, strain relief, and an intermediate switch that facilitate the mounting and handling of the adapter. The integrated strain relief ensures that the exposed cable remains securely fixed and prevents unwanted stress. The phase selection allows simple adaptation to the respective rail system. The operating voltage is 220-250V~ at a mains frequency of 50/60 Hz.

Practical Application and Optimal Compatibility

This 3-phase adapter is the perfect solution for safely integrating luminaires with a 230V AC supply voltage into your S-TRACK rail system. The combination of high-quality materials, easy handling, and digital controllability makes it an indispensable accessory for flexible lighting solutions. Although the 3-phase rail and the luminaire are not included in the delivery, the adapter complements the system perfectly and ensures efficient and individual lighting design.
