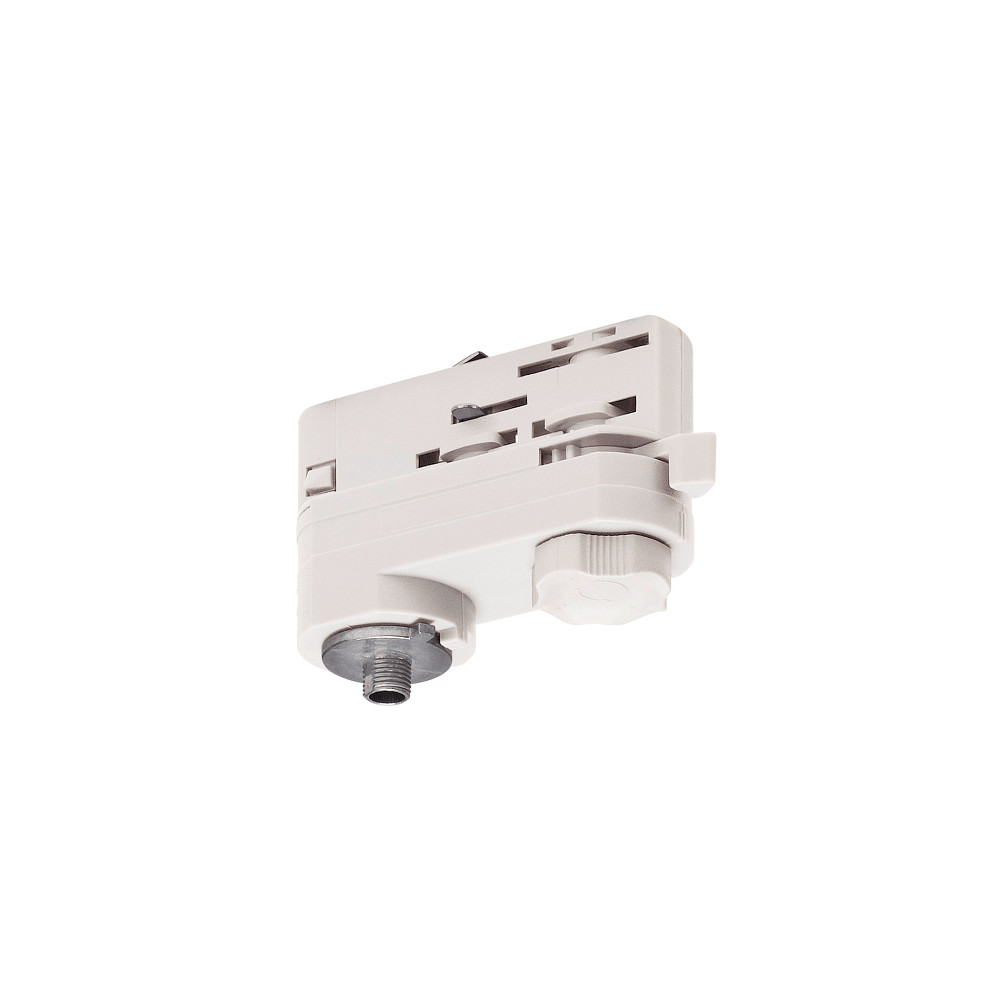

Luminaire adapter for S-TRACK 3-Phase high-voltage track, traffic white RAL 9016

Flexible 3-Phase Pendant Light Adapter for S-TRACK Rail Systems

The pendant light adapter from SLV is a high-quality accessory for 3-phase power rails of the S-TRACK system. It allows for the simple and flexible integration of pendant lights with open cables into the rail system. The adapter is specifically designed for switchable rail systems (ON/OFF) and ensures reliable power supply at an operating voltage of 220-250V~ and a mains frequency of 50/60Hz.

Robust Design and Easy Handling

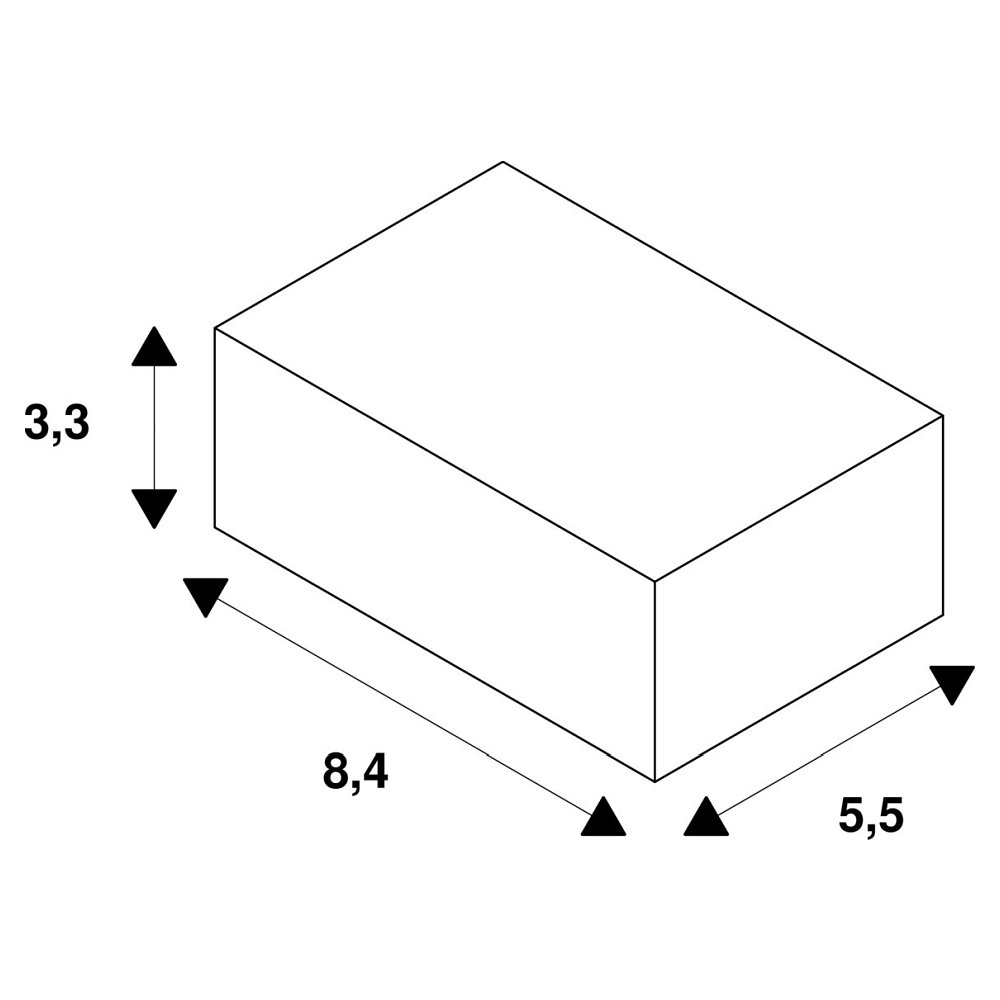

Made from aluminum and polycarbonate (PC), the adapter impresses with its durable and stable construction. Weighing only 0.08 kg, it is particularly lightweight yet sturdy. The maximum load capacity is 10 kg, ensuring secure mounting of pendant lights. The compact size of 8.4 x 5.5 x 3.3 cm makes the adapter unobtrusive and space-saving.

Integrated Features for More Safety and Comfort

The adapter features an integrated strain relief that protects the cable from mechanical stress, thereby increasing its lifespan. Additionally, phase selection is possible, allowing easy control and adjustment within the 3-phase rail system. The included switch offers convenient operation directly on the adapter, eliminating the need for external switches.

Easy Integration into Existing Rail Systems

This electrical plug-in adapter is universally applicable and suitable for both recessed and surface-mounted rails of the S-TRACK 3-phase system. Although the 3-phase rail and the light fixture are not included in the scope of delivery, the adapter enables effortless connection of lights with 230V AC supply voltage and open cable ends. This way, you benefit from a flexible and modular lighting system.

Technical Details and Protection Class

The adapter is classified as protection class 1 and has an IP rating of IP20, protecting it against the ingress of solid foreign objects. The maximum current load capacity is 16A, allowing even high-power lights to be connected without problems. The white color blends unobtrusively into many room concepts and completes the product design.
