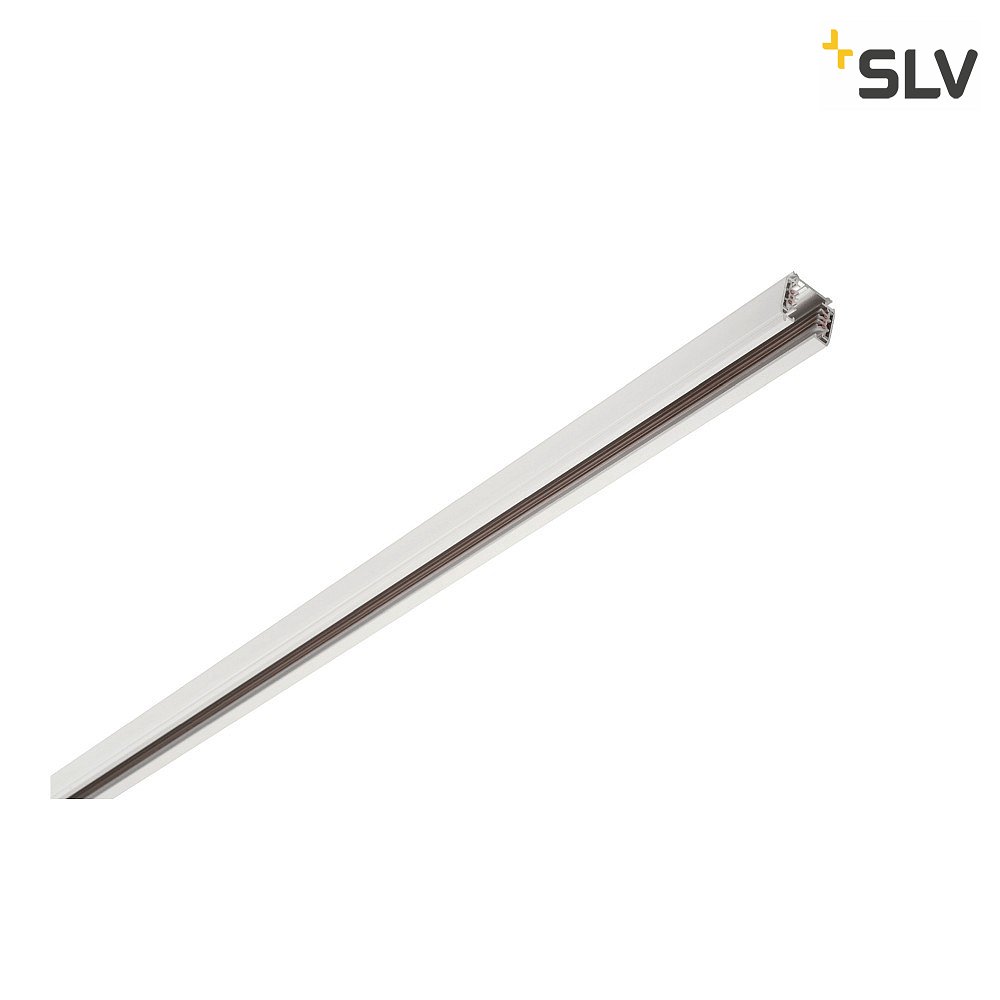

S-TRACK 3-Phase High voltage track 200cm, DALI controllable, white

High-Quality 3-Phase HV Surface-Mounted Busbar System

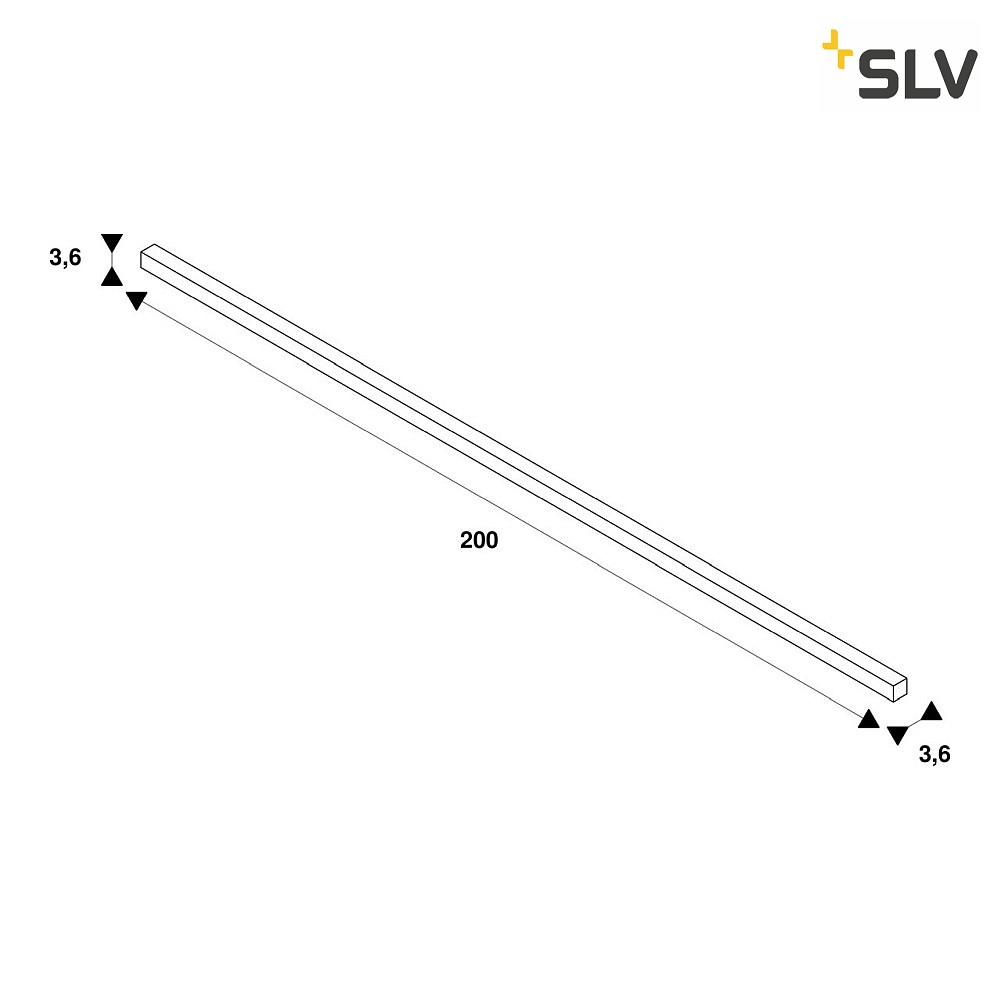

The 3-phase HV surface-mounted busbar S-TRACK PHASE & DALI from SLV is a modern and flexible solution for easy integration of lighting systems. With a length of 200 cm, the busbar is ideal for a wide range of applications in ceiling and wall areas. Made from robust aluminum, plastic, and copper, the product guarantees a stable and durable construction while maintaining a low weight of only 2.254 kg.

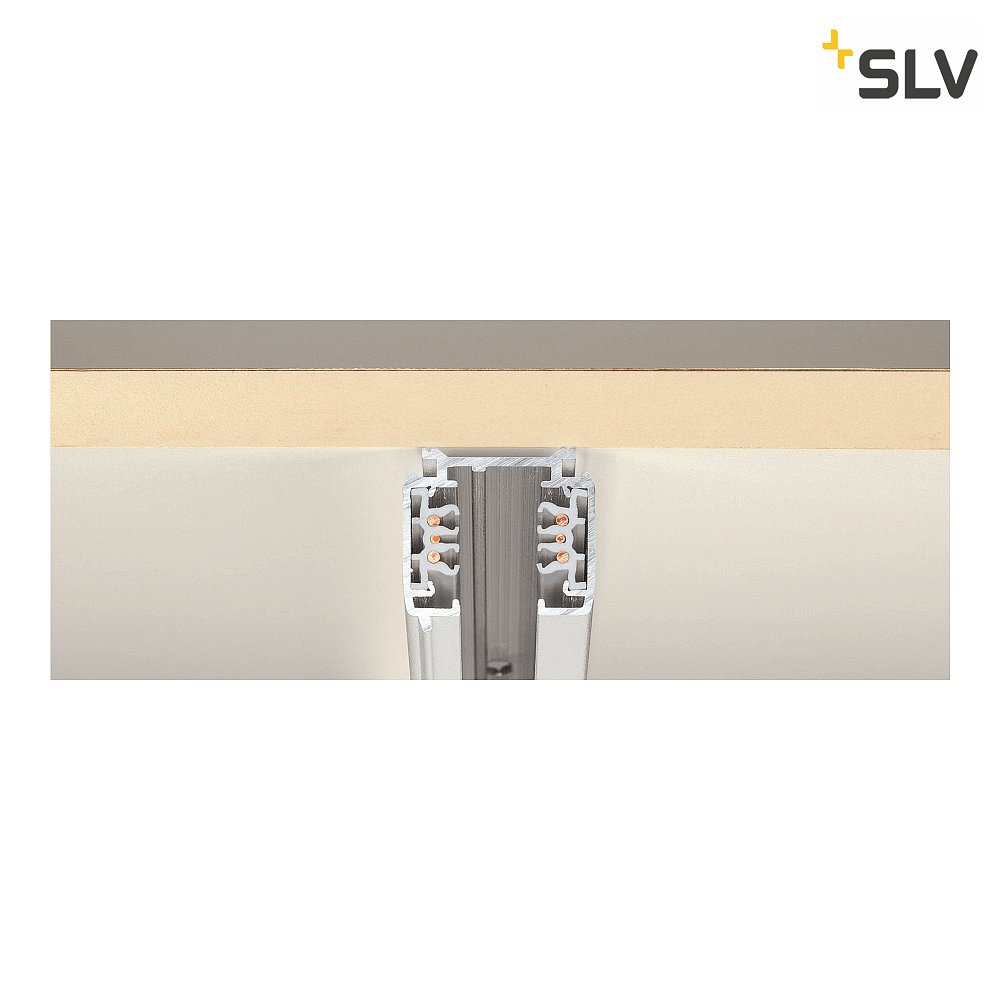

Easy Installation and Versatile Mounting Options

The busbar is designed for surface mounting and can be easily installed. Optional accessories such as suspensions, power feed units, end caps, or connector plugs are available separately and allow for individual customization. Additionally, the busbar can be cut to the desired length using a standard metal hacksaw, providing extra flexibility during installation.

Flexible Control with DALI Compatibility

The S-TRACK PHASE & DALI busbar features integrated DALI signal lines, enabling digital control of the connected luminaires. This allows DALI-compatible components to be individually addressed, controlled, and evaluated. This makes the system especially suitable for modern digital building automation systems where precise and convenient lighting control is desired.

Technical Details and Safety

With an operating voltage of 220-250 V~ and a maximum current load of 16A, the busbar is powerful and reliable. Protection class 1 and protection rating IP20 ensure the necessary safety during operation. The mains frequency is 50/60 Hz, ensuring compatibility with most power grids. The mains connection is made via a power feed adapter that provides a secure and simple connection.

Design and Adaptability

The simple and timeless design in white blends unobtrusively into various environments. The busbar is available in several lengths and also in black, making it easy to tailor to individual needs. Thanks to its modular design and simple expandability, the S-TRACK PHASE & DALI is a future-proof solution for flexible lighting concepts.
