ceiling recessed luminaire PANEL FLAT 170 R SCCT DIM C round, CCT Switch, dimmable IP44, black dimmable

Elegant LED Recessed Panel with Versatile Light Colors

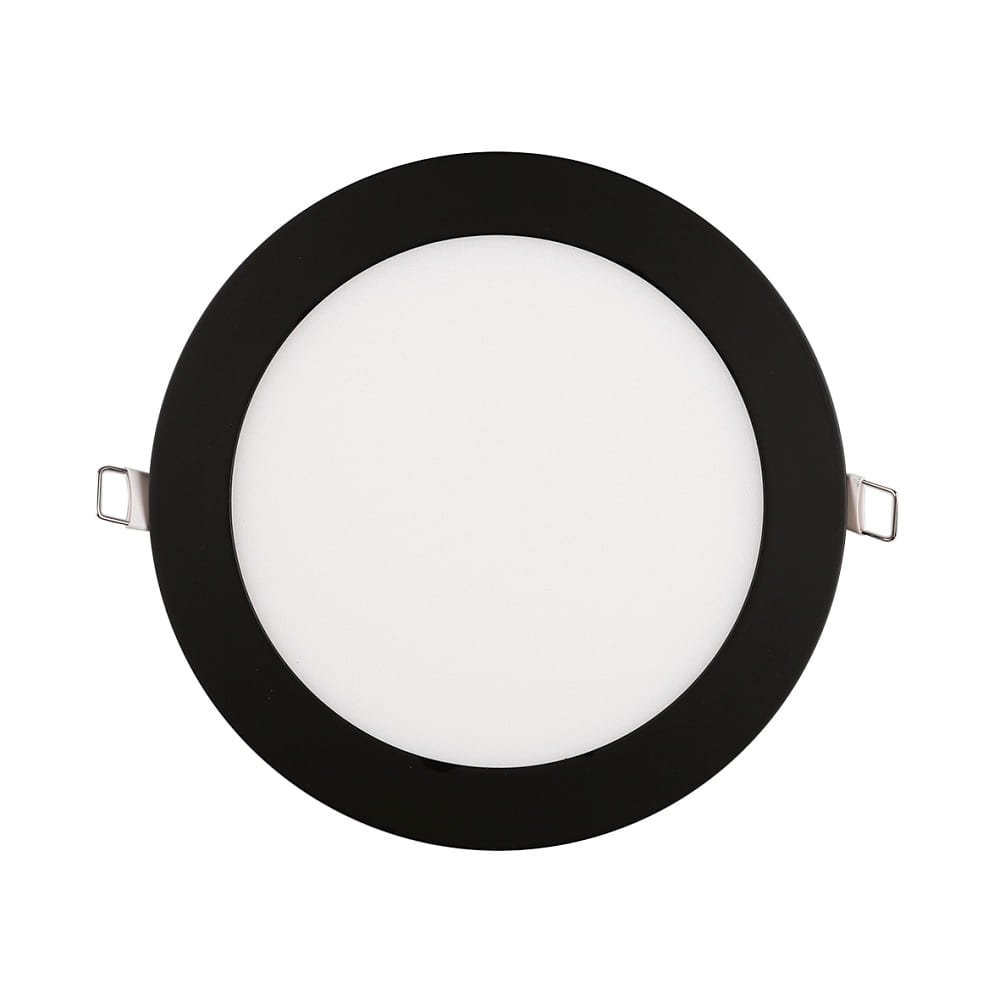

The LED recessed panel FLAT 170 R SCCT DIM C from nobilé impresses with its modern, round design featuring a diameter of 17 cm and a slim construction with an installation depth of only 2.5 cm. The luminaire offers a continuously dimmable light color that can be set between warm white (3000K), neutral white (4000K), and cool white (5700K). This allows the panel to adapt perfectly to different lighting moods and needs. With a color rendering index of over 80Ra, it ensures natural color reproduction and pleasant lighting in any room.

Efficient and Long-Lasting Lighting

With a power consumption of only 11 watts, the LED panel delivers a strong luminous flux of 1200 lumens with an impressive luminous efficacy of 109 lumens per watt. This saves energy and protects the environment. The average lifespan of 75,000 hours guarantees long usage without frequent lamp changes. Thanks to the high-quality diffuse light distributor made from yellowing-resistant PMMA, the light is emitted evenly and glare-free, creating a pleasant room atmosphere.

Practical Features for Easy Installation

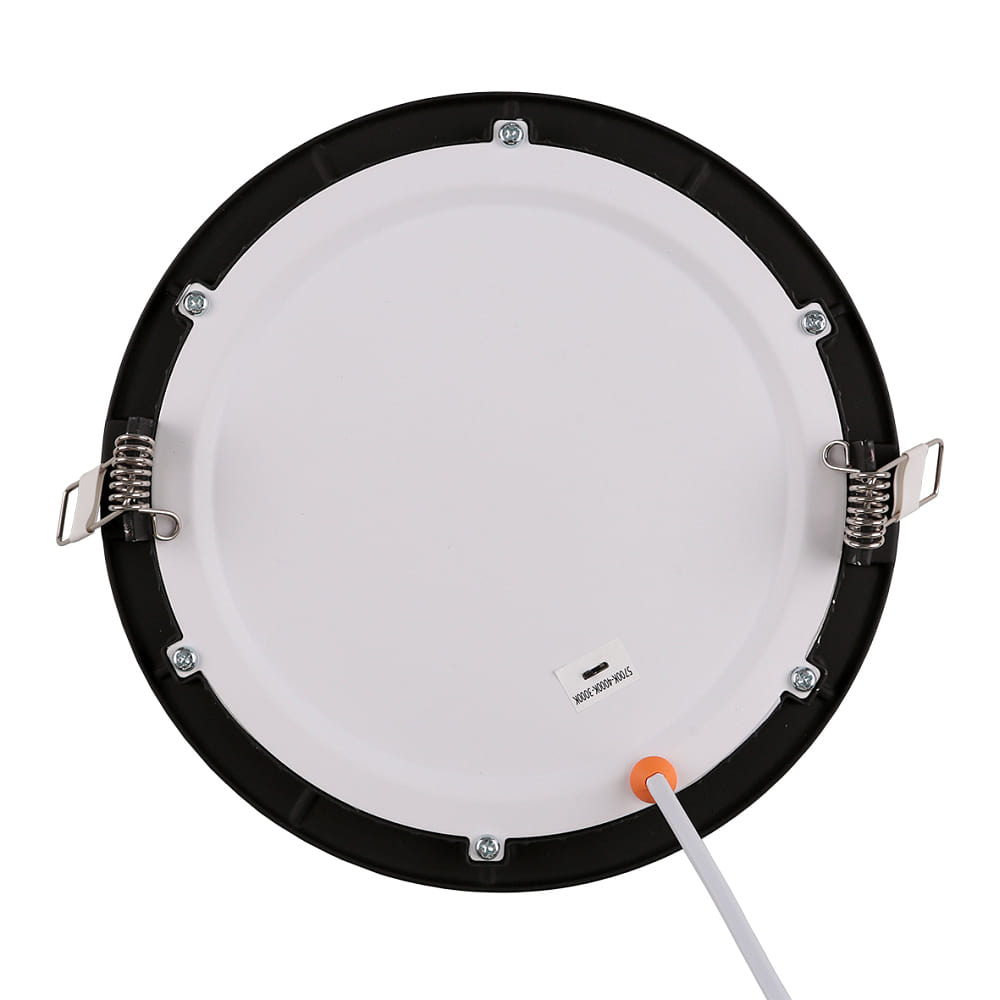

The recessed panel comes with a connection box including through-wiring and plug-in terminals, which significantly simplifies installation. Clip springs for secure fixing are also included. The operating voltage is 220-240 volts with a mains frequency of 50-60 Hz. The IP44 protection rating provides protection against splashing water and dust, making the panel suitable for use in more humid areas as well. The robust housing made of painted aluminum combines lightness with stability.

Flexible Applications and Design Variants

The flat, round diffuser lamp is ideal for a wide range of applications, including offices, shops, or sanitary rooms. In addition to the round shape, the product is also available in square versions and various sizes. There is also a choice between black or white housing, allowing the design to harmoniously blend into different room concepts. The dimmable version uses a phase-cut dimmer that enables stepless brightness adjustment.

High Quality and Technical Details

The LED panel meets high technical standards with a color consistency of 4 SDCM, ensuring uniform light color. Protection class II guarantees safe use without a protective conductor. The combination of an aluminum housing and high-quality PMMA diffuser ensures a durable and sturdy luminaire. Weighing only 0.32 kg, the panel is easy to handle. Overall, the product offers a modern, energy-efficient, and flexible lighting solution for diverse requirements.
