ceiling recessed luminaire PANEL FLAT 145 R SCCT DIM C round, CCT Switch, dimmable IP44, black dimmable

Modern LED Recessed Panel with Versatile Light Colors

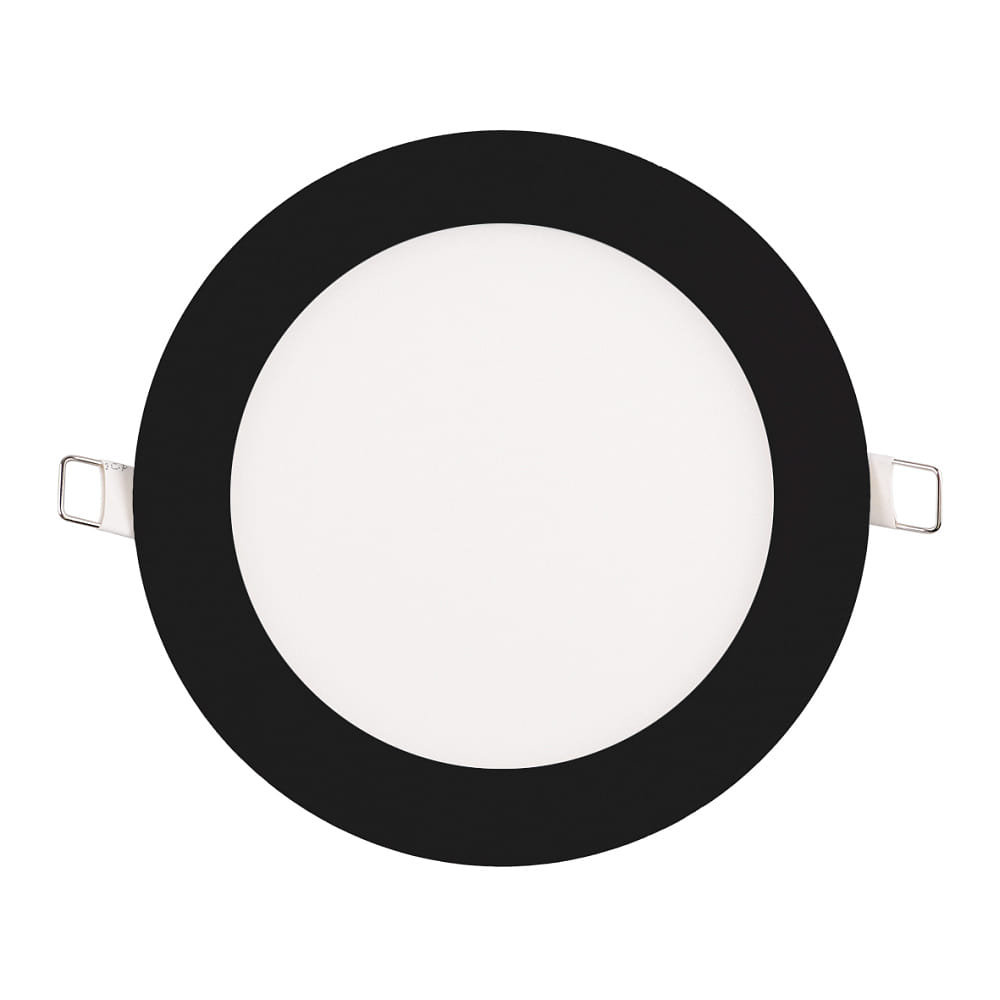

The FLAT 145 R SCCT DIM C LED recessed panel from nobilé impresses with its flexible light color selection. You can choose between warm white (3000K), neutral white (4000K), and cool white (5700K) to optimally adjust the lighting to your needs. The stepless dimming function also allows for individual light intensity, creating a pleasant atmosphere. With a diameter of 14.5 cm and a slim installation depth of only 2.5 cm, the round panel integrates discreetly and elegantly into any ceiling.

High-Quality Materials and Durable Technology

The housing of the recessed panel is made of painted aluminum, providing stability and a modern design. The light distributor and diffuser are made of yellowing-resistant polymethyl methacrylate (PMMA), ensuring even and pleasant light distribution. With a lifespan of up to 75,000 hours, the panel is especially durable and low-maintenance. Its energy efficiency, consuming 8 watts while delivering 900 lumens of luminous flux, makes the product environmentally friendly and cost-effective.

Technical Details and Easy Installation

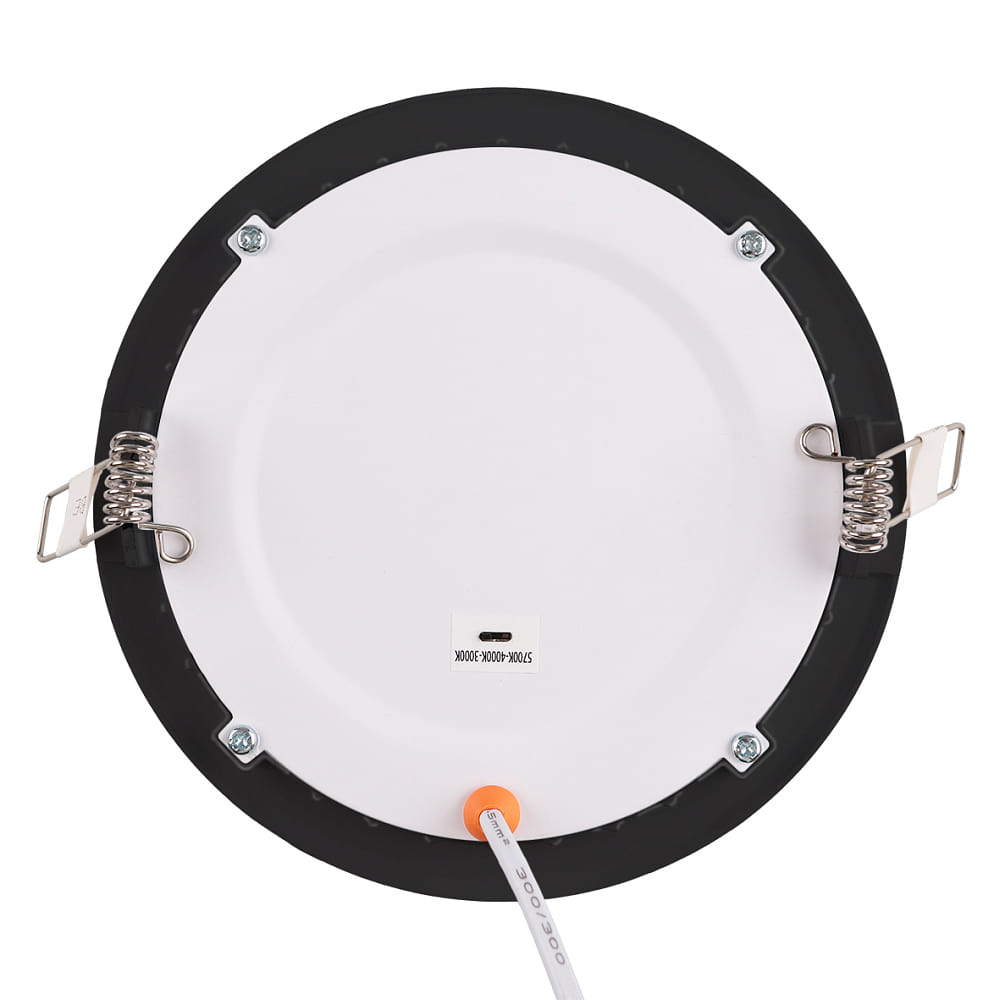

The LED panel features a beam angle of 120°, providing wide and even light emission. The junction box with through-wiring and clip springs is included, allowing for quick and uncomplicated installation. The 45 cm long connection cable and terminals facilitate the mains connection. The panel operates at a voltage of 220-240V~ and a mains frequency of 50-60 Hz. Protection class IP44 guarantees protection against splashing water and dust, expanding its range of applications.

Optimal Color Quality and Light Efficiency

With a color rendering index of over 80 Ra and a color consistency of 4 SDCM, the LED panel offers excellent color rendering in class 1B. This means colors appear natural and vivid. The light efficiency of 112 lumens per watt ensures that the panel delivers high brightness despite low energy consumption. This makes it ideal for general lighting in various areas where good lighting is important for well-being and productivity.

Versatile Accessories and Variable Applications

The product comes with extensive accessories, including a junction box, clip springs, light color switch, and a replaceable driver. A dimmer is available separately to optimally control the dimming function. The robust construction and combination of functionality and design make the LED recessed panel an excellent choice for numerous lighting requirements. Additionally, the panel is available in various sizes and with black or white housings, allowing flexible adaptation to different room concepts.
