ceiling recessed luminaire GAME TRIM ROUND 58MM round, rigid, UGR < 19, switchable IP40/IP20, gold, black

Ideal Lux



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

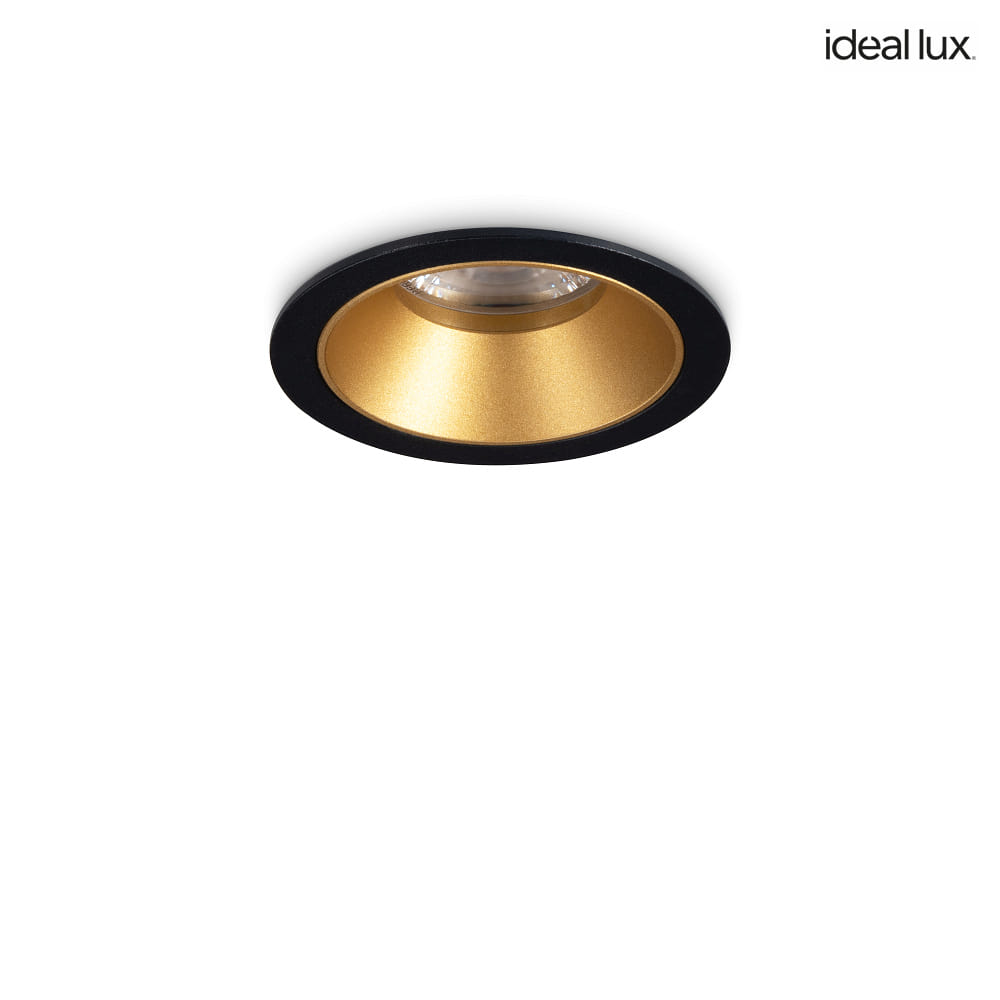

LED Ceiling Recessed Light GAME TRIM ROUND

The LED Ceiling Recessed Light GAME TRIM ROUND is a high-quality recessed light made of die-cast aluminum. It is ideal for glare-free and color-accurate point lighting in demanding private areas, retail spaces, offices, reception desks, and other commercial areas. This light is specially designed for recessed mounting in cavity and panel ceilings in dry indoor areas.

Technical Data and Details

The LED recessed light has a diameter of 5.8cm and a power consumption of 5.5W. It provides a luminous flux of 470lm and has a color rendering index of >90Ra. The beam angle is 36° and the glare effect is <19 UGR, making it ideal for lighting at computer workstations.

Design and Application

This round TRIM version of the Ceiling Recessed Light GAME is equipped with a recessed CREE COB LED module. It features a visible protruding trim and is available in gold and black colors. The light is dimmable and comes with a switchable ON/OFF driver. An external constant current driver can be ordered separately to use the dimming function.

Accessories and Additional Information

Included in the delivery are clip springs and the driver. The connection cable is not included. The light has energy efficiency class F and with an energy consumption of 6kWh/1,000h, it is very economical to operate. It is suitable for an operating voltage of 220-240V and has an average lamp life of 50,000 hours.

Variations and Extensions

The Ceiling Recessed Light GAME TRIM ROUND is available in different light colors and housing colors. There are also other spotlights in the GAME series available with different trims and shapes. For outdoor use, round outdoor versions with protruding trims are also available.

Colour:
gold
black
Glass color:
transparent
Reflector color:
gold matt
Dimension:
total-Ø∕ H: 5,8∕ 4 cm
visible part-Ø∕ B: 5,8∕ 0,4 cm
min. material thickness-T: 0,1 cm
max. material thickness-T: 2 cm
Weight:
0,2 kg
Product type:
ceiling recessed luminaire
Operating voltage:
220-240 V
Dimmable:
no
Dimmability:
with optional features only,depending on the control gear
Power frequency:
50/60 Hz
Power consumption:
5,5 W
Emitting angle:
36 °
Number of bulbs:
1
Beam direction:
down
Light flux:
470 lm
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
IK-Rating:
IK06 up to 1.00 Joule
Fitting depth:
9,7 cm
Fitting opening circle :
5 cm
Protection class:
2
IP-protection class:
IP40/IP20
Accessories:
clip springs included
driver included
connection cable excluded
ambient temperature:
0 … +40 °C
Energy efficiency category:
F
Energy consumption:
6 kWh/1.000 h
Article number:
IDEA-349077
Purchasing quantity:
1 piece
Brand:
Ideal Lux
Manufacturer:
Ideal Lux
Manufacturer information
Ideal Lux S.r.l., Via Taglio Destro, 32, 30035, Mirano, Italy, info@ideal-lux.com, http://www.ideal-lux.com
