wall luminaire PRO SQUARE 70 DOWN 1 flame, square, CCT Switch IP65, white dimmable

Deko-Light



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

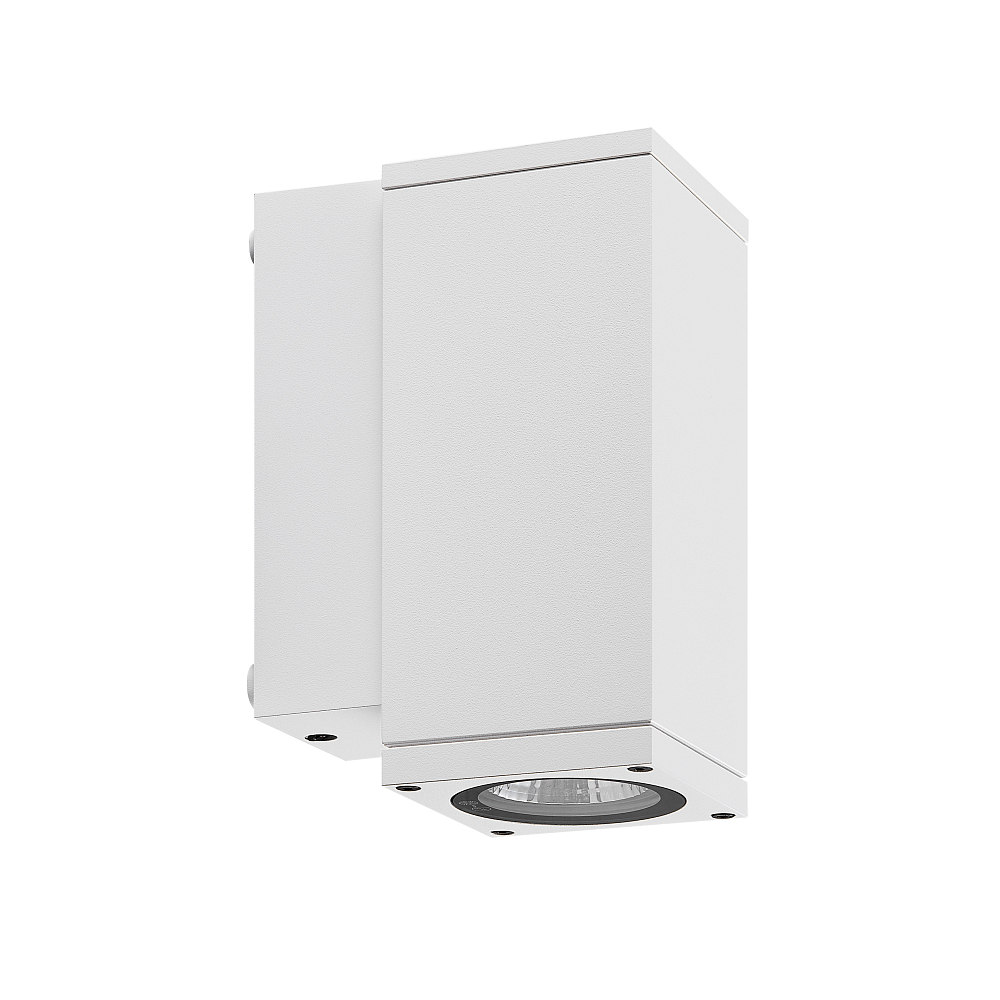

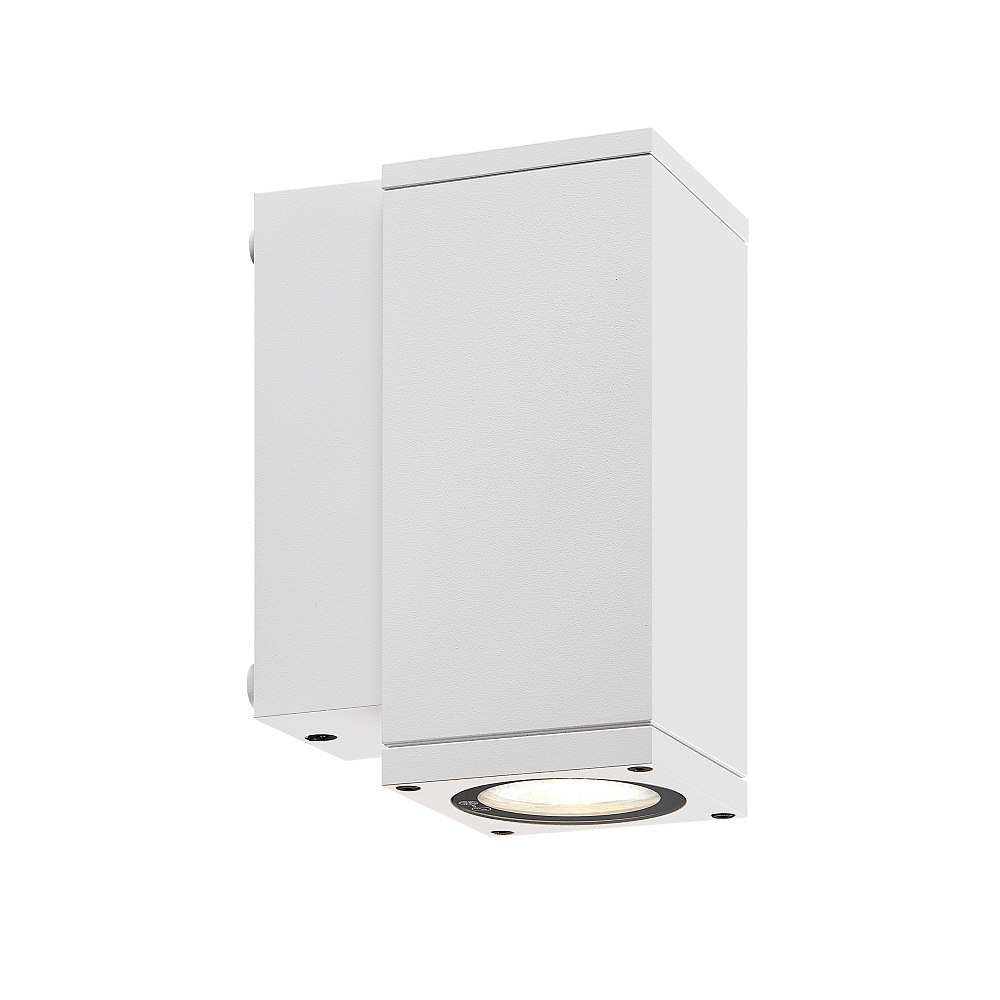

Deko-Light wall luminaire PRO SQUARE 70 DOWN 1 flame, square, CCT Switch IP65, white dimmable

Modern LED Wall Light with Efficient Lighting Technology

The LED wall light SHORELINE PRO SQUARE 70 DOWN from Deko-Light impresses with its high-quality workmanship and state-of-the-art LED technology. With a power consumption of only 6 watts, it produces a luminous flux of up to 550 lumens with an excellent luminous efficacy of 91 lumens per watt. The fixture offers two color temperatures – warm white (3000K) and neutral white (4000K) – which can be adjusted continuously. This allows you to customize the light to your individual needs and create a pleasant atmosphere.

Robust Design and High Protection Standard

The SHORELINE PRO SQUARE 70 DOWN is equipped with the IP65 protection rating, providing effective protection against dust and water. Additionally, the IK08 classification ensures high resistance to impacts and vandalism. The sturdy housing made of white material is also resistant to sea air, making the luminaire particularly durable. With an average lifespan of 50,000 hours, this product guarantees a sustainable and reliable lighting solution.

Flexible Applications and Easy Installation

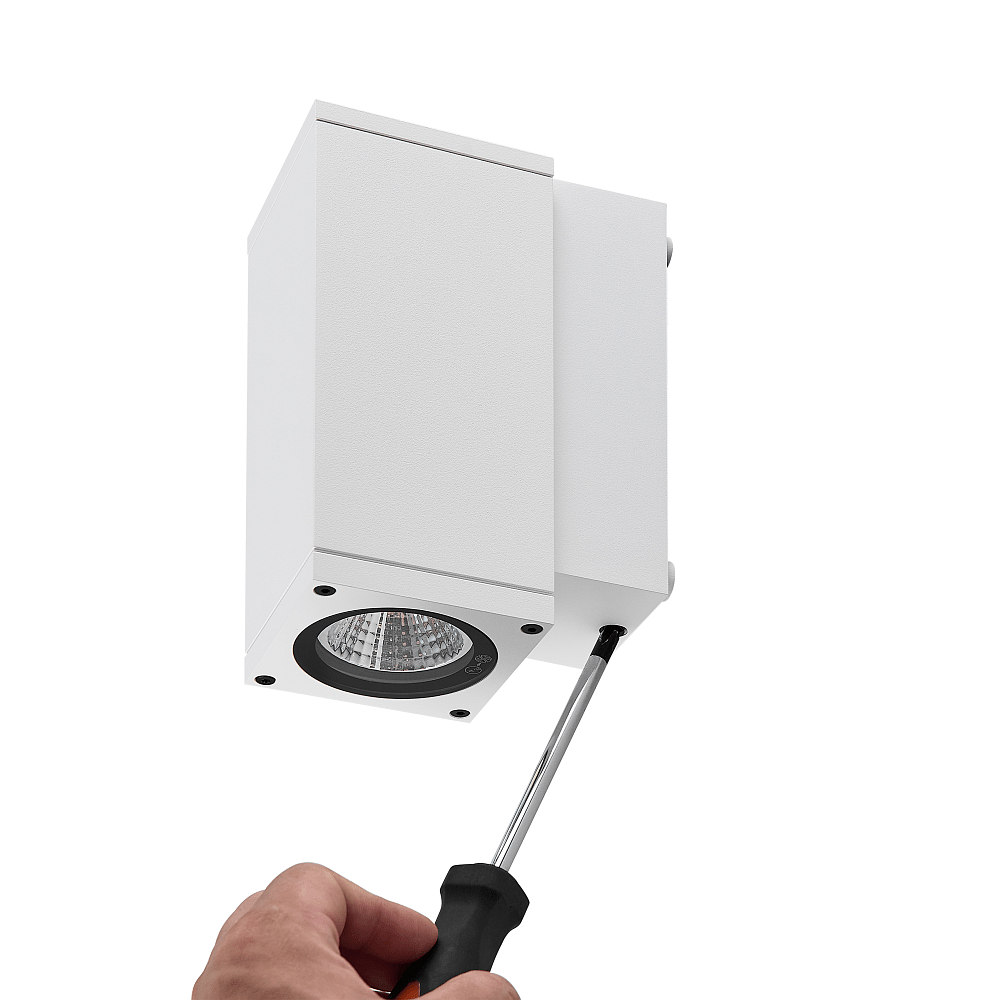

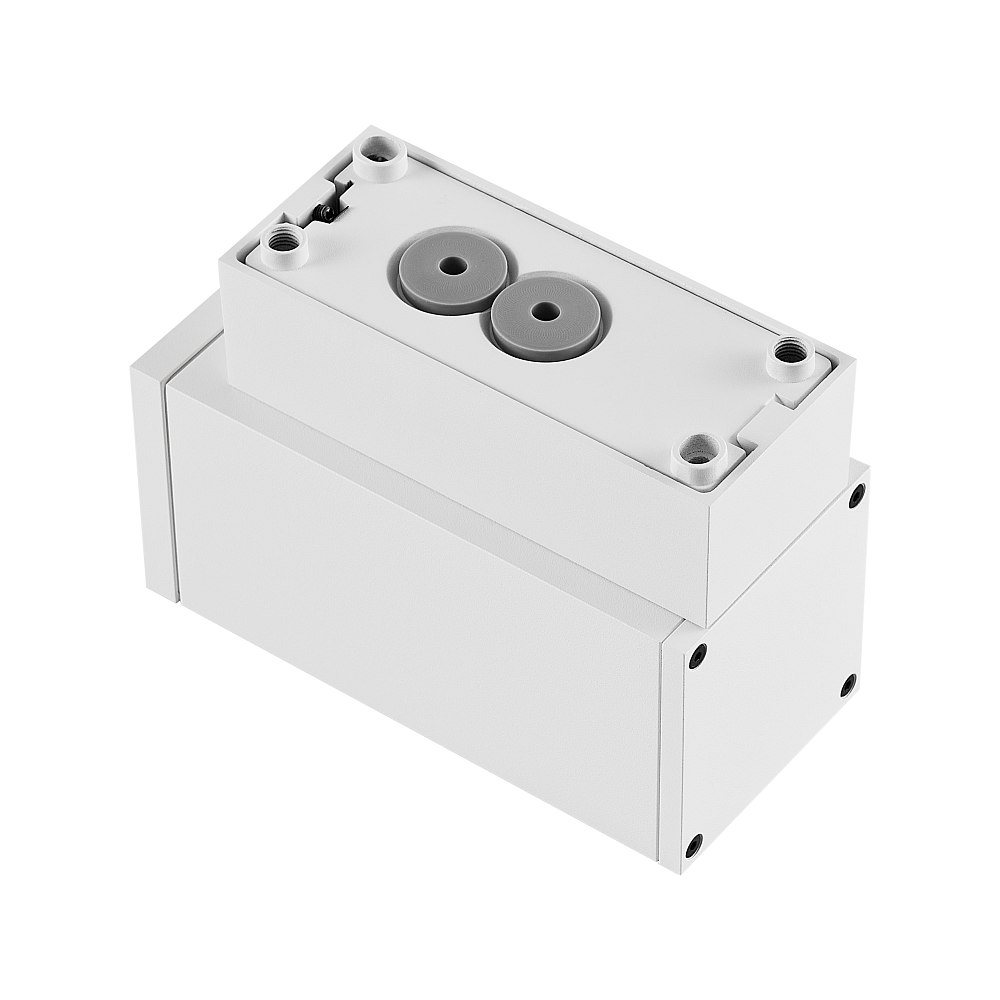

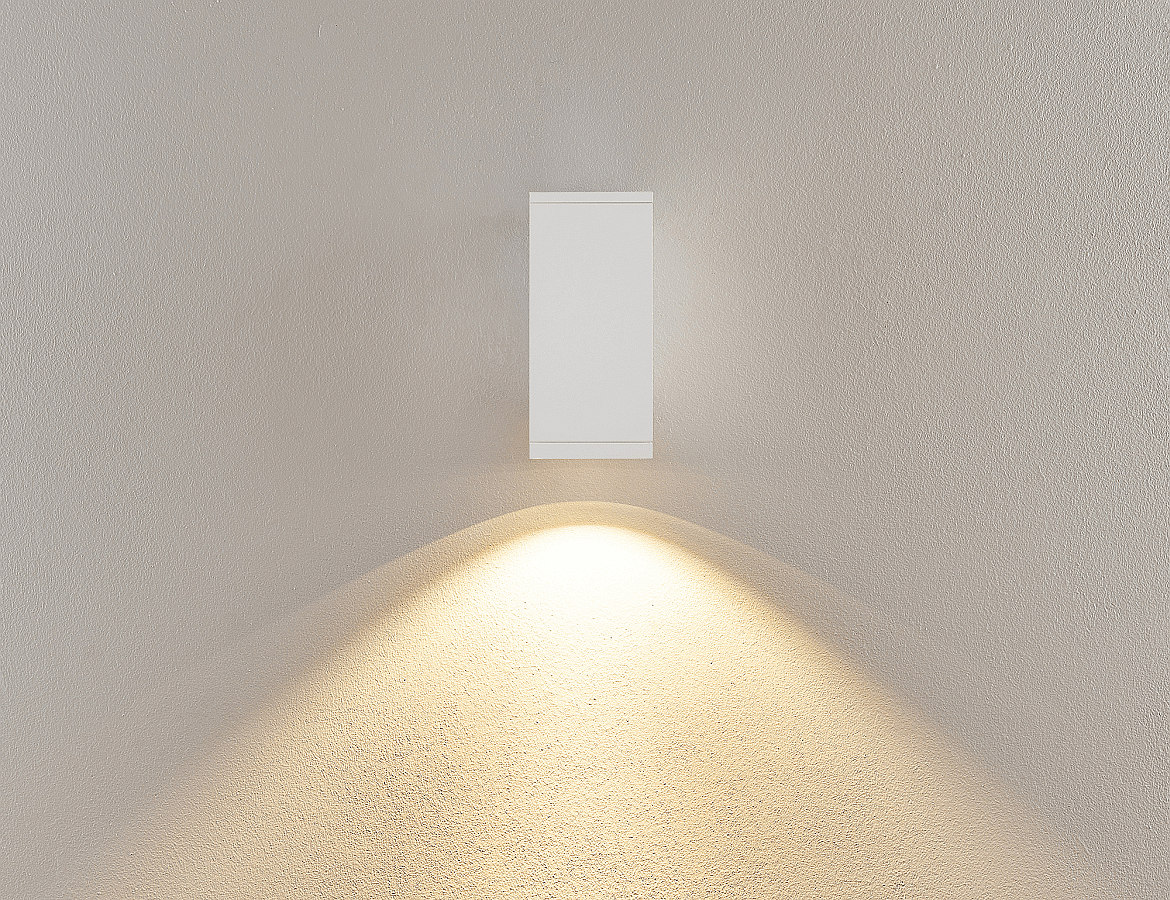

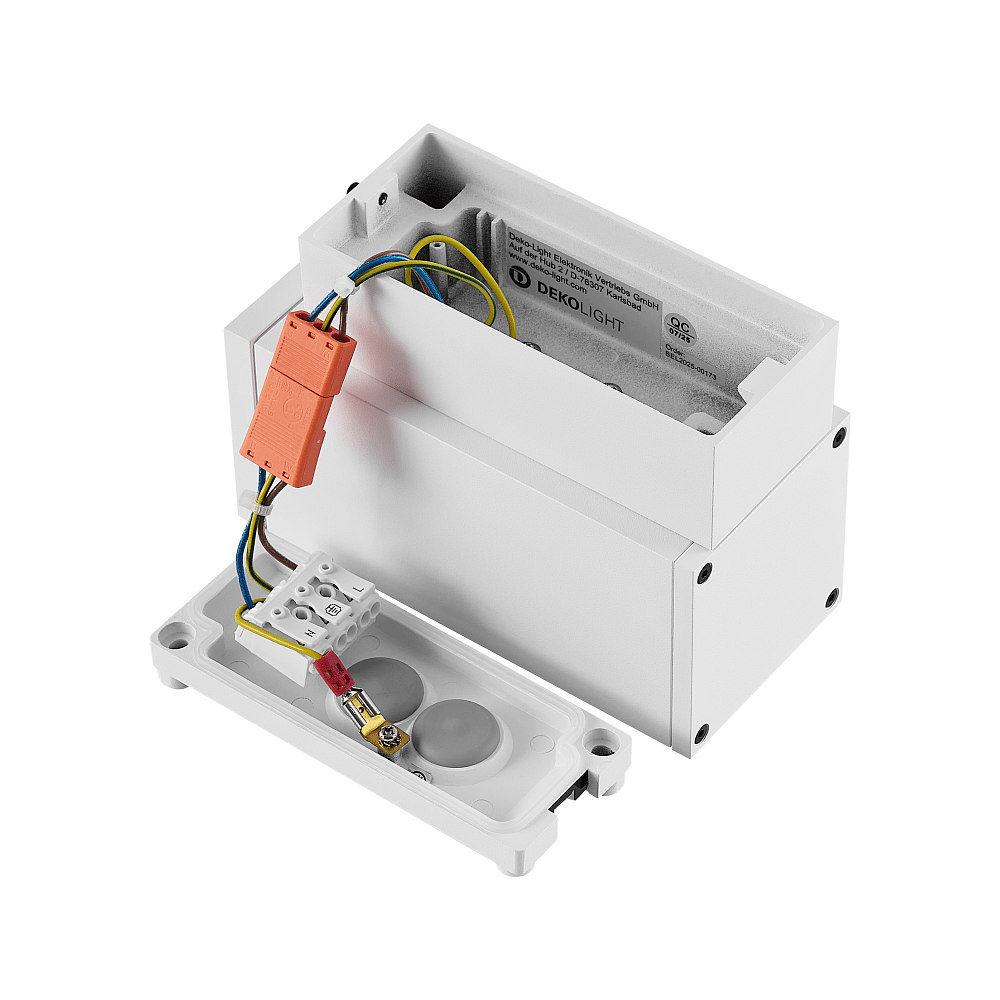

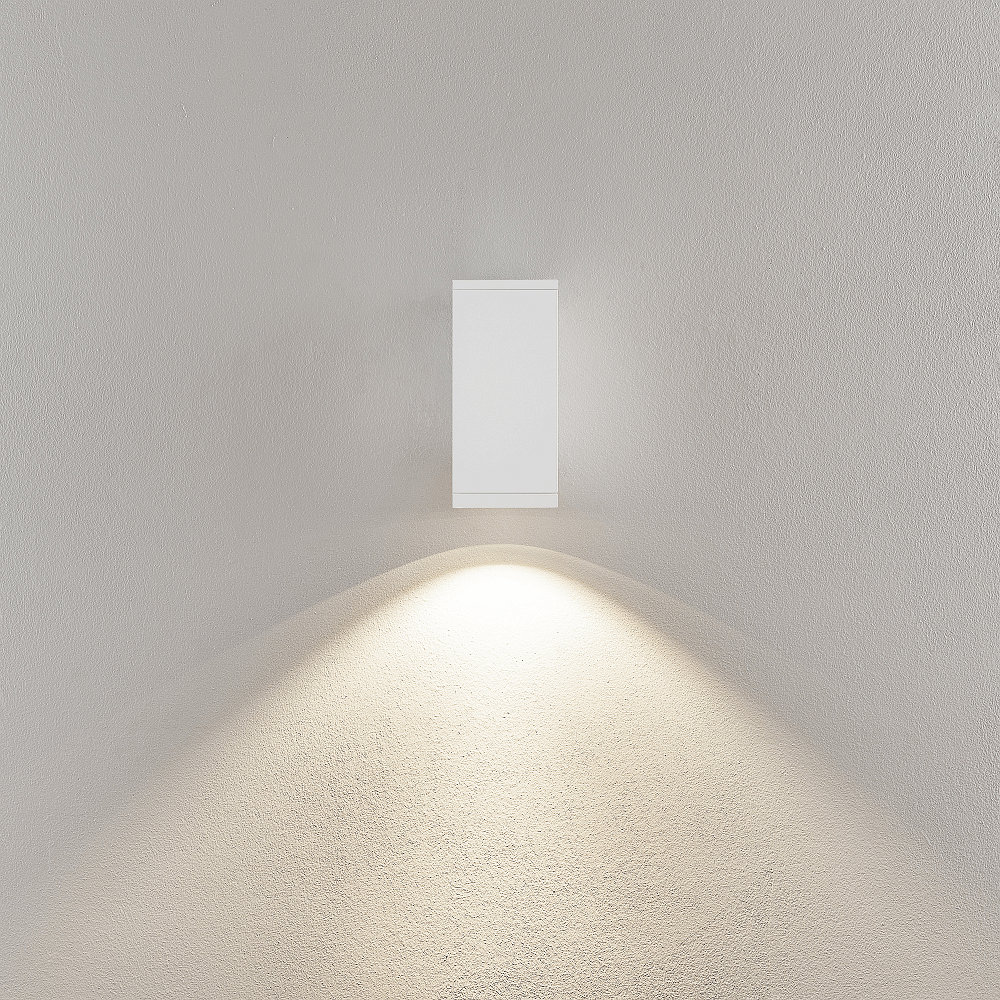

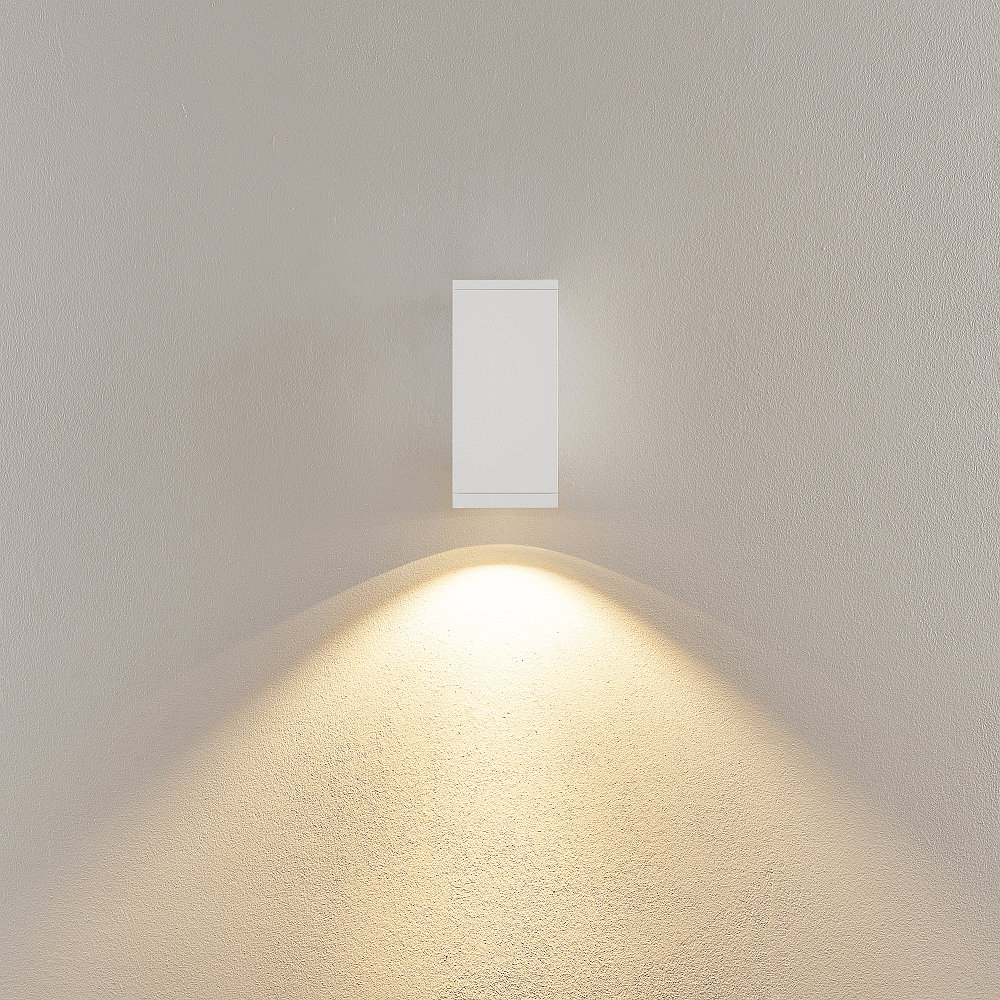

This wall light is designed as a surface-mounted fixture with a compact cuboid body (7 x 7 cm) and features one-sided downward light emission with a beam angle of 30 degrees. Installation is carried out via a detachable mounting plate, which is securely fastened using a plug connection and locking screw. Thanks to preparation for row installations, multiple luminaires can be easily connected with just one cable, significantly reducing installation effort.

Excellent Light Quality and Dimmable Function

The SHORELINE PRO SQUARE 70 DOWN offers very good color rendering with a color rendering index of over 90 Ra, making colors appear natural and vivid. The low UGR value of under 21 provides glare-free light that is gentle on the eyes. The luminaire is dimmable via phase-cut dimming, allowing flexible adjustment of the light intensity to different situations. The color consistency with 3 SDCM also guarantees a consistent light color across multiple luminaires.

Accessories and Expandable Functions

The scope of delivery includes glass, a light color switch, and the driver, which enable easy operation and adjustment. Furthermore, the luminaire can be individually expanded with additional accessories such as light slot attachments (gobos), interchangeable reflectors with various beam angles (24°, 36°, 60°), or spacers. The extensive collection from Deko-Light also offers various housing shapes and colors, allowing this luminaire to be used in a wide range of projects.

Colour:
white
Glass color:
clear
RAL color value:
9003
Dimension:
total-B∕ H∕ T: 7∕ 15∕ 11,3 cm
spot-B∕ H∕ T: 7∕ 15∕ 7 cm
base-B∕ H∕ T: 5,5∕ 13∕ 4,3 cm
Weight:
1 kg
Product type:
wall luminaire
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge
Power frequency:
50/60 Hz
Power consumption:
6 W
Emitting angle:
30 °
Number of bulbs:
1
Voltage:
Clamp
Light colour:
warm white / neutral white (in steps)
Beam direction:
down
Light flux:
480/550 lm
Light yield:
91 lm/W
Colour temperature:
3000/4000 K
Average life span of a bulb in hours:
50000 h
Switching cycles:
100000
Colour rendering index:
90 Ra
UGR:
< 21
Colour rendering index:
1A
IK-Rating:
IK08 up to 5.00 Joule
Protection class:
1
IP-protection class:
IP65
Additional information:

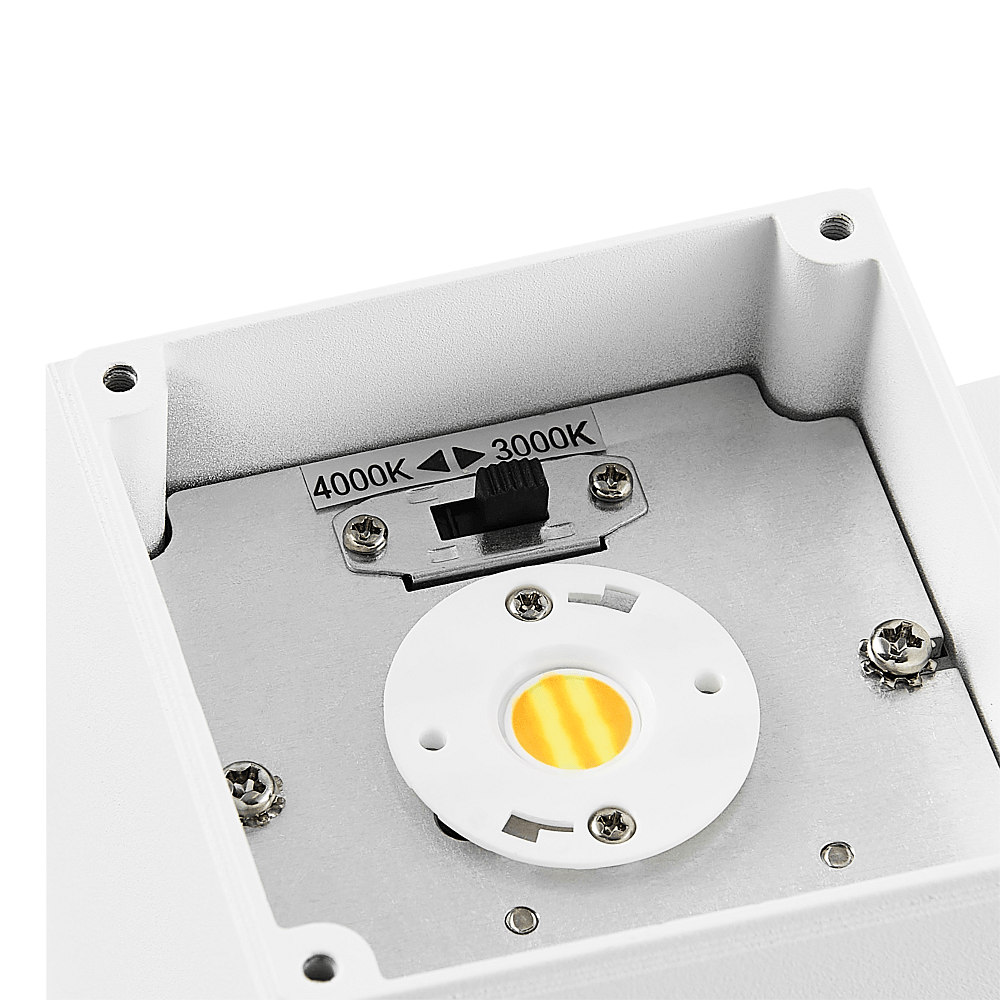

Light color adjustable via DIP switch before installation.
Efficiency: 87%
Accessories:
glass - included in delivery
light colour switch - included in delivery
driver - included in delivery
spacer - not included in delivery
dimmer - not included in delivery
Gobo - not included in delivery
Reflektor - not included in delivery
ambient temperature:
-20 … +40 °C
Tc (°C):
36 °C
Energy efficiency category:
E
Energy consumption:
6 kWh/1.000 h
Article number:
D-731207
Purchasing quantity:
1 piece
Brand:
Deko-Light
Manufacturer:
Deko-Light
Manufacturer information
Deko-Light Elektronik Vertriebs GmbH, Auf der Hub 2, 76307, Karlsbad, Germany, deko@deko-light.com
