wall luminaire PRO SQUARE 70 DOWN 1 flame, square, CCT Switch IP65, dark grey dimmable

Deko-Light



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Deko-Light wall luminaire PRO SQUARE 70 DOWN 1 flame, square, CCT Switch IP65, dark grey dimmable

Modern LED Wall Light with High Efficiency

The SHORELINE PRO SQUARE 70 DOWN from Deko-Light is a high-quality LED wall light that delivers an impressive light output of up to 550 lumens with only 6 watts of power consumption. With a luminous efficacy of 91 lm/W, it provides efficient illumination that can be set to either warm white (3000K) or neutral white (4000K). The fixture is dimmable via phase-cut dimming, allowing individual adjustment of the light intensity to suit different needs.

Robust Design and Protection Features

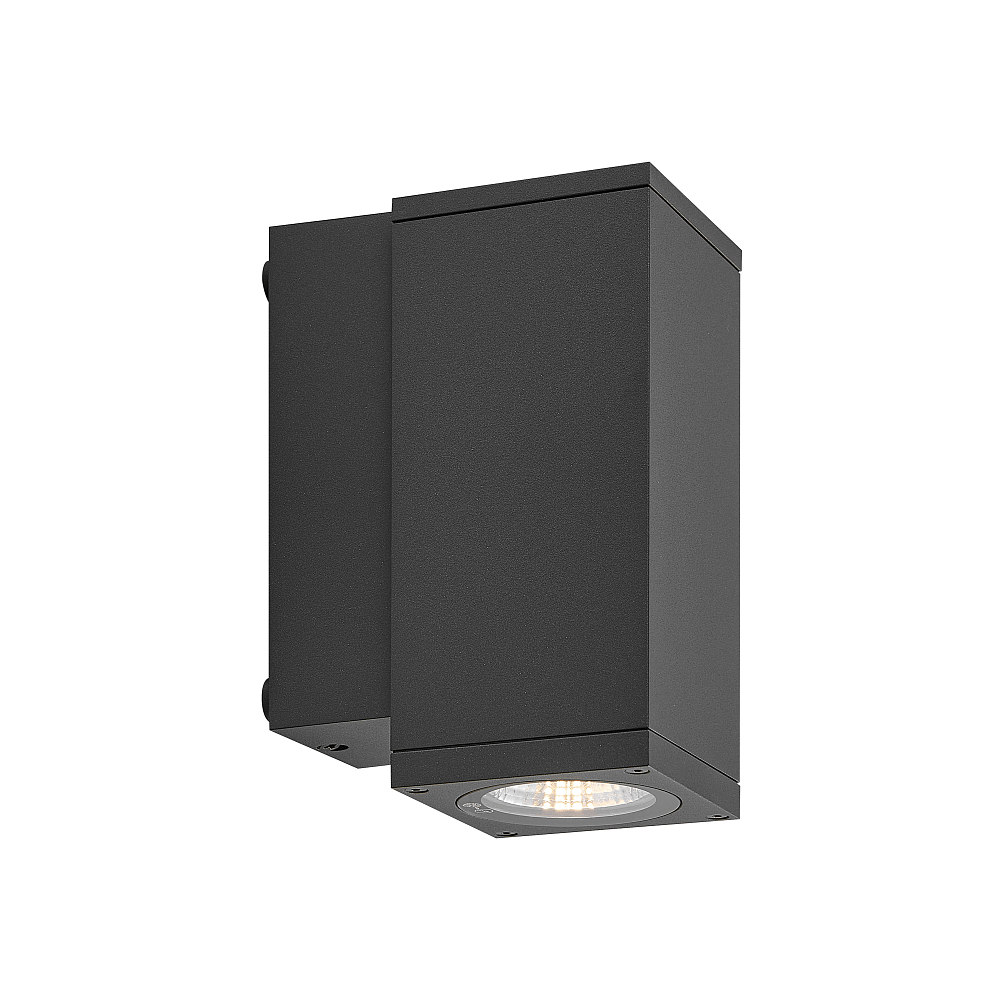

The square design of the light with a compact cuboid body measuring 7 x 7 cm offers a modern appearance and easy integration on walls. The SHORELINE PRO SQUARE 70 DOWN features an IP65 rating, providing reliable protection against dust and moisture. Additionally, the IK08 certification ensures high resistance to mechanical impacts such as vandalism or hail. These features guarantee a durable and safe application.

Excellent Light Quality and Color Rendering

With a color rendering index (CRI) of over 90 Ra, the fixture offers natural and vivid color reproduction. The light color is adjustable in two steps, allowing both warm white and neutral white lighting. The low color consistency deviation of 3 SDCM ensures a uniform light appearance when multiple identical fixtures are used. Furthermore, the luminaire is glare-free with a UGR value below 21, providing comfortable and eye-friendly lighting.

Flexible Installation and Extensive Accessories

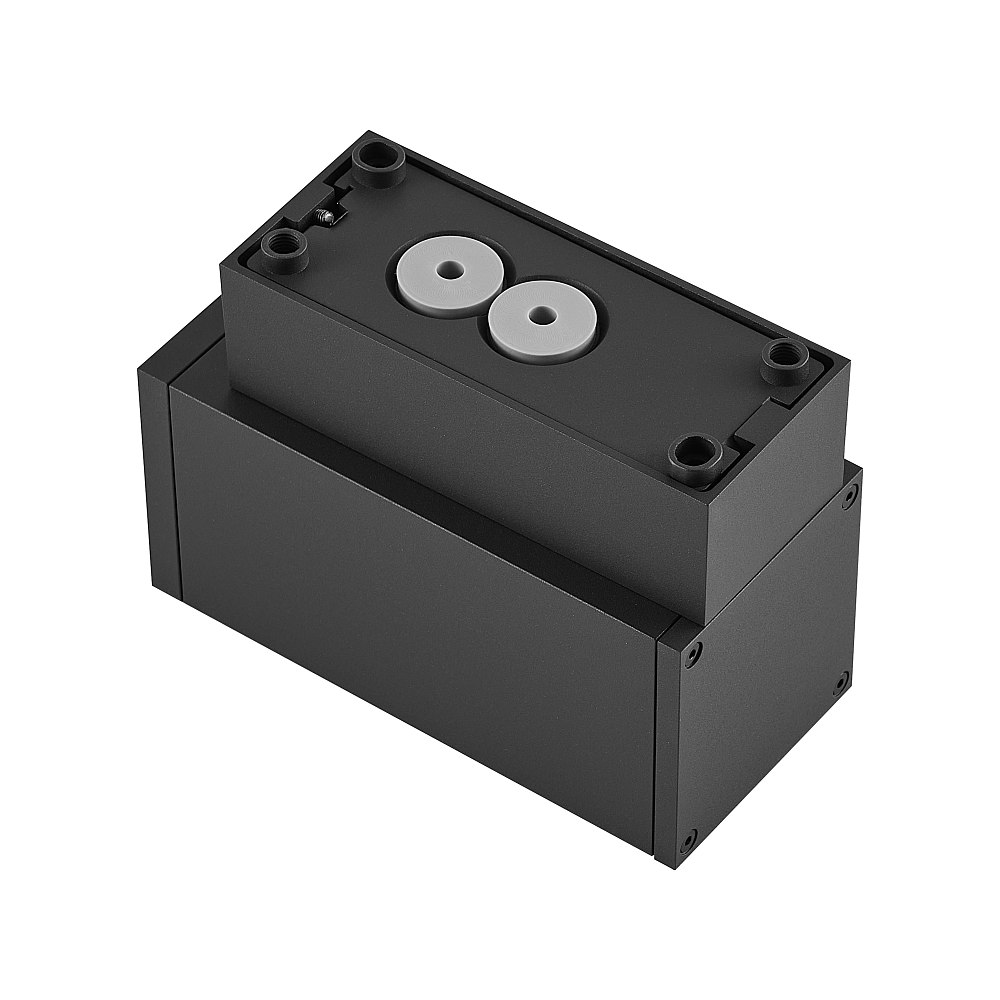

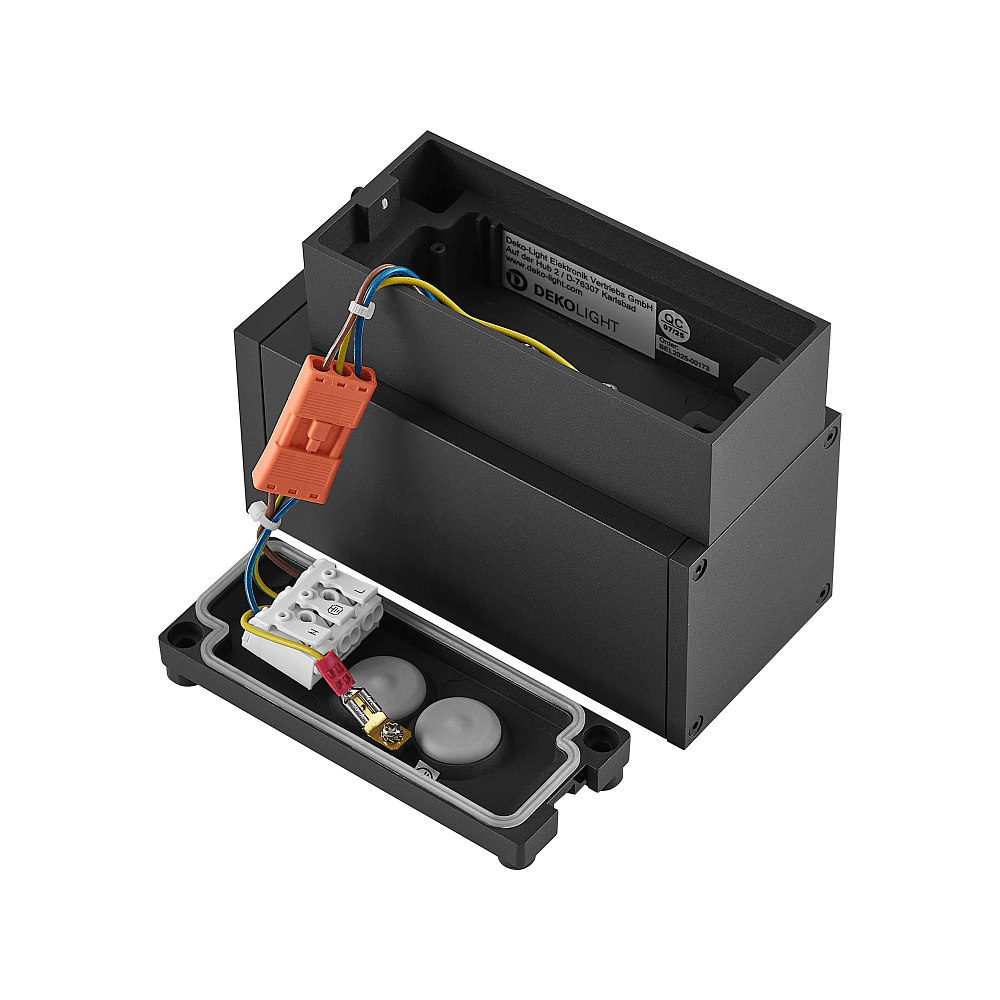

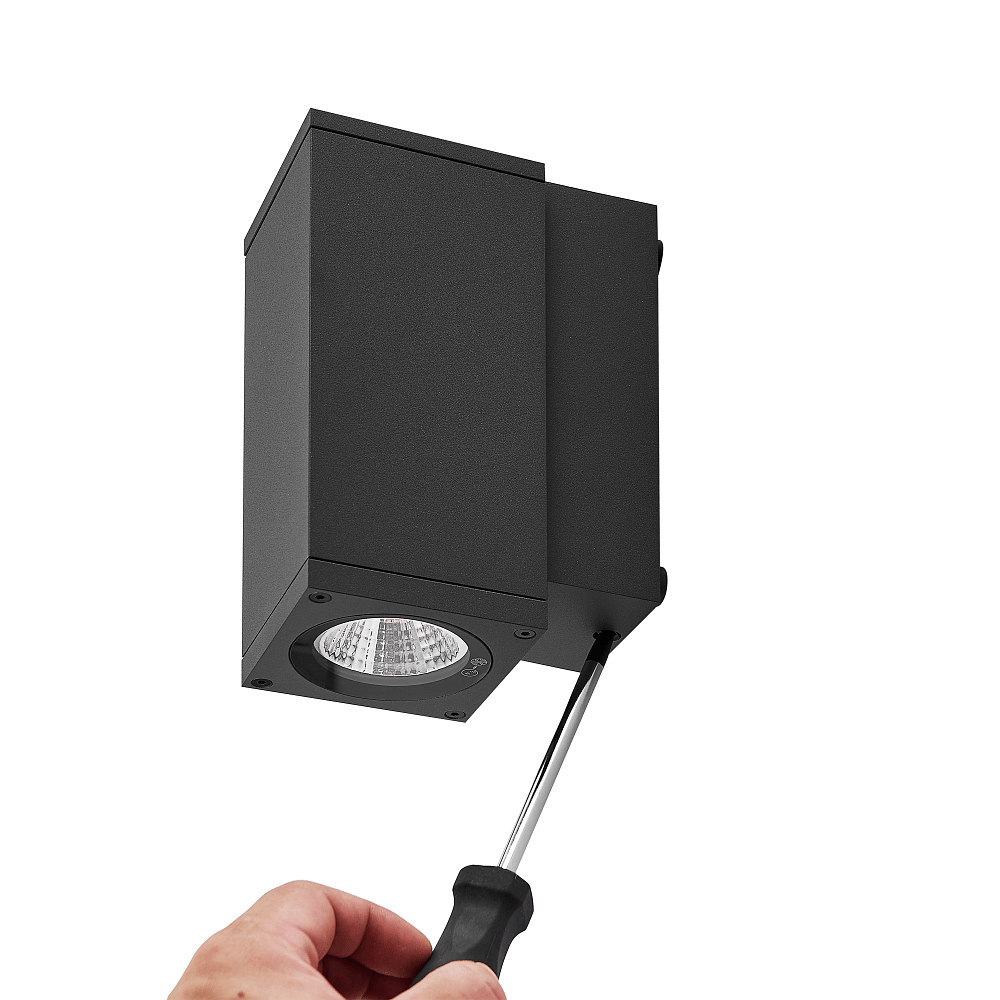

The installation of the SHORELINE PRO SQUARE 70 DOWN is designed to be simple and flexible. The detachable mounting plate with plug connection and fixing screw significantly facilitates installation. Thanks to the through-wiring design, multiple fixtures can be connected in series, greatly reducing installation effort. Optional accessories such as color temperature switches, glass covers, drivers, as well as spacer and reflector elements enable individual adjustment of lighting conditions.

Durability and Technical Details

This LED wall light impresses with an average lifespan of up to 50,000 hours and up to 100,000 switching cycles, ensuring long-term use. The operating voltage ranges from 220-240 V AC, with a wide tolerance of 176-250 V DC. With a power factor of 0.95, the fixture operates energy-efficiently and reliably. Weighing only 1 kg and featuring a compact design with dimensions of 7 x 15 x 11.3 cm, the SHORELINE PRO SQUARE 70 DOWN is a versatile and technically advanced lighting solution.

Colour:
dark grey
Glass color:
clear
Dimension:
total-B∕ H∕ T: 7∕ 15∕ 11,3 cm
spot-B∕ H∕ T: 7∕ 15∕ 7 cm
base-B∕ H∕ T: 5,5∕ 13∕ 4,3 cm
Weight:
1 kg
Product type:
wall luminaire
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge
Power frequency:
50/60 Hz
Power consumption:
6 W
Emitting angle:
30 °
Number of bulbs:
1
Voltage:
Clamp
Light colour:
warm white / neutral white (in steps)
Beam direction:
down
Light flux:
480/550 lm
Light yield:
91 lm/W
Colour temperature:
3000/4000 K
Average life span of a bulb in hours:
50000 h
Switching cycles:
100000
Colour rendering index:
90 Ra
UGR:
< 21
Colour rendering index:
1A
IK-Rating:
IK08 up to 5.00 Joule
Protection class:
1
IP-protection class:
IP65
Additional information:

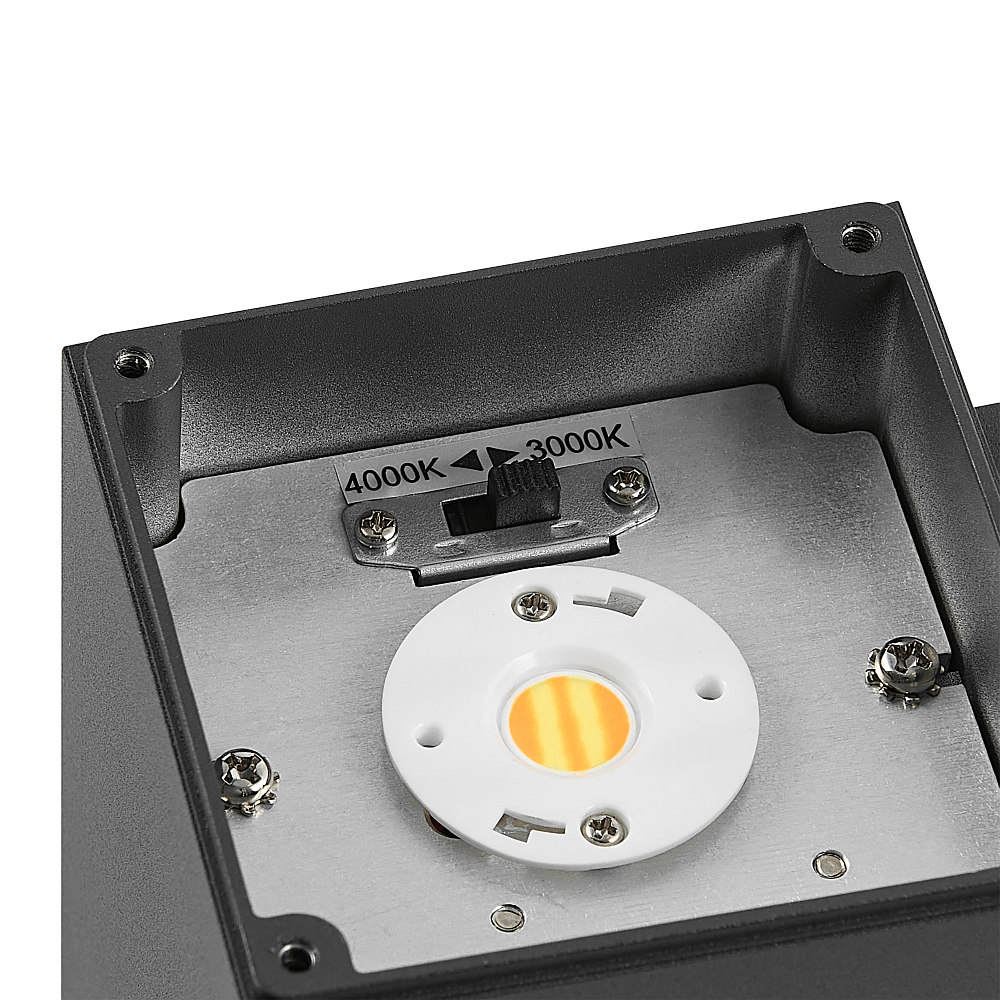

Light color adjustable via DIP switch before installation.
Efficiency: 87%
Accessories:
glass - included in delivery
light colour switch - included in delivery
driver - included in delivery
spacer - not included in delivery
dimmer - not included in delivery
Gobo - not included in delivery
Reflektor - not included in delivery
ambient temperature:
-20 … +40 °C
Tc (°C):
36 °C
Energy efficiency category:
E
Energy consumption:
6 kWh/1.000 h
Article number:
D-731206
Purchasing quantity:
1 piece
Brand:
Deko-Light
Manufacturer:
Deko-Light
Manufacturer information
Deko-Light Elektronik Vertriebs GmbH, Auf der Hub 2, 76307, Karlsbad, Germany, deko@deko-light.com
