light strip system FAST FIX LINEAR SYSTEM S MODULE DALI controllable, asymmetrical IP40, white dimmable

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient LED linear system for indoor use

The FastFix LED linear system S module from ISOLED is ideal for indoor use. With a size of 150cm and a power range of 25-75W, it offers an excellent lighting solution for ceilings in various areas.

Versatile application possibilities

The light band system has a beam angle of 25° and a neutral white light color. With a luminous flux of 10500lm, it provides uniform and glare-free lighting. The square shape of the luminaire fits perfectly into modern indoor spaces.

Energy-efficient and dimmable

With an energy efficiency class of C and an energy consumption of 25-75kWh/1,000h, the ISOLED linear system is both energy efficient and cost-effective. It is also DALI dimmable, allowing for individual brightness adjustment.

Accessories for easy installation

Various accessories are included in the delivery of the LED linear system, such as a cover and a control gear. Installation is simple and uncomplicated, either surface-mounted, system-bound, or with additional accessories.

Reliable quality from ISOLED

The ISOLED brand stands for high-quality materials and durable products. The linear system has a protection class 1 and an IP protection rating of IP40. With an average lamp lifespan of 36,000 hours, it is a reliable lighting solution for indoor use.

Article number:
ISO-115235
Purchasing quantity:
1 piece
Brand:
ISOLED

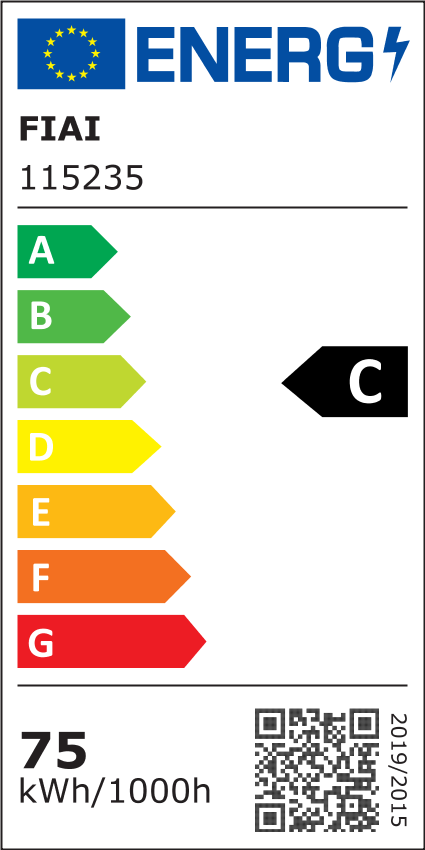

Energy efficiency category:
C
EPREL No:
824409
Product type:
light strip system
Energy consumption:
25-75 kWh/1.000 h
Manufacturer:
ISOLED
Operating voltage:
180-265 V~
Dimmable:
yes
Dimmability:
DALI
Lamp shape:
square
Power frequency:
50/60 Hz
Power consumption:
25-75 W
Emitting angle:
25 °
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
33
Light colour:
neutral white
Light emission:
direct
Light flux:
10500 lm
Nominal current:
416-283 mA
Colour temperature:
4000 K
Average life span of a bulb in hours:
36000 h
Colour rendering index:
>80 Ra
1B
Colour:
white
Material:
steel
plastic
Dimension:
L∕ W∕ D: 144∕ 6,5∕ 2,9 cm
Wire/connection lead diameter:
2,5 ² mm
Plug type:
plug
Mounting:
mounting accessories required
system based mounting
surfaced mounting
Field of application:
ceiling
Protection class:
1
IP-protection class:
IP40
Application area:
only suitable for indoor use
Additional information:
Transformer power: 21 VA
Accessories:
control gear incl
cover incl
bar recording excl
control excl
switch excl
mounting accessories excl
ambient temperature:
0 ... +40 °C
