LED Recessed Downlight, 10W, 3000K, 1000lm, IP20, UGR < 19, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality LED Recessed Downlight from Frisch-Licht

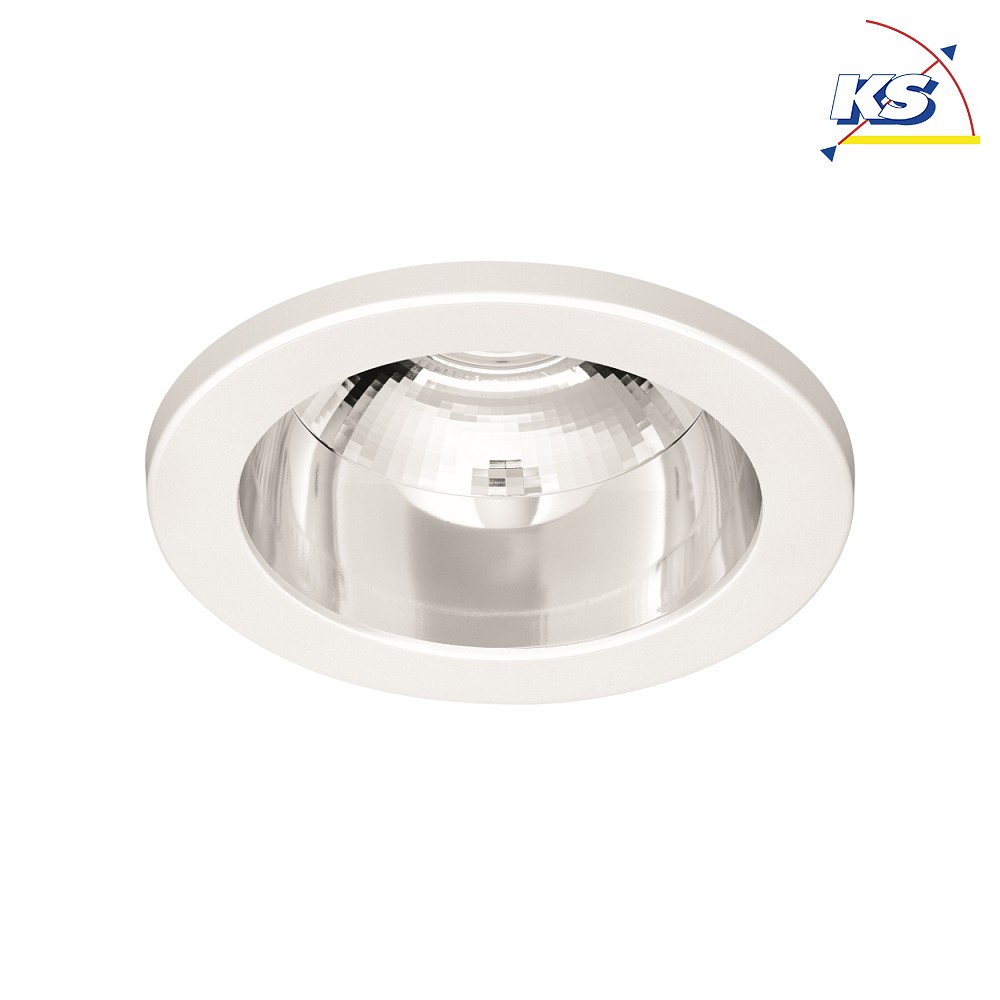

The LED recessed downlight from Frisch-Licht impresses with its round shape and a high-gloss reflector that optimally distributes the light. With a diameter of 17 cm and an installation depth of 11.2 cm, it fits perfectly into standardized ceiling openings. The LED light is permanently installed and non-replaceable, but thanks to a lifespan of up to 50,000 hours, it provides long-lasting illumination. The warm white light with a color temperature of 3000K creates a pleasant atmosphere and is especially suitable for general lighting.

Efficient and Glare-Free Lighting

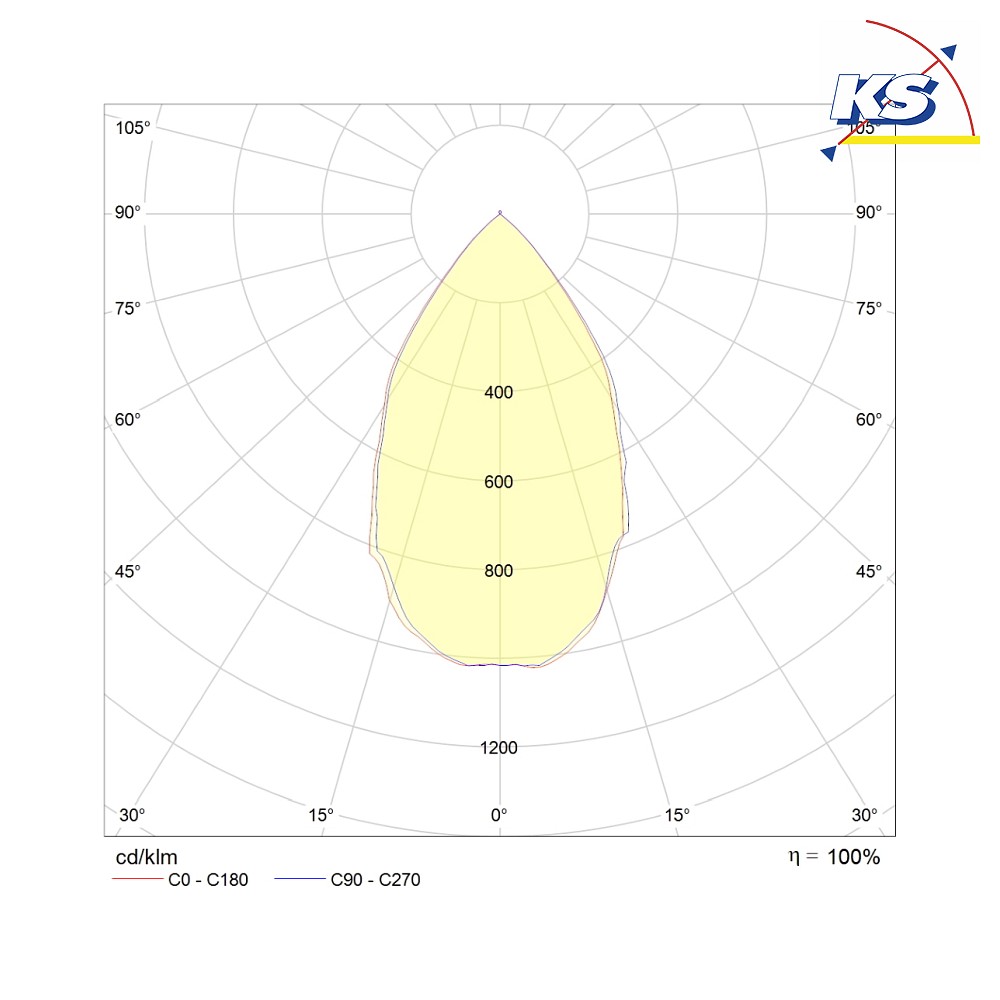

The downlight offers direct light distribution with a beam angle of 60 degrees and a luminous flux of 1000 lumens at only 10 watts power consumption. The low glare value of UGR <19 makes this fixture particularly suitable for screen workplaces, as it ensures comfortable and fatigue-free lighting. The light quality is complemented by good color rendering (CRI >80, level 1B), making colors appear natural and clear.

Easy Installation and Comprehensive Accessories

The installation of the recessed downlight is quick and straightforward thanks to the integrated spring clips, specially designed for hollow ceilings. The scope of delivery includes the LED light source, a diffuser, a high-gloss reflector, clip springs, and an ENEC-certified LED driver. The mains connection is made via a terminal, which further simplifies the installation. Optional matching concrete mounting pots are available to enable installation in various ceiling types.

Durable Materials for Long-Lasting Use

The downlight is made of high-quality materials such as anodized aluminum, steel sheet, and polymethyl methacrylate (PMMA) for the cover. This combination guarantees a stable construction and even light distribution. Protection class 2 as well as IP20 classification ensure safety and reliability during use. The low weight of 0.35 kg supports easy handling during installation.

Versatile Applications and Customization Options

This LED recessed downlight is ideal for numerous applications such as offices, banks, educational institutions, hospitals, hotels, and many other areas. The switchable light output allows individual adjustment to different room situations. Additionally, various sizes and reflectors as well as optionally warm white or neutral white light colors are available to meet the requirements of different lighting concepts.

Colour:
white
Glass color:
opal
Reflector color:
aluminium,glossy

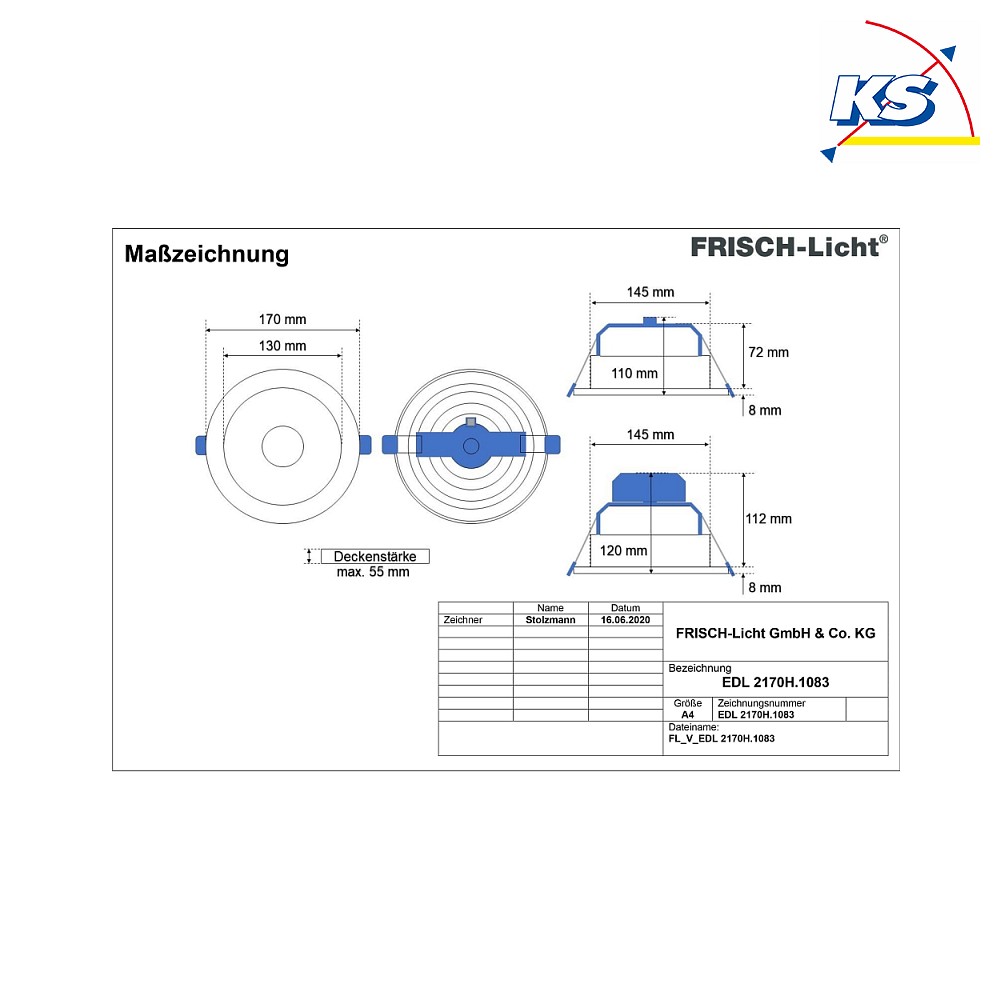

Dimension:
Ø∕ H: 17∕ 8 cm
visible part-Ø∕ H: 17∕ 0,8 cm
light output-Ø: 13 cm
max. material thickness-H: 5,5 cm
Material:
plastic
polymethylmethacrylat (PMMA)
steel sheet
anodised aluminium
Weight:
0,35 kg
Product type:
recessed downlight
Lamp shape:
round
Bulbs in delivery:
yes
Accessories:
clip springs - included in delivery
diffuser - included in delivery
reflector - included in delivery
driver - included in delivery
mounting pot - not included in delivery
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
Power frequency:
50-60 Hz
Power consumption:
10.00 W
Emitting angle:
60 °
LED can be replaced :
no
Bulb type:
LED
Voltage:
Clamp
Temperature range:
-20 - +40 °C
Light colour:
warm white
Light emission:
direct
Beam direction:
down
Light flux:
1000 lm
Light yield:
100 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
UGR:
< 19
Colour rendering index:
1B
IK-Rating:
IK02 up to 0.20 Joule
Fitting depth:
11,2 cm
Fitting opening circle :
14,5 cm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP20
ambient temperature:
-20 ... +40 °C
Energy efficiency category:
G
Energy consumption:
10.00 kWh/1.000 h
Article number:
FL-EDL2170H.1083
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Manufacturer:
Frisch-Licht
Manufacturer information
FRISCH-Licht GmbH & Co. KG, Schlachthofweg 2, 59755, Arnsberg, Germany, info@frisch-licht.de
