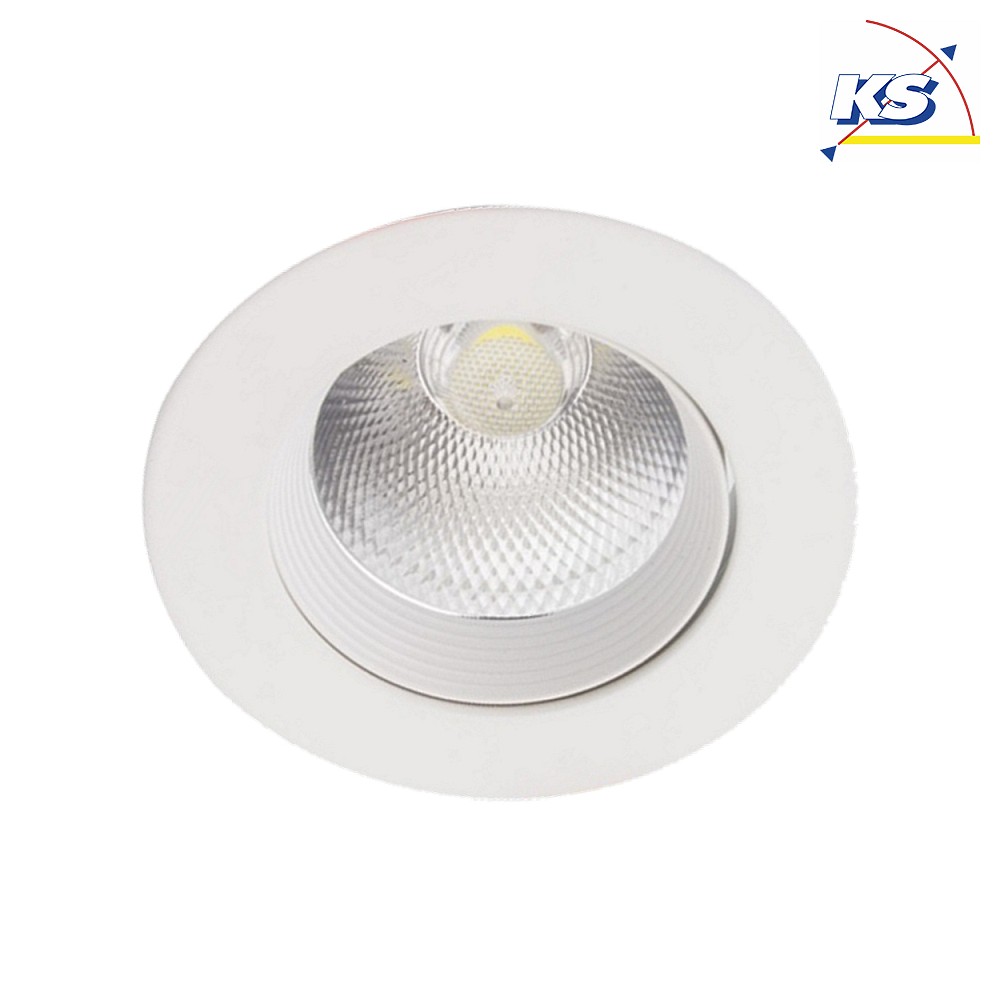

LED Recessed Downlight, 9W, 3000K, 800lm, IP20, swivelling, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality LED Recessed Downlight from Frisch-Licht

The LED recessed downlight from Frisch-Licht impresses with its round shape and elegant white aluminum housing. With a diameter of 11 cm and an installation depth of only 7.2 cm, the luminaire blends unobtrusively into any ceiling. Installation is straightforward using a 9 cm recessed opening and is facilitated by the clip springs included in the delivery. The modern design ensures subtle yet effective lighting.

Optimal Light Quality for a Pleasant Room Atmosphere

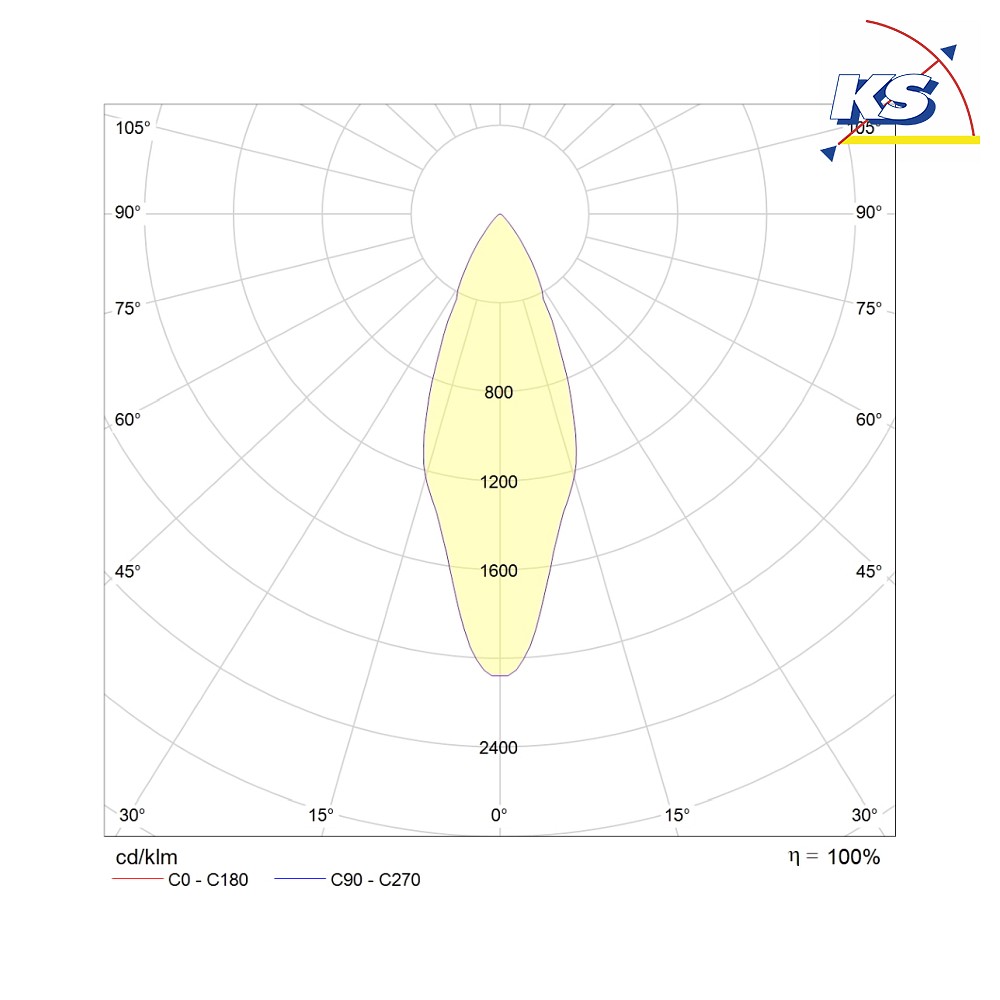

With a warm white light color (3000K) and a luminous flux of 800 lumens, the downlight creates a cozy atmosphere. The light distribution is 100% direct with a symmetrical beam angle of 40°, optimally controlled by the faceted reflector. Thanks to glare limitation with a UGR value under 19, the product is especially suitable for workstations with screens as it protects the eyes and reduces glare.

Flexible Adjustment and Energy-Efficient Technology

The lamp insert can be tilted by 30°, allowing the light beam to be individually aimed. This feature makes the downlight ideal for targeted accent lighting or as a spotlight in the room. The integrated LED with a power consumption of 9 watts uses only 9 kWh per 1,000 hours and has a service life of up to 35,000 hours. This means a long service life with simultaneously low energy consumption.

Technical Safety and Easy Installation

The downlight operates at an operating voltage of 220-240 volts and is connected via a terminal. The scope of delivery includes an external, switchable power supply unit (LED driver) that ensures safe and stable power supply. Protection class 2 provides additional protection against electric shock. The product is designed for ambient temperatures from -20 to +35 °C, ensuring high reliability in operation.

Versatile Applications and Included Accessories

The LED recessed downlight is designed as a professional recessed luminaire for hollow ceilings and is excellent as a spotlight, accent light, or floodlight. The included accessories such as the faceted reflector and clip springs allow for easy and flexible installation. Additionally, the light source is permanently installed and cannot be replaced, which increases service life and maintenance-free operation. The model is available in various sizes, colors, and light colors to meet individual requirements.

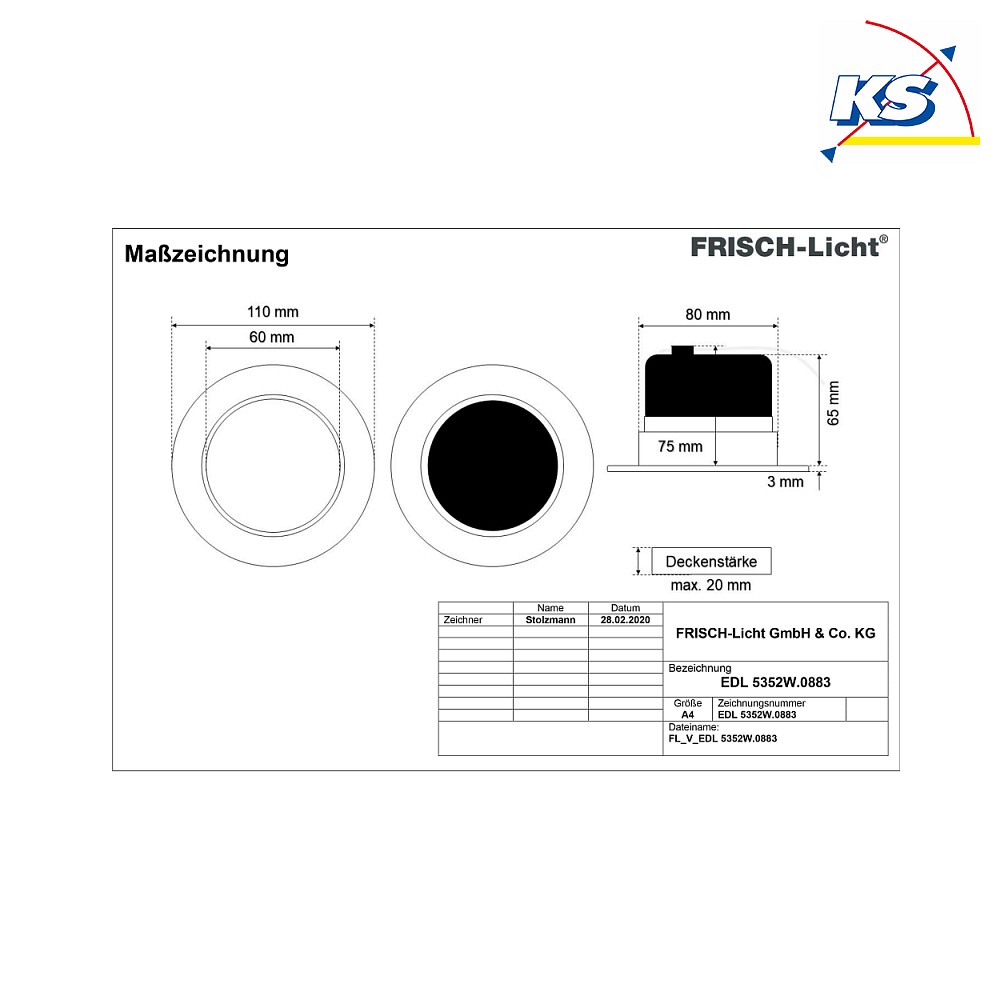

Colour:
white
Dimension:
total-Ø∕ H: 11∕ 7,5 cm
visible part-Ø∕ H: 11∕ 0,3 cm
light output-Ø: 6 cm
max. material thickness-H: 2 cm
Material:
aluminium
Weight:
0,18 kg
Product type:
recessed downlight
Lamp shape:
round
Bulbs in delivery:
yes
Accessories:
clip springs - included in delivery
reflector - included in delivery
driver - included in delivery
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
Power frequency:
50-60 Hz
Power consumption:
9 W
Emitting angle:
40 °
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
1
Voltage:
Clamp
Temperature range:
-20 - +35 °C
Light colour:
warm white
Light emission:
direct
Beam direction:
swivelling
Light flux:
800 lm
Colour temperature:
3000 K
Average life span of a bulb in hours:
35000 h
Colour rendering index:
>80 Ra
1B
IK-Rating:
IK02 up to 0.20 Joule
Swivel range:
30 °
Fitting depth:
7,2 cm
Fitting opening circle :
9 cm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP20
ambient temperature:
-20 … +35 °C
Energy efficiency category:
F
Energy consumption:
9 kWh/1.000 h
Article number:
FL-EDL5352W.0883
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Manufacturer:
Frisch-Licht
Manufacturer information
FRISCH-Licht GmbH & Co. KG, Schlachthofweg 2, 59755, Arnsberg, Germany, info@frisch-licht.de
