In-ground base Type No. 0010 for Floor and Path lights, with Ø 15cm flange, cast alu black

Robust Ground Installation Base for Albert Energy Columns

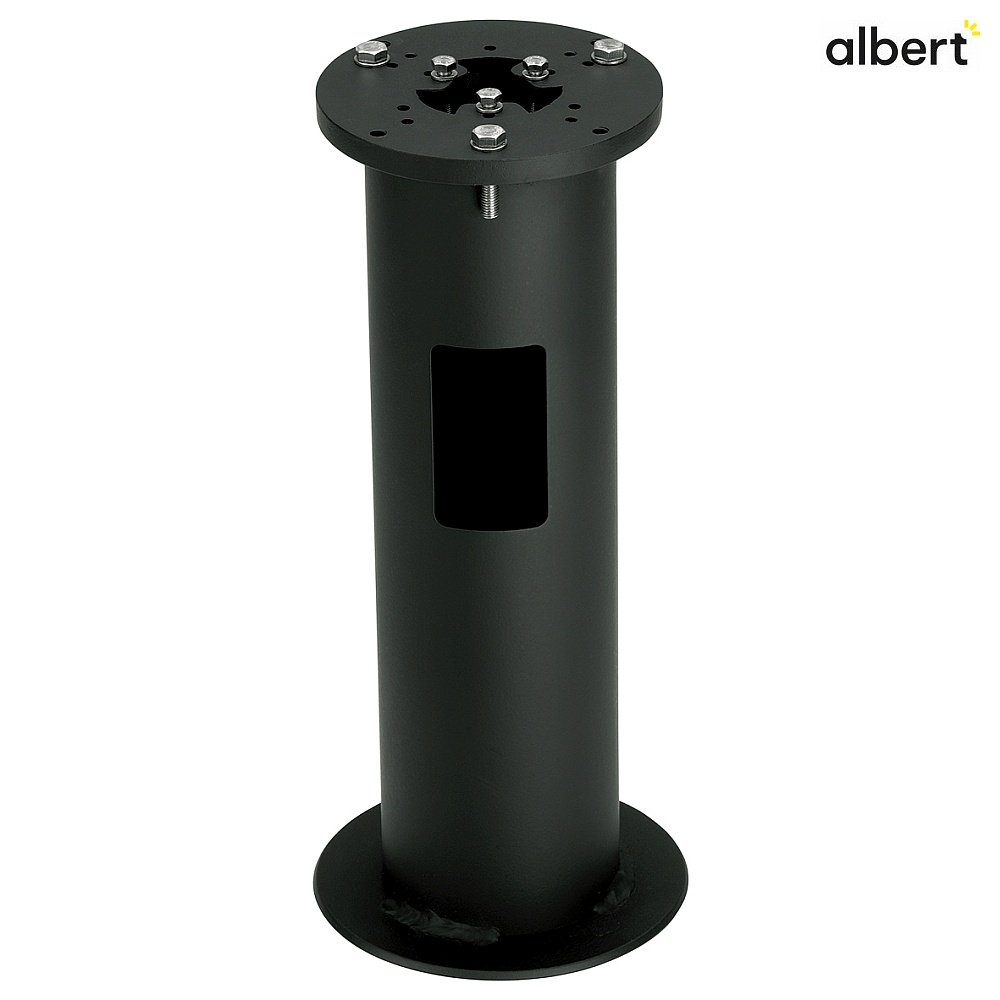

The ground installation base, type no. 0010, is specially designed for mounting Albert energy columns and base or bollard lights. With a length of 40 cm and a robust die-cast aluminum housing, this base provides a durable and stable foundation. The black color gives the product a discreet and elegant appearance. Thanks to its die-cast aluminum construction, the base is particularly resistant to corrosion and mechanical stresses.

Thoughtful Dimensions and High Stability

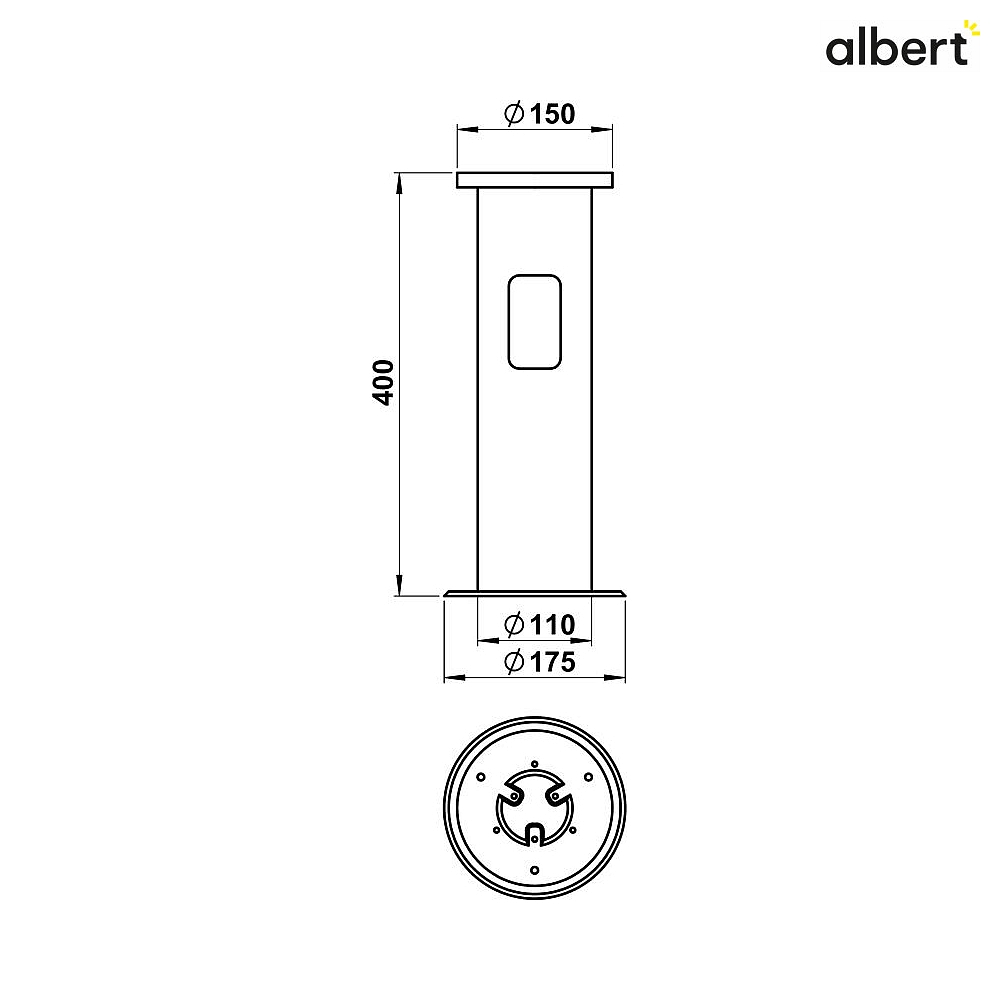

The installation base has a pipe diameter of 11 cm, an upper flange diameter of 15 cm, and a lower diameter of 17.5 cm. These dimensions ensure an optimal fit and easy integration with Albert energy columns. The extra-wide bracket at the bottom guarantees high tipping protection, so the mounted light or energy column remains securely anchored in the ground. With a total weight of 1.6 kg, the base is also easy to handle and install.

Practical Cable Entry for Easy Installation

A special feature of the installation base is the side opening for the supply cable, located about 10 cm below the flange. Additionally, the base has a cable entry at the upper mounting flange, which allows for clean and secure cable routing. This thoughtful design facilitates installation and ensures neat connections for the energy columns or lights without cable clutter.

Includes High-Quality Mounting Accessories

The delivery includes three stainless steel mounting screws needed to connect the installation base to the mounting plate of the light or energy column. The screws in sizes M6 and M8 guarantee a firm and durable connection that withstands high loads. Connection cables, the actual light, and the energy column are not included and must be purchased separately.

Flexible Mounting and Versatile Applications

The installation base is designed for in-ground mounting and is ideal for flush installation with suitable accessories. Thanks to its design, it can be easily integrated into various substrates such as drainage material or cast concrete. The appropriate drill hole patterns with diameters of 4 cm, 6 cm, 8.5 cm, and 12 cm allow flexible and secure fastening of the mounting plate. Thus, the base offers a versatile and reliable solution for securely holding Albert energy columns and lights.
