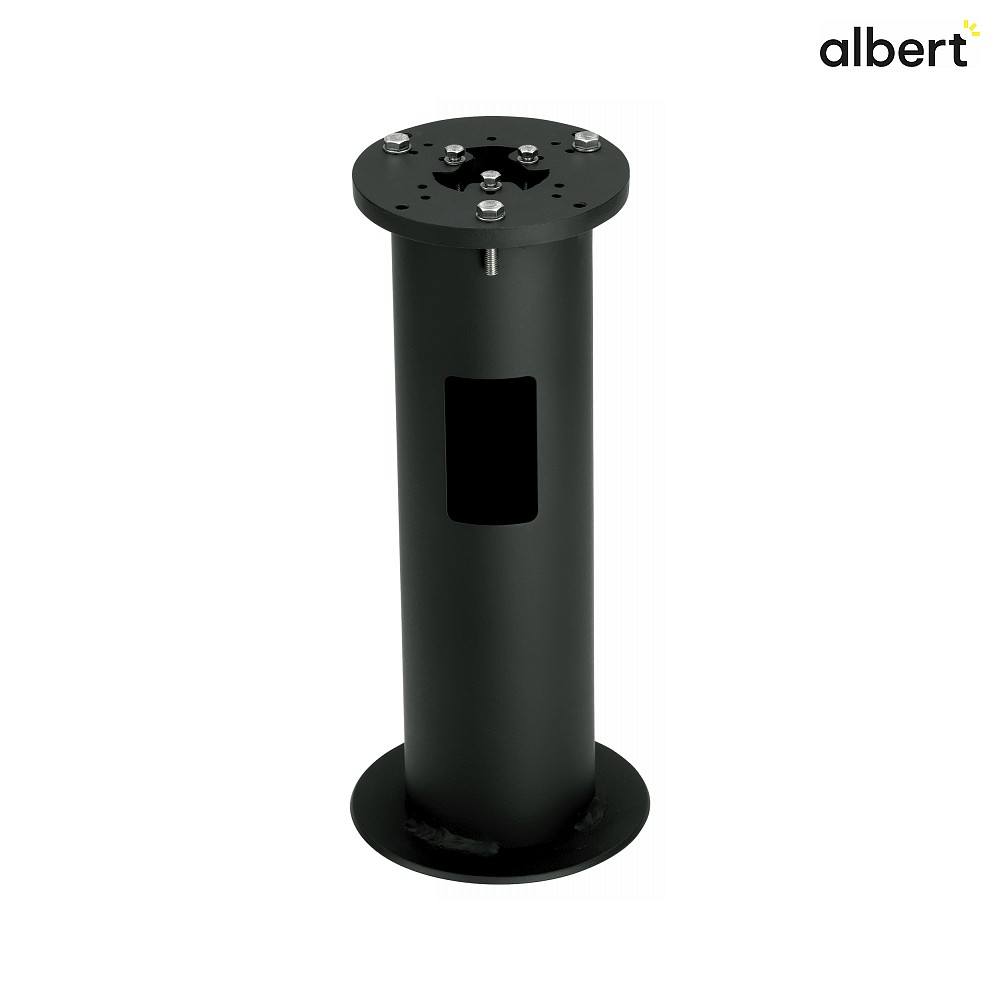

Ground piece Type No. 0011, for Pedestal and Mast lights, with Ø 23cm flange, cast alu black

Robust Ground Installation Base for Albert Energy Columns

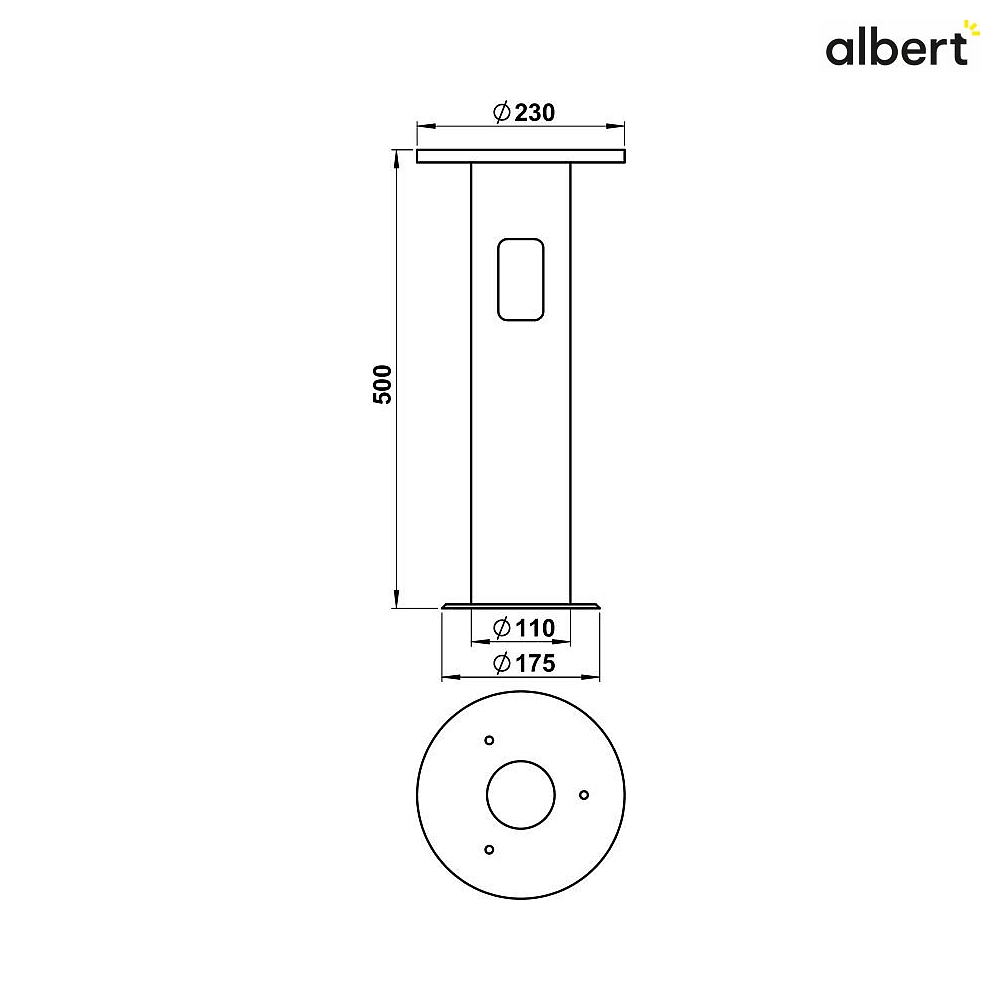

The ground installation base, type no. 0011, is specially designed for the secure mounting of Albert energy columns and base or bollard lights. With a length of 50 cm and a flange diameter of 23 cm, it provides a stable foundation for various lighting models. The aluminum die-cast material ensures an especially robust and durable construction, visually enhanced by a black surface finish.

High-Quality Workmanship and Durable Material

Made from aluminum casting and an aluminum welded construction, the installation base is particularly resistant to corrosion and weather influences. The low weight of only 2.9 kg facilitates handling and installation. The sturdy design guarantees high tilt resistance, achieved by an extra-wide support at the bottom of the base. This ensures the long-term safety of the mounted lights.

Practical Mounting Features

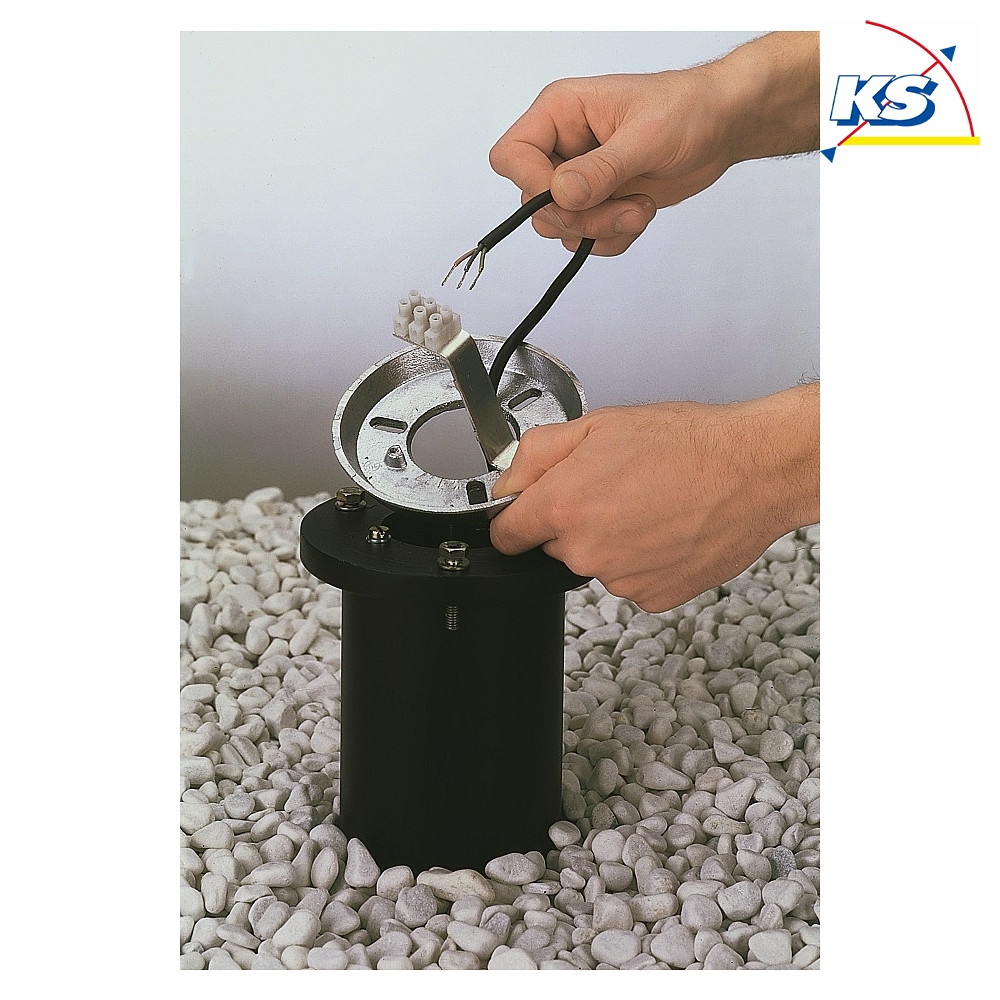

The installation base is mounted by embedding it into drainage material, cast concrete, or similar substrates. The connection to the lamp’s mounting plate is secured by three included stainless steel fastening screws (M6 and M8). The bolt hole circles with different diameters between 13.6 cm and 19 cm allow flexible adaptation to various lamp models and ensure easy and secure fastening.

Thoughtful Cable Management

For the secure routing of supply cables, the base features a side opening located about 10 cm below the flange. Additionally, a cable entry is integrated into the upper mounting flange, which optimally protects the cable and ensures neat installation. The connection cable is not included but is optimally complemented by the included accessories for cable routing.

Versatile Applications and Accessories

The installation base is specially designed for Albert energy columns and lights, which are not included in the delivery. Besides easy installation, the base offers an ideal foundation for energy-saving and modern lighting solutions. Thanks to the combination of high-quality workmanship, stable material, and thoughtful design, type no. 0011 is a reliable solution for anyone seeking a secure and durable mounting for their energy columns or lights.
