downlight CYRA+ S - Ø 207MM / CRI80 rigid, DALI controllable, multipower IP20, traffic white dimmable

Efficient LED Downlight CYRA+ S for Versatile Applications

The LED downlight CYRA+ S from Rutec impresses with its high energy efficiency and modern LED technology. With a power consumption of 18 or 24 watts, it produces a luminous flux of 2500 to 3465 lumens depending on the setting, at a warm white color temperature of 3000 Kelvin. This provides pleasant and bright lighting, ideal for general illumination. The color rendering index of over 80 Ra ensures natural and vivid colors, which is especially advantageous in work environments.

Flexible DALI Dimming Function and Easy Installation

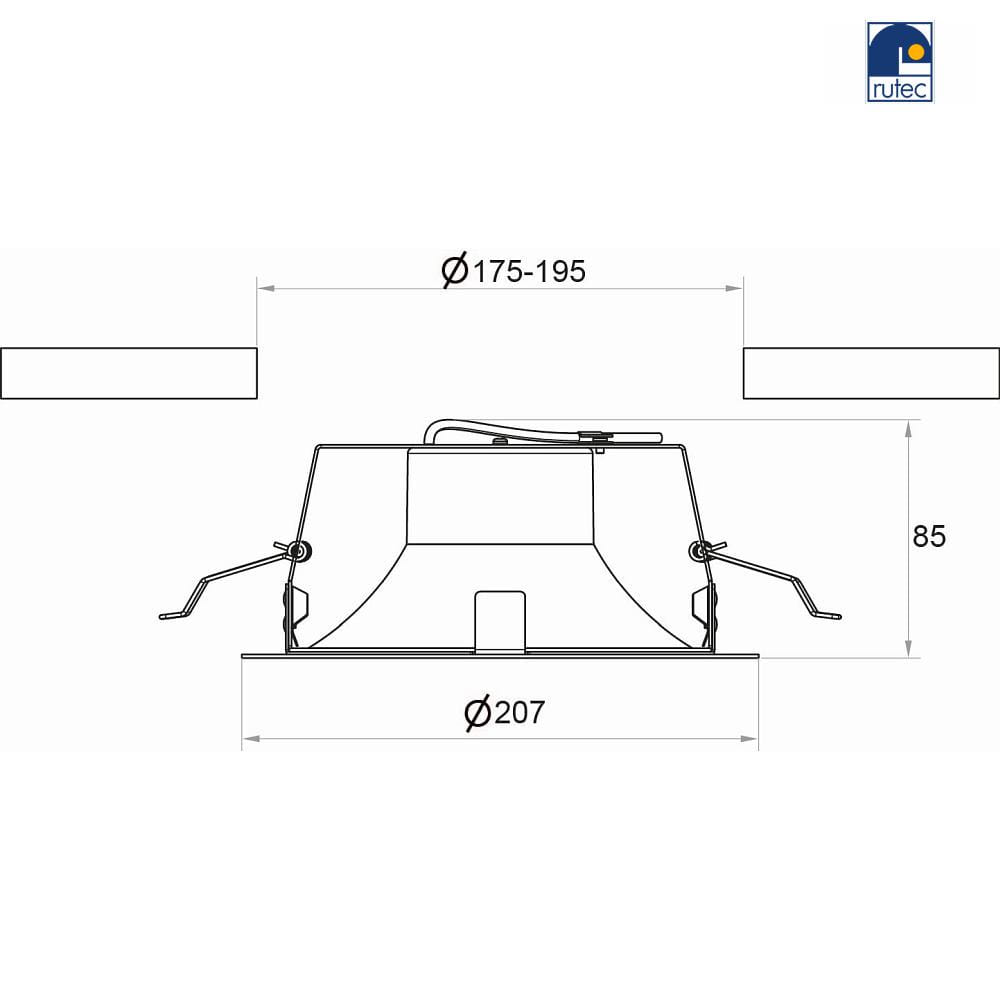

The CYRA+ S downlight is DALI-dimmable and supports step dimming as well as push-dimmer functions. The power level can be conveniently set between 18 and 24 watts via a DIP switch on the driver. Installation is tool-free into existing ceiling cut-outs with a variable diameter of 17.5 to 19.5 cm. The required cut-out diameter is 19.5 cm, and the installation depth is only 8.5 cm. Thanks to the flexible material thickness of up to 30 mm, the downlight is suitable for numerous installation situations.

High-Quality Materials and Durable Construction

For robust and high-quality processing, the CYRA+ S uses aluminum, powder-coated steel sheet, and PMMA for the lens. These materials not only guarantee a long service life of up to 60,000 hours but also efficient light distribution. The structured PMMA refractor lens ensures symmetrical light emission with a beam angle of 60°, enabling glare-free illumination. The downlight meets protection class 2, making it safe in operation.

Technical Features for Modern Lighting Solutions

The LED downlight operates with a mains voltage of 220-240 volts AC at 50 to 60 Hz and is also designed for DC voltages of 180-280 volts. It features constant luminous flux control, ensuring consistent brightness. The connection terminals allow through-wiring with conductor cross-sections from 0.5 to 2.5 mm². The scope of delivery includes spring clips, a dimmer switch, lens, reflector, and the LED driver, enabling easy commissioning.

Subsidized and Optimal for Screen Workstations

The CYRA+ S downlight is eligible for funding under BEG, the Federal Funding for Efficient Buildings. This makes it particularly attractive for energy-efficient new buildings and renovations. The very good glare control with a UGR value below 15 makes it ideal for screen workstations, as it protects the eyes and prevents glare. Thus, the LED downlight offers a combination of energy efficiency, comfort, and flexibility, meeting modern lighting solution requirements.
