3-phase spot SIGHT PANEL square, suitable for VDU workstation IP20, white, lacquered dimmable

High-Quality 3-Phase LED Spotlight from SLV

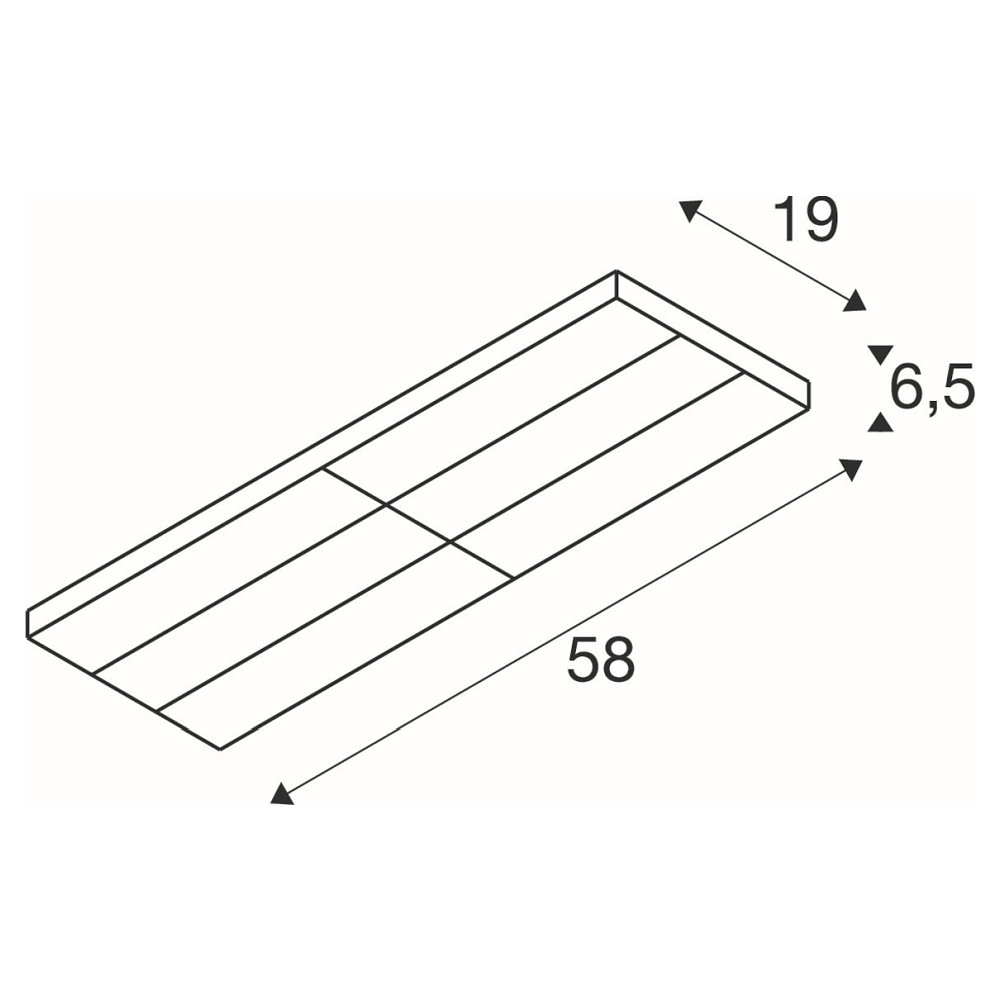

The LED 3-phase spotlight SIGHT PANEL impresses with its rectangular shape measuring 58 cm in length, 19 cm in width, and 6.5 cm in height. With a power consumption of 65 watts, it delivers a strong light output of 11,600 lumens, ensuring efficient illumination. Thanks to its wide beam angle of 70°, it provides an even distribution of light. The product comes from the renowned brand SLV and is equipped with an integrated driver included in the scope of delivery.

Optimal Light Quality and Color Rendering

The spotlight features a color temperature of 4000 Kelvin, producing a neutral, pleasant light ideal for many applications. With a color rendering index of 90 to 100 Ra, it ensures natural and precise color reproduction. This is particularly important where colors need to be displayed true to life. The high luminous efficacy of 178.46 lumens per watt also makes the spotlight extremely energy-efficient.

Flexible Dimming with Modern Control

The SIGHT PANEL spotlight is dimmable and supports the dimming methods DALI and DALI-2. This digital control enables stepless brightness adjustment and creates a comfortable lighting atmosphere that can be individually adapted. The integrated LED driver is current-controlled and non-replaceable, guaranteeing easy handling without additional maintenance effort.

Technical Details and Safety

The product is designed for an operating voltage of 220 to 240 volts and weighs 2.11 kilograms. It is classified as protection class 1 and has an IP20 rating, making it particularly suitable for protected environments. The spotlight is not adjustable but features diffuse light distribution thanks to the integrated diffuser lens, which produces pleasant and glare-free illumination.

Practical Connection Options and Areas of Application

The LED spotlight is designed for connection to a 3-phase track lighting system, allowing flexible and simple installation. With a maximum of 21 luminaires on a B16 circuit breaker or 35 luminaires on a C16 circuit breaker, the system can be easily expanded. Additionally, the spotlight is suitable for screen workstations, making it especially suitable for work areas with monitors and screens.
