3-phase spot SIGHT PANEL square, suitable for VDU workstation IP20, black, lacquered dimmable

High-Quality LED 3-Phase Spotlight SIGHT PANEL

The LED 3-phase spotlight SIGHT PANEL from SLV impresses with its rectangular shape and a length of 58 cm. With a power consumption of 65 watts, it delivers an impressive luminous flux of 10,100 lumens with a luminous efficacy of 155.38 lm/W. Its beam angle of 70 degrees ensures broad, even illumination, optimally distributed by a diffuse lens. The robust design, weighing 2.11 kg, and protection class IP20 guarantee reliable operation.

Optimal Light Quality for a Pleasant Atmosphere

The color temperature of 3000 Kelvin produces a warm white light that creates a pleasant and relaxed atmosphere. The high color rendering index of 90-100 Ra ensures natural and vivid color representation, which is especially important for work environments or presentation areas. The spotlight's suitability for screen workplaces makes it ideal for areas where screens are used, as glare and reflections are minimized.

Flexible Dimming Function and Easy Control

The SIGHT PANEL spotlight is equipped with DALI and DALI-2 dimming functions, allowing continuous adjustment of light intensity. This enables individual and needs-based lighting settings, contributing to energy savings and a comfortable room climate. The integrated LED driver is mains-powered and permanently installed, ensuring easy installation and safe operation.

Easy Installation with Power Rail Adapter

Thanks to the power rail adapter, the 3-phase spotlight can be easily connected to existing power rails. This allows flexible arrangement and simple positioning of the luminaire within the lighting system. The maximum number of luminaires that can be operated on a circuit breaker is 21 with B16 and 35 with C16, ensuring high system capacity.

Technical Details and Dimensions

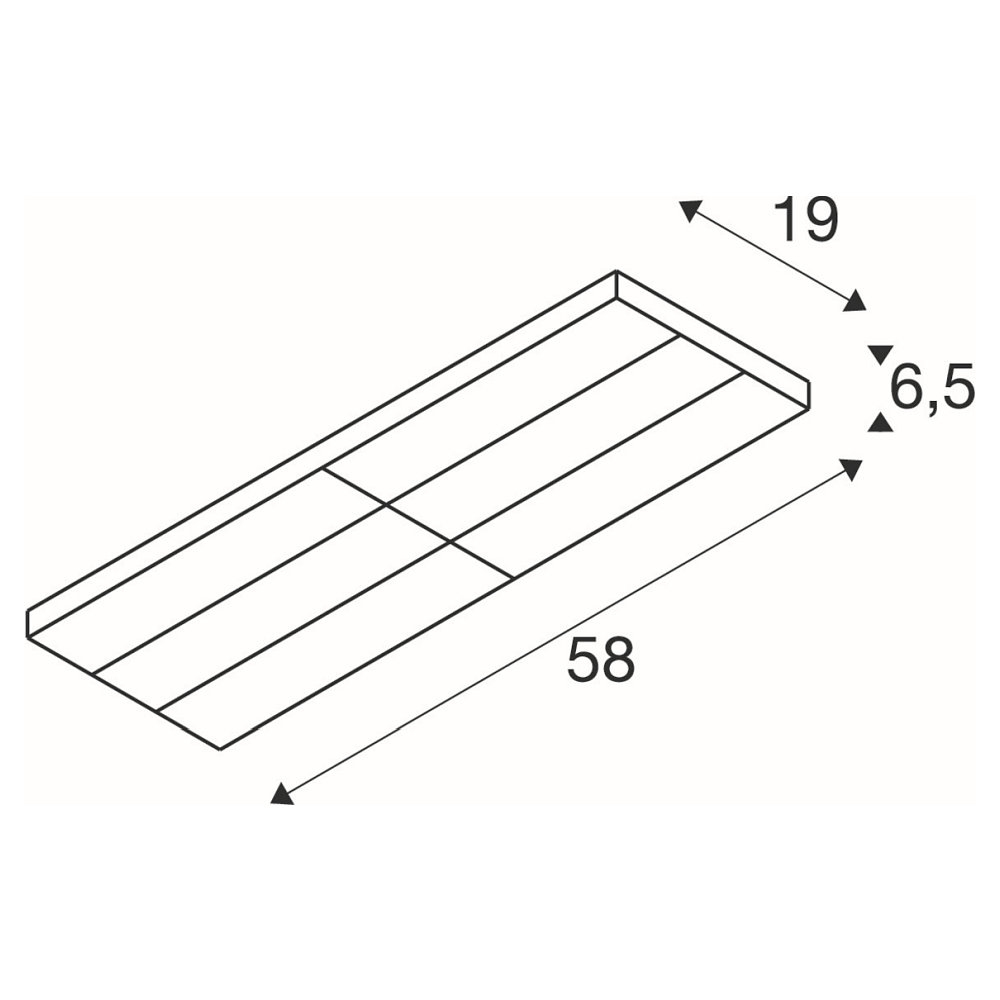

The spotlight measures 58 cm in length, 19 cm in width, and 6.5 cm in height. The operating voltage ranges between 220 and 240 volts, making it compatible with standard power grids. The ambient operating temperature ranges from -20 to 35 degrees Celsius. Protection class 1 ensures safety during use, while the non-adjustable mounting guarantees stable and reliable light orientation.
