Wall luminaire BIG QUAD UP/DOWN WL, anthracite

Modern LED Wall Light with Elegant Design

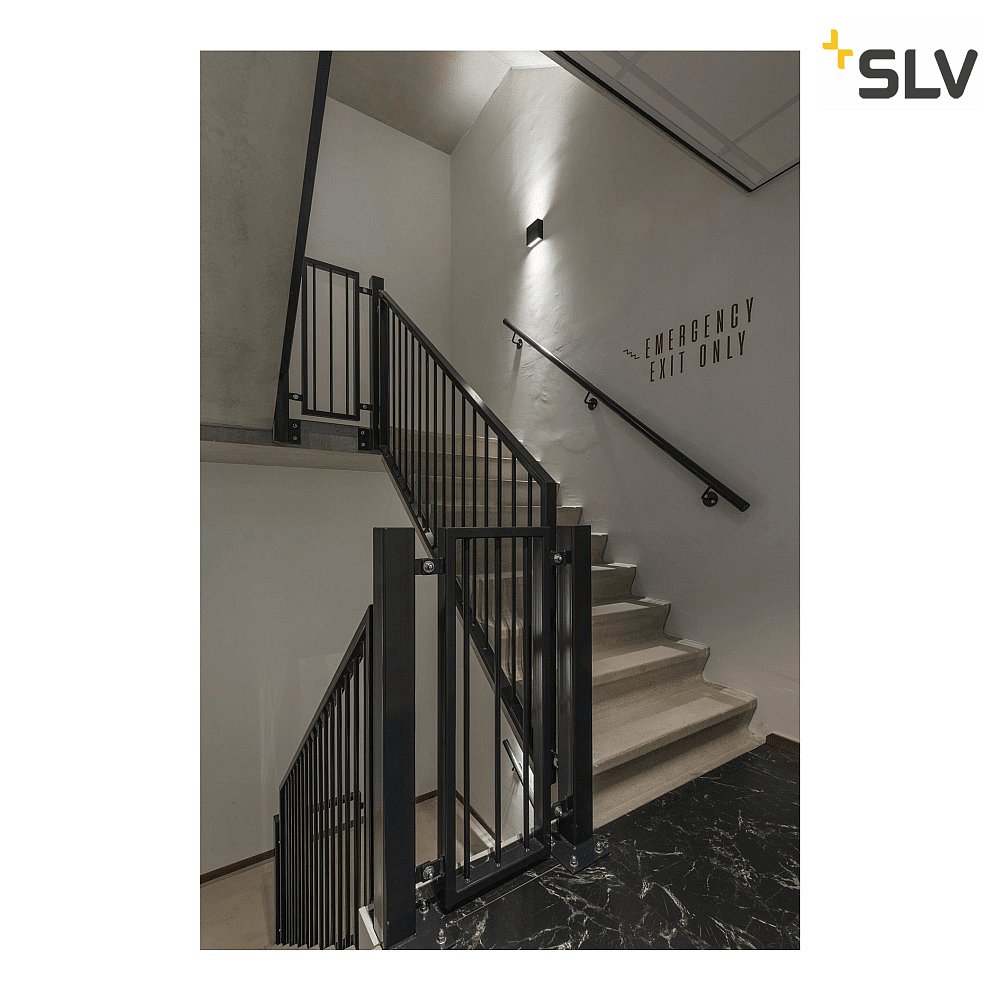

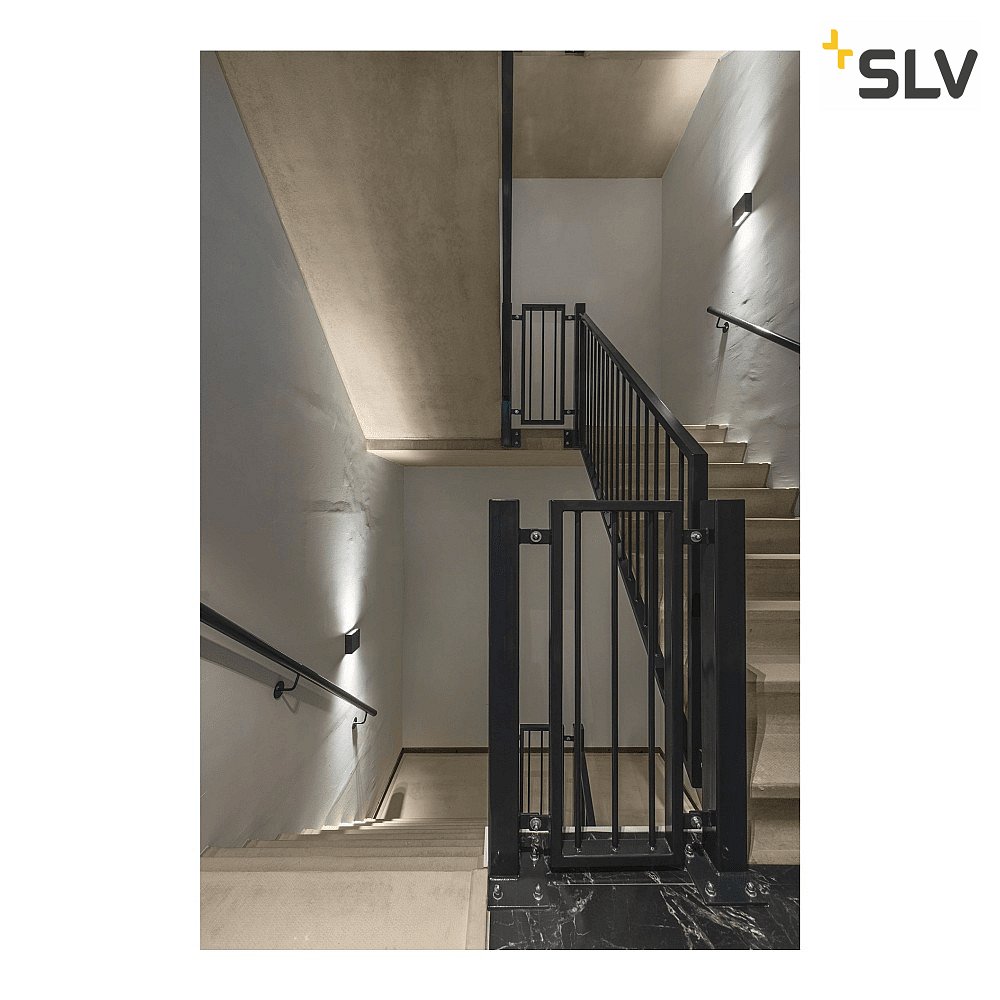

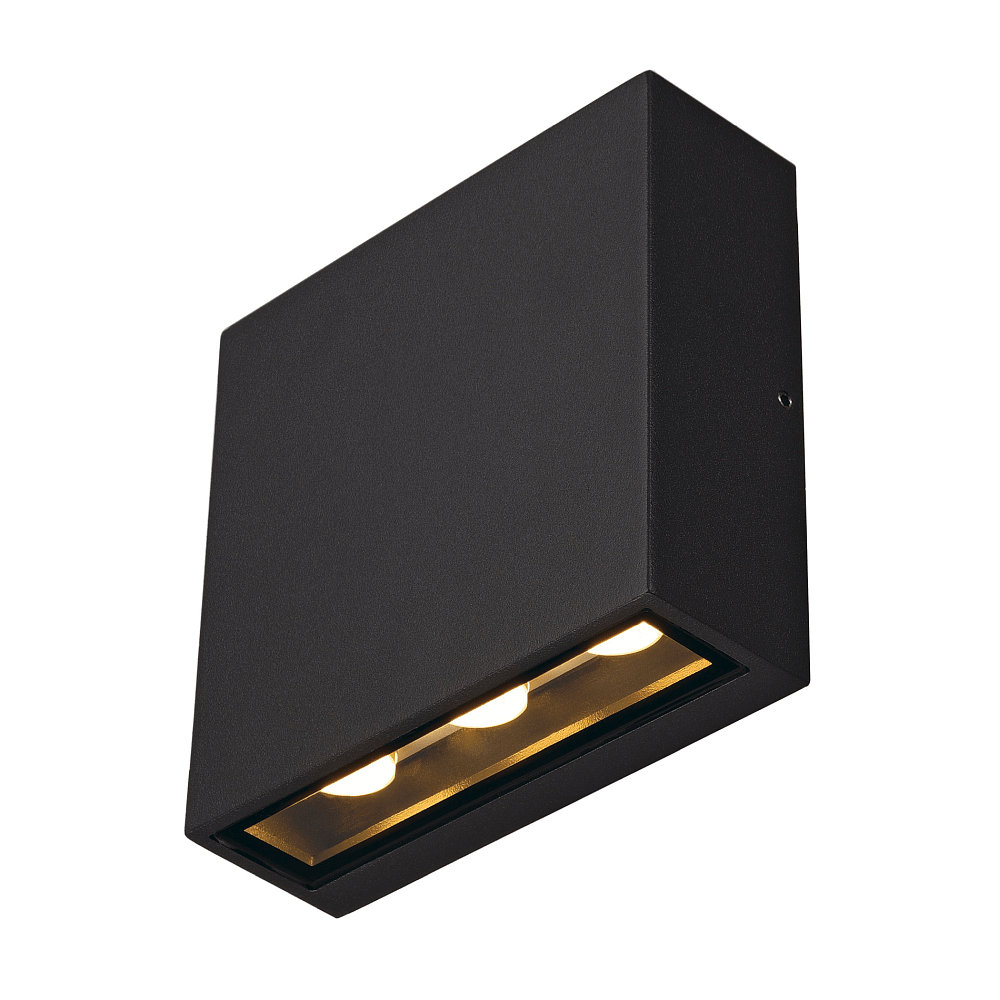

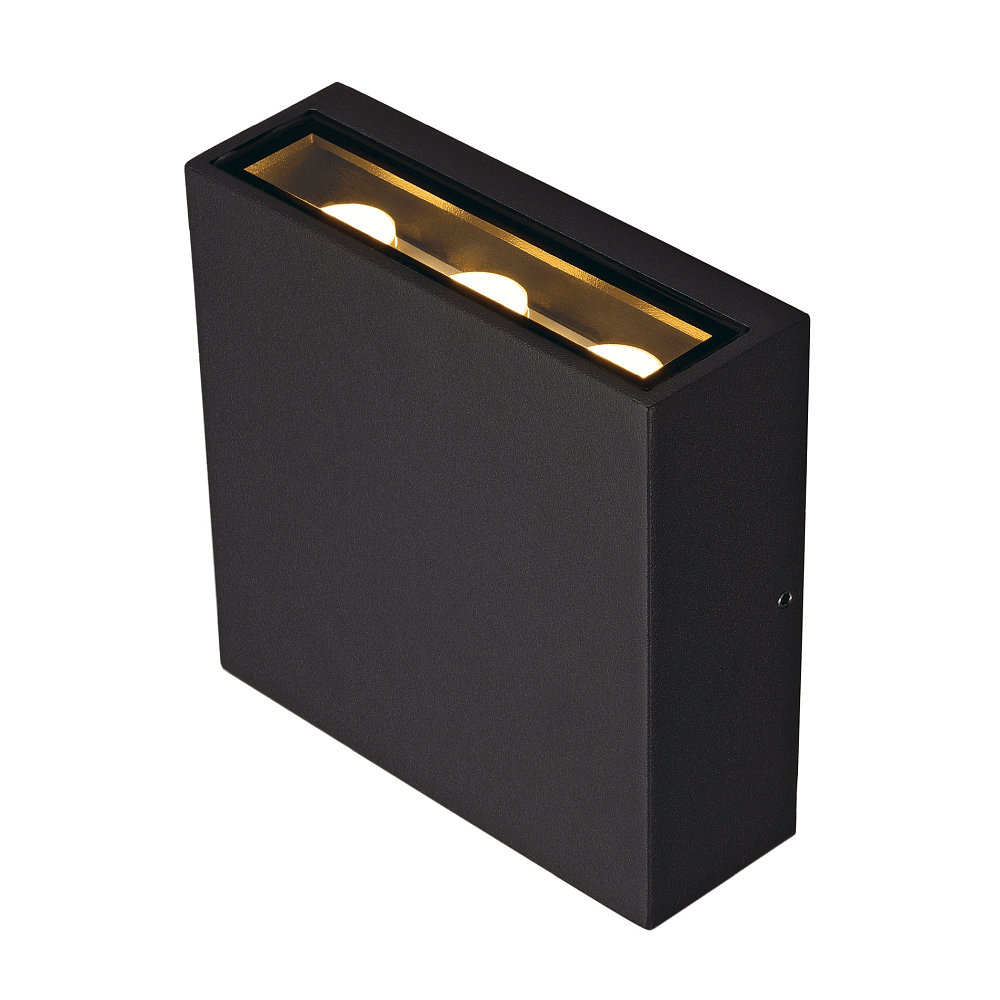

The BIG QUAD UP/DOWN WL LED wall light from SLV impresses with its flat and minimalist design in a stylish anthracite color. Made from high-quality aluminum and glass, this fixture blends harmoniously into various environments. With compact dimensions of 14 x 14 x 5 cm, it is unobtrusive yet effective. The light is ideal for decorative illumination of walls, facades, balconies, or corridors, creating targeted light accents.

Efficient Lighting Technology and Pleasant Light Color

The BIG QUAD UP/DOWN WL has a power consumption of 8.2 watts and produces a luminous flux of 320 lumens upwards and downwards each, totaling 640 lumens. The light color is warm white at 3000 Kelvin, providing a pleasant and cozy atmosphere. Thanks to a high color rendering index of over 80 Ra, colors are rendered naturally and vividly. The symmetrical beam angle of 30 degrees each ensures even light distribution upwards and downwards.

High-Quality Craftsmanship and Robust Protection Classes

This wall light is equipped with protection class IP54, providing reliable protection against dust and splashing water. Additionally, protection class IK02 ensures resistance against hail, vandalism, and minor impacts. This makes the fixture especially durable and robust. With an average lifespan of 36,000 hours, it also offers a long service life without the need to replace the light source.

Easy Installation and Practical Features

Installing the BIG QUAD UP/DOWN WL is straightforward thanks to the included driver and terminal clamps for mains connection. The light is designed for an operating voltage of 220-240 volts at 50/60 Hz. With an energy consumption of only 9 kWh per 1,000 hours, it is also energy-efficient. Based on its technical data, up to 30 fixtures can be operated on an LS B16A and 48 fixtures on an LS C16A circuit breaker.

Versatile Applications and Expandable Series

The BIG QUAD UP/DOWN WL LED wall light is excellently suited for modern and decorative lighting of various areas. Additionally, it is part of SLV’s minimalist QUAD series, which offers further lighting models to create a unified and harmonious lighting concept. This allows for flexible and individual lighting adjustments to stylishly enhance any environment.
