transformer box

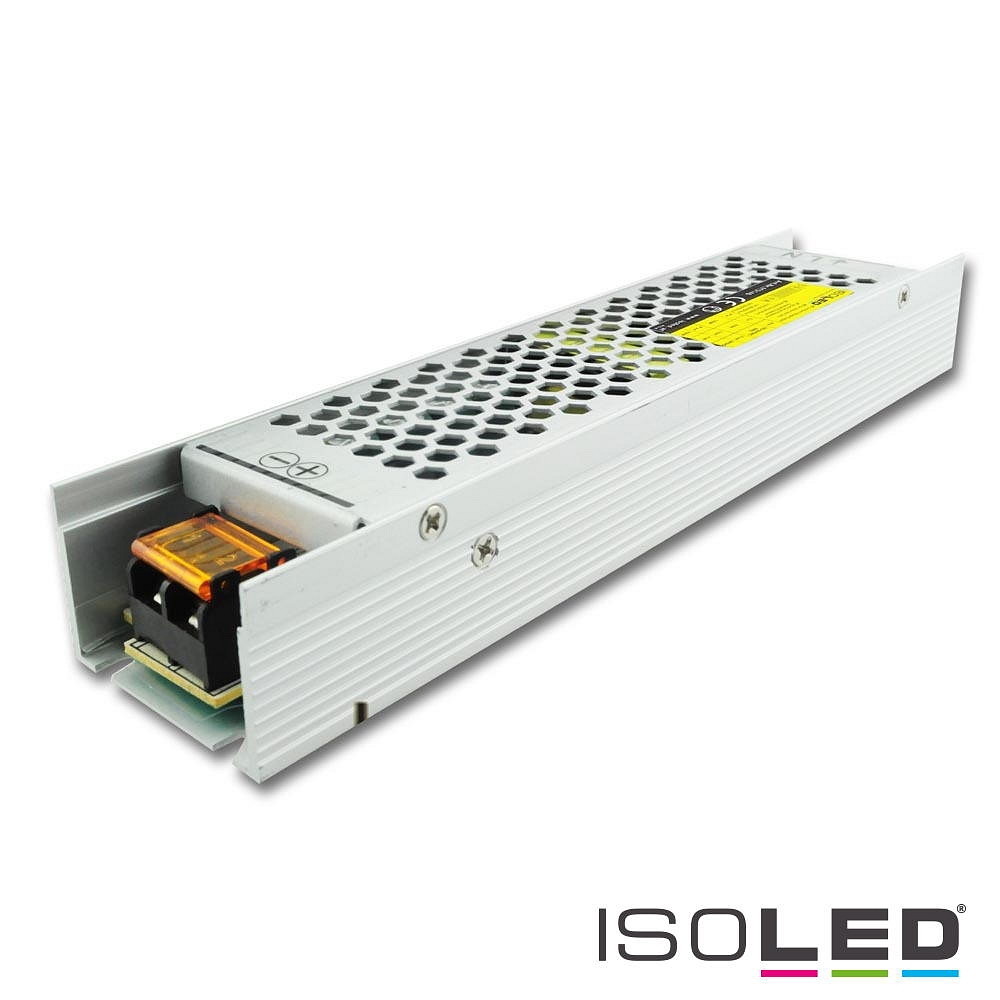

LED Transformer 24V/DC, 0-100W, Grid Slim

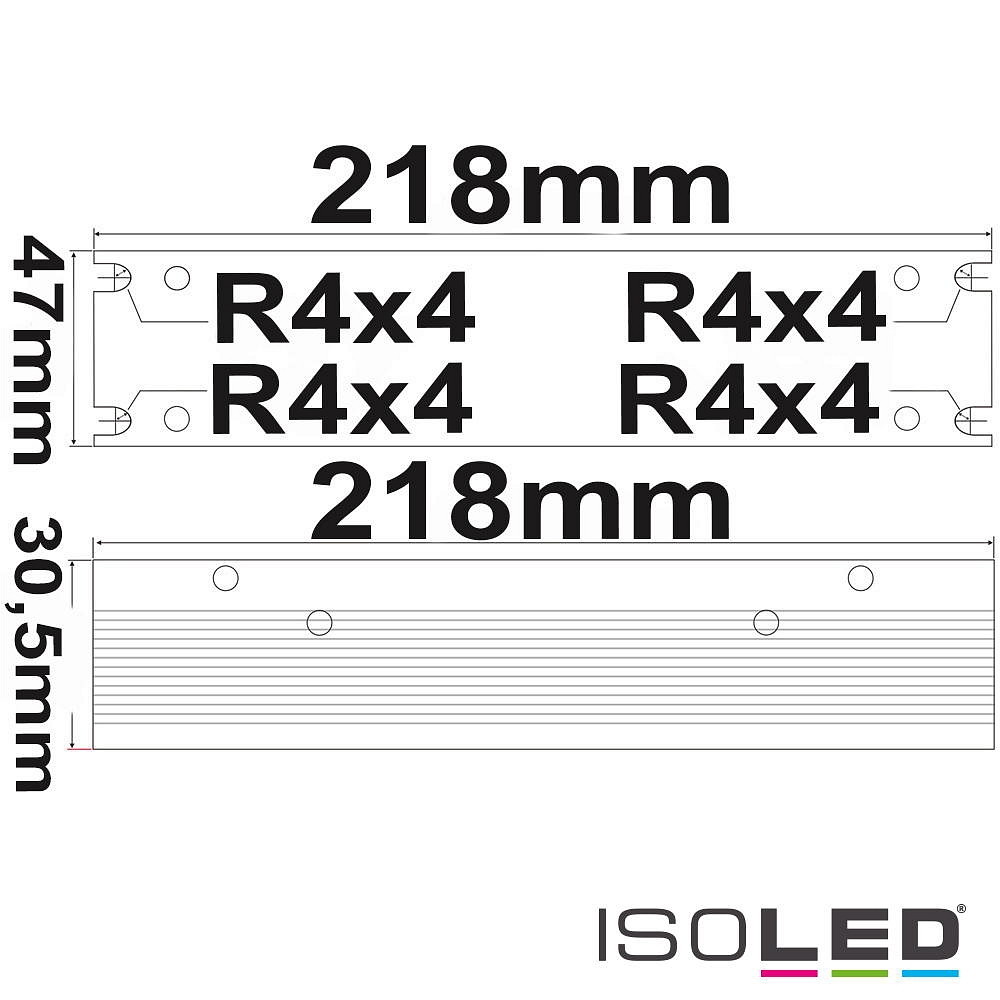

The LED transformer with an operating voltage of 220-240V~ offers an output voltage of 24V/DC and a power of 0-100W. With a installation depth of only 3.05cm and a size of 21.8/4.7/3.05 cm, the transformer can be space-savingly mounted in the wall.

Application: Wall

This LED transformer is specially designed for use in the wall. Thanks to its low installation depth and compact size, it is ideal for installation in various wall constructions.

Short-circuit window fuse transformer: yes

The LED transformer has a short-circuit window fuse transformer, which provides additional safety. This mechanism protects the transformer from possible damage in case of short circuits.

IP protection rating: IP20

With the IP protection rating IP20, this LED transformer is protected against the ingress of solid foreign objects with a diameter of more than 12.5 mm. This makes it ideal for use indoors.

Brand: ISOLED

The LED transformer comes from the renowned brand ISOLED, known for high-quality and reliable products. With an electrical connection design as screw/spring terminal, the installation is easy and safe.
