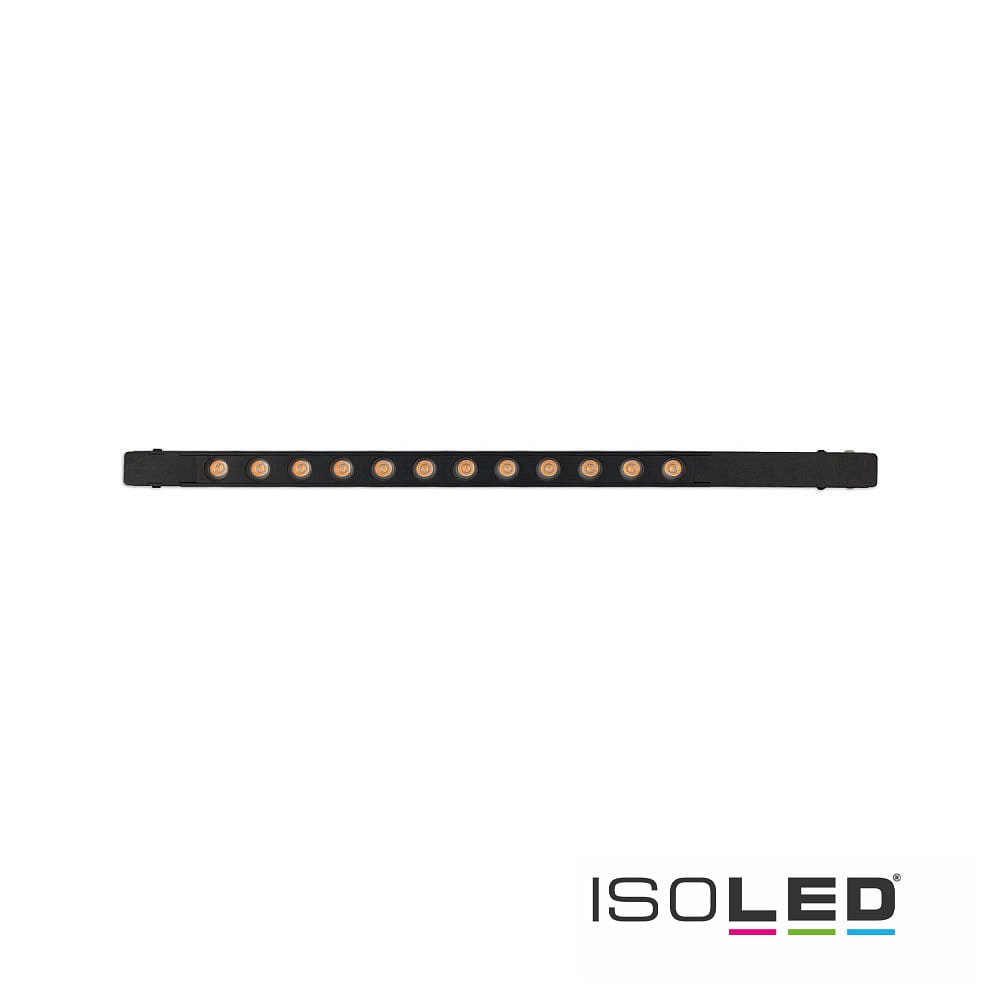

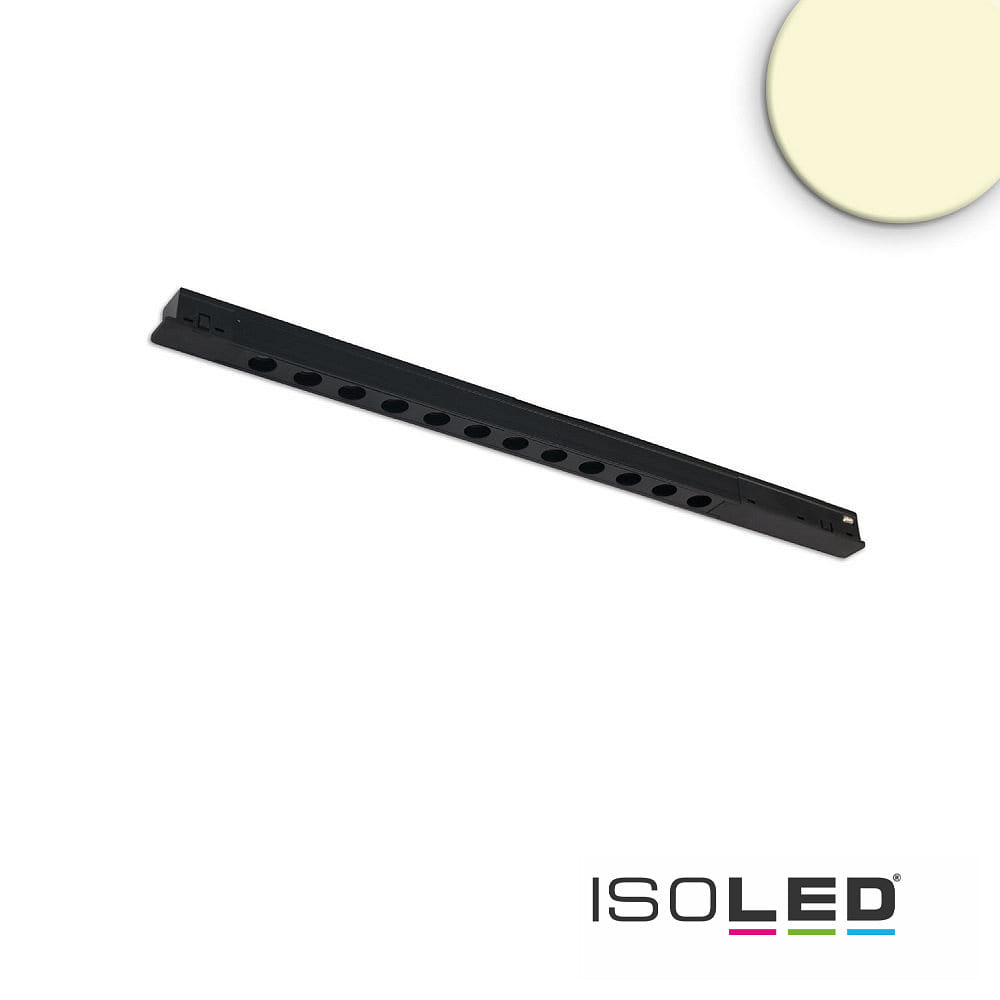

track grid luminaire TRACK48 LINE+ MINI ON-OFF 34CM switchable, prismatic IP20, black matt

LED track grid line luminaire GRID LINE+ MINI for TRACK48, 34cm, 48V DC, CRi >90, UGR<19, switchable

The LED track grid line luminaire GRID LINE+ MINI is a high-quality low-voltage track spotlight with a recessed grid optics. With a particularly compact MINI design and a low glare effect of UGR <19, it is ideal for screen workstations (BAP). The luminaire has very good color rendering with a CRi value of over 90Ra and a color rendering index of 1A.

Flexible installation and safe operation

The LED track grid line luminaire GRID LINE+ MINI can be installed without tools and flexibly, thanks to the integrated magnetic adapter. It can be safely operated in the 48V DC track system TRACK48 and offers safe use. The luminaire has an operating voltage of 48V= and a power consumption of 12W, with an energy consumption of 12kWh/1,000 h.

High light quality and long lifespan

With a luminous flux of 900lm and a light output of 75lm/W, the LED track grid line luminaire GRID LINE+ MINI offers excellent light quality. The useful life is L70 / B10 in hours: 33000, L70 / B50 in hours: 50000, and L80 / B50 in hours: 43000. The luminaire has a beam angle of 36° and a color temperature of 3000K.

Accessories and technical data

The LED track grid line luminaire GRID LINE+ MINI includes accessories such as lens incl, magnetic adapter incl, feeder excl, power rail excl, and driver excl. The luminaire has a protection class of 3, with an IP protection rating of IP20. The size of the visible part is 34 cm, with dimensions of L x W x H of 34 x 1.6 x 1.8 cm and a weight of 0.092kg.

Energy efficiency and safety

The LED track grid line luminaire GRID LINE+ MINI is classified in energy efficiency class G and has a brand of ISOLED. It offers high energy efficiency and safety in lighting. Please note that it is a switchable model that should only be operated with suitable, non-dimmable constant current converters.
