surface / recessed luminaire FLEX PRO DN235 CCT Switch, adjustable IP44, white dimmable

ISOLED


D
Product data sheet

CHF 30,54

excl. Shipping costs / excl. VAT
RRP (manufacturer): CHF 49.90

Price below RRP

Shipping time: 10-13 days

Product no.: ISO-116828
EAN: 9009377167522
In stock: 50


Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

ISOLED surface / recessed luminaire FLEX PRO DN235 CCT Switch, adjustable IP44, white dimmable

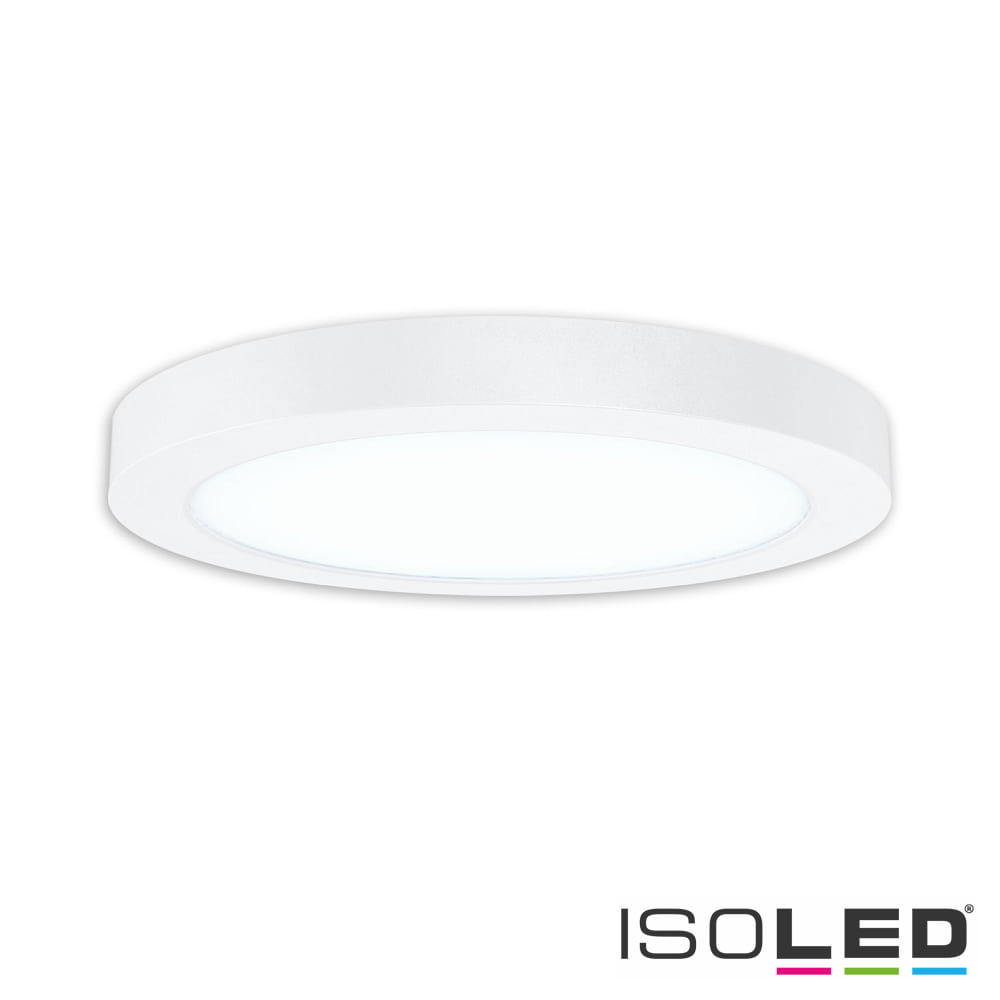

Versatile LED Surface-Mounted and Recessed Light FLEX PRO DN235

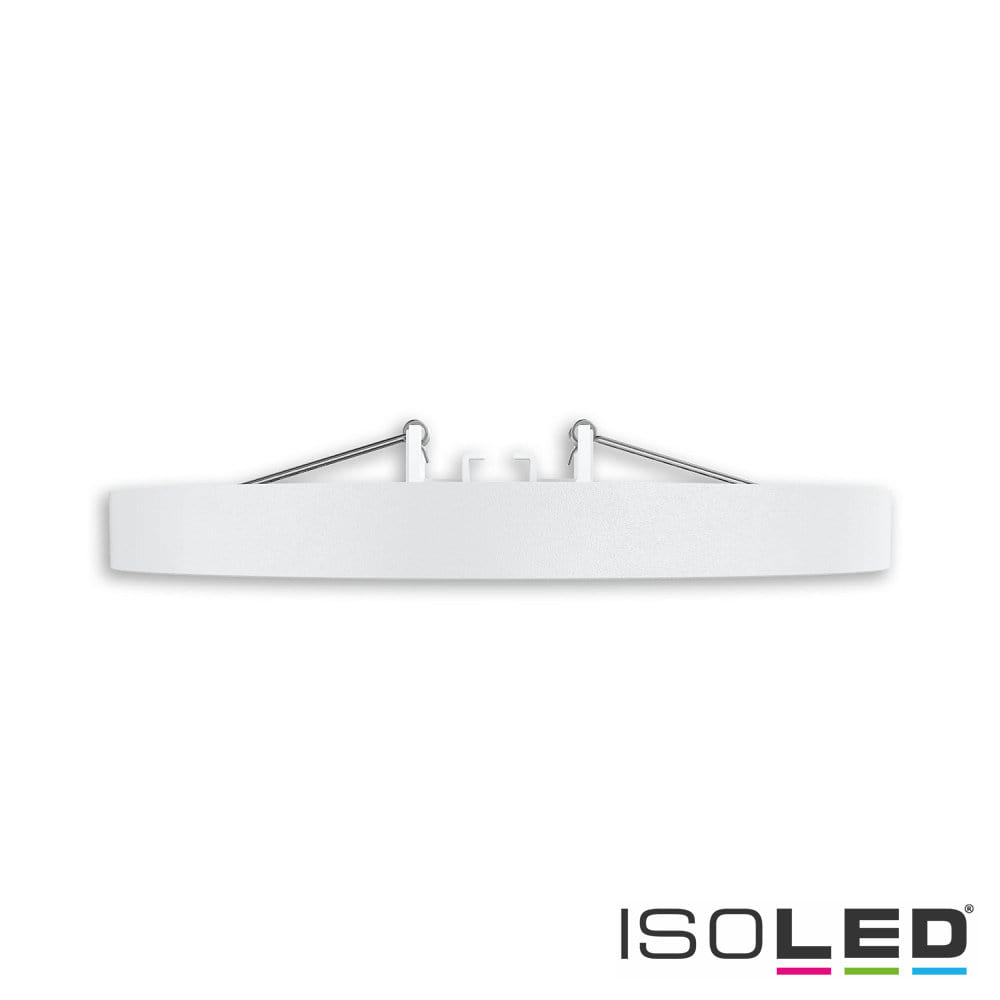

The LED surface-mounted/recessed light FLEX PRO DN235 from ISOLED impresses with its adaptability and high-quality workmanship. With a diameter of 23.5 cm and a slim installation depth of only 2.3 cm, this light is ideally suited for various mounting options. It can be used both as a surface-mounted and recessed fixture and fits into installation openings from 6.5 cm to 20.5 cm in diameter thanks to its lockable mounting rail with adjustable clip springs. This allows existing drill holes to be used easily, making installation particularly time-saving.

Individually Adjustable Light Color for Optimal Illumination

A special highlight of this light is the integrated light color switch, which allows the color temperature to be selected in three stages: 3000K (warm white), 3500K (warmer neutral white), and 4000K (neutral white). This enables the lighting atmosphere to be easily adapted to the specific use of the room. With a luminous flux of 1920 lumens and a luminous efficacy of 120 lumens per watt, the fixture produces bright and pleasant light that ensures homogeneous and wide-area light distribution. The color rendering index of over 80Ra provides natural colors and a comfortable ambiance.

Energy Efficiency and Long Service Life

The FLEX PRO DN235 is characterized by its high energy efficiency. With a power consumption of only 16 watts, the LED light uses just 16 kWh per 1000 hours of operation. It achieves an impressive service life of up to 50,000 hours, significantly reducing maintenance effort and saving costs in the long term. Additionally, the light is dimmable and supports both trailing-edge and leading-edge dimming, allowing flexible light control.

Reliable Protection and Secure Installation

The light is equipped with protection class IP44, which protects it against splashing water and foreign objects larger than 1 mm. This makes it particularly robust and durable. For secure wiring, a protected terminal block is integrated, ensuring a simple and reliable connection. Installation is further facilitated by the included clip springs, which securely fix the light in the ceiling. The fixture is made of aluminum and plastic, providing a stable yet lightweight construction.

Practical Features and Versatile Applications

The FLEX PRO DN235 is ideal for various applications as a renovation light, area light, or for use in kitchens and bathrooms. It features a wide beam angle of 120 degrees that ensures even illumination. The light is also compatible with temporary emergency power operation, providing additional safety in critical situations. The modern white design blends unobtrusively into many interior styles, while the diffuser ensures glare-free light distribution.

Colour:
white
Glass color:
opal
Dimension:
total-Ø∕ H: 23,5∕ 4,5 cm
visible part-Ø∕ H: 23,5∕ 2,2 cm
light output-Ø: 18,7 cm
installation opening min.-Ø: 6,5 cm
installation opening max.-Ø: 20,5 cm
Material:
aluminium
plastic
Weight:
0,675 kg
Product type:
surface / recessed luminaire
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge,leading edge
Power frequency:
50/60 Hz
Power consumption:
16 W
Emitting angle:
120 °
Lamps/bulbs:
LED
Light colour:
warm white / neutral white (in steps)
Light emission:
direct
Beam direction:
down
Light flux:
1920 lm
Light intensity:
611
Light yield:
120 lm/W
Colour temperature:
3000 / 3500 / 4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
80 Ra
1B
lamp performance:
16
Fitting depth:
2,3 cm
Fitting opening circle :
6,5 cm
Mounting:
recessed mounting, surfaced mounting
Protection class:
2
IP-protection class:
IP44
Accessories:
clip springs - included in delivery
light colour switch - included in delivery
driver - included in delivery
ambient temperature:
-20 ... +40 °C
Energy efficiency category:
D
EPREL No:
2071343
Energy consumption:
16 kWh/1.000 h
Article number:
ISO-116828
Purchasing quantity:
1 piece
Brand:
ISOLED
Manufacturer:
ISOLED
Manufacturer information
ISOLED FIAI Handels GmbH, Egerbach 48, 6334, Schwoich, Austria, product-details-service@isoled.shop, www.isoled.shop/details
