surface luminaire PANEL FLAT 170 R SCCT DIM C round, CCT Switch, dimmable IP44, white dimmable

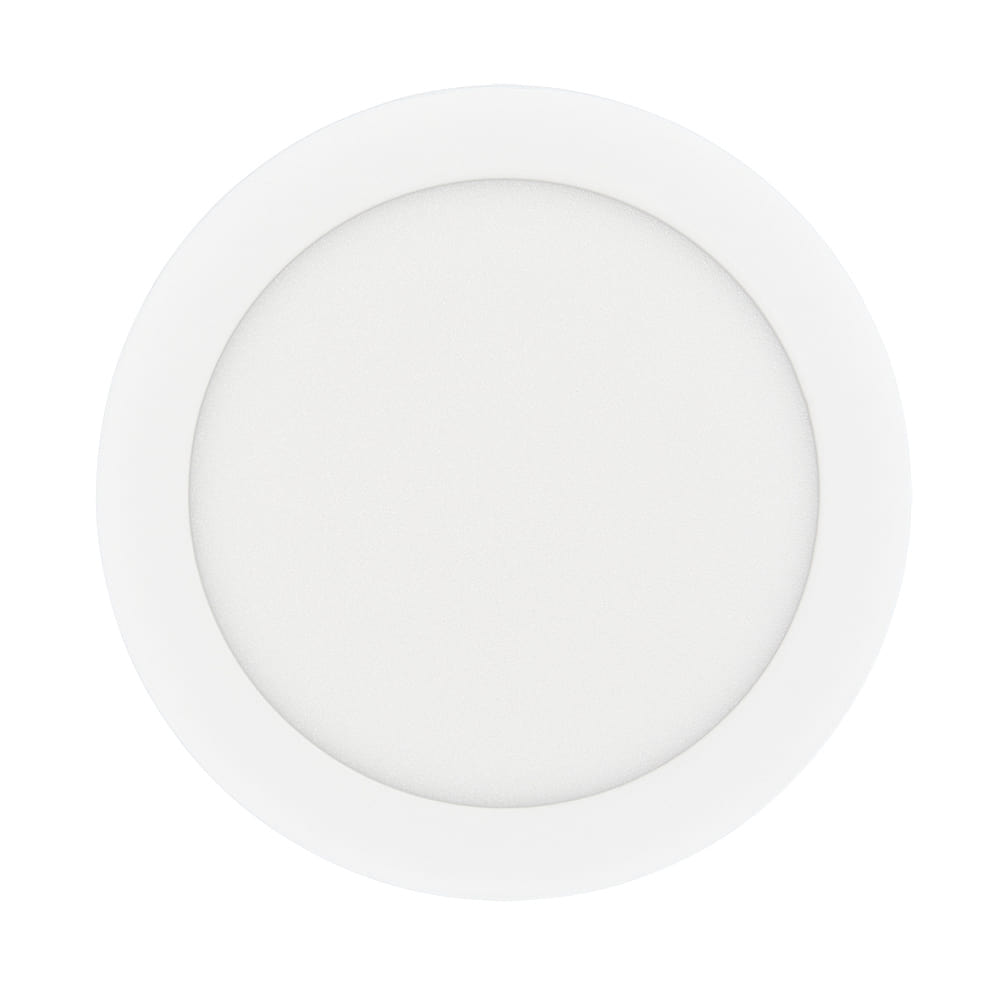

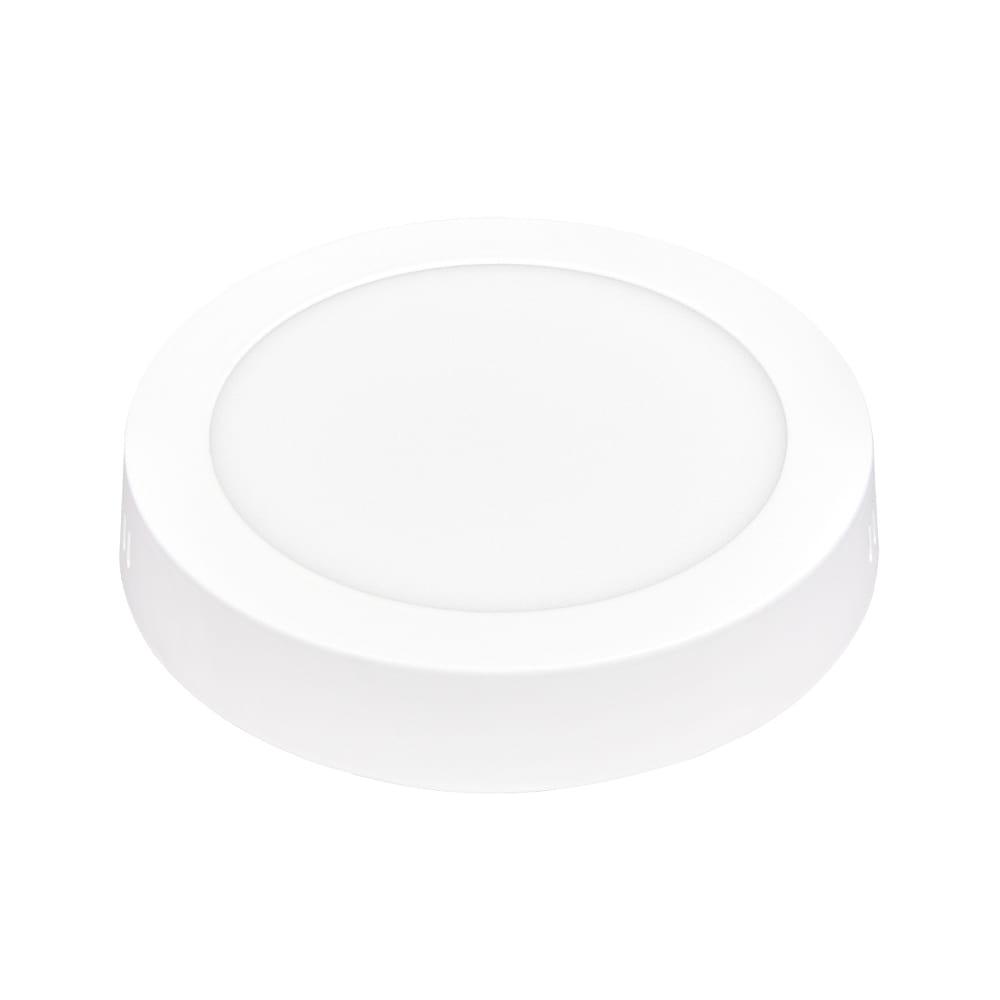

Versatile LED Surface-Mounted Panel FLAT 170 R SCCT DIM C

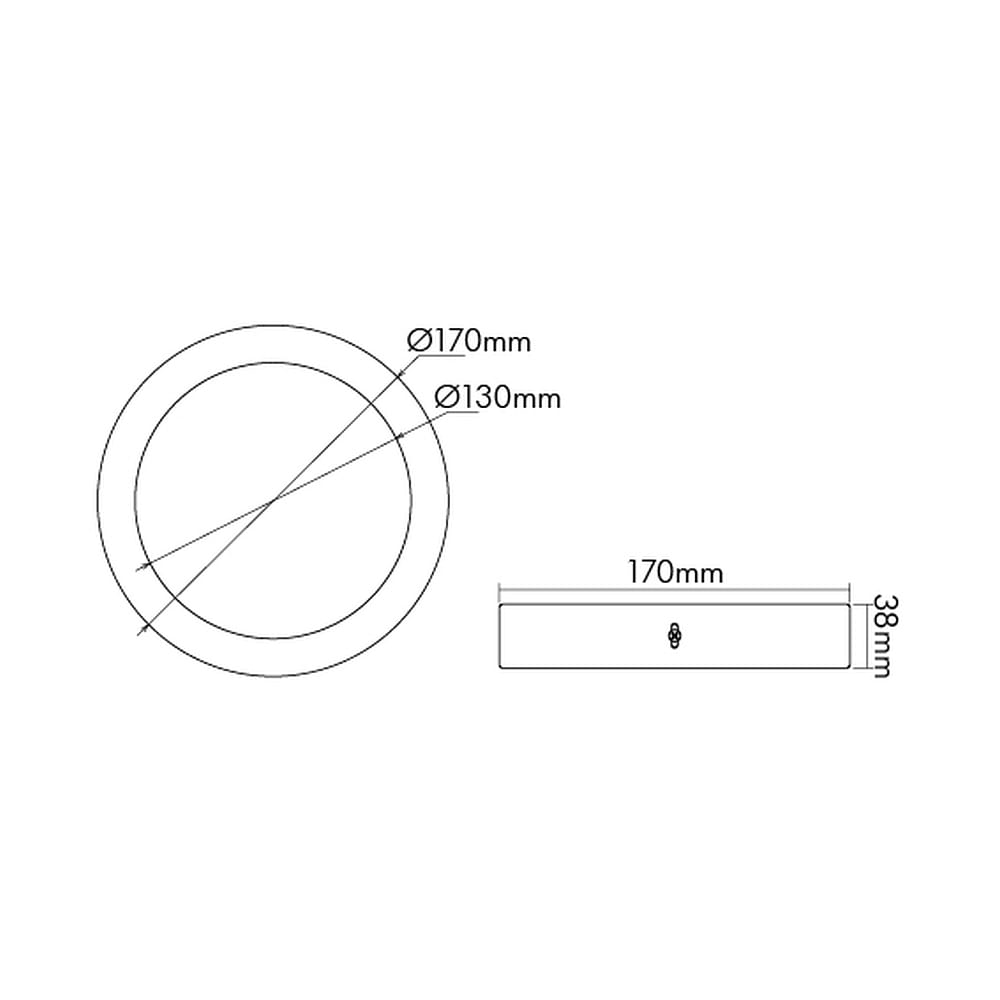

The LED surface-mounted panel FLAT 170 R SCCT DIM C from nobilé impresses with its elegant, round design with a diameter of 17 cm. The luminaire is finished in a modern white and consists of robust aluminum as well as high-quality, painted polymethyl methacrylate (PMMA), which ensures even light distribution. With a slim construction height of only 3.8 cm, the panel integrates unobtrusively into almost any environment. The light-emitting surface has a diameter of 13 cm, providing pleasant and wide-area illumination.

Efficient and Long-Lasting LED Technology

With a power consumption of only 10 watts, the LED panel offers efficient lighting that is particularly economical with an energy consumption of 10 kWh per 1000 hours. The LED technology guarantees an impressive average lifespan of 75,000 hours, eliminating frequent lamp replacements. The luminaire operates at a mains voltage of 220-240V and a mains frequency of 50-60 Hz, which meets standard requirements and allows for easy installation.

Individually Adjustable Light Colors and Dimming Function

The FLAT 170 R SCCT DIM C LED panel offers stepless adjustment of the color temperature from warm white (3000K), neutral white (4000K), to cool white (5700K). This allows the light to be optimally adapted to the desired mood or task. The luminaire is dimmable via phase-cut dimmers, which are not included in the delivery. However, the package includes a driver and a light color switch, with which the color temperature can be conveniently changed.

High Light Quality and Protection Class

The surface-mounted panel features a color rendering index (CRI) of over 80 Ra, which ensures natural and vivid colors. The IP44 protection rating guarantees reliable protection against splashing water and foreign objects larger than 1 mm, securing its use in various areas. Protection class 2 also offers an additional safety layer through double insulation. The beam angle of 120° ensures generous light distribution that minimizes disturbing shadows.

Easy Installation and Versatile Applications

Thanks to the mains connection via a terminal block, installation of the LED panel is straightforward and user-friendly. The combination of aluminum and PMMA ensures durable quality and a modern look. As a surface-mounted luminaire, the FLAT 170 R SCCT DIM C is ideal for a wide range of applications where efficient, dimmable, and color temperature-adjustable lighting is required. The product offers a perfect blend of technology, design, and functionality.
