socket column PUKA MANA 2-fold, square, dark grey

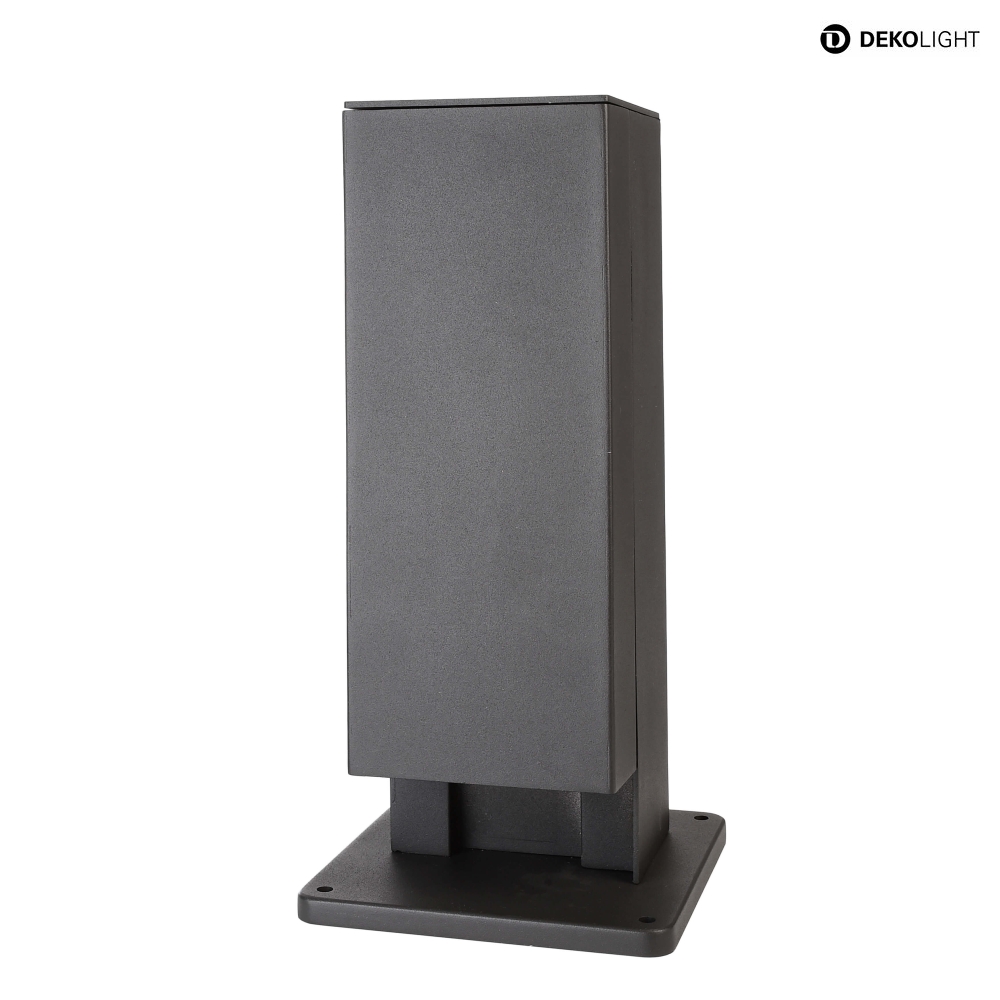

Socket tower PUKA MANA, IP54, 42cm, 2-way, with hinged cover + connection box, die-cast aluminum

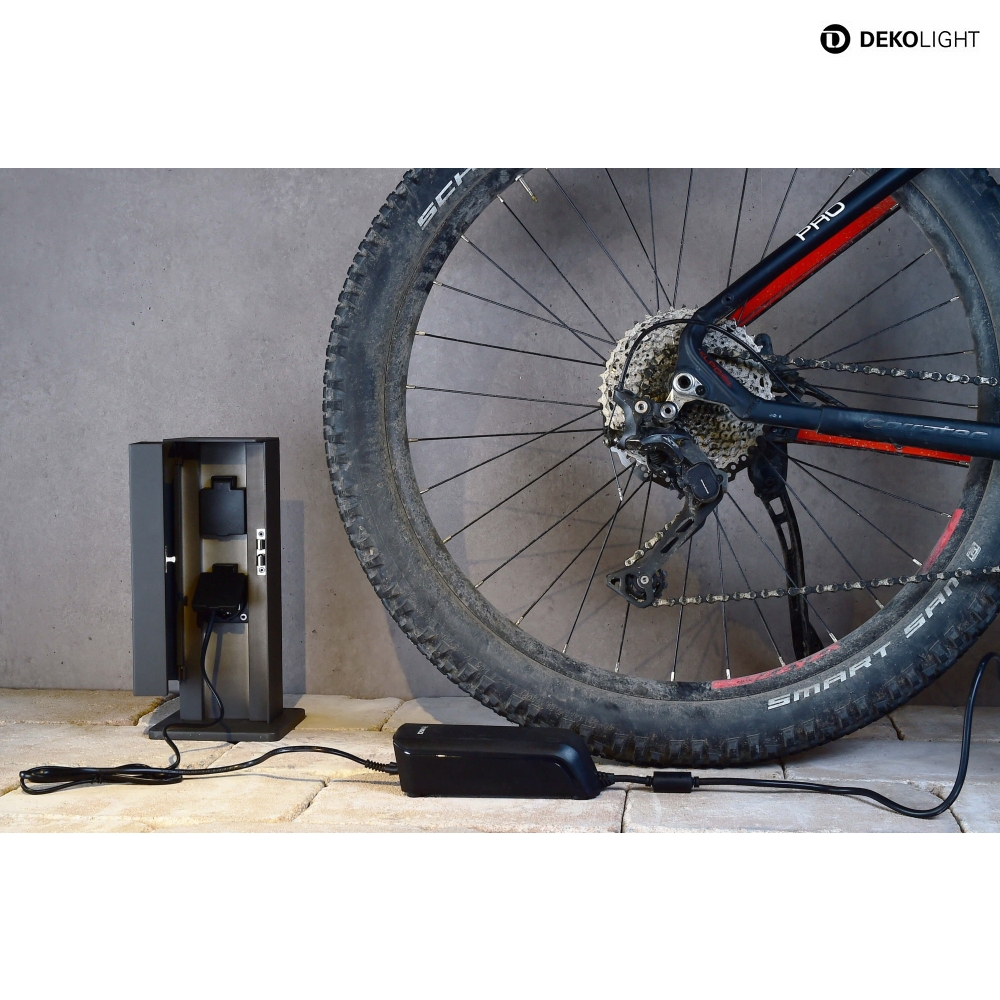

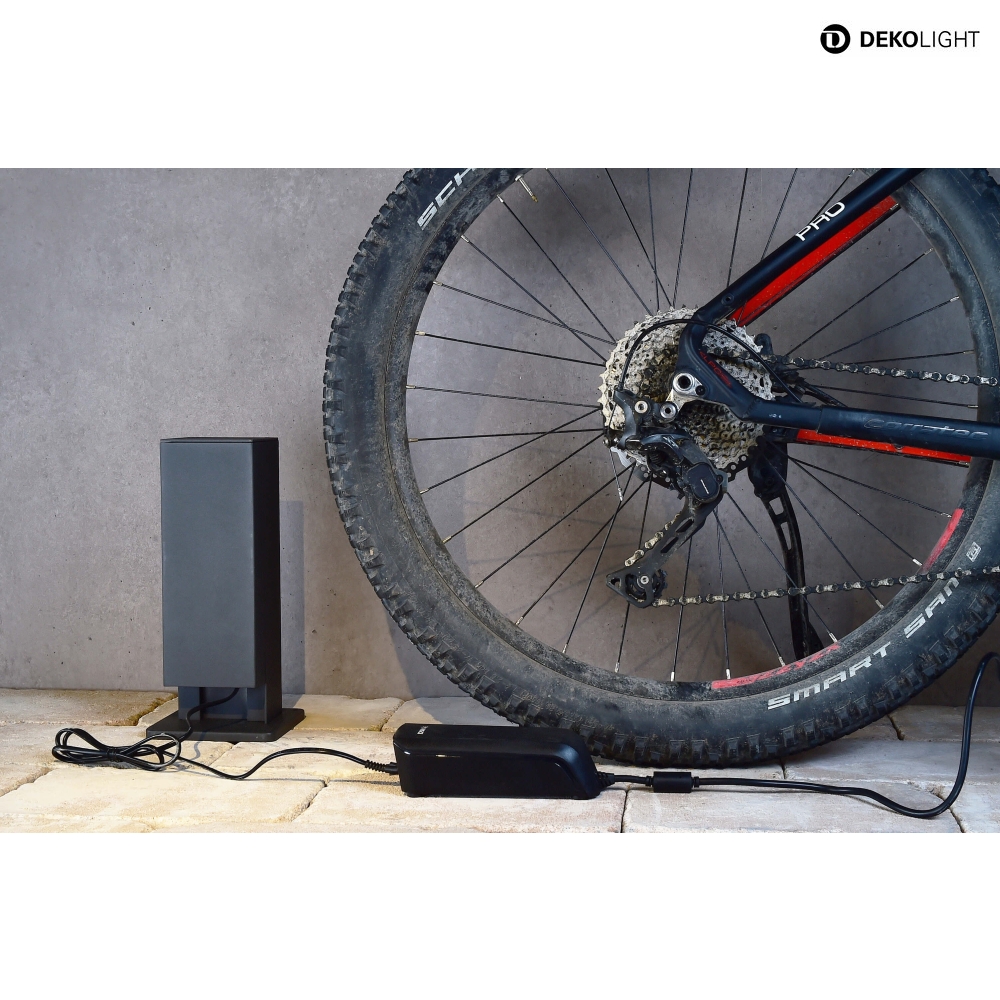

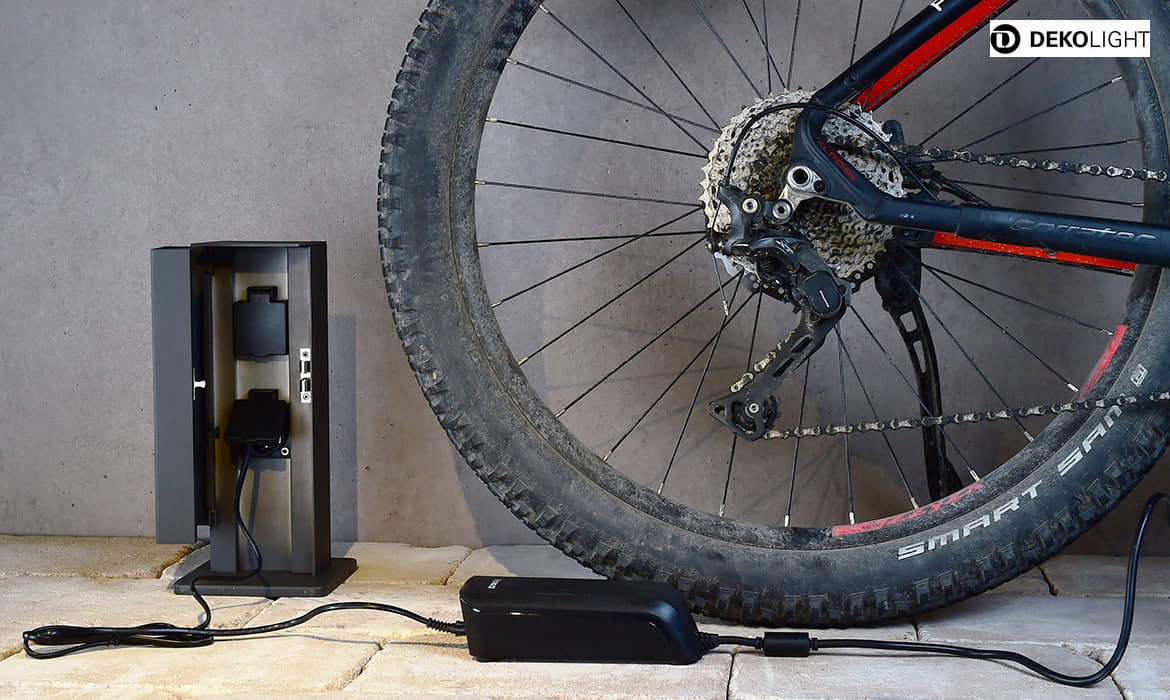

The socket tower PUKA MANA is a square surface-mounted power distributor designed for safe power distribution in outdoor and indoor areas. It is equipped with an IP54 protection class, protecting against splashing water and dust, and is perfect for use in the garden, front yard, entrance area, outdoor areas, as well as garages and carports.

Technical details

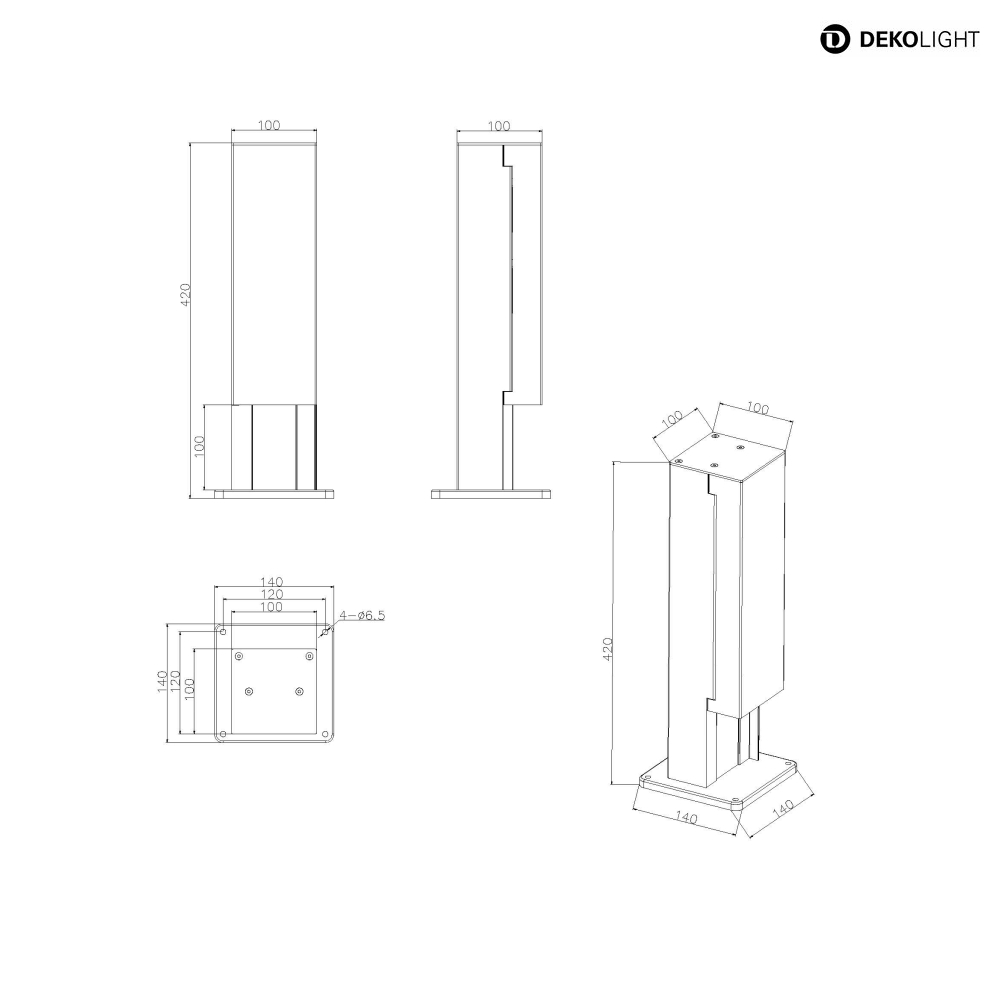

The socket tower has a total size of 14 x 42 x 14 cm (W x H x D) and weighs 1.53 kg. It has a max. current load of 16A and an operating voltage of 220-240V~. Thanks to its terminal connection, the power supply connection is simple and safe.

Accessories and application

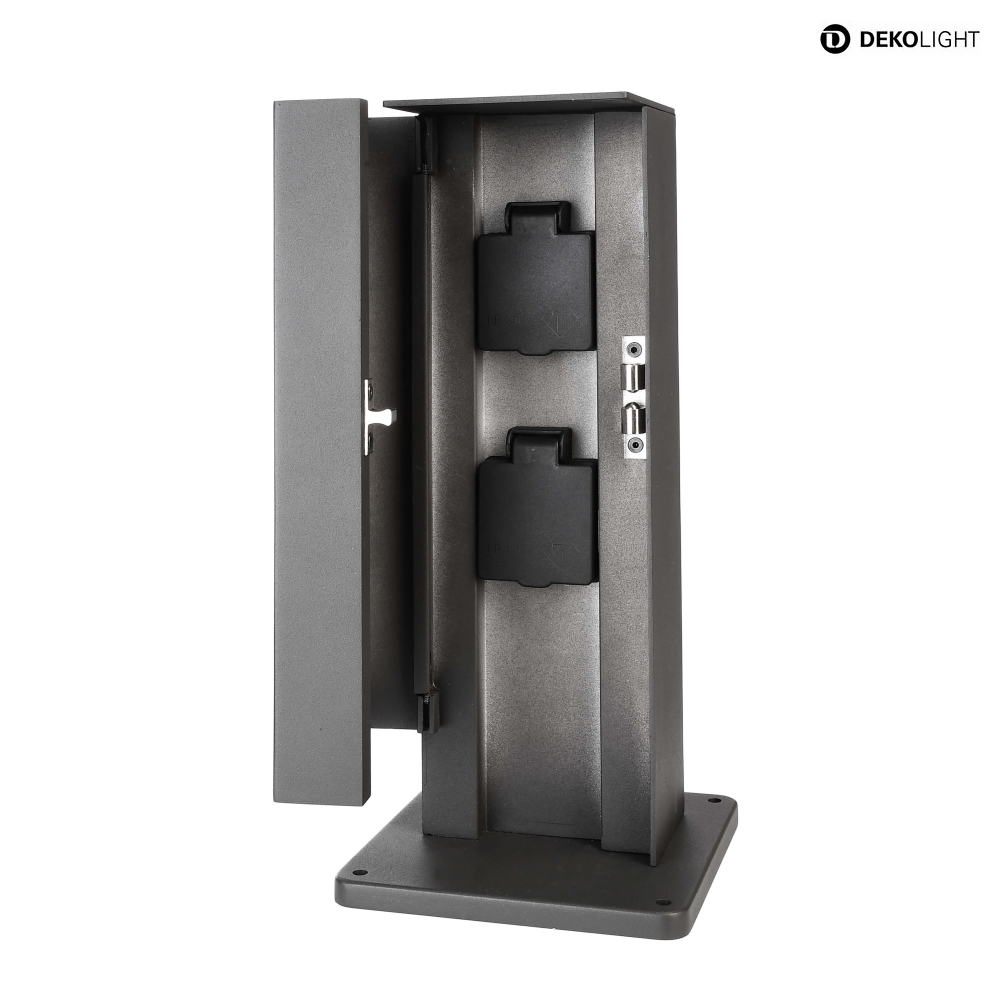

Included in the delivery are a cover, connection box, spring-loaded hinged cover, and socket. The socket tower is made of dark gray die-cast aluminum and plastic. It is suitable for indoor and outdoor use and can accommodate up to 3680 watts of connected appliances.

Easy installation

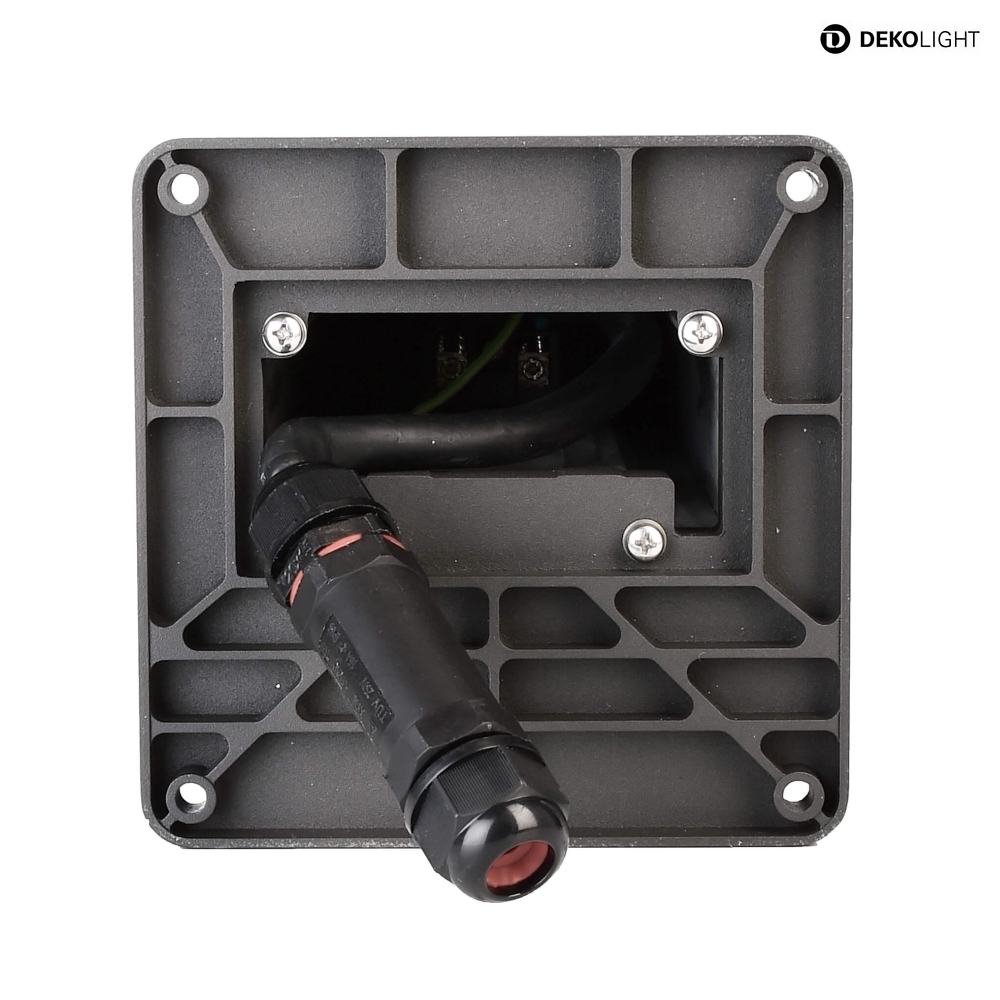

The socket tower is ready for connection to 230V AC mains voltage with an IP67 connection box, which is wired through and protected against temporary submersion. It can be used with earth cables of 3x 1.5mm², 5x 1.5mm², or 3x2.5mm². The drill hole diameter is 0.65 cm and the drill hole spacing is 12 x 12 cm.

Additional information

The socket tower is from the brand Deko-Light and has the item number D-733066. It is delivered without lighting, but there is also a version with an integrated E27 socket. This practical energy column is the ideal solution for safe and convenient power supply in outdoor and indoor areas.
