receiver MASTER 4X1 COLOUR 4 channel, with radio input, blue

Master radio receiver, IP67, 12/24V 240/480W, 4x 1 channel (multicolour), 4 addresses, max. 7 handheld transmitters (excl.)

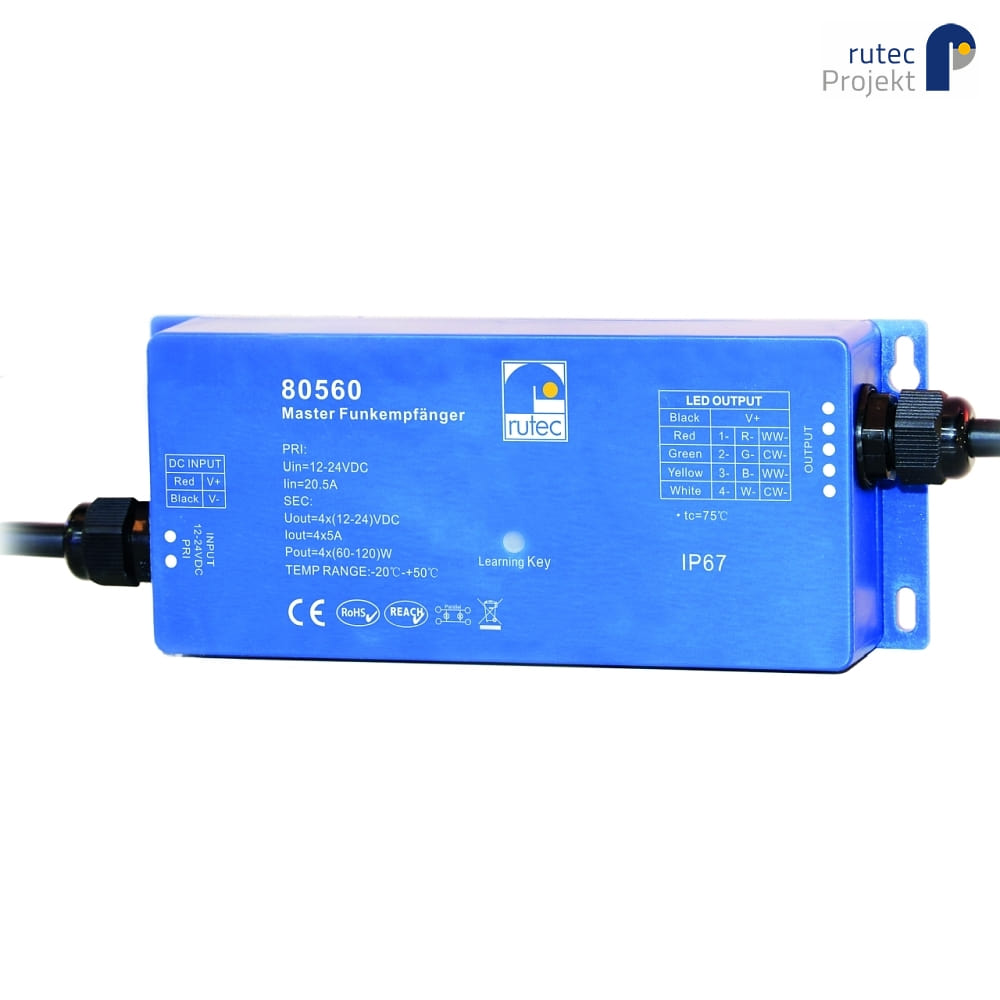

The Master radio receiver from Rutec Projekt is a high-quality receiver for controlling 1-4 colored LEDs. It has 4 channels and is suitable for indoor use. With an IP67 protection rating, it is protected against dust and temporary submersion, making it ideal for use in humid areas.

Max. current capacity: 20A

The Master radio receiver has a maximum current capacity of 20A, making it suitable for high-power operation. In 12V operation, the maximum power is 240W (4x 60W), while in 24V operation it is 480W (4x 120W). With memory effect and the option to expand with an RGB repeater, this receiver offers versatile applications.

Operating temperature: -20 … +50 °C

The Master radio receiver from Rutec Projekt is designed for a temperature range of -20 to +50 °C, ensuring reliable operation even under extreme conditions. The radio carrier frequency of 868 MHz also ensures stable and reliable signal transmission.

Power supply: open cable with IP screw connection

The Master radio receiver comes with an open cable and IP screw connection, allowing for easy installation. The accessories include a controller and a remote control, while an additional remote control is available separately. The protection class 3 and IP67 protection rating ensure safe use in humid environments.

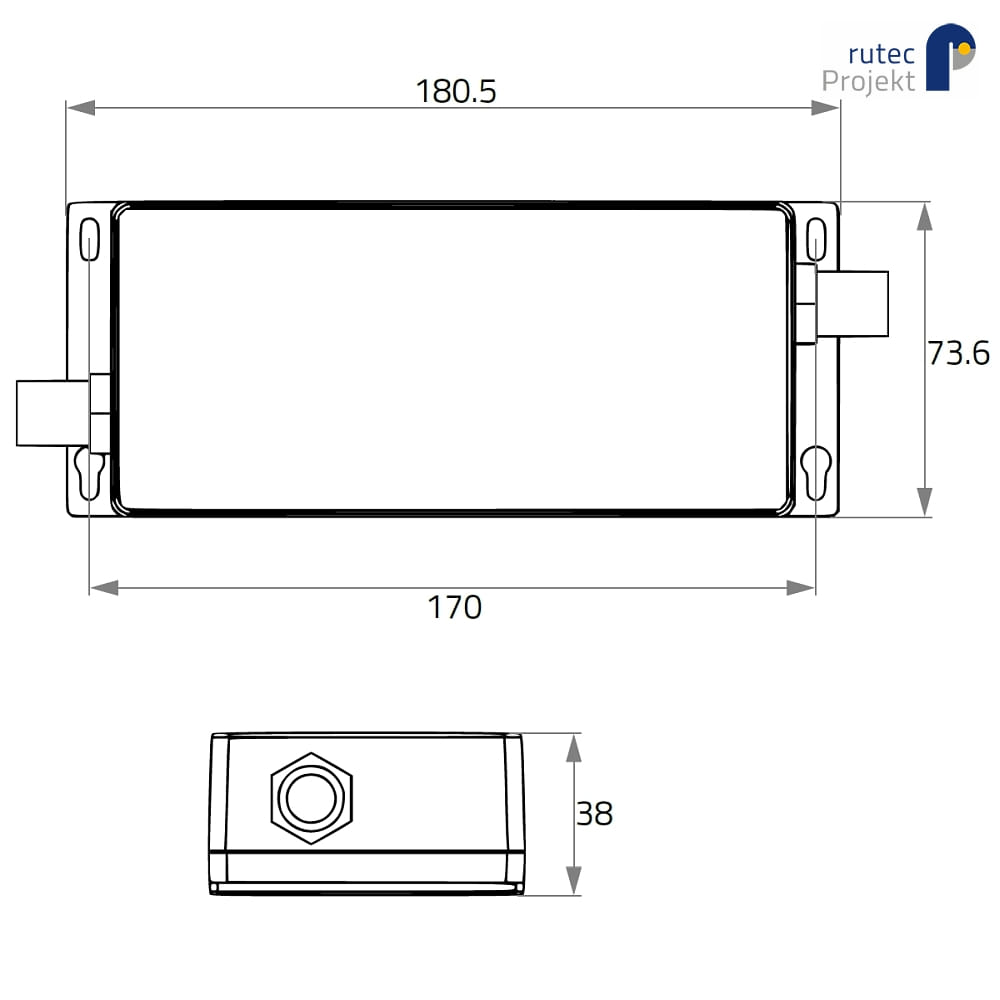

Size: L∕ B∕ H: 18.05∕ 7.36∕ 3.8 cm

The Master radio receiver has a compact size of 18.05 x 7.36 x 3.8 cm, making it space-saving and versatile. With up to 7 handheld transmitters (not included), various lighting scenarios can be conveniently controlled. Additional technical details can be found in the datasheet and manual.
