Radium LED Strip RaLED Star 2300 UltraPitch, 24Vdc, 700 LED/m, CRI>90, 24W/m 6500K 2100lm/m 120°, customizable x 1.2cm

RADIUM

Print product information sheet▶

question regarding the article

RADIUM Radium LED Strip RaLED Star 2300 UltraPitch, 24Vdc, 700 LED/m, CRI>90, 24W/m 6500K 2100lm/m 120°, customizable x 1.2cm

Print product information sheet▶

question regarding the article

CHF 27,62

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 41.98

You save 34,2 %

Shipping time: out of stock

Product no.: RARSTA2241
EAN: 4003556007451
In stock: 0

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

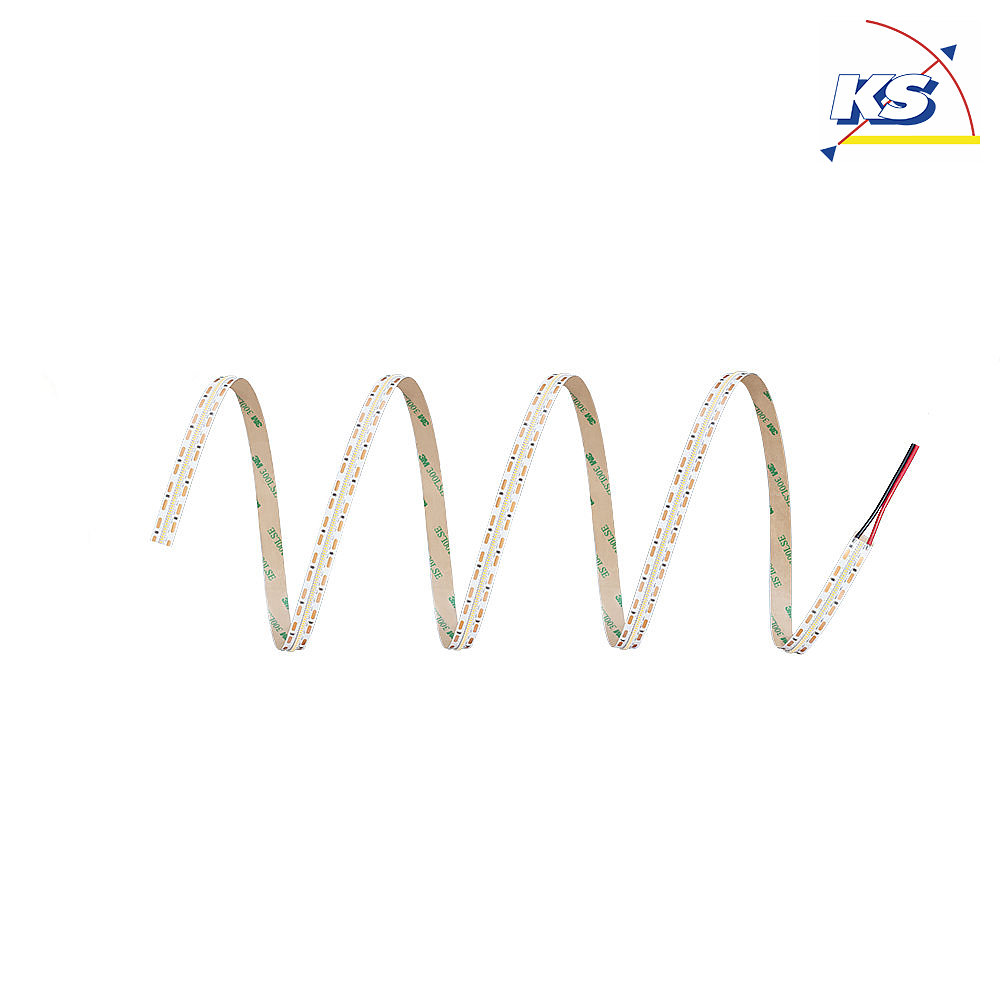

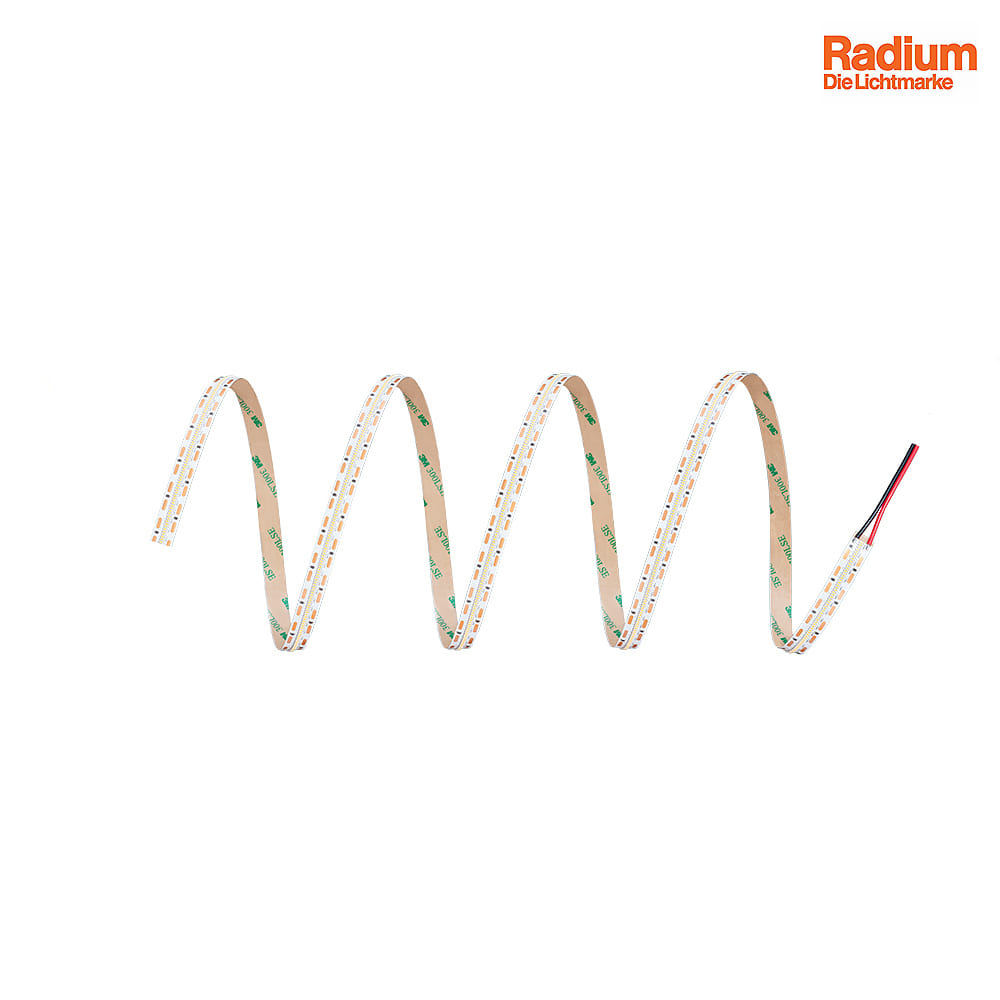

Radium LED Strip RaLED Star 2300 UltraPitch

The Radium LED Strip RaLED Star 2300 UltraPitch is a high-quality LED strip with an operating voltage of 24Vdc. With a power consumption of 24W and a light output of 88lm/W, it offers excellent brightness while consuming minimal energy.

Technical Details

The LED strip has a total of 700 LEDs per meter, resulting in a very homogeneous and efficient illumination. The LED spacing is only 1.4mm, ensuring uniform light distribution. The strip can be cut every 10cm and can be operated up to a length of 5 meters.

Color Temperature and Color Rendering

The Radium LED Strip RaLED Star 2300 UltraPitch has a color temperature of 2700K and a color rendering index of over 90Ra, ensuring excellent color reproduction and high color consistency. With a minimum bending radius of 2.5cm, the strip is extremely versatile.

Longevity and Quality

With an average lamp life of 60,000 hours at L70B10, the LED strip has a very long lifespan. The high-quality construction and use of premium materials guarantee reliable and long-lasting use.

Applications and Uses

The Radium LED Strip RaLED Star 2300 UltraPitch is ideal for use in various areas such as living spaces, offices, shops, or restaurants. With its excellent color rendering and brightness, it provides pleasant and atmospheric lighting.

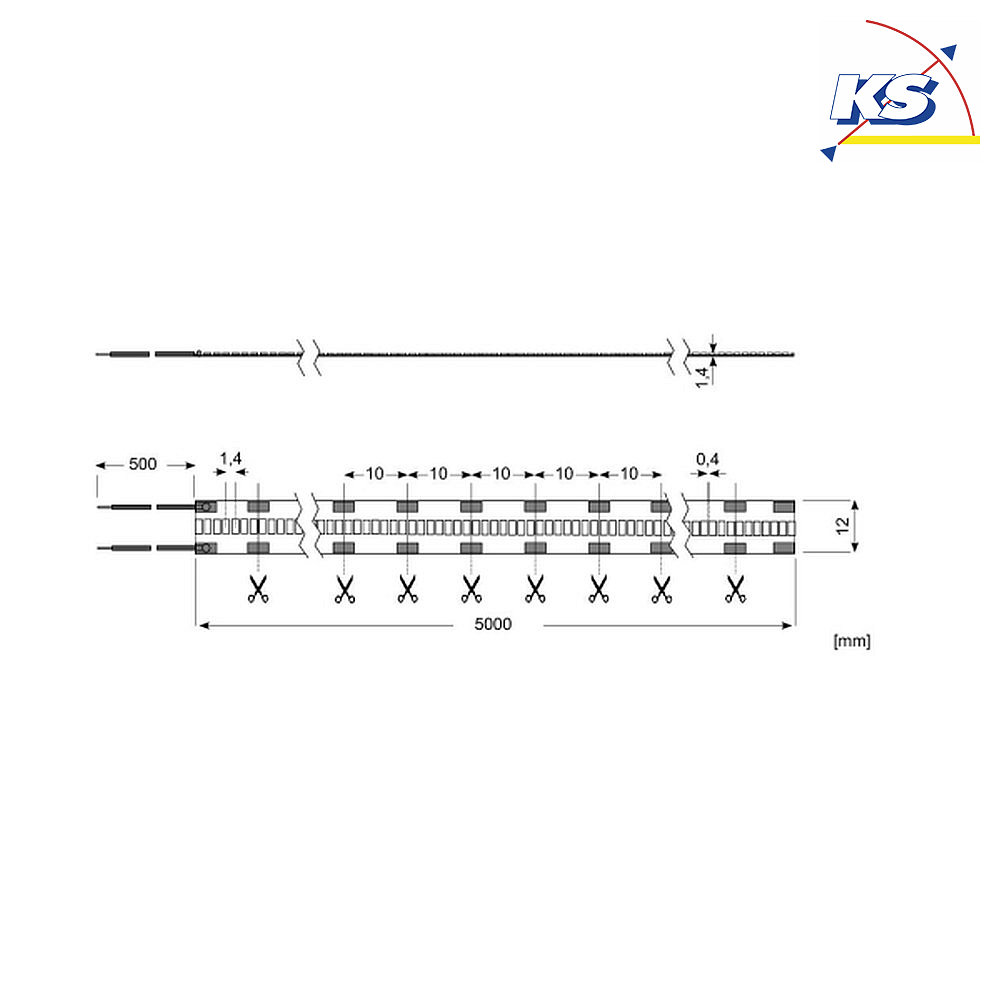

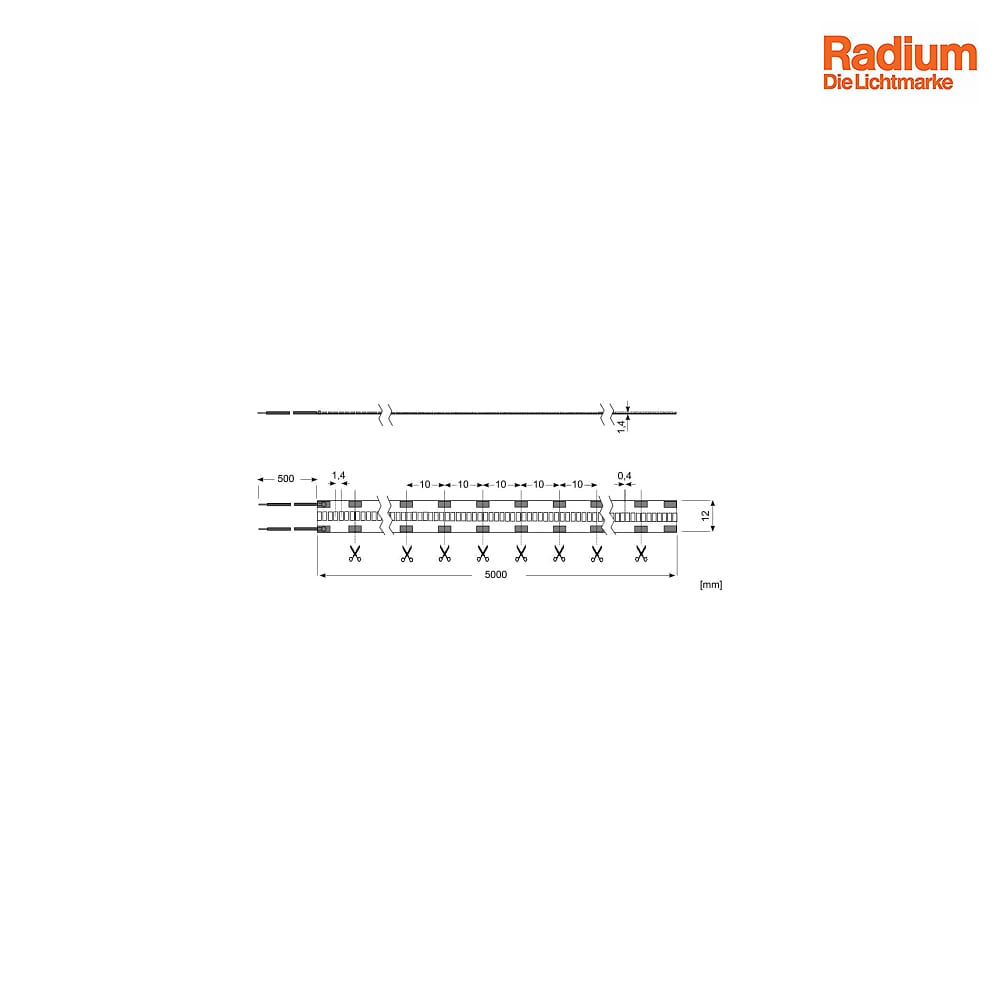

Dimension:

L∕ W∕ H: 100∕ 1,2∕ 0,14 cm
LED Abstand (Pitch)-L: 0,14 cm
Maximal betreibbare Länge-L: 500 cm

Weight:

0,023 kg

luminary type:

LED Strip

Operating voltage:

Power consumption:

24 W

Emitting angle:

120 °

Bulb type:

LED

Number of bulbs:

700 LED/m

Light flux:

2100 lm

Light yield:

88 lm/W

Colour temperature:

2700 K

Average life span of a bulb in hours:

60000 h

Colour rendering index:

>90 Ra
1A

Wire/connection lead diameter:

0.82 ² mm

Length of connection lead:

2x 50 cm

IP-protection class:

IP00

Additional information:

Price per 100 cm or part thereof!
Factory assembly and mounting extra charge.
Connection cable soldered on both sides, each 50cm.
Ultra small LED distance due to 700 LED/m: only 1,4mm.
Maximum operable length: 5 meters
Separable every 10cm
Very long service life: 60.000 h L70B10
Minimum bending radius: 2,5cm.
Excellent color rendering: CRi> 90 Ra.
High color consistency: SDCM <3
Shortest unit (SEU): 10cm.
An aluminum profile for cooling is required for the correct operation of the LED strip.

ambient temperature:

-20 - +45 °C

Tc (°C):

75 °C

Energy consumption:

24 kWh/1.000 h

Manufacturer ordering code:

LED STRIP 2300UP S 965/24V IND

Article number:

RARSTA2241

Purchasing quantity:

1 piece
