ProxiDimmer Mono for Alu Profiles-CV, gesture control, for VARDAflex, dynamic, IP20

Accessories for LED Strip for VARDAflex - ProxiDimmer MONO for Aluminum Profiles-CV

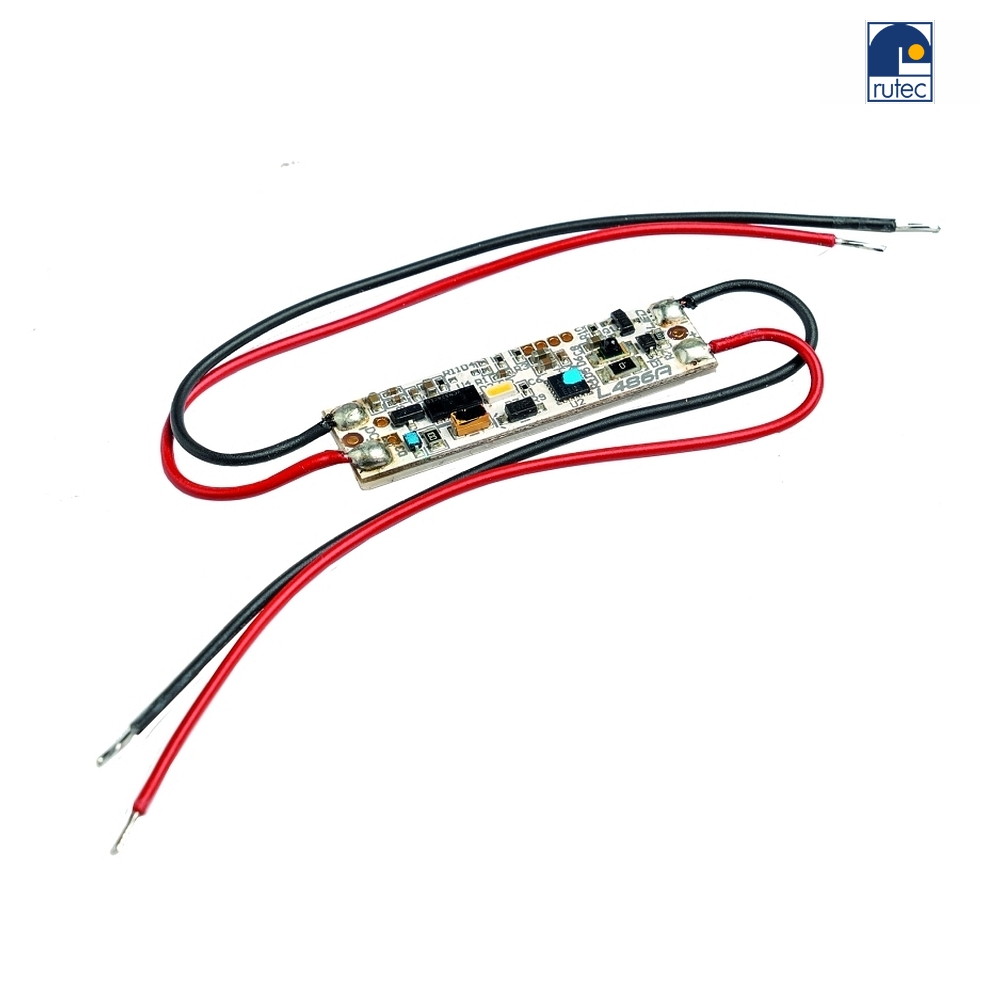

The ProxiDimmer MONO by Rutec is a dimmer module specially designed for LED strips of the VARDAflex series. It features gesture control, allowing you to easily control the brightness of the light through hand movements. The dimmer is designed for mounting in aluminum profiles and can be operated with a voltage of 12-24 volts.

Rated current and maximum current load

The ProxiDimmer MONO has a rated current of 3mA and can be operated with a maximum current load of 3A. This ensures a safe and reliable use of the dimmer with LED strips.

Technical data and ambient temperature

The dimmer module has a protection class of 3 and complies with the IP20 protection class. It is only suitable for indoor use and should not be used outdoors. The ambient temperature in which the ProxiDimmer MONO can be operated ranges from 0 to +40°C.

Mounting type and size

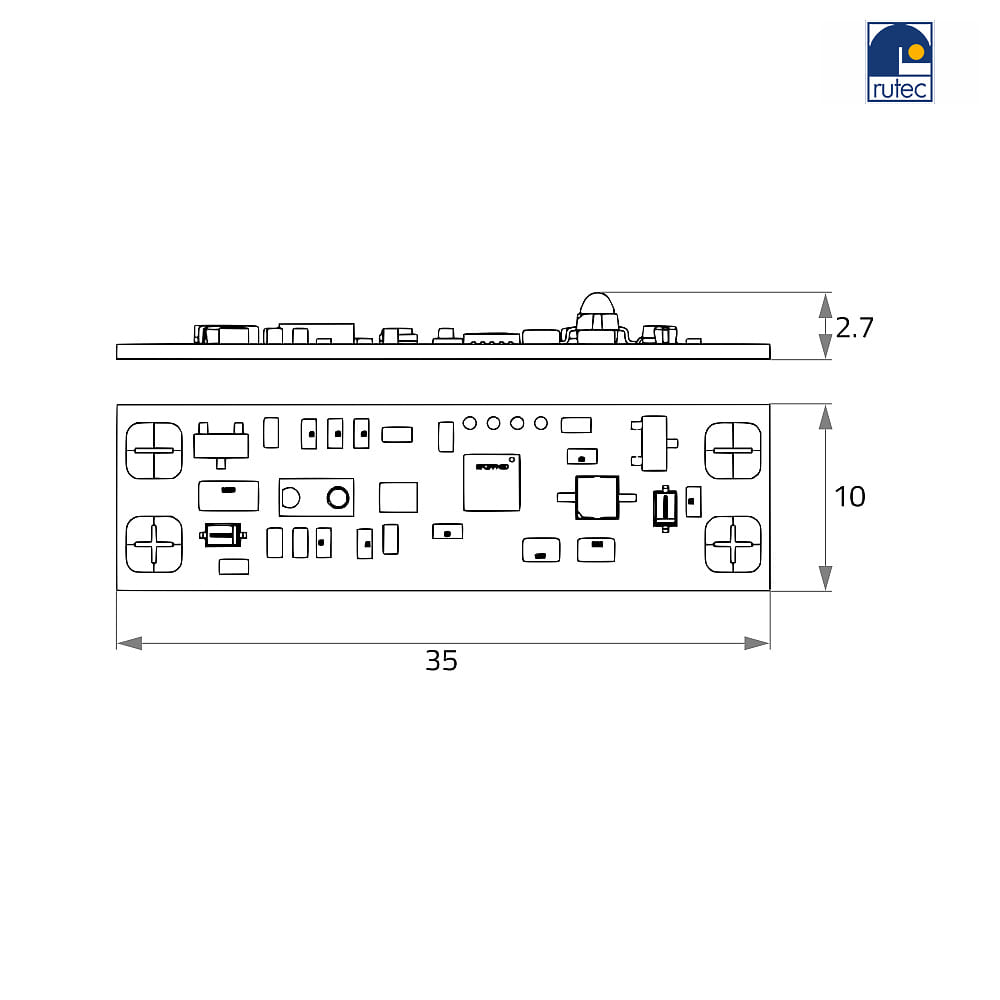

The ProxiDimmer MONO is installed through built-in mounting in aluminum profiles-CV. It has a size of 3.5 x 1 x 0.27 cm and comes with a connection cable with a length of 2x 10cm. This compact size allows for easy installation and discreet integration into the lighting system.

Additional information and sensors

The ProxiDimmer MONO supports 1 color channel and offers user-friendly gesture control. This allows for easy and intuitive control of the brightness of the LED strip without the need for an additional remote control. With the ProxiDimmer MONO by Rutec, you can customize your lighting and create a pleasant atmosphere in your home.
