pendant luminaire ORACLE SLIM 150 ROUND DALI DALI controllable, adjustable, ring shape IP20, white dimmable

LED Pendant Light ORACLE SLIM D150 DALI/PUSH, 77W, 3000K, 7300lm, IP20

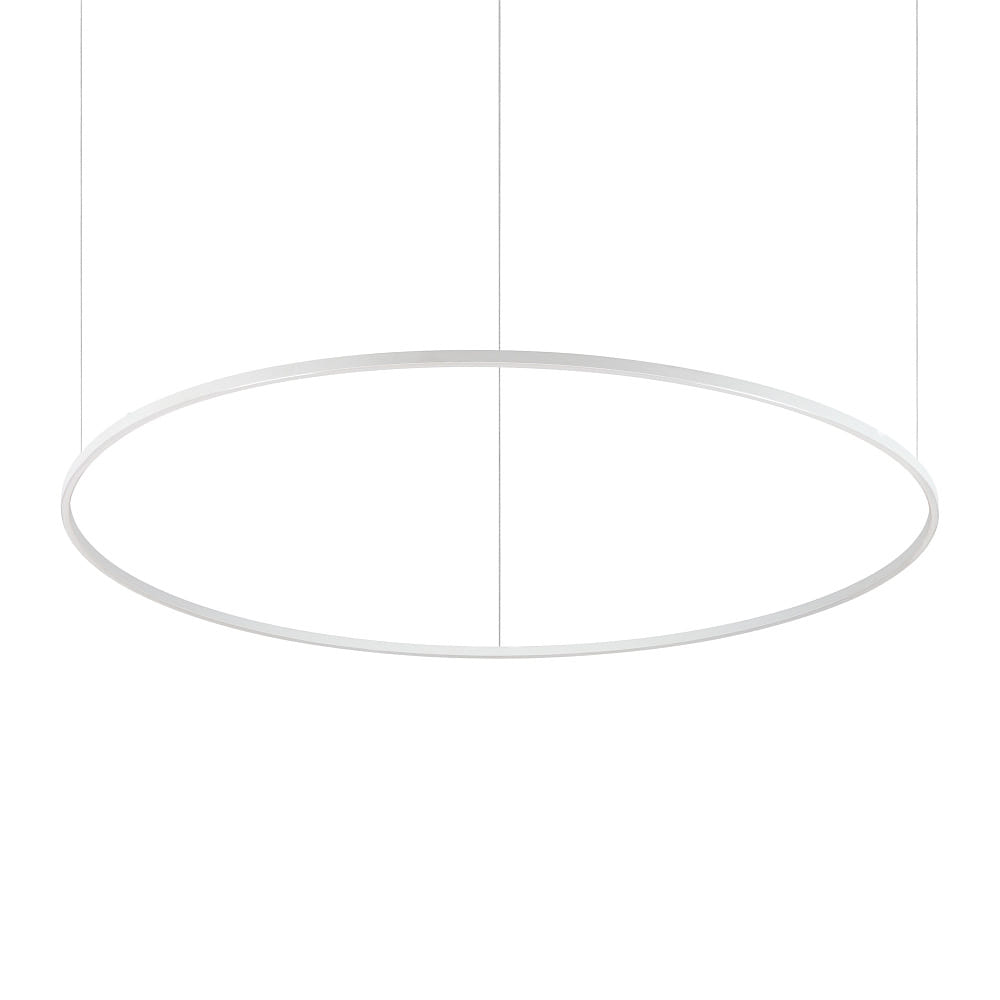

The LED pendant light ORACLE SLIM D150 is a super slim, ring-shaped luminaire designed specifically for dry indoor areas. With a large diameter, it is perfect for providing uniform island lighting in private rooms, offices, practices, or lobbies.

Technical Details

The luminaire provides direct, soft light emission downwards and features warm white, dimmable light output with good color rendering. It can be controlled and dimmed via DALI/PUSH. The gross light flux is 9000lm, with a net light flux of 5350lm. The color consistency (MacAdam) is 3 SDCM, ensuring a very low tolerance of color deviations.

Material and Design

The pendant light is made of powder-coated aluminum and has an opal PC light diffuser. The minimalist wire suspensions and transparent PVC cable provide a modern design. The driver is built into the canopy, and the suspensions of the luminaire can be individually shortened to create 3-dimensional arrangements.

Additional Information

The LED driver and the integrated LED light source are replaceable by trained personnel. Other items from the ORACLE (SLIM) series are available, both in round and square shapes, with black or white housing. There are also switchable and DALI-dimmable models for integration into digital building automation systems, as well as switchable versions with neutral white light output.

Specifications

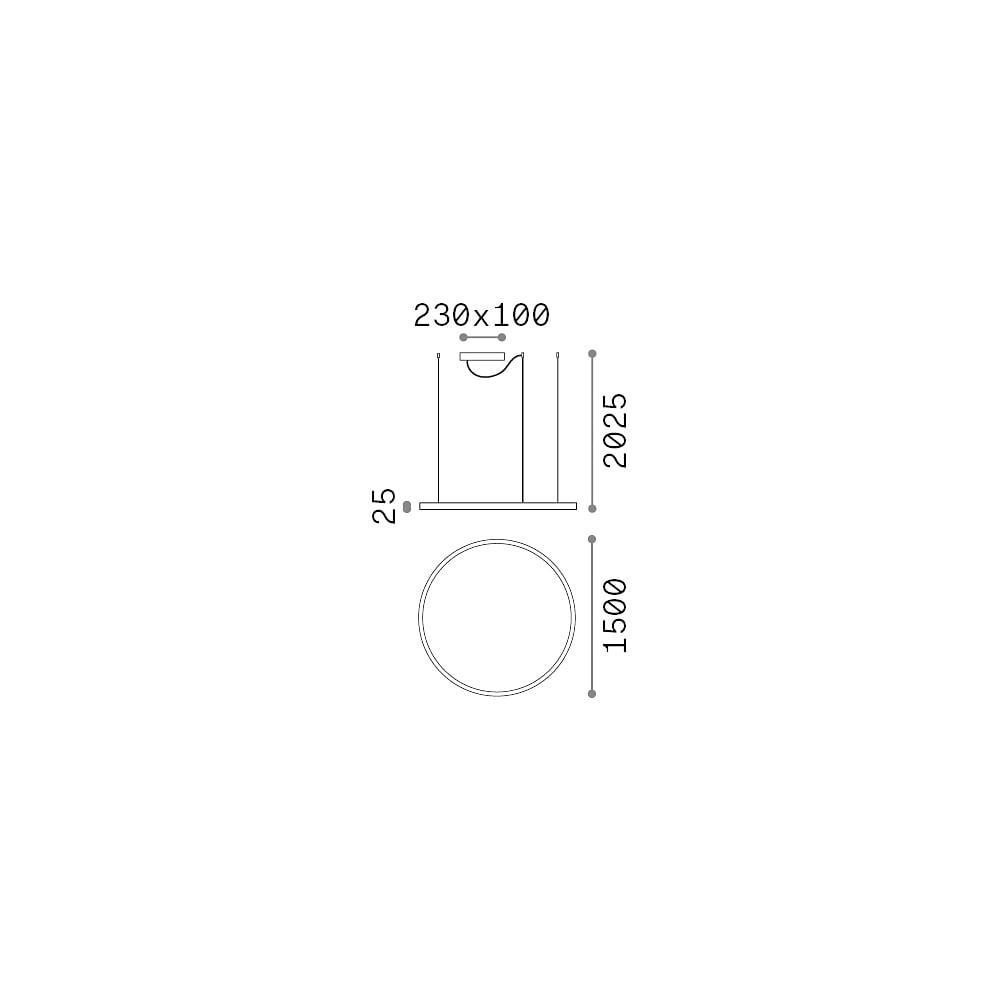

The pendant light has an item number of IDEA-304465 and a beam angle of 115°. The color temperature is 3000K, power consumption is 77W, and light output is 7300lm. The average lamp lifespan is 50000 hours. The pendant length can be shortened to 250cm, and the total size is 202.5 cm. The canopy has a size of 25x6.5 cm, and the weight of the luminaire is 2kg. The operating voltage is between 220-240V, and the protection class is 2. The luminaire has an IP rating of IP20.
