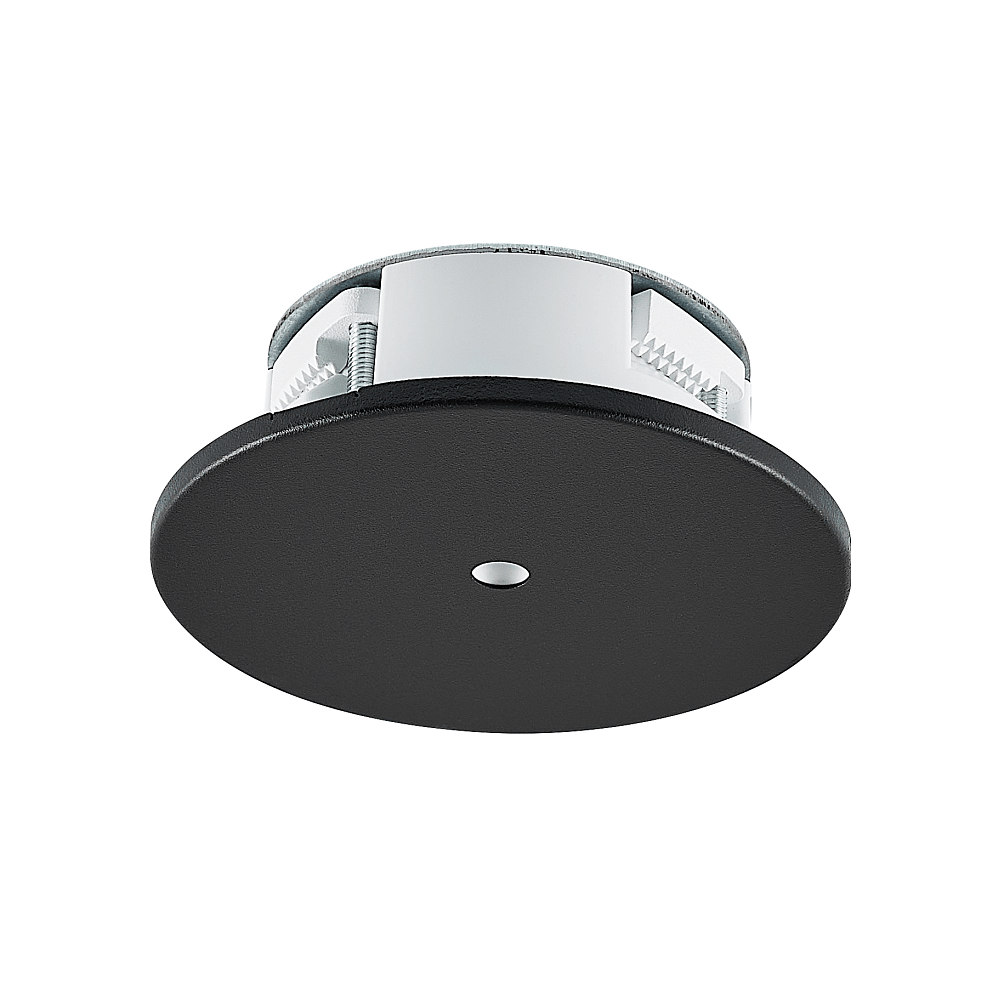

pendant luminaire adapter Ø DA 68MM / RECESSED round, built-in version, deep black

Versatile Ceiling Recessed Adapter for Pendant Lights

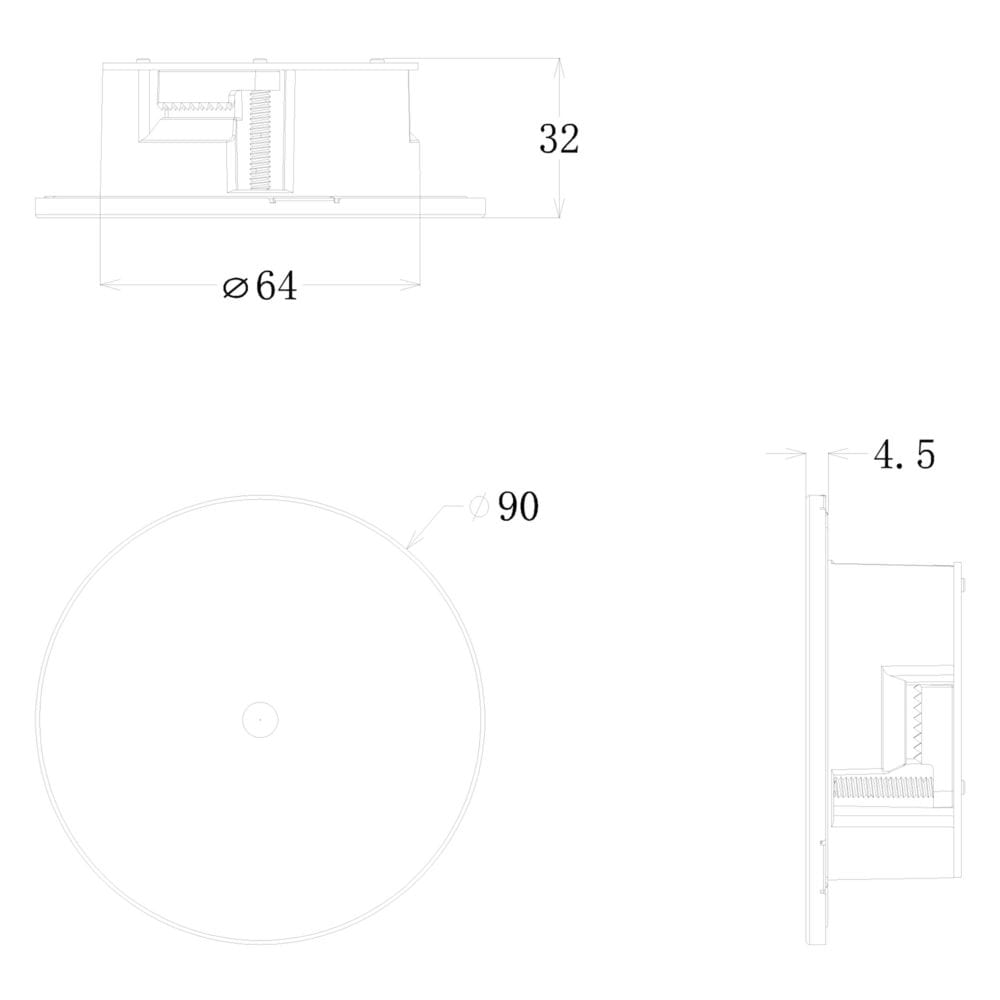

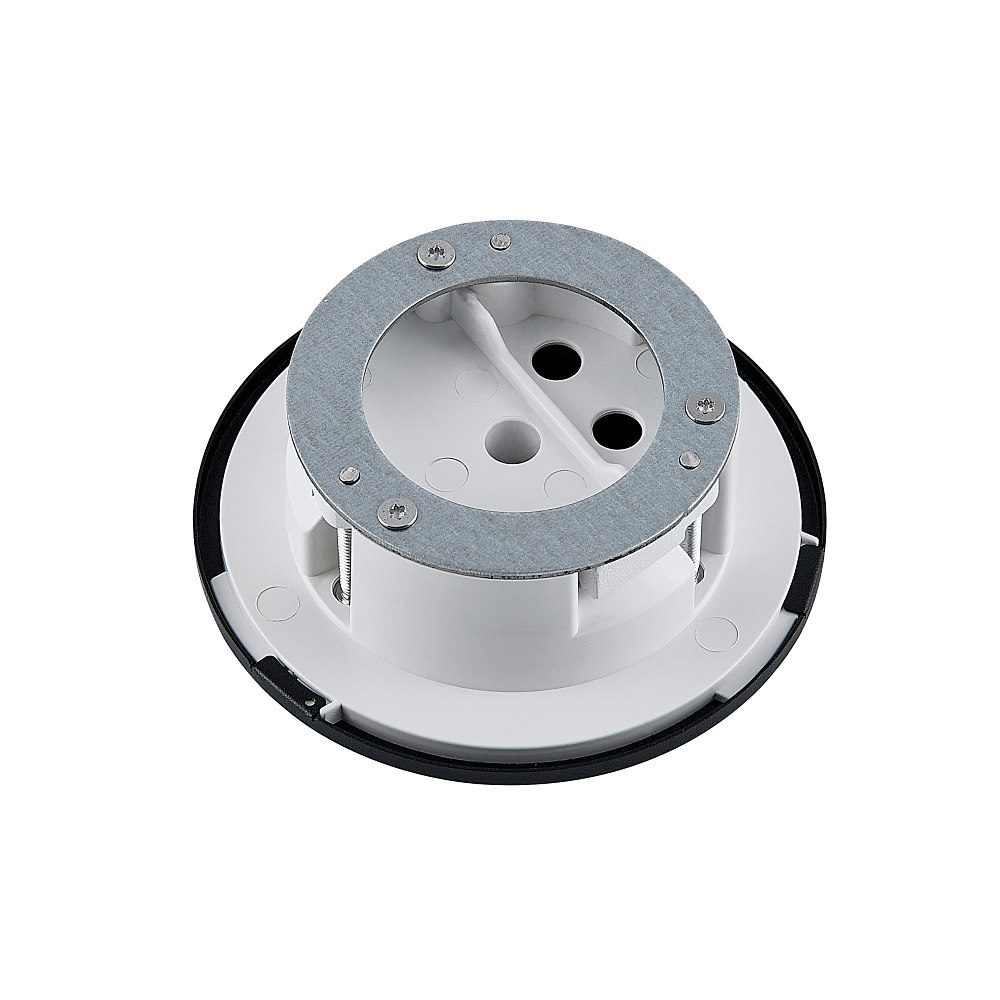

The ceiling recessed adapter from Deko-Light is specially designed for the safe and easy installation of pendant lights with an open cable end. With a diameter of 9 cm and an installation depth of only 2.7 cm, it fits perfectly into standard ceiling holes of 68 mm (tolerance 65 mm to 75 mm). Thanks to its universal design, it is suitable for various pendant light models and allows for uncomplicated installation.

Robust Materials and Thoughtful Construction

The adapter is made of high-quality steel and polycarbonate, providing it with high stability and durability. The sturdy manufacturing ensures that the adapter can safely support a weight load of up to 2.5 kg (25N). This makes it ideal for securely fixing and permanently holding various pendant lights.

Practical Accessories for Easy Assembly

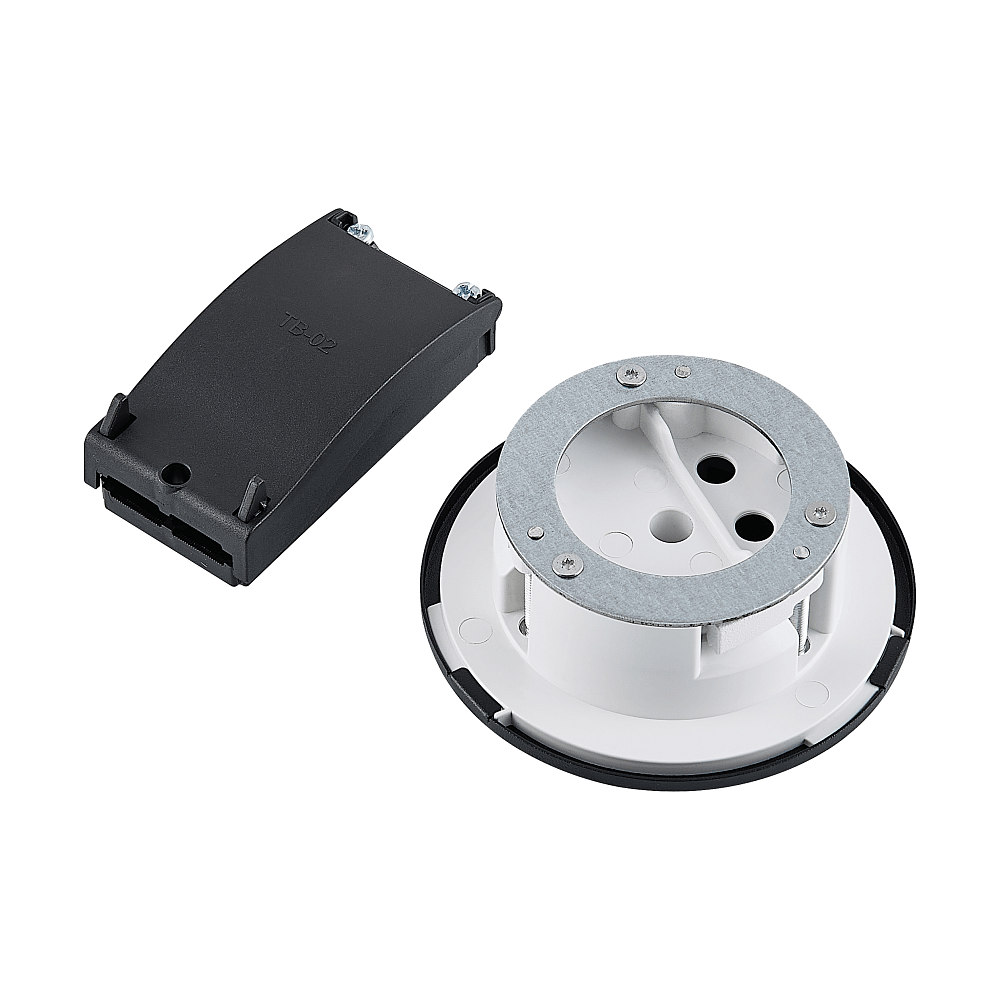

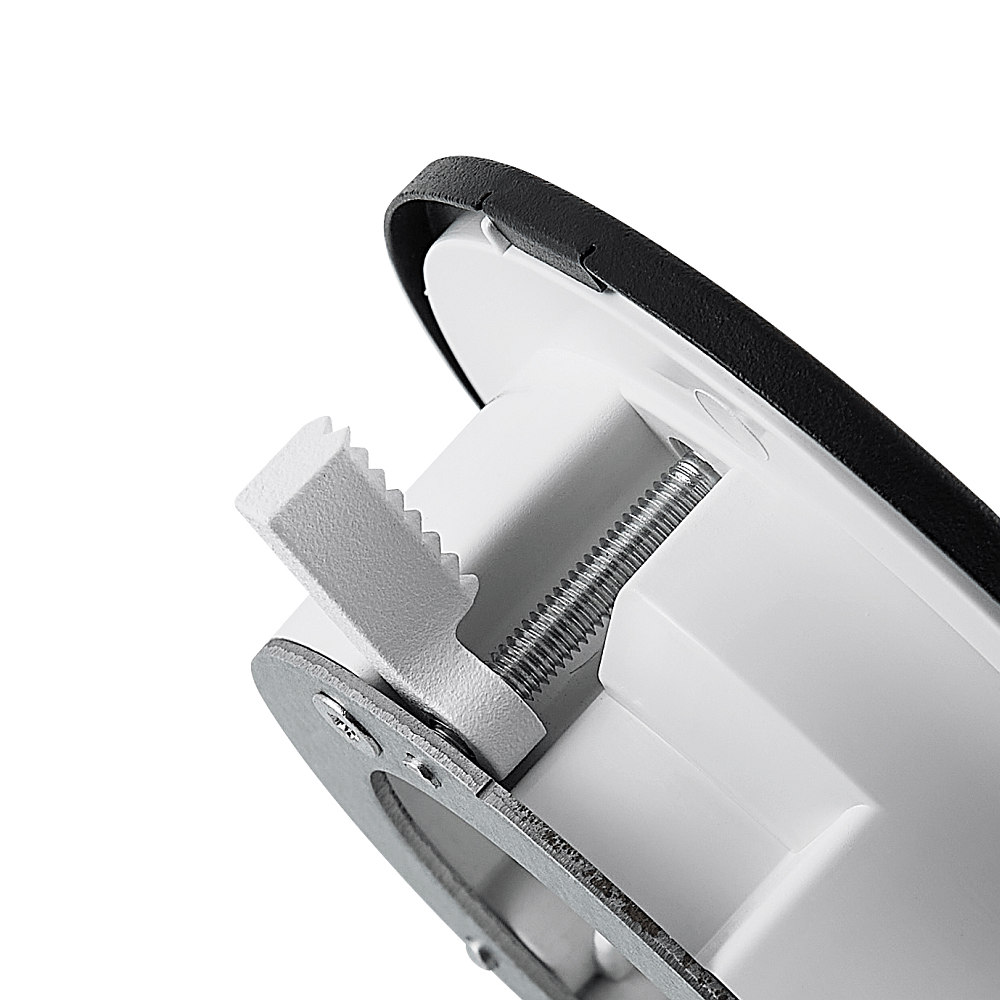

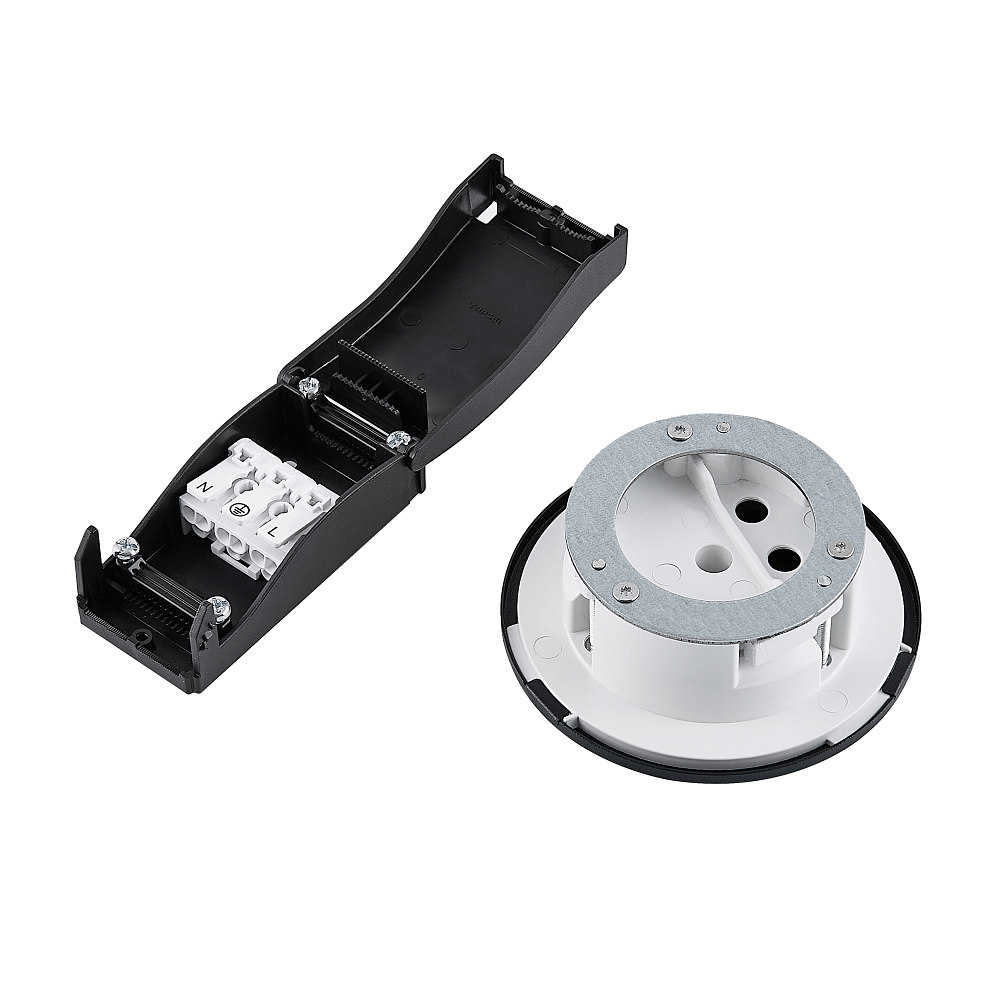

The scope of delivery includes numerous practical components that simplify installation. These include a connection box with a 3-pole quick connector, pre-integrated through-wiring, lockable mounting springs for stable fastening, as well as strain relief for additional cable protection. This complete package ensures that installation is quick and safe.

Technical Details and Protection Class

The adapter operates with a supply voltage of 220-240V at 50/60Hz mains frequency and is designed for protection class 1. The IP20 protection rating guards against contact with solid foreign objects larger than 12.5 mm, which is sufficient for pendant light installation. The terminal clamps are suitable for cables with a diameter of 5 to 7 mm, and the ceiling thickness can vary between 2 and 15 mm.

Design and Availability

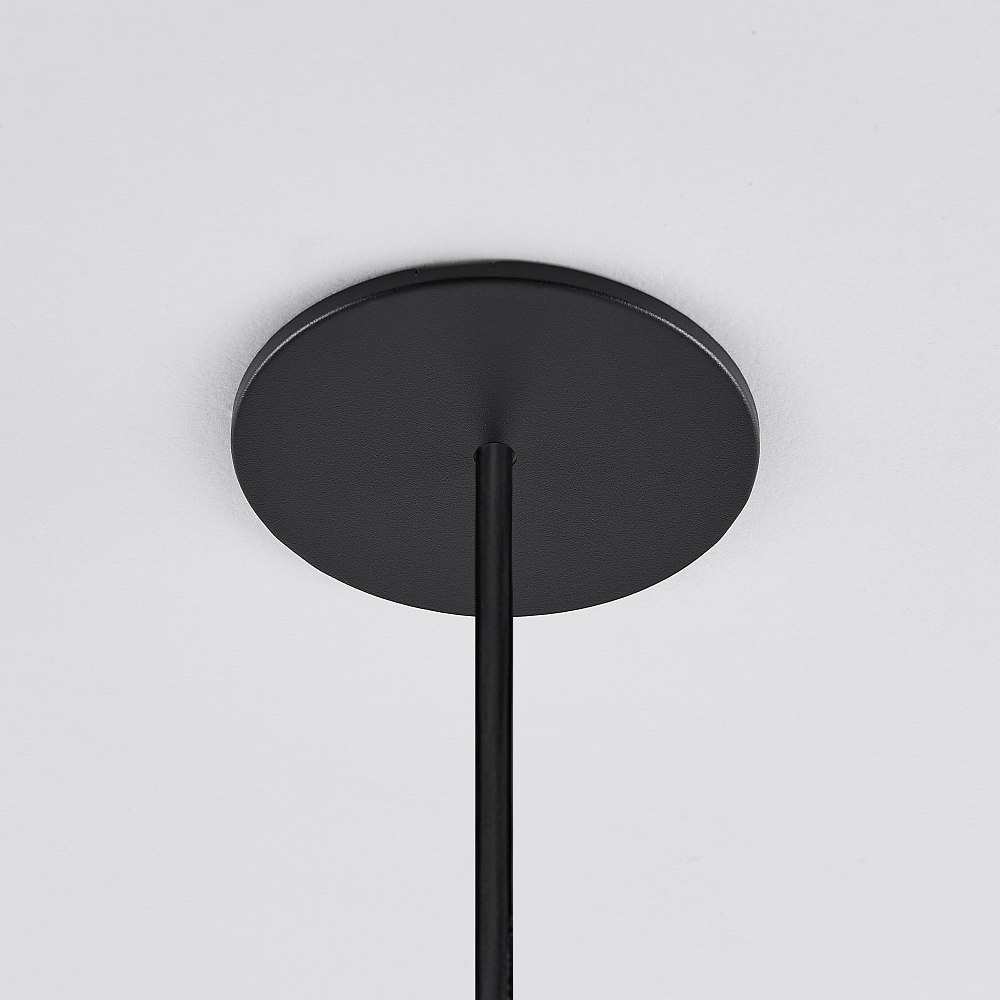

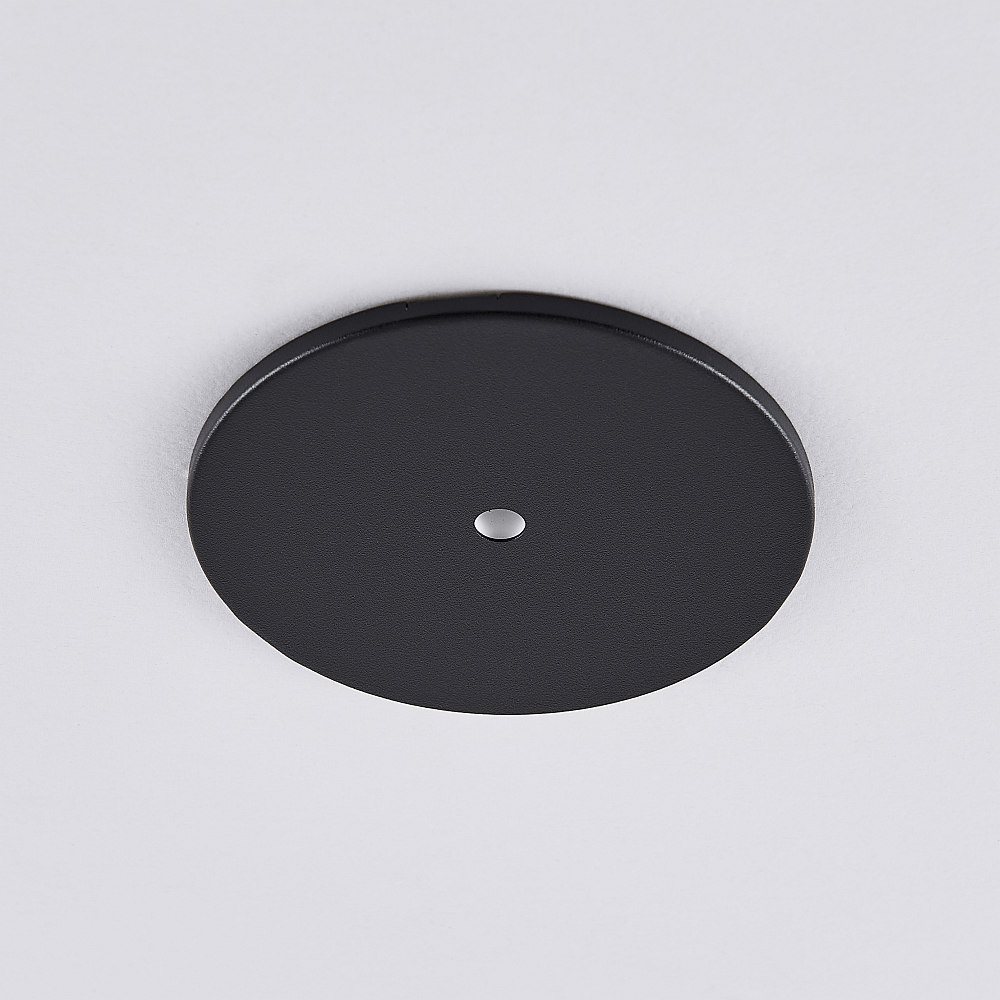

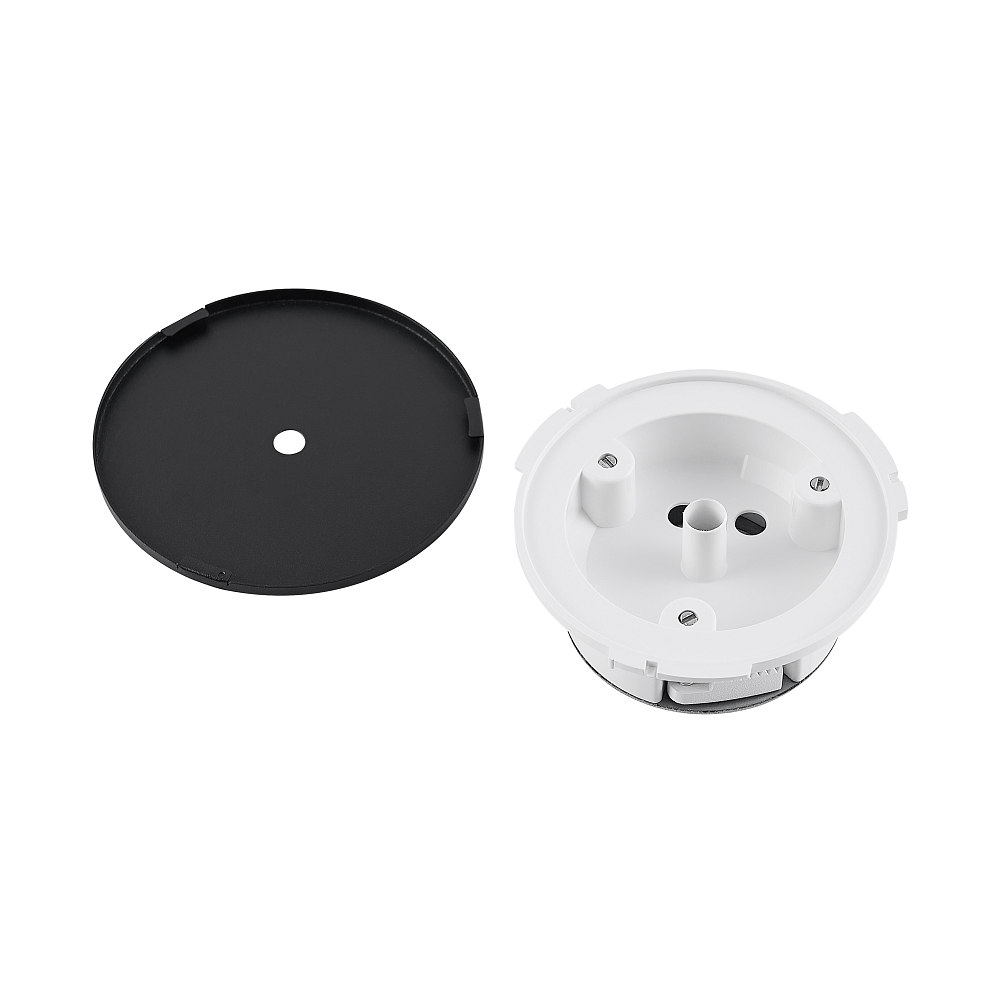

The visible part of the adapter has a diameter of 9 cm and a height of only 0.45 cm, allowing it to blend unobtrusively into the ceiling appearance. It is available in the modern colors deep black and traffic white, enabling it to harmoniously adapt to different room designs. Weighing only 0.12 kg, the adapter is also very handy and easy to handle.
