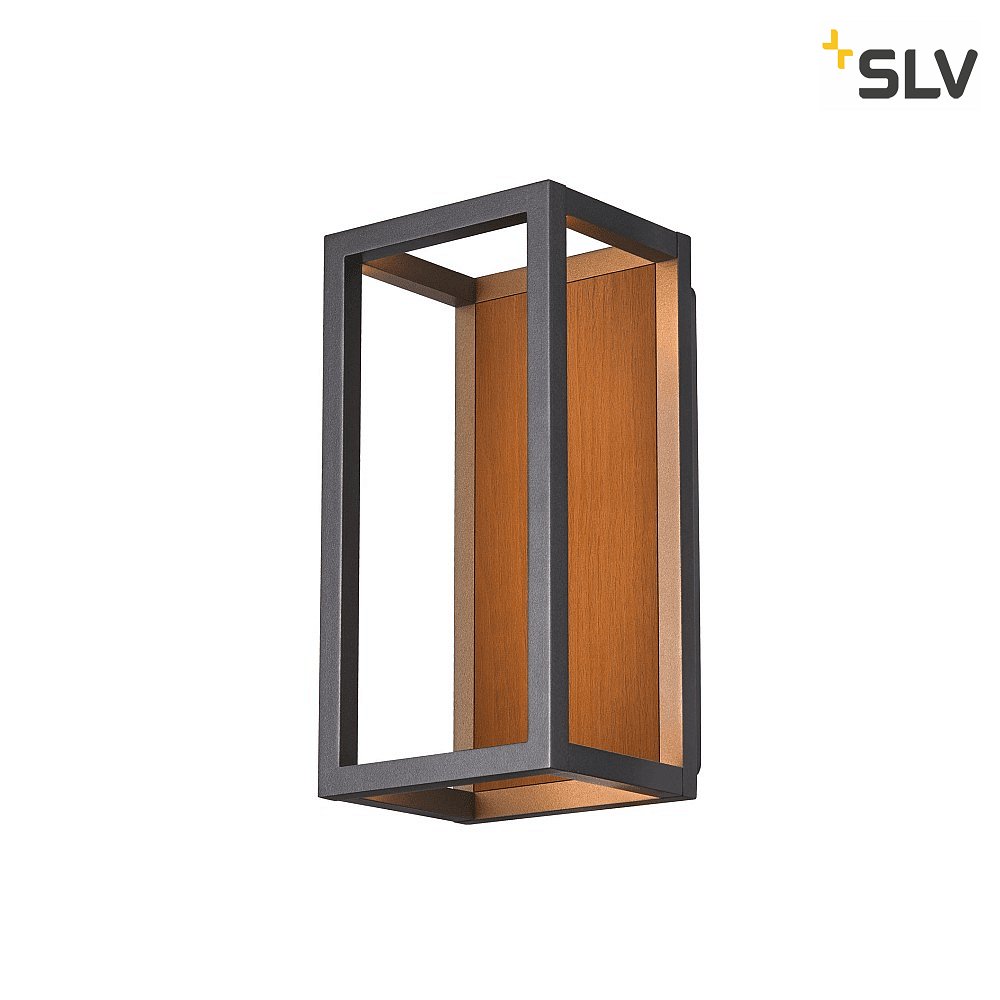

outdoor wall luminaire QUADRULO IP55, anthracite

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Modern Design and High-Quality Materials

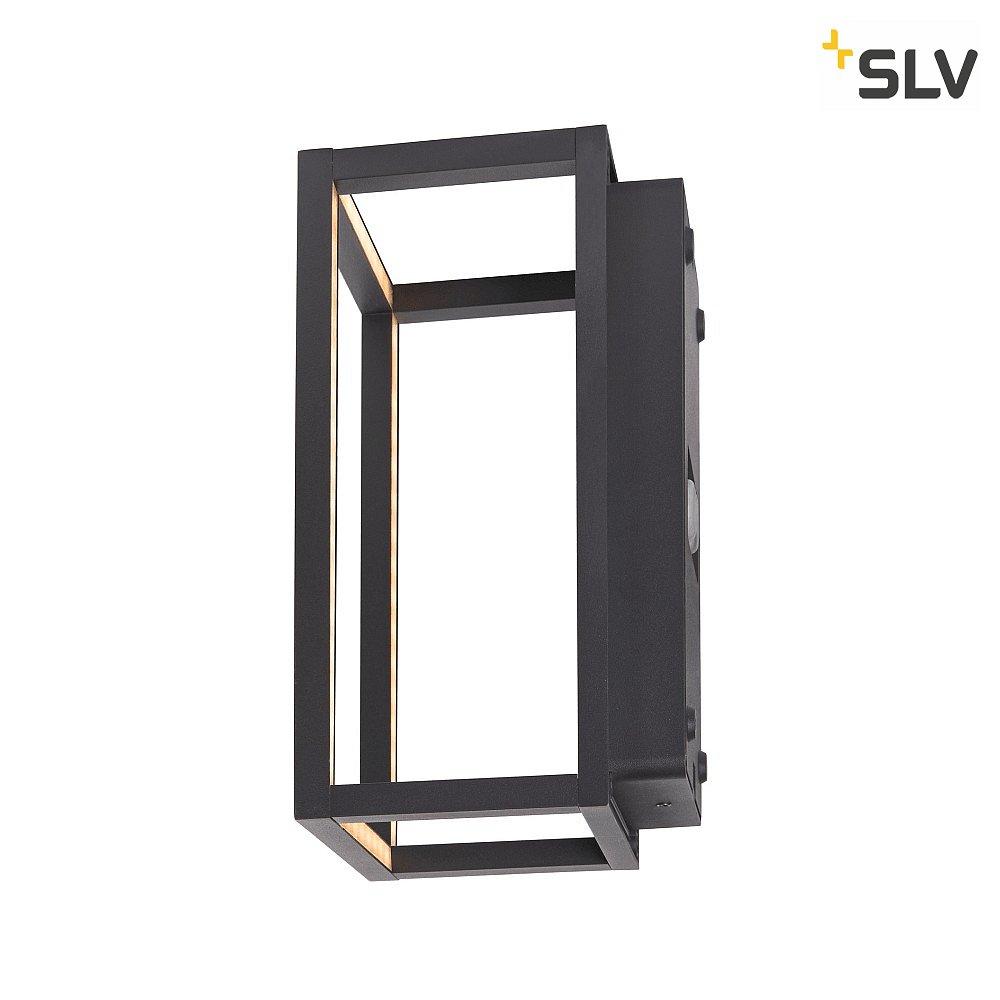

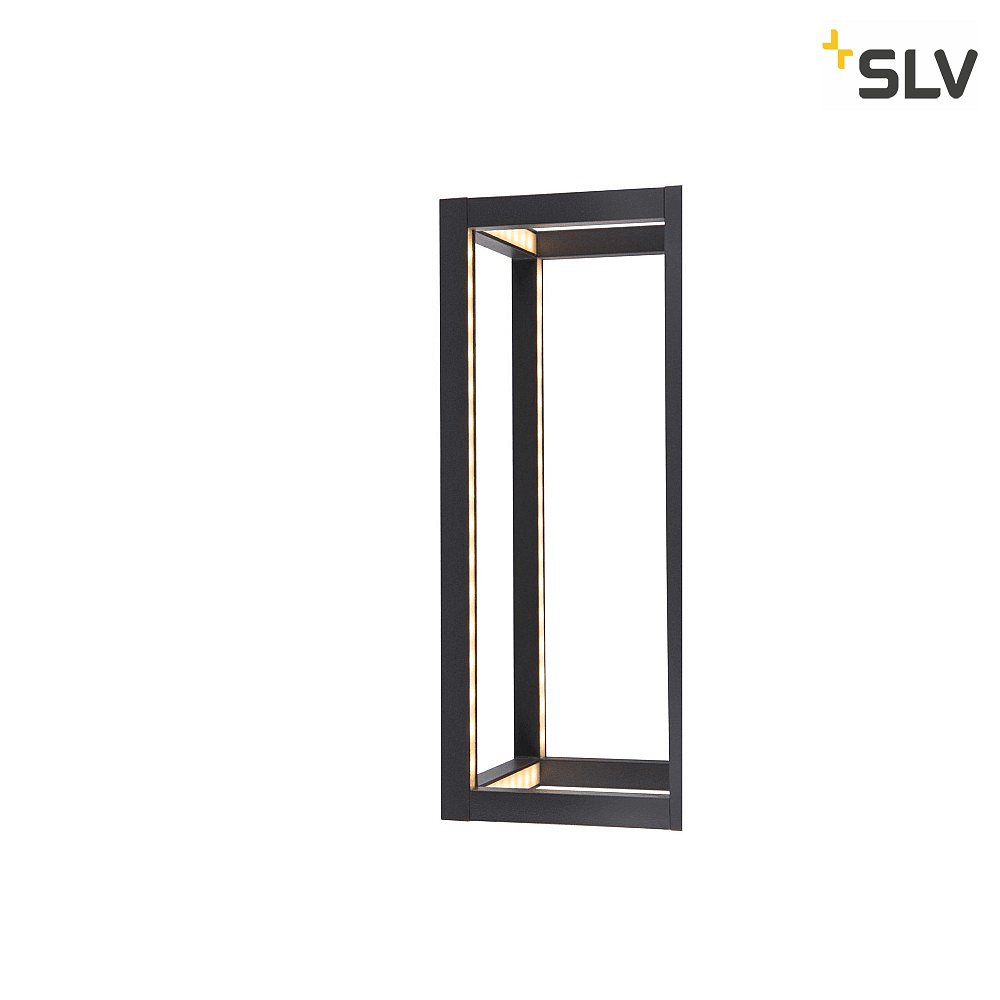

The outdoor LED wall light QUADRULO WL impresses with its minimalist and contemporary design, which harmoniously fits into various environments. Made from robust aluminum and matte acrylic, it combines durability with an appealing look. Available in anthracite, brown, and wood colors, the fixture offers versatile design options. With dimensions of 12.5 x 25 x 13 cm, it is compact yet a true eye-catcher on any wall.

Efficient and Pleasant Lighting

The fixture produces warm white, indirect light with a color temperature of 3000 Kelvin, creating a cozy atmosphere. With a luminous flux of 280 lumens and an efficacy of about 38 lumens per watt, the QUADRULO WL is energy-efficient while still providing sufficient brightness. The integrated LED has a lifespan of approximately 30,000 hours and is permanently installed, so no replacement is necessary. The color rendering index of over 80 ensures that colors appear natural and vibrant.

Technical Details and Protection Classes

The wall light operates with a power consumption of 7.4 watts and is powered by a rated current of 0.35 amperes. It is designed for operating voltages of 100 to 277 volts and functions within a mains frequency range of 50 to 60 Hz. Protection class 1 ensures safe use, while the IP55 rating protects against dust ingress and water jets from all directions. Additionally, the fixture offers IK04 protection against hail, minor impacts, and vandalism, emphasizing its robustness.

Easy Installation and Practical Features

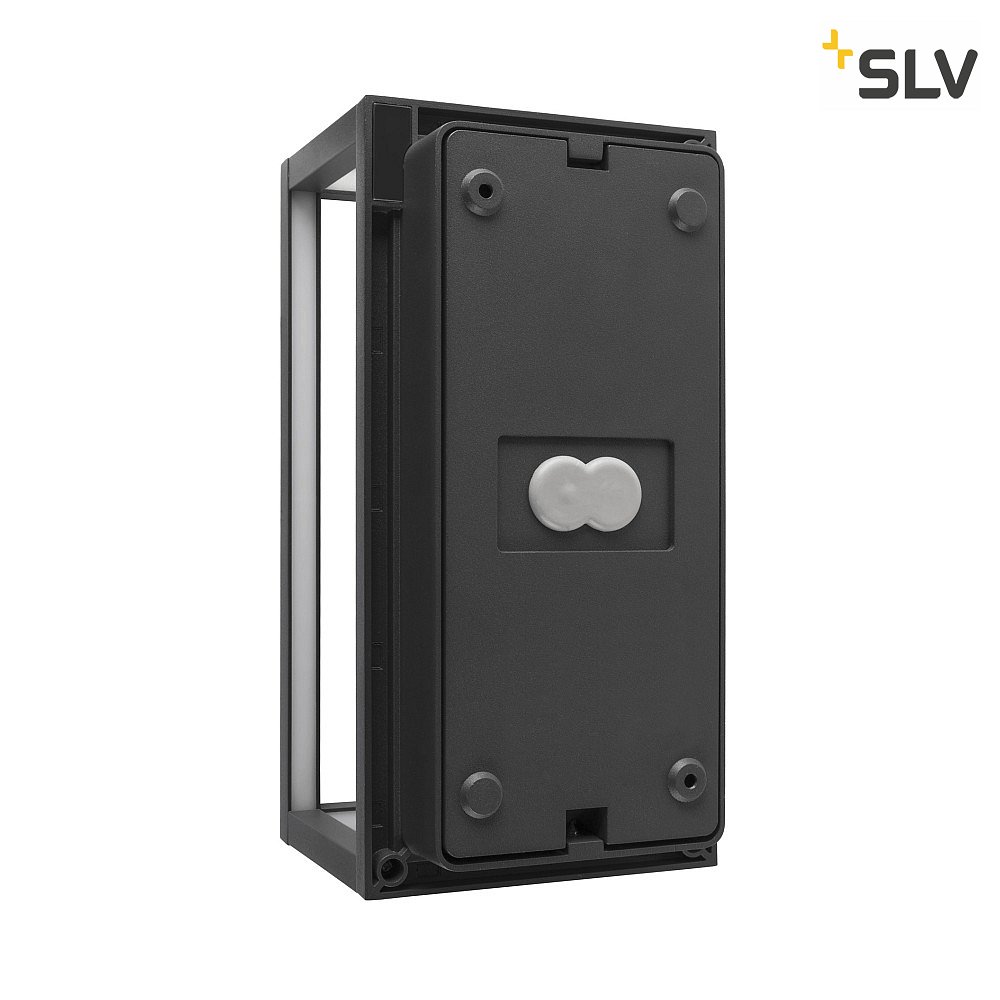

The QUADRULO WL is designed for surface mounting on walls and comes complete with plugs, screws, and a hex key. An integrated LED driver ensures easy wiring, allowing up to 20 fixtures to be connected in series. The through-wiring enables convenient control and reduces installation effort. The maximum current load capacity of 16 amperes permits connecting multiple fixtures to one line, which is especially advantageous for larger projects.

Versatile Applications and Accessories

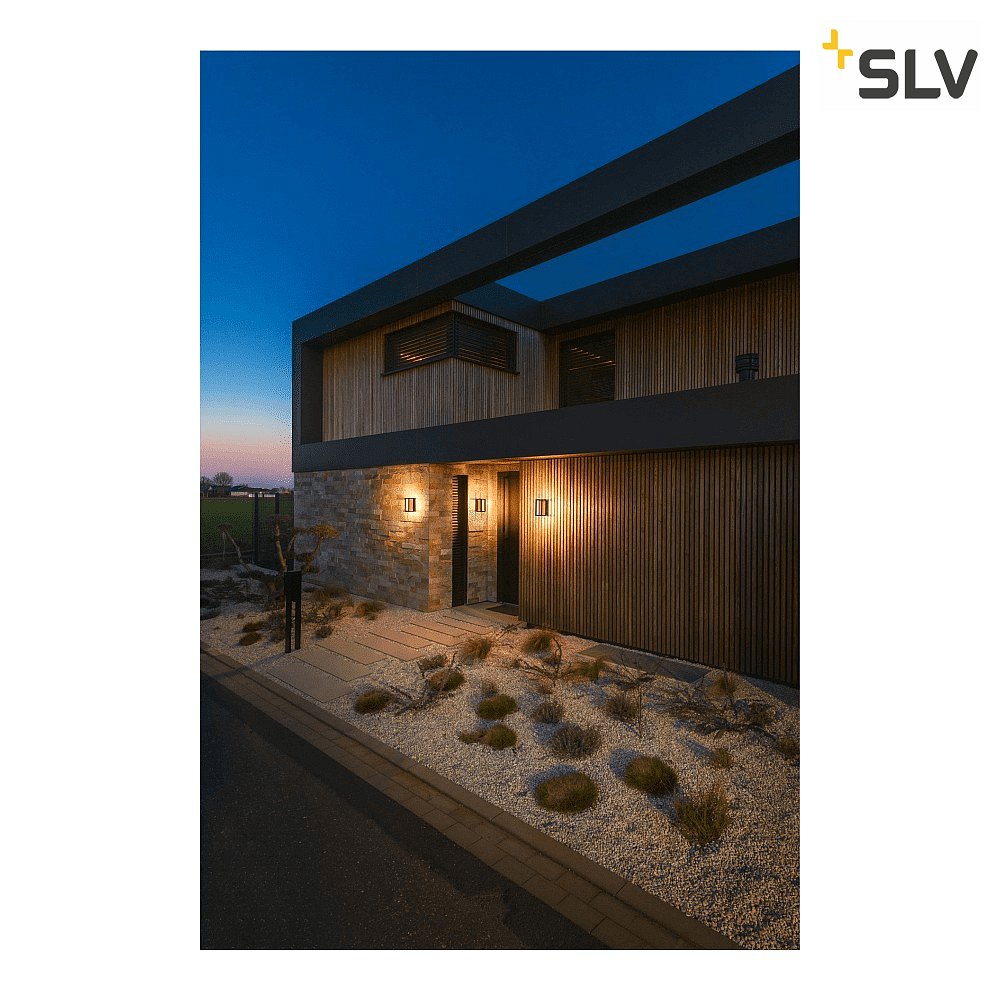

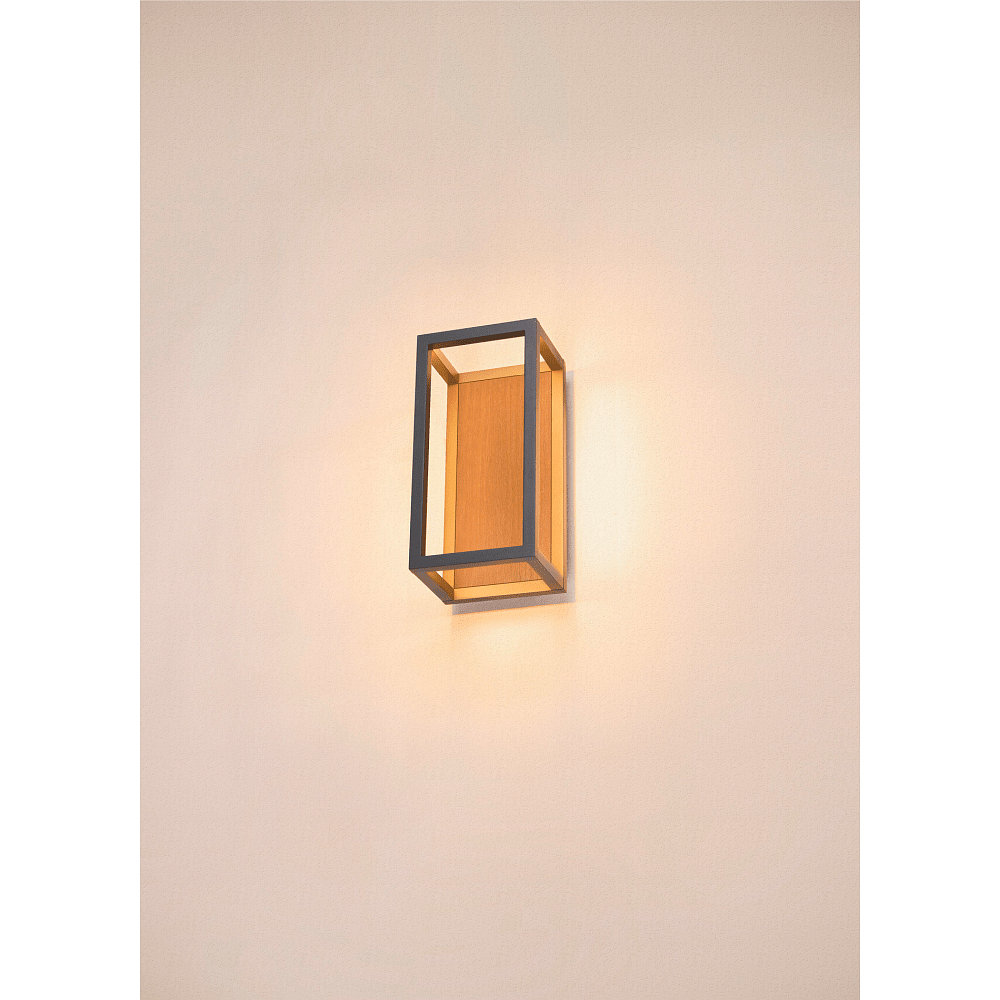

As a decorative, atmospheric facade light, the QUADRULO WL is ideal for designing entrance areas or terraces. Its indirect light complements modern architecture and creates a pleasant ambiance. The solid construction and integrated driver make it a reliable product for long-term use. Furthermore, additional matching fixtures from the QUADRULO series are available to implement a uniform and stylish lighting concept.

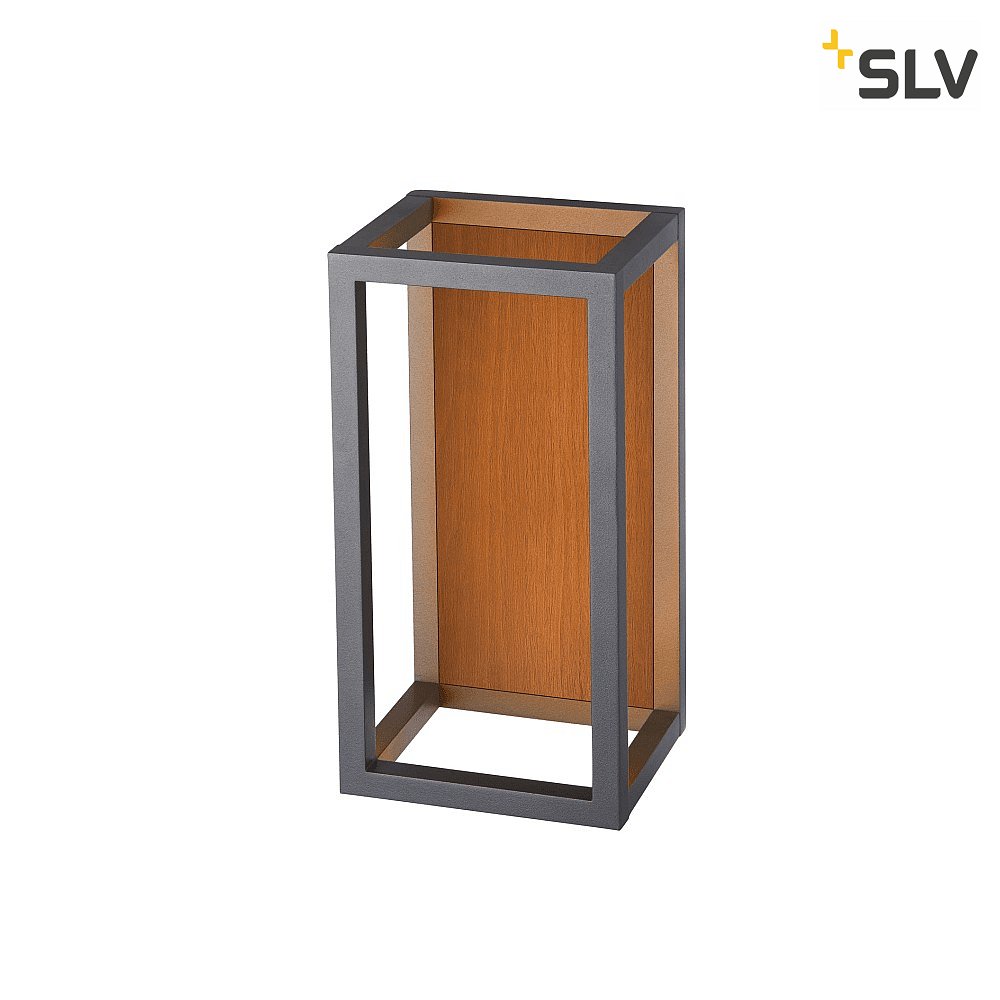

Colour:
anthracite
brown
wood
Glass color:
white

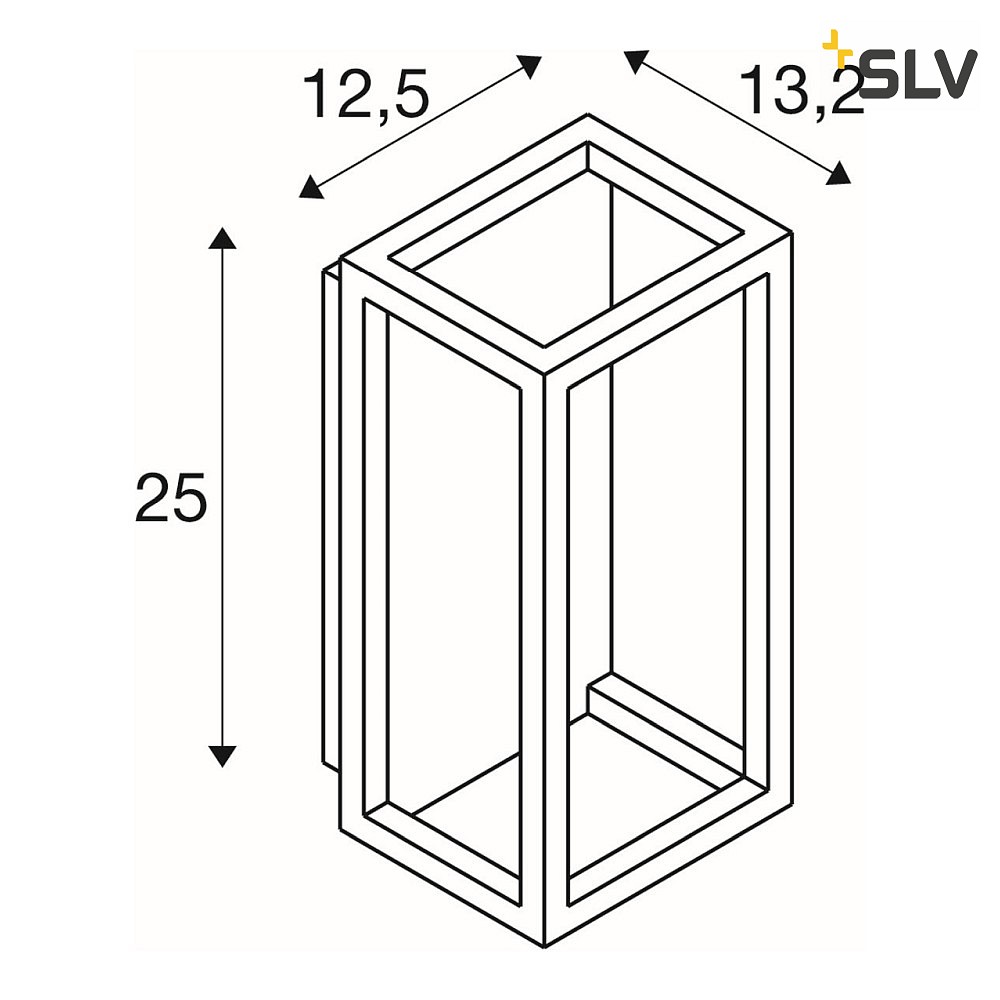

Dimension:
B∕ H∕ T: 12,5∕ 25∕ 13 cm
wall connection-B∕ H: 9,3∕ 21,6 cm
Material:
acrylic
aluminium
Weight:
1,199 kg
Product type:
outdoor wall luminaire
luminary type:
Wall luminaire
Bulbs in delivery:
yes
Accessories:
dowel - included in delivery
screws - included in delivery
hexagon key - included in delivery
driver - included in delivery
Application area:
suitable for outdoor use
Field of application:
wall
Operating voltage:
100-277 V~
Dimmable:
no
Power frequency:
50-60 Hz
Power consumption:
7,4 W
LED can be replaced :
no
Voltage:
Clamp
Light colour:
warm white
Beam direction:
back
Light flux:
280 lm
Light yield:
37,8378 lm/W
Nominal current:
0,35 A
Colour temperature:
3000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
>80 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
Max. current carrying capacity:
16 A
Current consumption:
350 mA
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP55
ambient temperature:
-20 - +40 °C
Energy efficiency category:
E
EPREL No:
916332
Energy consumption:
8 kWh/1.000 h
Article number:
1007207
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
