light strip system FAST FIX LINEAR SYSTEM IP54 MODULE DALI controllable IP54, white dimmable

ISOLED

Print product information sheet▶

question regarding the article

ISOLED light strip system FAST FIX LINEAR SYSTEM IP54 MODULE DALI controllable IP54, white dimmable

Print product information sheet▶

question regarding the article

Product data sheet

CHF 219,46

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 313.51

You save 30,0 %

Shipping time: out of stock

Product no.: ISO-115231
EAN: 9009377098123
In stock: 0

Alternative product variants:

light strip system FAST FIX LINEAR SYSTEM IP54 MODULE DALI controllable IP54, white dimmable light strip system FAST FIX LINEAR SYSTEM IP54 MODULE DALI controllable IP54, white dimmable light strip system FAST FIX LINEAR SYSTEM IP54 MODULE DALI controllable IP54, white dimmable light strip system FAST FIX LINEAR SYSTEM IP54 MODULE DALI controllable IP54, white dimmable

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

Efficient Lighting System for Indoor Areas

The FastFix LED Linear System IP54 Module from ISOLED is an efficient lighting solution for indoor areas. With a power range of 25-75W and a neutral white light color, the system provides pleasant lighting in ceiling areas. Thanks to DALI dimming capability, the brightness of the light can be individually adjusted.

Versatile Application Possibilities

With a wide beam angle of 60°, the LED linear system is suitable for symmetrical light distribution in various rooms. The square shape of the fixture and the option of system-bound installation make the system versatile in its applications.

Robust Construction with IP54 Protection Rating

The FastFix LED Linear System is characterized by a robust construction. With protection class 1 and IP54 protection rating, the system is protected against dust and splashing water. This makes it suitable for use in environments where increased durability is required.

Energy-efficient and Durable

Thanks to the integrated LED technology and an energy consumption of 25-75kWh/1,000 h, the linear system is energy-efficient and saves energy costs in the long run. The average lamp lifespan of 36,000 hours also ensures a long service life without frequent replacement of light sources.

Comprehensive Accessories and High-quality Materials

The FastFix LED Linear System comes with extensive accessories, including a cover and a control gear. The high-quality materials aluminum and plastic ensure a durable and stable construction. With the ISOLED brand, the system also stands for quality and reliability.

Colour:

white

Dimension:

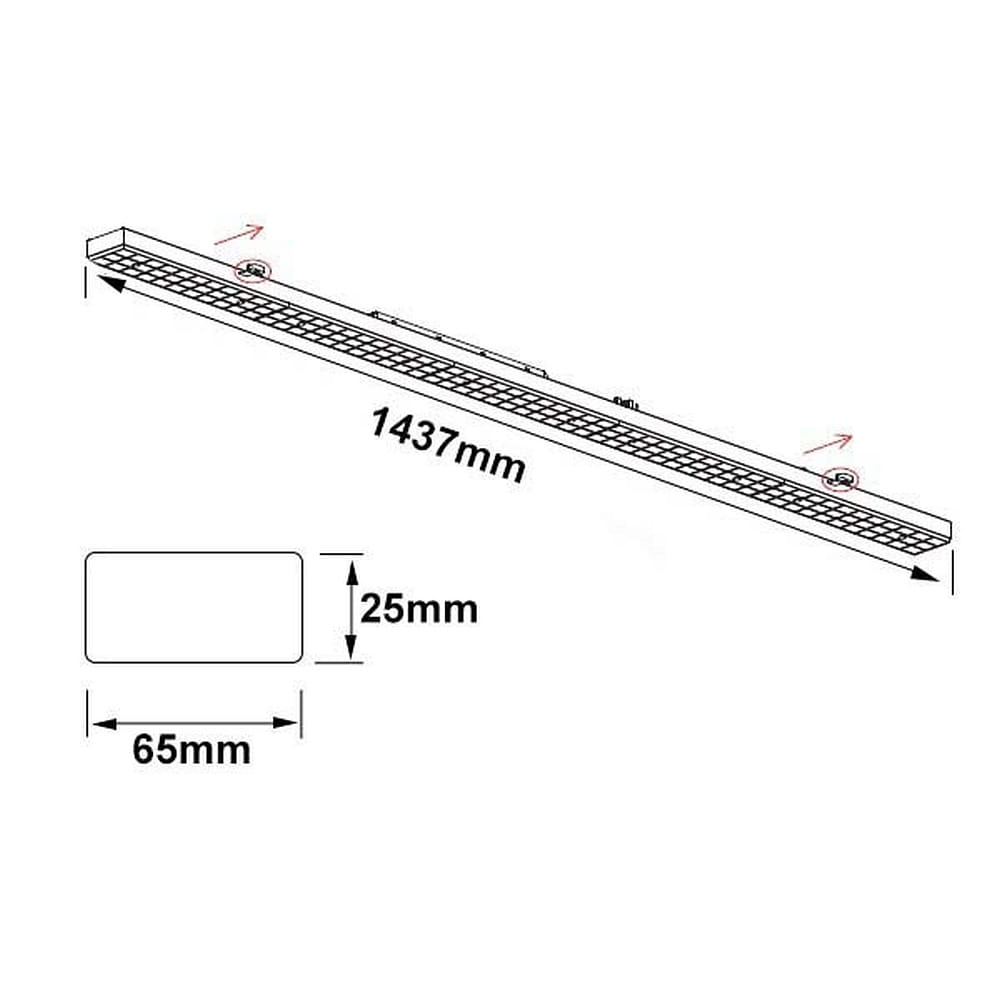

L∕ W∕ D: 143,7∕ 6,8∕ 4,2 cm

Material:

plastic
aluminium

Product type:

light strip system

Lamp shape:

square

Bulbs in delivery:

yes

Application area:

only suitable for indoor use

Field of application:

ceiling

Operating voltage:

180-265 V~

Dimmable:

yes

Dimmability:

DALI

Power frequency:

50/60 Hz

Power consumption:

25-75 W

Emitting angle:

60 °

LED can be replaced :

Bulb type:

LED

Number of bulbs:

Light colour:

neutral white

Light emission:

symmetriccal

Light flux:

10600 lm

Nominal current:

416-283 mA

Colour temperature:

5000 K

Average life span of a bulb in hours:

36000 h

Colour rendering index:

>80 Ra
1B

Wire/connection lead diameter:

2,5 ² mm

Plug type:

plug

Mounting:

mounting accessories required
system based mounting
surfaced mounting

Protection class:

IP-protection class:

IP54

Additional information:

Transformer power: 21 VA

Accessories:

control gear - included in delivery
cover - included in delivery
bar recording - not included in delivery
control - not included in delivery
switch - not included in delivery
mounting accessories - not included in delivery

ambient temperature:

-20 ... +45 °C

Energy efficiency category:

EPREL No:

824405

Energy consumption:

25-75 kWh/1.000 h

Article number:

ISO-115231

Purchasing quantity:

1 piece

Brand:
