light bar MICROPAL®, UGR<19 / 1407MM / 830 surface-mounted version, DALI controllable, direct IP40, black dimmable

Efficient LED Light Channel Single Luminaire with Modern Technology

The LED light channel single luminaire FL-LKD144550MA.5283DAS from FRISCH-Licht® impresses with its powerful and energy-efficient lighting. With a power consumption of only 40 watts, it produces a luminous flux of 5200 lumens with an impressive luminous efficacy of 130 lumens per watt. The warm white light color (3000K) creates a pleasant atmosphere, while the color rendering index of over 80Ra ensures natural color representation. With a long lifespan of 80,000 hours, this luminaire offers a durable and sustainable solution.

Glare-Free Illumination Thanks to MICROPAL® Cover

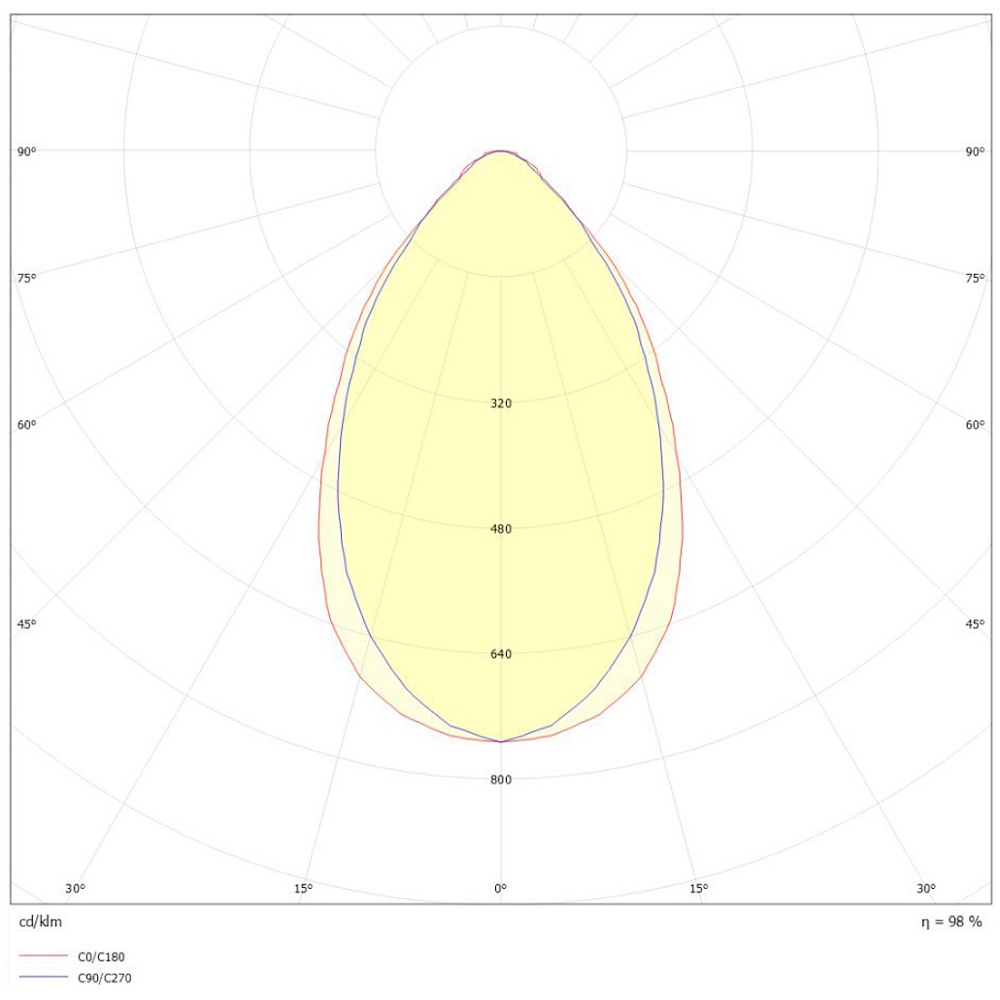

A special feature of the luminaire is the room-side MICROPAL® cover that ensures glare-free light distribution. With a UGR value below 19, the luminaire meets the requirements of DIN EN 12464-1 for screen workplaces, making it ideal for demanding lighting situations. The 65-degree beam angle provides direct light distribution that efficiently illuminates the desired area without annoying reflections or glare.

Flexible Mounting and Modern Design

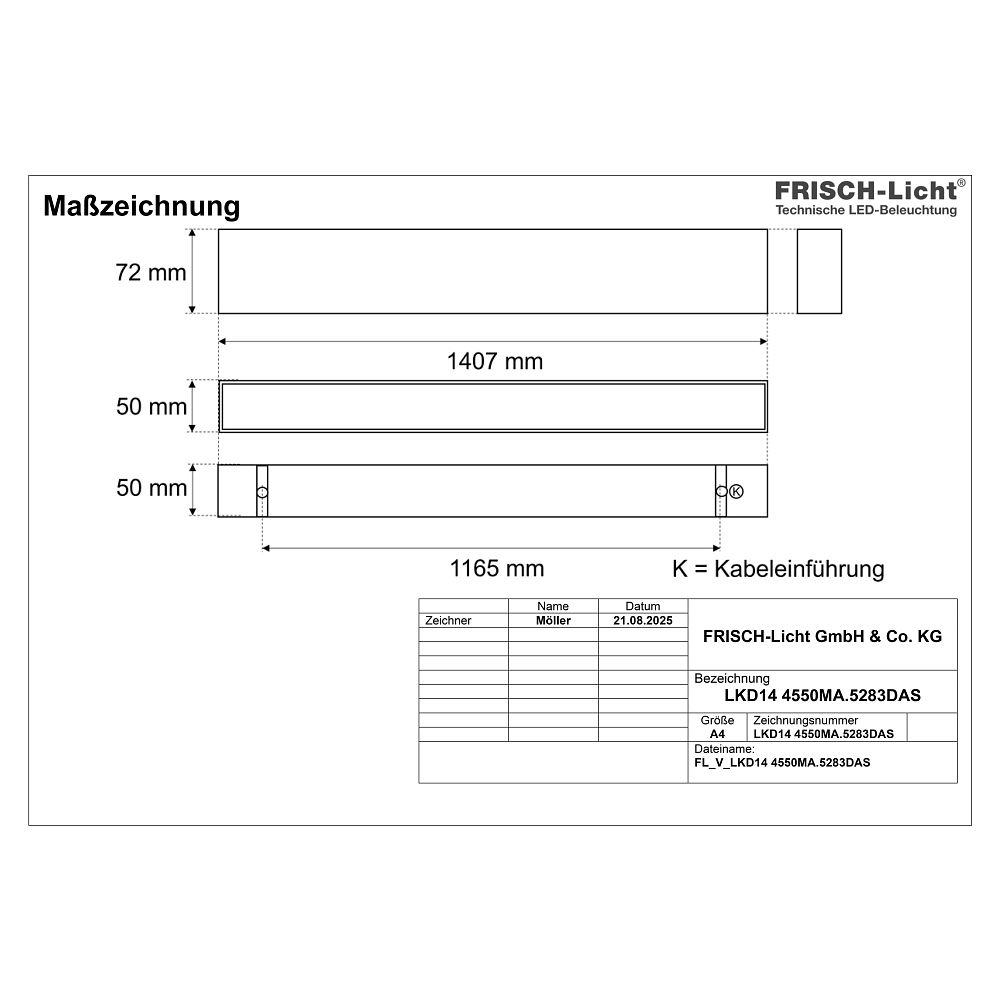

The luminaire is designed in a slim aluminum housing with a black surface and measures 140.7 cm in length, 5 cm in width, and 7.2 cm in height. It is suitable for surface mounting on the ceiling as well as pendant mounting, with the pendant length of 150 cm being individually adjustable. The delivery includes ceiling mounting hardware, screws, and the driver, enabling easy and quick installation. Optional accessories such as wall brackets or cable suspension offer additional flexibility.

DALI2 Dimming Function for Smart Light Control

The LED luminaire is equipped with a DALI2 interface that enables comfortable and precise dimming. This allows the light to be optimally adjusted to various requirements and moods. Integration into digital building automation systems is also facilitated by this interface. Operation is at a mains voltage of 220-240V and a mains frequency of 50-60 Hz, ensuring compatibility with standard power grids.

Robust Construction and Versatile Applications

With protection class 1 and an IP40 rating, the luminaire is designed for operation in dry environments and withstands temperature fluctuations from -20 to +45 degrees Celsius. The high-quality materials made of aluminum and polymethyl methacrylate (PMMA) provide stability and durability. The luminaire is ideal as a ceiling light, pendant light, or area light for offices and other professional workplaces. Additionally, it is eligible for BEG funding, providing an added incentive for an energy-efficient lighting solution.
