light bar MICROPAL®, UGR<19 / 567MM / 830 surface-mounted version, DALI controllable, direct IP40, black

Efficient LED Lighting Channel Single Luminaire from FRISCH-Licht®

The LED lighting channel single luminaire FL-LKD114550MA.2183MS from FRISCH-Licht® impresses with its high energy efficiency and modern technology. With a power consumption of 11.5 to 16 watts and a luminous flux of up to 2100 lumens, it offers excellent illumination with low energy consumption of only 16 kWh per 1,000 operating hours. The luminaire is housed in an elegant black aluminum casing with a robust cover made of polymethyl methacrylate (PMMA) and provides a warm light color with a color temperature of 3000 Kelvin.

Glare-Free Illumination Thanks to MICROPAL® Technology

A special highlight of this luminaire is the room-side MICROPAL® cover, which ensures glare-free lighting. With a UGR value below 19, it meets the requirements of DIN EN 12464-1 for the lighting of screen workplaces. This makes the luminaire ideal for professional work environments where pleasant and eye-friendly light is essential. The wide beam angle of 65° ensures even light distribution with direct light emission.

Flexible Power Levels and Practical Switchability

Thanks to the switchable multipower version, the brightness of the luminaire can be adjusted directly on the device in six levels, from 11.5 watts with 1500 lumens up to 16 watts with 2100 lumens. This flexibility allows individual adaptation to different lighting requirements. The integrated dimmability via a multidimmer additionally enables stepless regulation of light intensity, increasing user comfort.

Durability and Easy Installation

The LED lighting channel single luminaire is designed for an average lifespan of 80,000 hours, making it particularly durable and low-maintenance. It features protection class 1 and ingress protection rating IP40, ensuring safe and reliable use. Installation is versatile: the luminaire can be mounted directly on the ceiling or installed as a pendant light with an optional cable suspension. Ceiling mounts, screws, and a suitable driver are included in the scope of delivery.

Versatile Applications and Technical Details

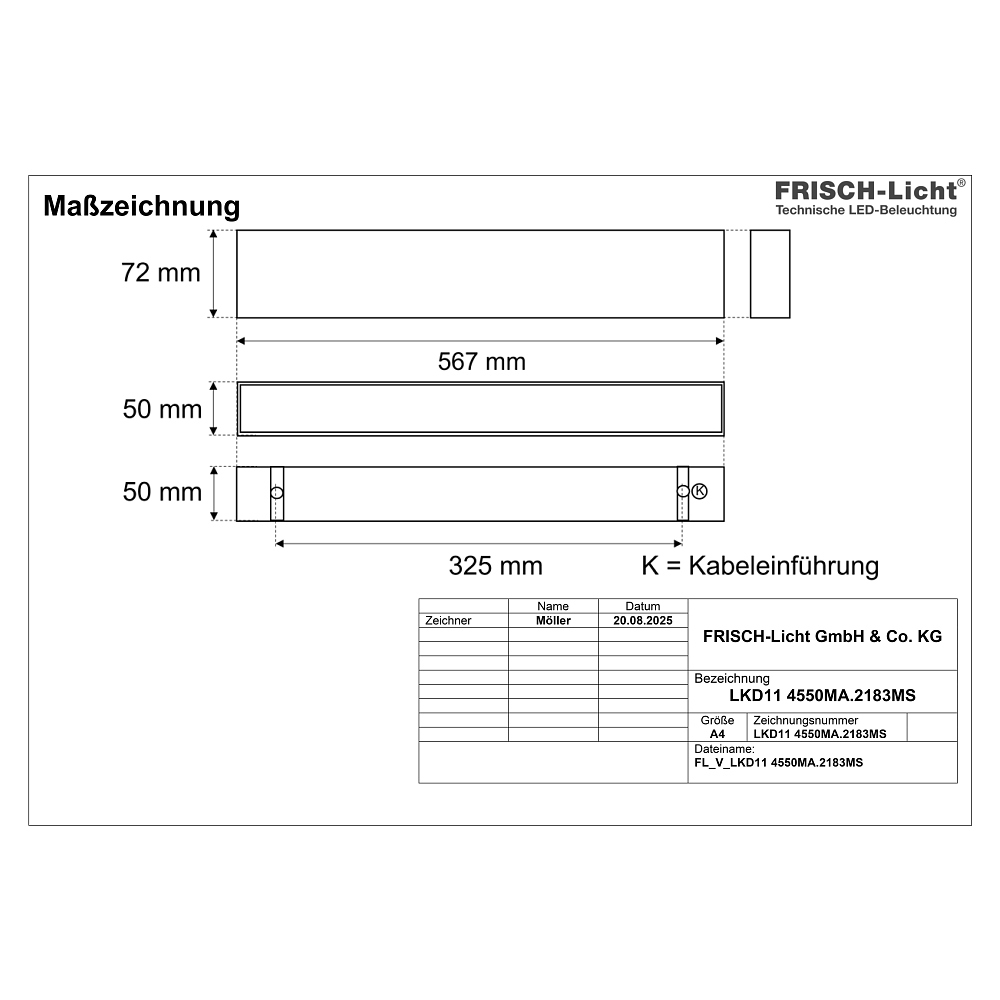

With dimensions of 56.7 cm length, 5 cm width, and 7.2 cm height, the luminaire is compact and unobtrusive. It is designed for an operating voltage of 220-240 volts and a mains frequency of 50-60 Hz. The light weight of 1.3 kg facilitates handling. The luminaire is suitable as a ceiling light, pendant light, or light strip and is ideal for offices and screen workplaces. The high luminous efficacy of up to 131 lumens per watt and a color rendering index of over 80 Ra ensure a natural and pleasant light appearance.
