light bar BATTEN FLAT P 600 27 ON-OFF MW with sensor, CCT Switch, switchable, multipower IP44/20

Compact and Efficient LED Light Bar

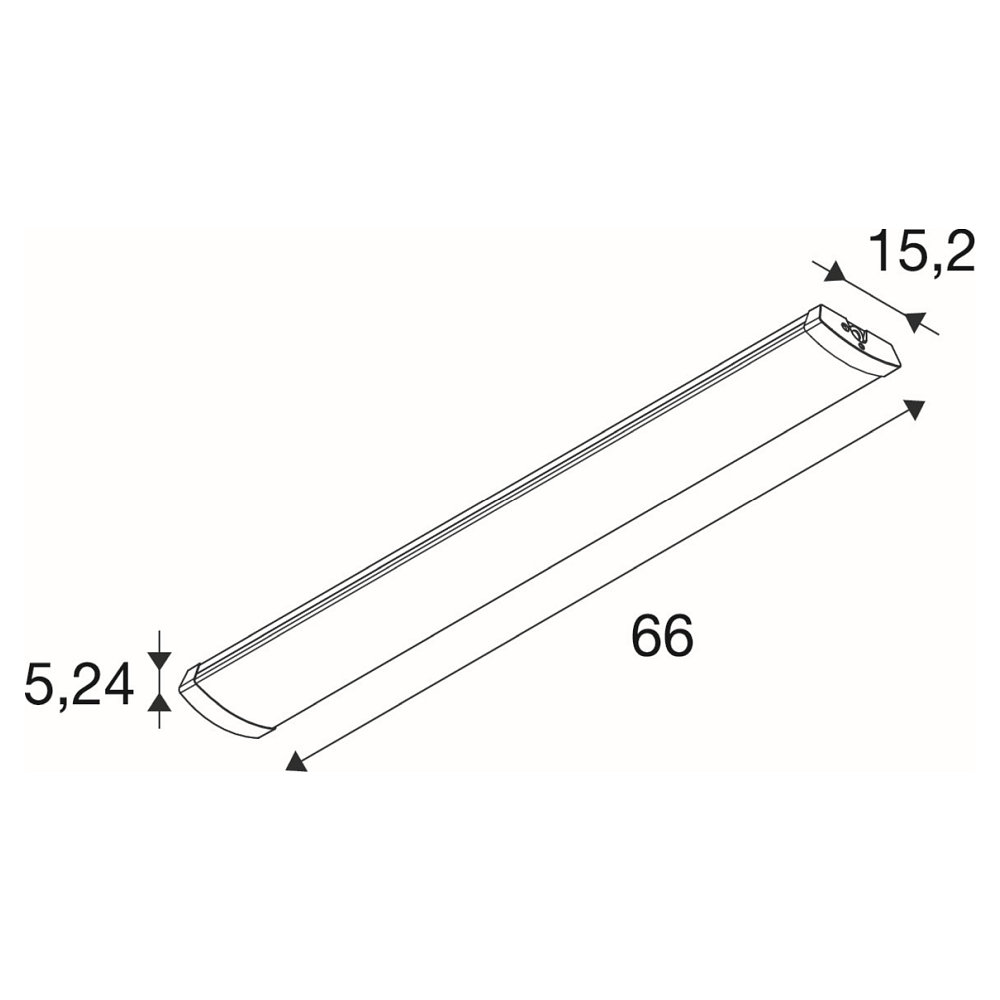

The BATTEN FLAT P 600 LED light bar from SLV impresses with its sleek design and compact construction. With a length of 66 cm and a slim height of just 5.2 cm, it blends discreetly into any environment. It provides broad light output with a beam angle of 120° and a luminous flux of up to 2748 lumens, ensuring rooms are evenly and brightly illuminated. The fixture is easily adjustable via a DIP switch to color temperatures of 3000K, 4000K, and 5000K, allowing for warm white to cool white light to be set according to needs.

Innovative Sensor Technology for Comfortable Lighting

Equipped with an integrated high-frequency motion sensor and dusk sensor, the light bar offers smart and demand-oriented control. The sensor detects movements within a 360° detection angle and flexibly adjusts the lighting duration from 5 seconds to 30 minutes. Additionally, the ambient light threshold can be set between 2 and 50 lux, enabling automatic adaptation to existing lighting conditions. These features ensure energy-efficient and comfortable use.

Easy Installation and Flexible Mounting Options

The installation of the BATTEN FLAT P 600 is especially time-saving thanks to removable covers and tool-free openable end caps. The fixture is connected via a push-in terminal, guaranteeing a secure connection. Optional accessories such as a pendant set, rigid wall brackets, or mounting hooks are available for various mounting types, increasing flexibility in installation. The recommended maximum mounting height is 5 meters, ensuring optimal sensor range.

Powerful and Energy-Saving

With a power consumption of 20 watts and a luminous efficacy of 137 lumens per watt, the light bar offers an efficient lighting solution. An energy consumption of 20 kWh per 1,000 operating hours makes it an economical choice for a wide range of applications. The fixture complies with protection classes IP44 and IK04, making it robust against splashing water and mechanical impacts. Its long service life and high color rendering index (CRI) of 80 provide a pleasant and natural light quality.

Versatile Applications and Accessories

The BATTEN FLAT P 600 is ideal for commercial use, for example in offices, schools, or retail spaces. The switchable multipower version allows the brightness of the fixture to be adjusted to the respective need. Included in the delivery are the light bar itself, a light color switch, a driver, and a microwave motion sensor. Additional accessories such as mounting brackets or an emergency lighting module are optionally available, expanding functionality and application possibilities.
