LED Strip HEQ FLEX 200 LUMEN/W 2-pole, two-sided white

ISOLED

Print product information sheet▶

question regarding the article

ISOLED LED Strip HEQ FLEX 200 LUMEN/W 2-pole, two-sided white

Print product information sheet▶

question regarding the article

Product data sheet

CHF 116,99

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 167.13

You save 30,0 %

Shipping time: 3-4 weeks

Product no.: ISO-115257
EAN: 9009377098536
In stock: 50

Alternative product variants:

LED Strip HEQ FLEX 200 LUMEN/W 2-pole, two-sided white LED Strip HEQ FLEX 200 LUMEN/W 2-pole, two-sided white

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

Technical details
Downloads

Colour:

white

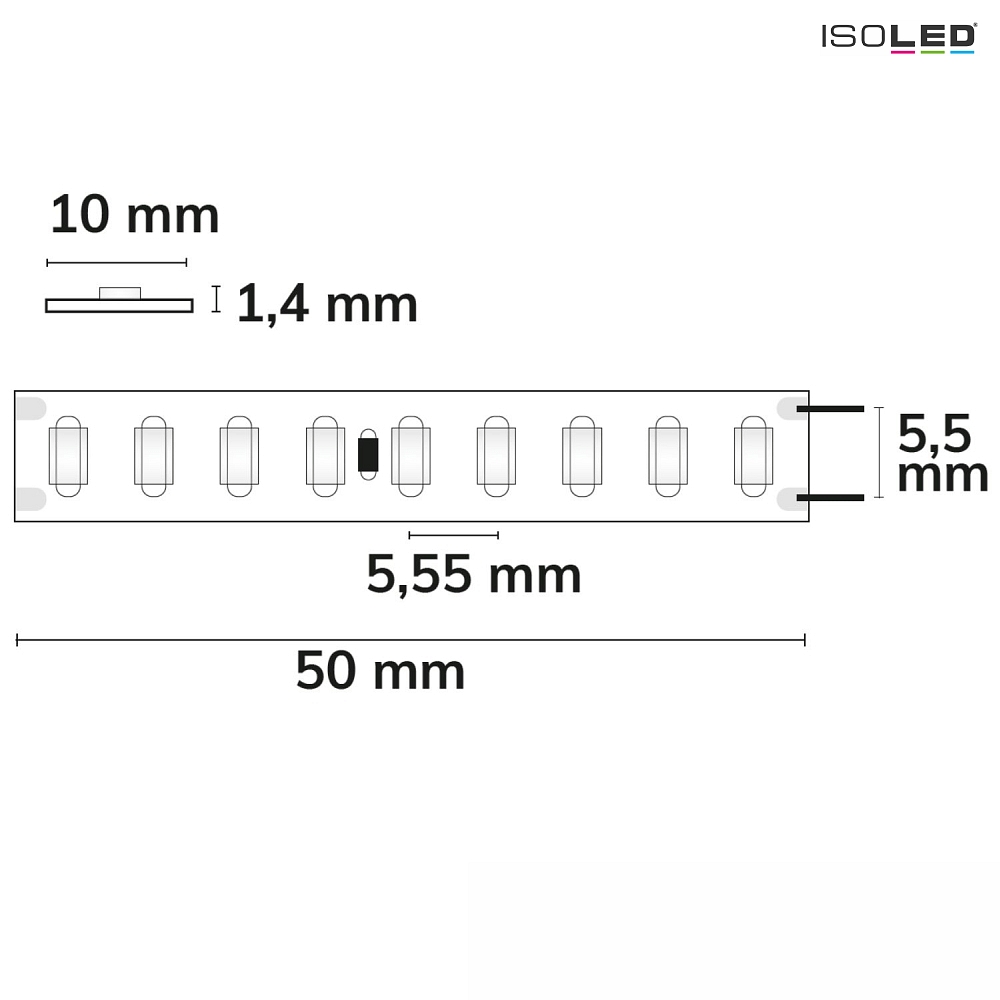

Dimension:

L∕ W∕ H: 500∕ 1∕ 0,14 cm
shortenable every-L: 5 cm
Mittiger LED Abstand (Pitch)-L: 0,56 cm
contact distance-W: 0,55 cm
max. operable length-L: 1000 cm

Material:

plastic
copper

Weight:

0.12 kg

Product type:

LED Strip

Application area:

only suitable for indoor use

Operating voltage:

24 V=

Dimmable:

yes

Dimmability:

PWM dimming

Power consumption:

30 W

Power consumption per meter:

5,8 W/m

Emitting angle:

120 °

LED can be replaced :

Bulb type:

LED

Number of bulbs:

900

Light colour:

warm white

Light emission:

direct

Light flux:

6150 lm

Luminous flux per metre:

1230 lm/m

Light yield:

200 lm/W

Colour temperature:

3000 K

Average life span of a bulb in hours:

30000 h

Switching cycles:

100000

Colour rendering index:

84 Ra
1B

lamp performance:

29 W

Contact gap:

0,55 mm

Maximum operable length:

1000 cm

Mounting:

recessed mounting
surfaced mounting
system based mounting

IP-protection class:

IP20

Accessories:

cover - not included in delivery
connection set - not included in delivery
control gear - not included in delivery
controller - not included in delivery
Dimmer - not included in delivery
direct connector - not included in delivery
mounting accessories - not included in delivery
profile - not included in delivery
adhesive tape - included in delivery

ambient temperature:

0 ... +40 °C

Energy efficiency category:

EPREL No:

820568

Energy consumption:

30 kWh/1.000 h

Article number:

ISO-115257

Purchasing quantity:

1 piece

Brand:
