LED Recessed Downlight, 22W, 3000K, 2200lm, square, IP21, opal, DALI dimmable, white

Modern LED Recessed Downlight for Efficient Lighting

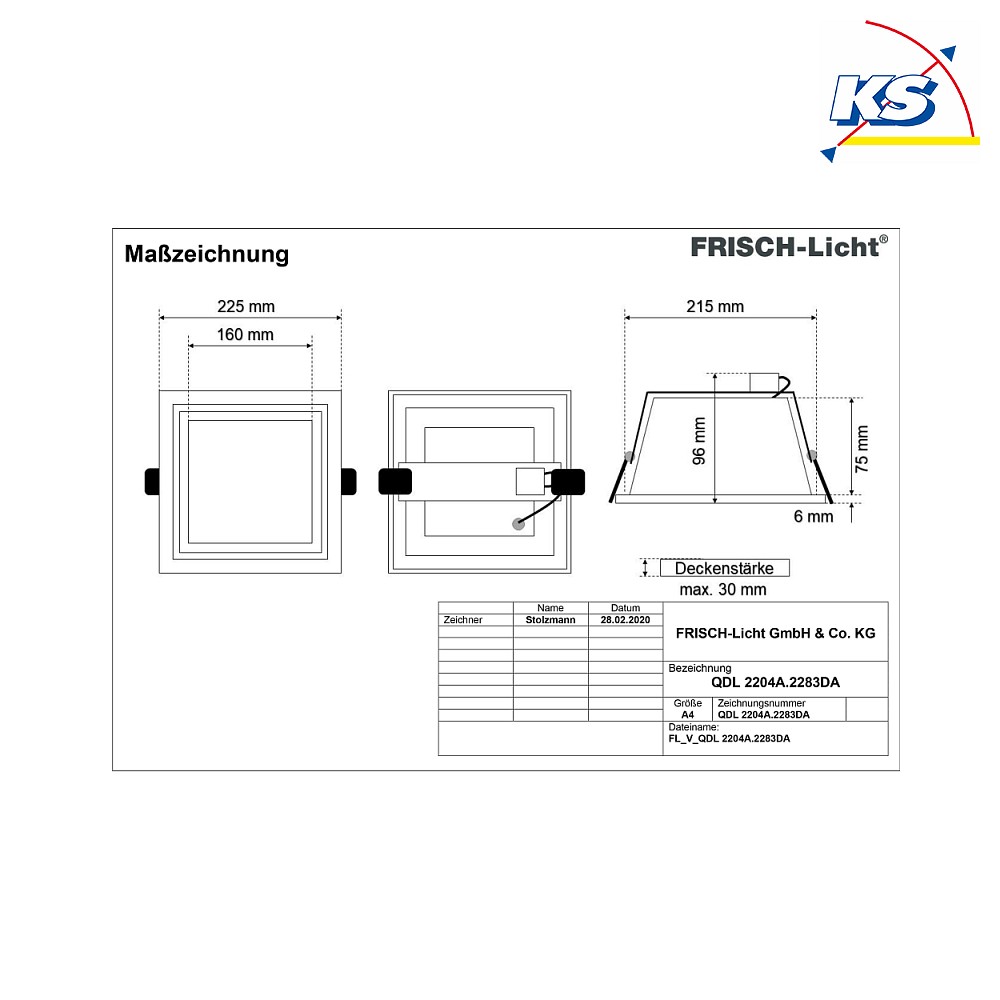

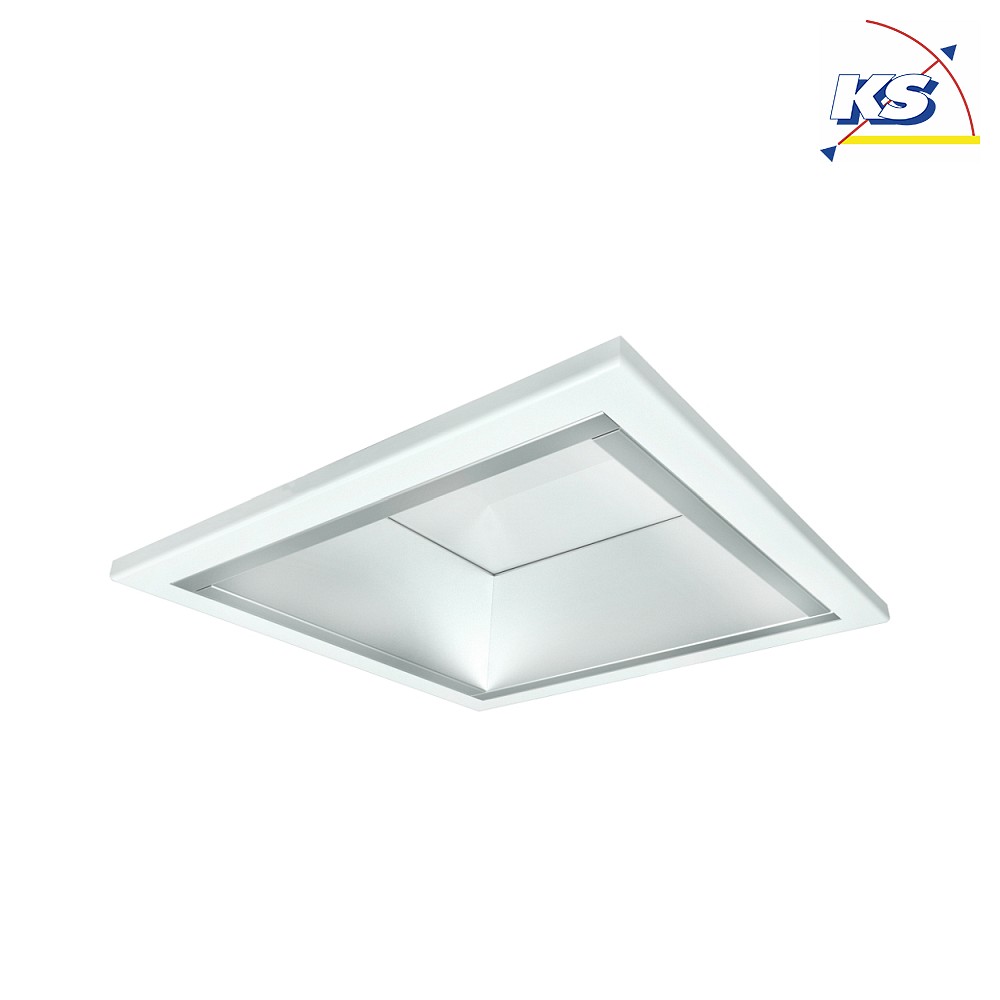

The LED recessed downlight from Frisch-Licht impresses with its square shape and high-quality workmanship made of aluminum, steel sheet, and polymethyl methacrylate (PMMA). With a mounting depth of only 9 cm and a cut-out size of 22.5 x 22.5 cm, the luminaire can be easily integrated into ceilings. The matte white surface provides a discreet, elegant appearance that seamlessly fits into various room concepts. The product is specifically designed for recessed installation and is delivered including spring clips, diffuser, reflector, and driver.

High-Quality Light and Energy Efficiency

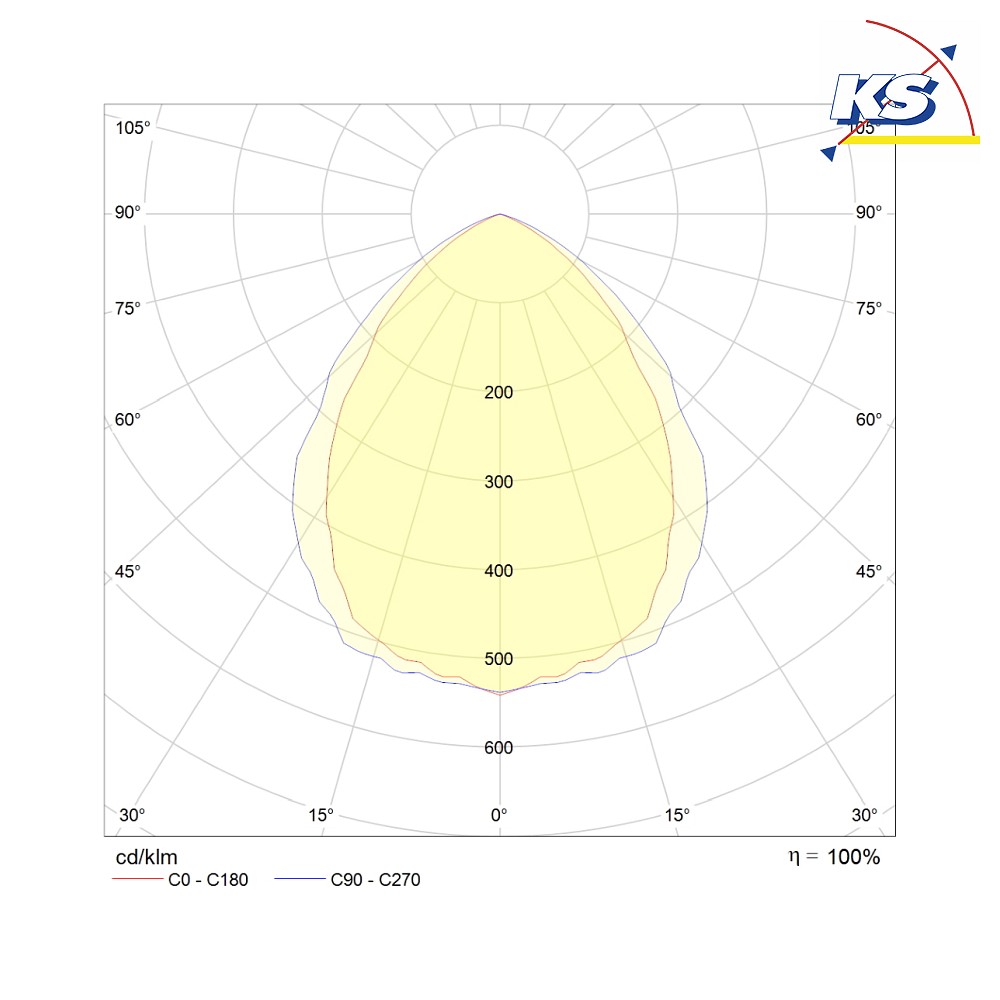

The downlight offers a warm white light color (3000K) with a luminous flux of 2200 lumens at a power consumption of 22 watts. The light distribution is direct and uniformly symmetrical with a beam angle of 85°, ensuring even and pleasant illumination. The color rendering index is above 80 Ra, providing natural color reproduction. With an average lifespan of 50,000 hours, the LED module is particularly durable and low-maintenance, as the LED cannot be replaced.

DALI Dimmability for Flexible Light Control

This LED downlight is DALI-dimmable, allowing precise and stepless regulation of light intensity. The digital control is ideal for modern building automation systems and ensures optimal adjustment of lighting conditions to individual needs. The mains connection is made via a practical terminal block, while operation is at 220-240 volts with a frequency of 50-60 Hz. Dimmers and controllers are available separately to enable flexible lighting solutions.

Robust Protection Class and Versatile Applications

With a protection rating of IP21 and an impact resistance of IK02, the LED recessed downlight is protected against the ingress of solid foreign objects and resistant to minor mechanical impacts. It is designed for a temperature range of -20 to +35 °C and meets the requirements of protection class 2, ensuring safe installation. The combination of durable materials and thoughtful design makes this luminaire a reliable solution for a wide range of lighting applications.

Practical and Thoughtful Accessories Included

The scope of delivery includes all necessary components for easy installation, including spring clips, diffuser, reflector, and driver. The luminaire features a recessed LED module design protected by an opal acrylic cover to ensure glare-free light. The minimal visible mounting depth of only 0.6 cm creates an elegant appearance. The luminaire is also available in various sizes, power ratings, and light colors, offering diverse possibilities for individual customization.
