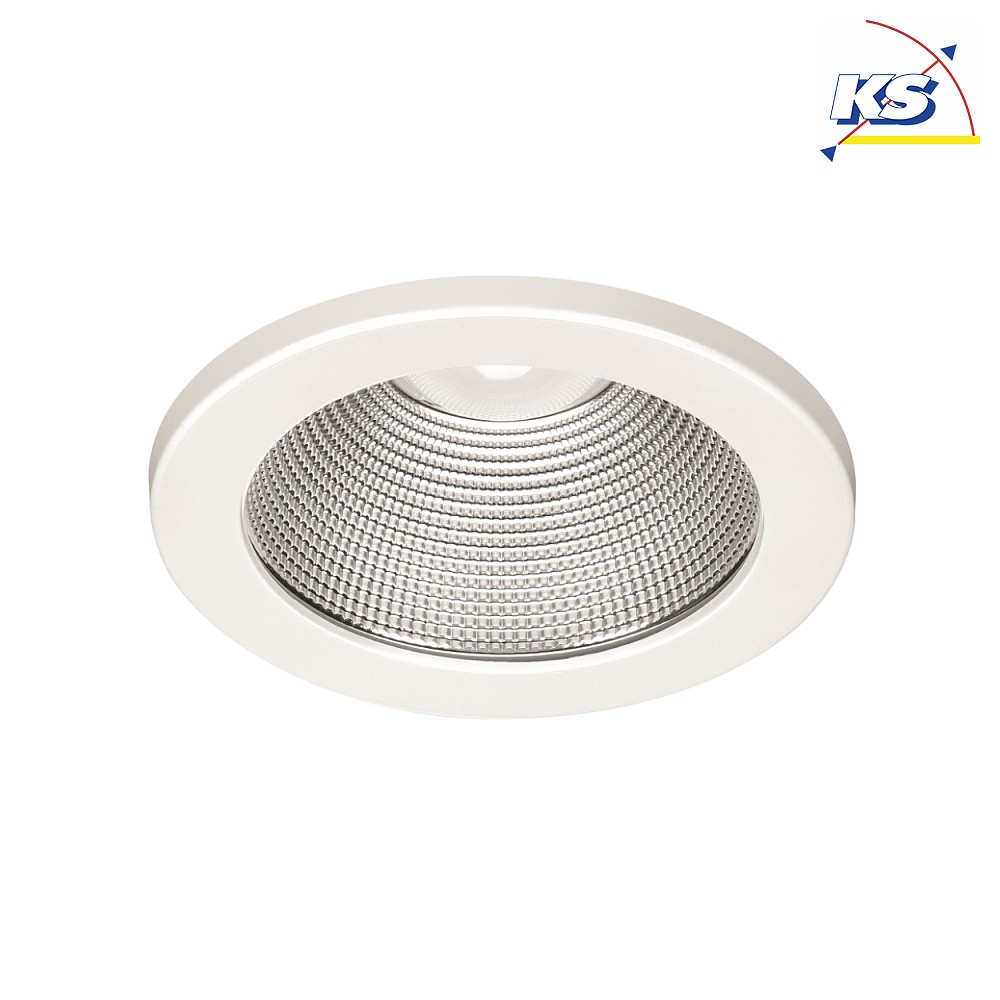

LED Recessed Downlight, 10W, 4000K, 1000lm, IP20, faceted reflector, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High-Quality LED Recessed Downlight with Modern Design

The LED recessed downlight from Frisch-Licht impresses with its round shape and elegant white housing, which blends harmoniously into any ceiling. With a diameter of 12 cm and an installation depth of only 9.2 cm, this luminaire is ideal for space-saving recessed mounting. The material consists of robust aluminum, plastic, polymethyl methacrylate (PMMA), and steel sheet, ensuring durability and stability. The faceted reflector provides even light distribution and an appealing appearance.

Efficient and Comfortable Lighting with Neutral White Light

The downlight delivers a neutral white light color at 4000 Kelvin, creating a natural and pleasant atmosphere. With a luminous flux of 1000 lumens and an efficacy of 100 lm/W, the luminaire offers bright and efficient illumination at only 10 watts power consumption. The color rendering index (CRI) of over 80 Ra guarantees good color reproduction, ideal for various applications such as offices or educational institutions. The low glare value (UGR <19) makes the light source especially suitable for workstation environments with screens.

Reliable Technology and Easy Installation

The LED recessed downlight is equipped with an ENEC-certified LED driver that ensures stable power supply and operates at low voltage. Installation is done quickly and easily using clip springs included in the delivery. A diffuser and reflector are also included in the set to optimally scatter and direct the light. The cut-out diameter is 10 cm, suitable for many standard ceilings with a maximum material thickness of 3.5 cm.

Durability and Safety for Long-Term Use

With an average lifespan of 50,000 hours, the downlight impresses with long service life and low maintenance. Protection class 2 and IP20 rating ensure safe operation at ambient temperatures between -20 and +40 degrees Celsius. The recessed LED module is protected by an internally matte acrylic cover, ensuring even light emission without glare.

Versatile Applications and Practical Accessories

This LED recessed downlight is excellently suited for numerous applications such as banks, hospitals, hotels, gastronomy, offices, and social institutions. The included accessories comprise clip springs, diffuser, reflector, and the LED driver, while suitable mounting pots are optionally available. The direct, symmetrical light distribution with a beam angle of 90° ensures efficient illumination of various rooms and requirements.

Colour:
white
Glass color:
opal
Reflector color:
aluminium,faceted

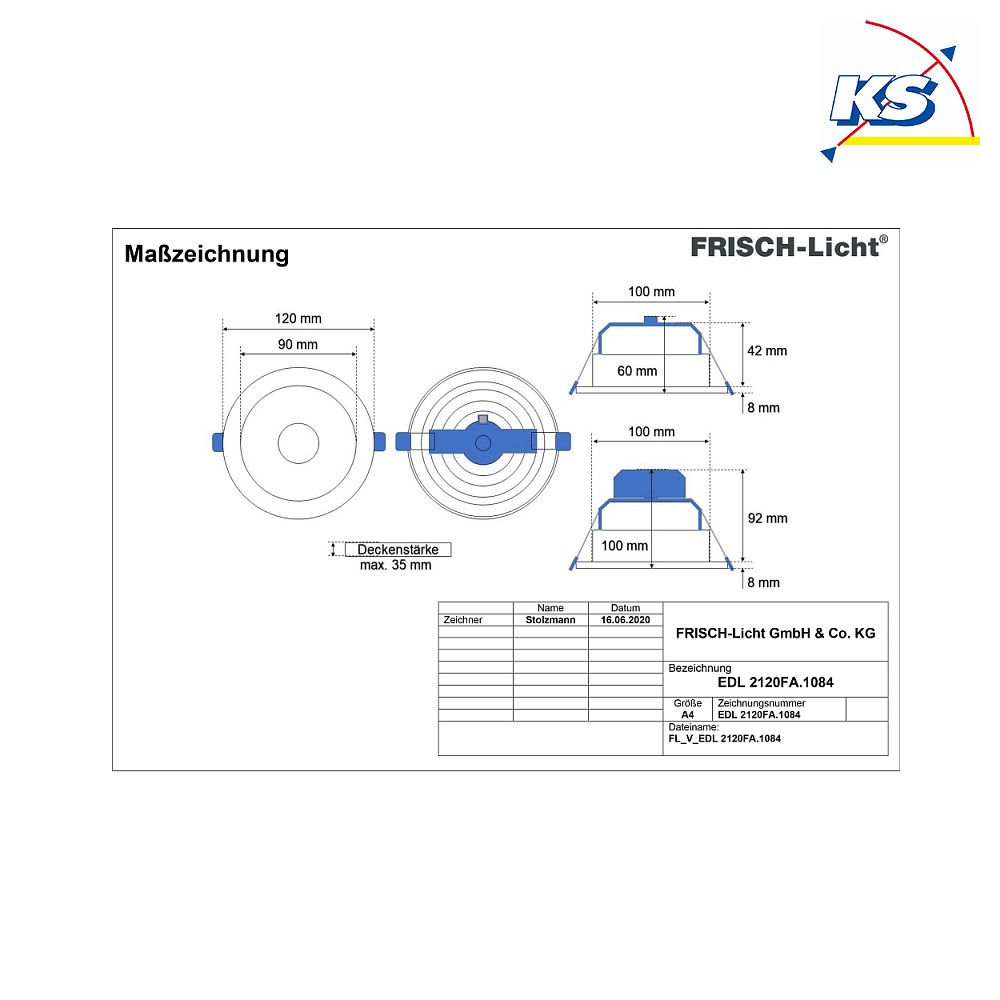

Dimension:
Ø∕ H: 12∕ 5 cm
visible part-Ø∕ H: 12∕ 0,8 cm
light output-Ø: 9 cm
max. material thickness-H: 3,5 cm
Material:
aluminium
plastic
polymethylmethacrylat (PMMA)
steel sheet
Weight:
0,2 kg
Product type:
recessed downlight
Lamp shape:
round
Bulbs in delivery:
yes
Accessories:
clip springs - included in delivery
diffuser - included in delivery
reflector - included in delivery
driver - included in delivery
mounting pot - not included in delivery
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
Power frequency:
50-60 Hz
Power consumption:
10.00 W

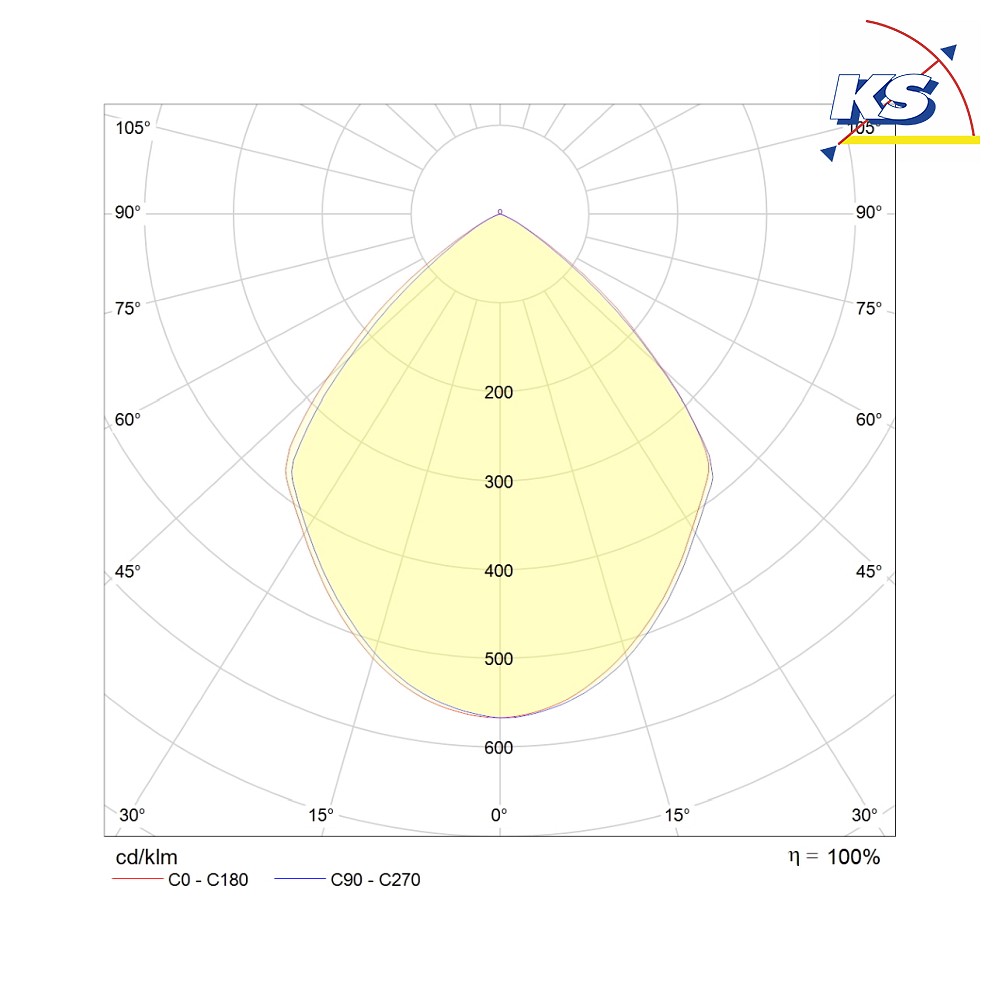

Emitting angle:
90 °
LED can be replaced :
no
Bulb type:
LED
Voltage:
Clamp
Temperature range:
-20 - +40 °C
Light colour:
neutral white
Light emission:
direct
Beam direction:
down
Light flux:
1000 lm
Light yield:
100 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>80 Ra
UGR:
< 19
Colour rendering index:
1B
IK-Rating:
IK02 up to 0.20 Joule
Fitting depth:
9,2 cm
Fitting opening circle :
10.00 cm
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP20
ambient temperature:
-20 ... +40 °C
Energy efficiency category:
F
Energy consumption:
10.00 kWh/1.000 h
Article number:
FL-EDL2120FA.1084
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Manufacturer:
Frisch-Licht
Manufacturer information
FRISCH-Licht GmbH & Co. KG, Schlachthofweg 2, 59755, Arnsberg, Germany, info@frisch-licht.de
