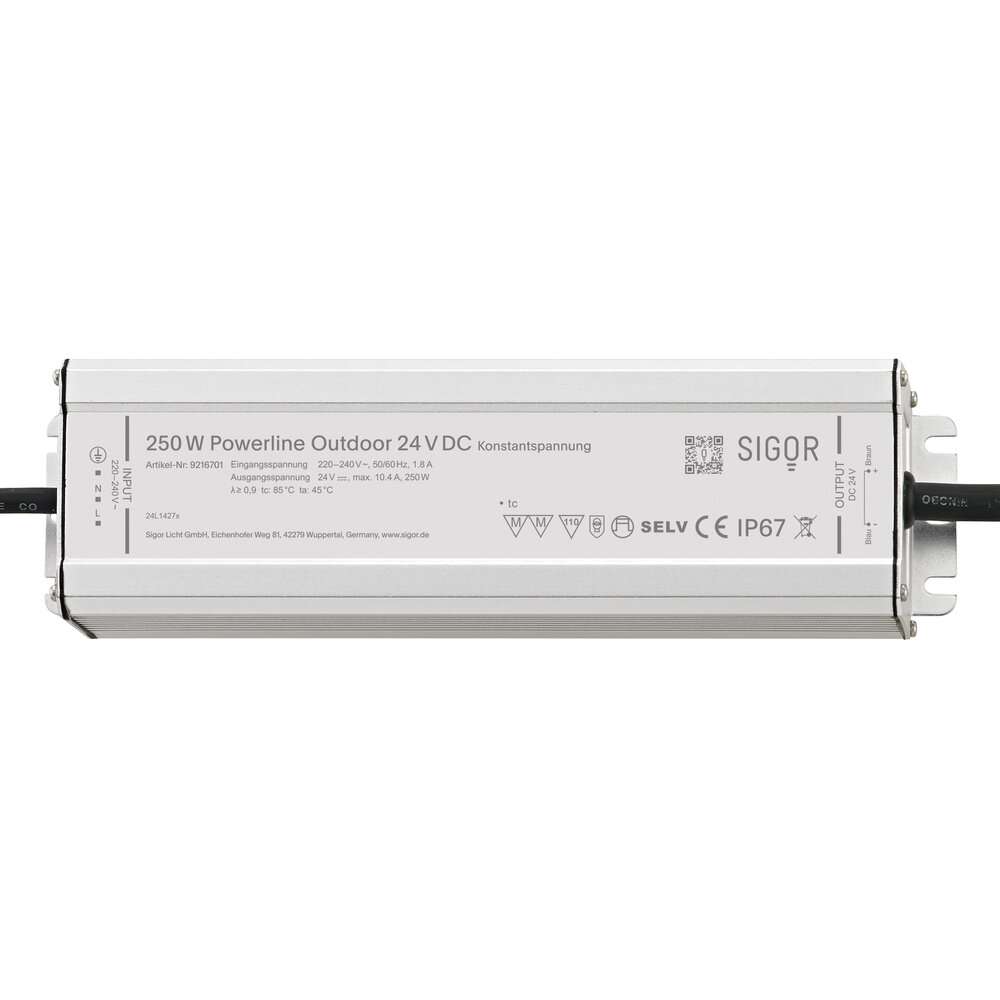

LED power supply unit POWERLINE OUTDOOR DRIVER 250W / 1450MA current constant, switchable

Powerful Outdoor LED Driver from SIGOR

The POWERLINE LED driver from SIGOR is a professional constant current power supply, specifically designed for operating 24V DC LED lighting products. With an input voltage of 100-240V AC and an output power of 250W at 1450mA, this power supply ensures a stable and reliable power source. Thanks to its high-quality construction using plastic, metal, and polyurethane (PU), the driver offers a robust design and weighs only 0.6 kg, making installation easier.

High Protection Class and Long Lifespan

The LED driver features an IP67 protection rating, which safeguards it against dust and temporary immersion. This ensures high operational safety under various conditions. Additionally, the product impresses with an average lamp lifespan of 200,000 hours. Protection mechanisms against short circuits, overload, overvoltage, and overheating increase reliability and significantly extend the lifespan of the connected LEDs.

Efficient Energy Conversion and Environmental Friendliness

With an efficiency of 92% at full load and 230V, the POWERLINE driver provides efficient energy conversion that reduces electricity costs and is environmentally friendly. The integrated Power Factor Correction (PFC) circuit ensures a power factor of 0.95, which means optimal grid utilization and low network load. The low ripple of 1.5% also guarantees a steady power supply that supports the lifespan of the LEDs.

Easy Installation and Versatile Accessories

The LED driver comes with connection and linking cables that enable straightforward and secure installation. The open cable end at the power input facilitates integration into existing systems. With compact dimensions of 21 x 7 x 4.4 cm, the device fits various installation situations. Thanks to the mains frequency of 50/60 Hz, the driver is compatible with different power grids worldwide.

EMC Tested and Versatile Protection Features

The POWERLINE LED driver complies with strict EMC standards, including EN55015 Class B and EN61000-4-2 through 11, ensuring interference-free operation in electrical environments. Protection class 1 provides secure grounding. With a maximum inrush current of 65A and a minimum load of 25W, the device is excellently suited for a wide range of LED applications. The no-load voltage of 26V rounds off the technical features and guarantees safe operation.
