LED power supply EL-8R-350 NON-DIM MP round, current constant, multipower, on/off, white

High-Quality LED Round Converter EL-8R-350 by nobilé

The LED round converter EL-8R-350 is a powerful LED power supply specifically designed for operating switchable LED lights and LED lamps. With an operating voltage of 220 to 240 volts alternating current (AC) and an output voltage of 15 to 24 volts direct current (DC), this device ensures reliable and consistent power supply. The multipower function allows flexible adjustment of the output power between 5 and 8 watts, enabling you to tailor the performance to your individual requirements.

Technical Details and Safety

The converter operates with a constant current output ranging from 175 to 350 mA, which can be set via a convenient slider switch in three power levels (100%, 70%, 50%). The integrated protection function guarantees safe use: in case of short circuit, overload, or overtemperature, the device automatically shuts down. Additionally, the round converter meets the glow wire test according to IEC 60695-2-10 at 850°C, ensuring the highest safety standards. Protection class 2 and IP20 certification provide additional protection during use.

Practical Features and Connection Options

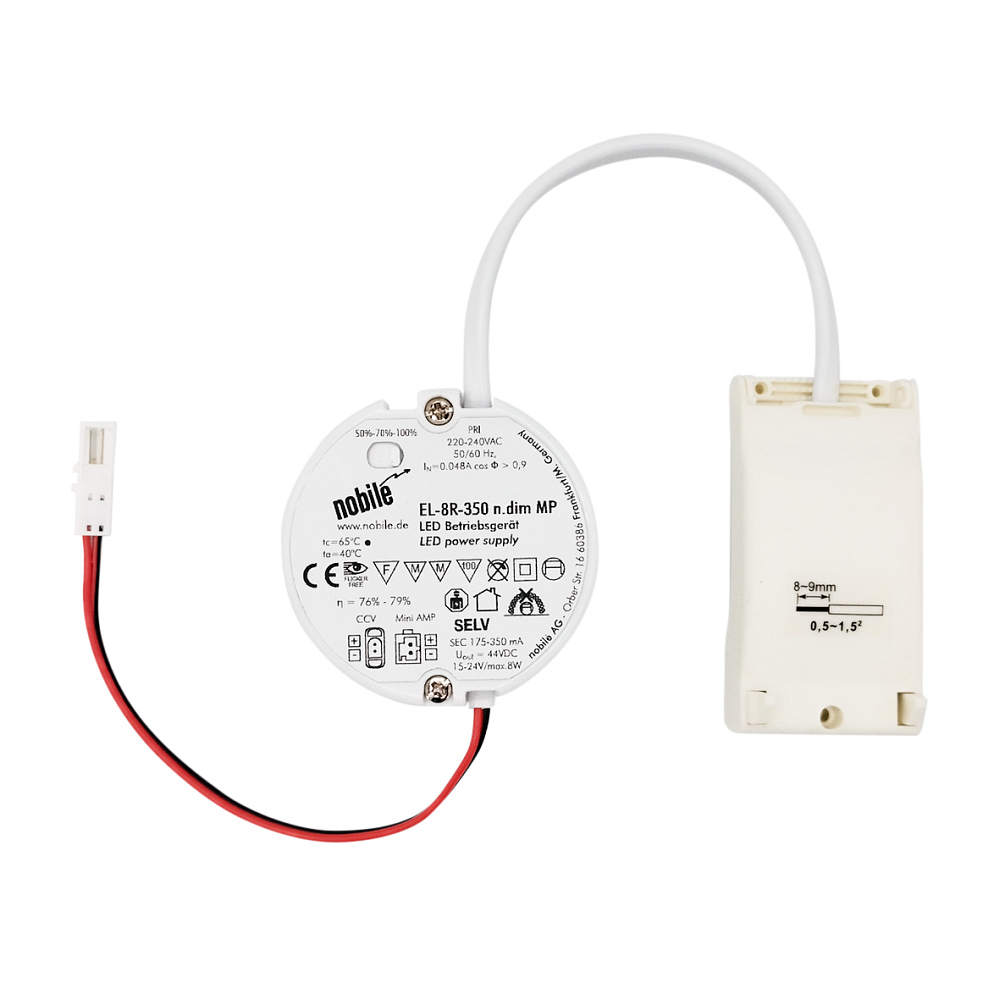

The EL-8R-350 is equipped with an external connection box that allows primary-side wiring with push-in terminals (L, N, PE). On the secondary side, the converter features a 20 cm long connection cable with an integrated AMP socket, providing a 2-pole connector with reverse polarity protection. The included accessories comprise the connection box, an AMP plug, a connecting cable, wiring, and a switch, making installation particularly simple and flexible.

Design and Material Quality

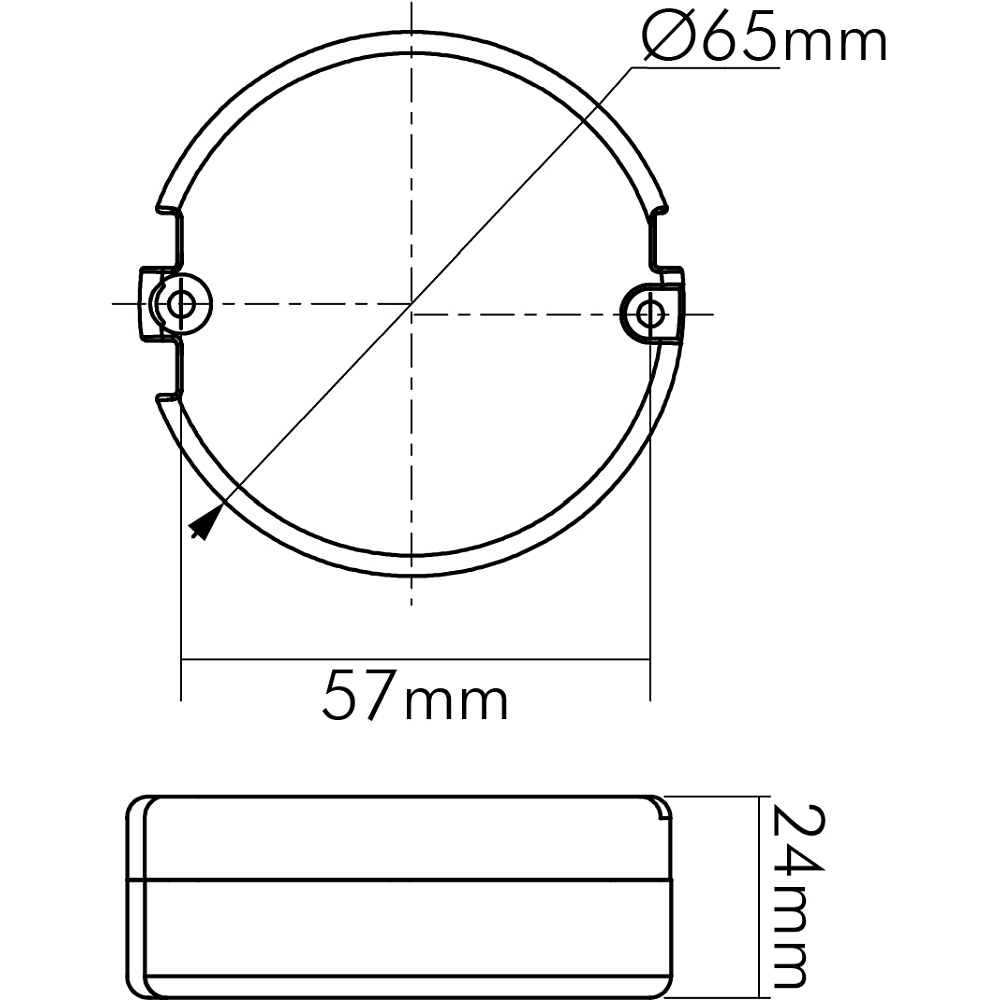

The compact device measures 6.5 cm in diameter and 2.4 cm in height and comes in a subtle white color. The housing is made of sturdy polycarbonate (PC), a high-quality plastic known for its stability and durability. Weighing only 95 grams, the converter is lightweight and unobtrusive. The integrated dimming function via the switch allows easy adjustment of the lighting without additional control devices.

Environmental and Operating Conditions

The LED round converter EL-8R-350 is designed for operation at mains frequencies of 50 to 60 Hz and can be used within a temperature range of 0 to 40 degrees Celsius. The maximum housing temperature (Tc) is 65 degrees Celsius, ensuring high endurance during continuous operation. Furthermore, the converter operates flicker-free, providing pleasant light quality without disturbing flicker. Thanks to a power factor of over 0.55 at full load, the device is energy-efficient and contributes to sustainable usage.
