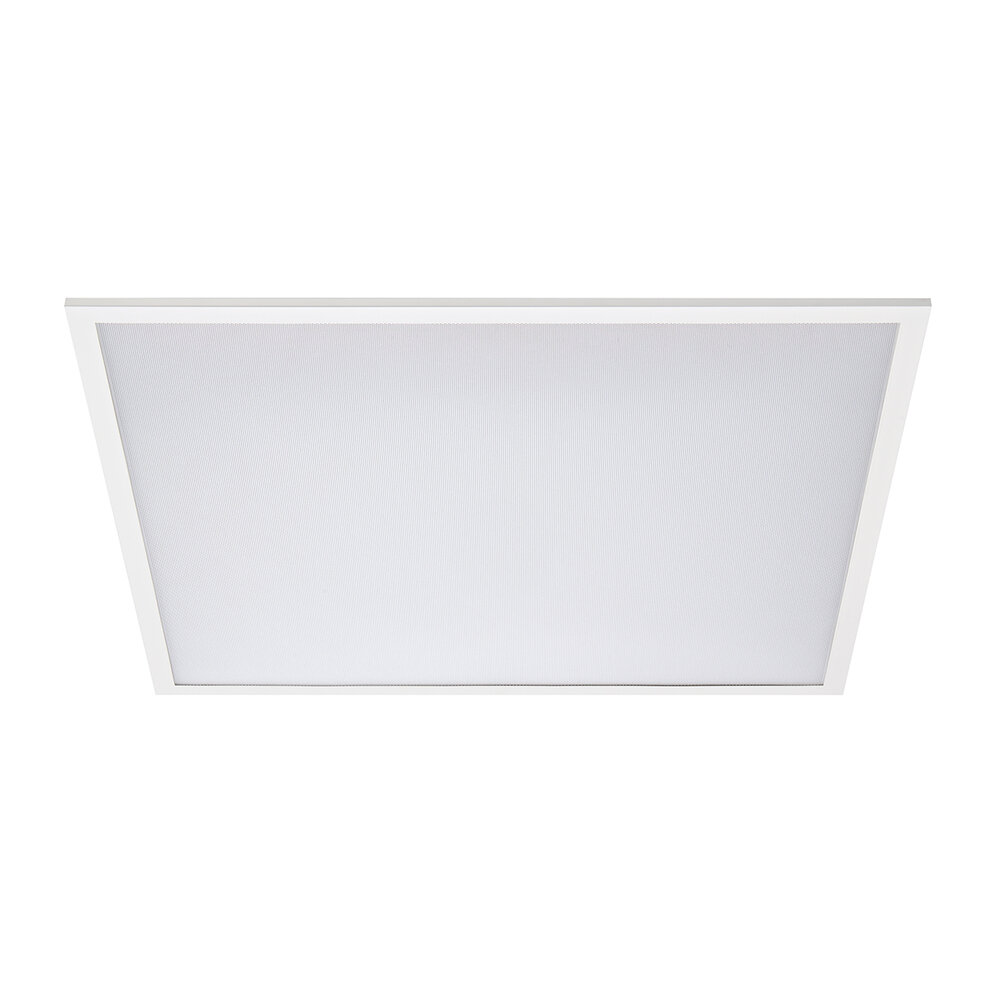

LED panel FLED BACKLIT square, flat, UGR < 19, excl. LED driver, dimmable 36W 4320lm 4000K 90° CRI 80

Modern LED Recessed Panel for Efficient Lighting

The LED recessed panel FLED BACKLIT from SIGOR offers a powerful and energy-saving lighting solution with a power consumption of 36 watts and a luminous flux of 4320 lumens. The panel features a neutral white light color at 4000 Kelvin, providing pleasant and natural illumination. With a luminous efficacy of 120 lumens per watt, high efficiency is guaranteed, reducing energy consumption to only 36 kWh per 1000 operating hours.

Technical Details and Easy Integration

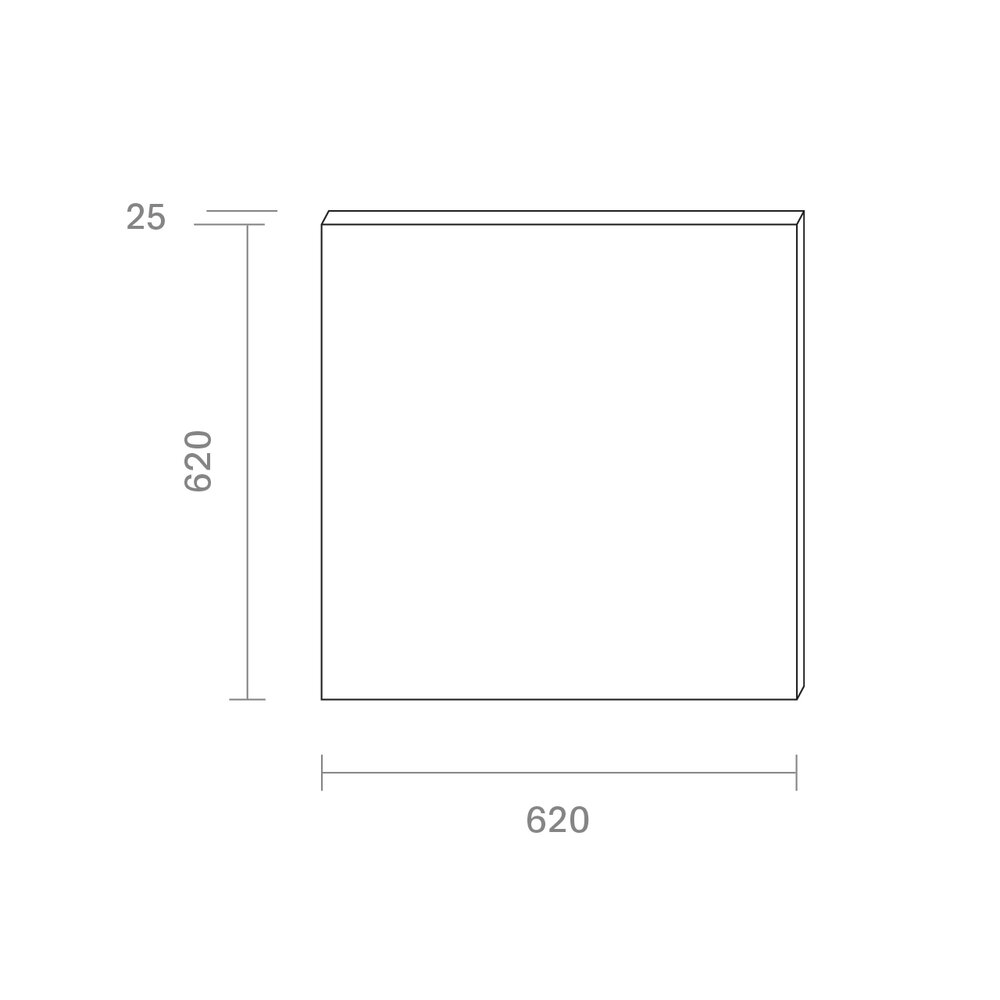

The flat LED panel measures 59.5 x 59.5 cm and is specially designed for grid ceilings of this size. It is especially durable with an average lifespan of 50,000 hours and meets protection class 3 as well as IP40 protection rating. The panel operates at a supply voltage of 40 volts DC and requires an external constant current driver with 900mA, which is not included. A system connector is used for the power connection; the appropriate connection cable and plug are also available separately.

Optimal Light Quality for Workplaces

The panel emits light evenly and symmetrically downward with a beam angle of 90 degrees. The light quality is ensured by a color rendering index of over 80 Ra, allowing for very good color rendering. Glare limitation with a UGR value below 19 makes the panel especially suitable for screen workplaces, as it effectively reduces disturbing reflections and glare. This creates a comfortable working environment.

Dimmable and Compatible with Modern Control Systems

The LED panel is dimmable, with the type of dimming depending on the operating device used. With a DALI-controllable driver, the panel can be easily integrated into digital building automation systems, enabling flexible lighting controls and energy savings. This adaptability makes the product versatile and future-proof for various requirements.

Versatile Applications and Practical Benefits

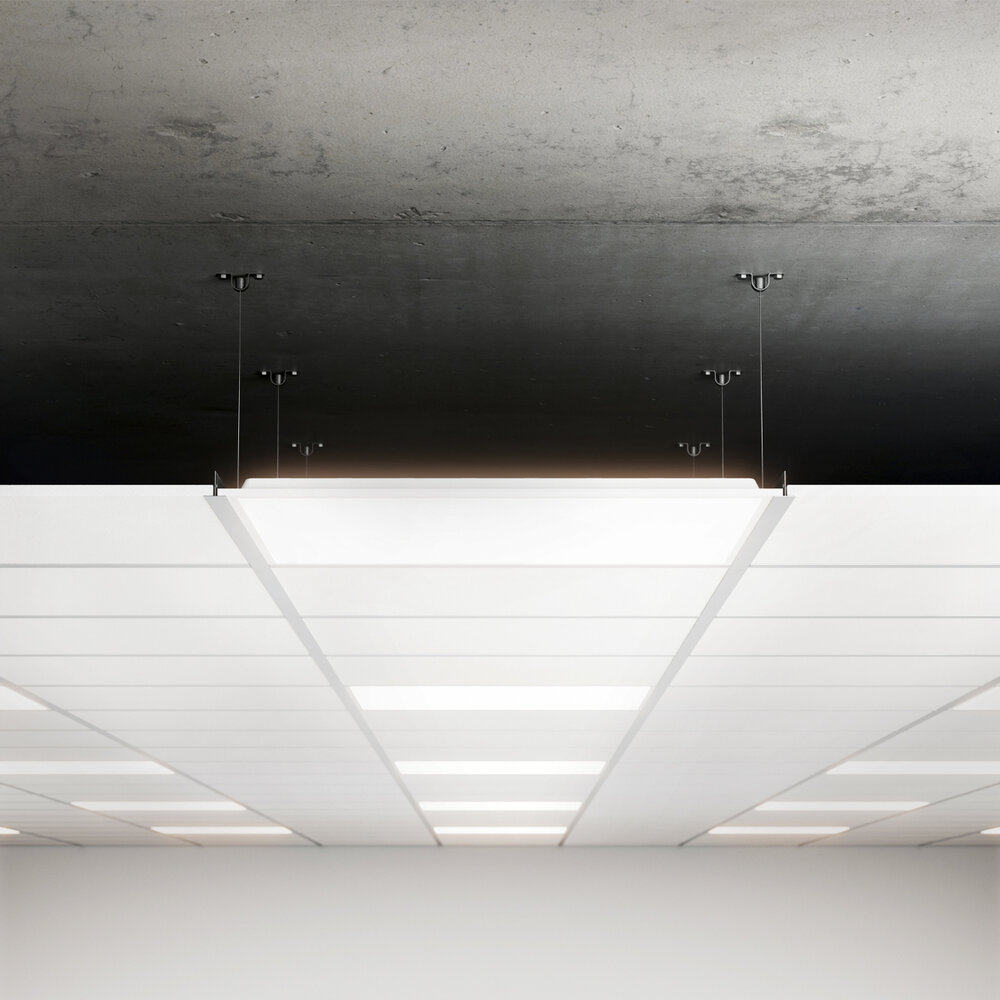

The white LED panel is suitable as a ceiling light, recessed light, or area light and is ideal for use in offices, screen workplaces, or other work environments requiring even and pleasant lighting. The ultra-flat design blends unobtrusively into grid ceilings. Thanks to the high number of switching cycles (100,000) and BEG funding eligibility, the product offers a sustainable and cost-effective lighting solution.
