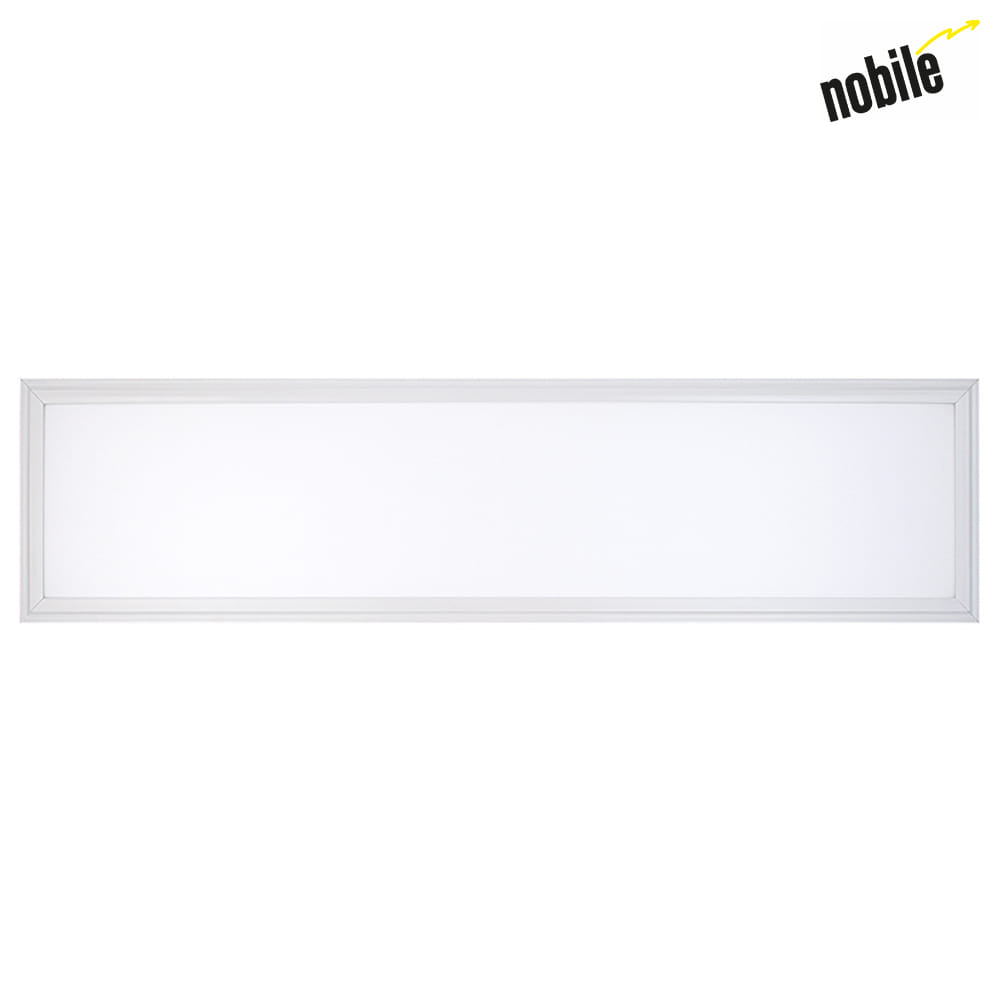

LED PANEL FLAT R2S, IP40 IK07, 124.5 x 30.8 x 0.9cm, 38W 3000K 3600lm, white, 1-10V dimmable

Modern LED Panel FLAT R2S with Efficient Light Output

The FLAT R2S LED panel from nobilé impresses with its slim design of only 0.9 cm height and a size of 124.5 x 30.8 cm. With a power consumption of 44 watts, it produces a luminous flux of 3900 lumens at a warm white color temperature of 3000 Kelvin. The luminous efficacy of 103 lm/W ensures bright and energy-saving lighting, which is especially durable thanks to an average lifespan of 50,000 hours. This panel is therefore ideal for a wide range of lighting requirements that value pleasant light color and high efficiency.

Excellent Light Quality and Glare Control

This LED panel offers a homogeneous and symmetrical light distribution with a beam angle of 120 degrees. Glare control with a UGR value below 22 ensures comfortable, eye-friendly lighting, making longer stays under the fixture pleasant. The color rendering index of over 80 Ra allows for natural color reproduction, making colors appear vivid and realistic. A low color deviation (MacAdam 4 SDCM) guarantees a uniform light color when using multiple fixtures.

Easy Installation and Flexible Mounting Options

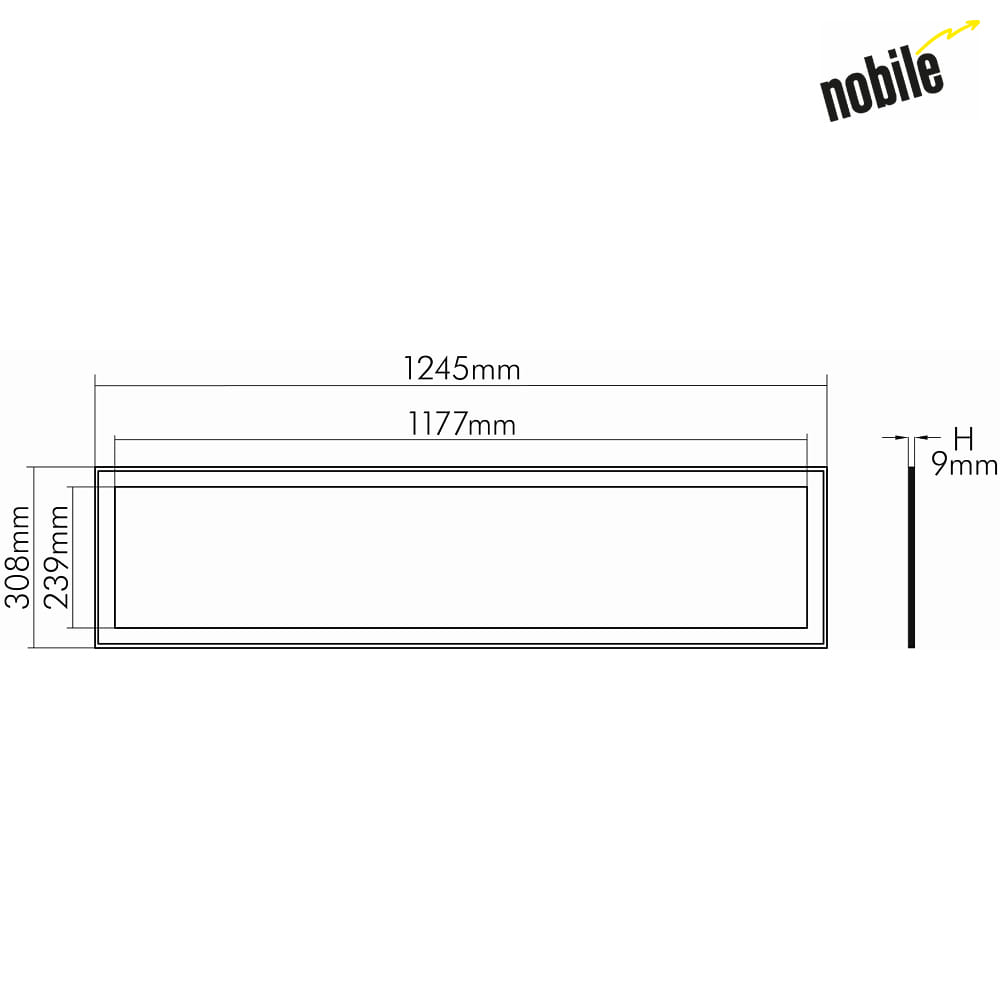

The FLAT R2S LED panel is equipped with a connection cable totaling 95 cm in length (30 + 25 + 40 cm) and features a jack plug system that enables uncomplicated through-wiring. The delivery includes connection cables, driver, and plugs, providing the basic equipment needed for installation. Optional mounting accessories such as mounting springs, surface-mount frames, or cable hangers allow flexible adaptation to various installation and mounting types. The cut-out size is 122.1 x 24.8 cm, facilitating precise fitting.

Robust and High-Quality Material for Long-Lasting Use

The panel consists of a painted aluminum housing with an opal PMMA diffuser that is resistant to yellowing and ensures even light distribution. The IP40 protection rating offers reliable touch protection, while protection class II provides increased safety during use. The sturdy construction with IK07 protection also guarantees good basic protection against mechanical impacts. Overall, the combination of high-quality materials and thoughtful design ensures a durable and reliable luminaire.

Dimmability and Technical Advantages for Individual Comfort

The LED panel is continuously dimmable via a 1-10V analog dimmer, allowing the light intensity to be easily adjusted to different needs. The dimming range extends from 10% to 100%, providing maximum flexibility in light control. The operating voltage is 220-240 V, while the driver operates at 37 V DC, ensuring safe low-voltage operation. Thus, the FLAT R2S LED panel combines the highest technical standards with user-friendly operation.
