LED panel DECO FRAME 625 RGB RGB, dimmable 31W RGBK 120° CRI 83

Modern LED Panel with Innovative Design

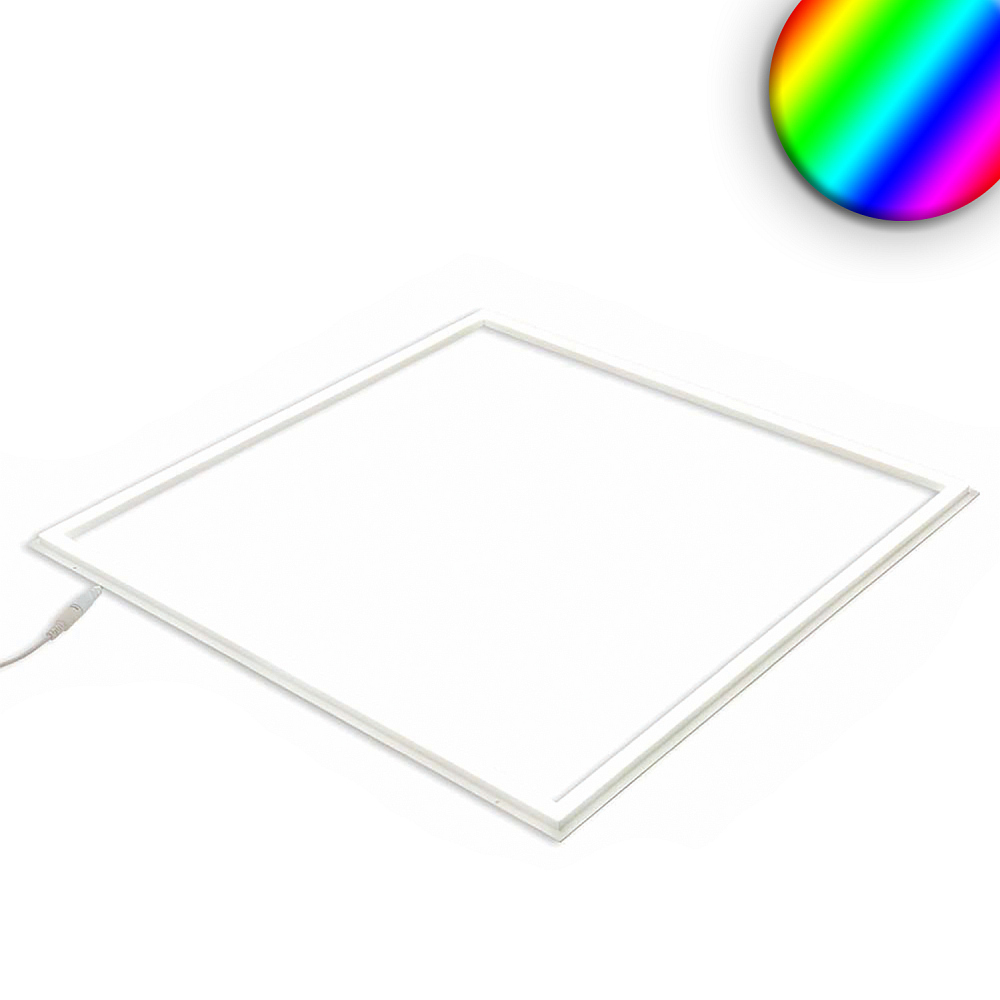

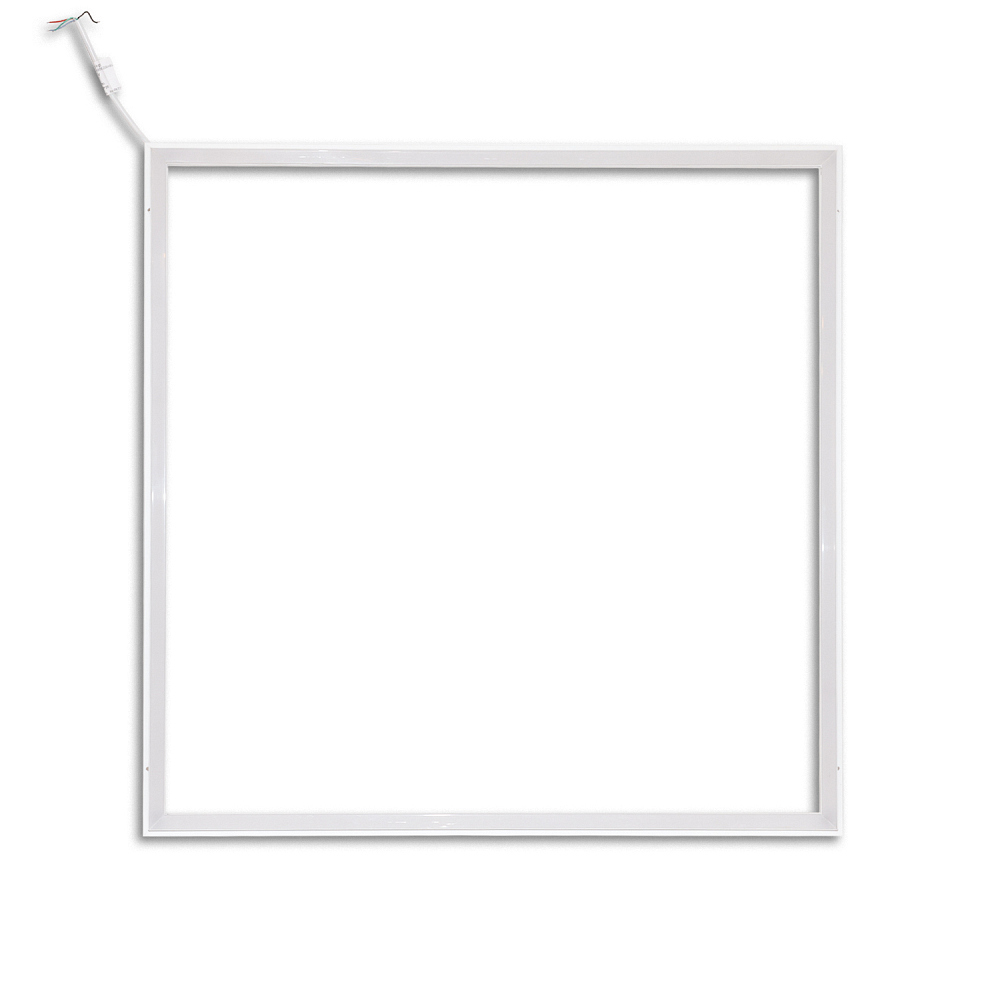

The LED Panel DECO FRAME 625 RGB from ISOLED impresses with its modern and slim design in a white aluminum and plastic frame. With dimensions of 62 x 62 cm and a height of only 1.1 cm, it fits perfectly into grid ceilings of this format. Unlike conventional LED panels, the light does not emit through a central diffuser surface but radiates from the edge, creating a special and elegant lighting effect. This design allows the interior to be individually designed with grid ceiling tiles, acoustic panels, or pictures, making the panel a stylish illuminated frame.

Powerful and Energy-Efficient Lighting

The panel operates at a power of 31 watts and consumes only about 31 kWh per 1,000 operating hours, making it very energy efficient. The light color is RGB, allowing a wide range of colors and thus enabling diverse mood and effect lighting. The color rendering index of 83 Ra ensures natural and pleasant color reproduction. With a lifespan of up to 50,000 hours, the panel offers a durable and reliable lighting solution.

Flexible Control and Dimmability

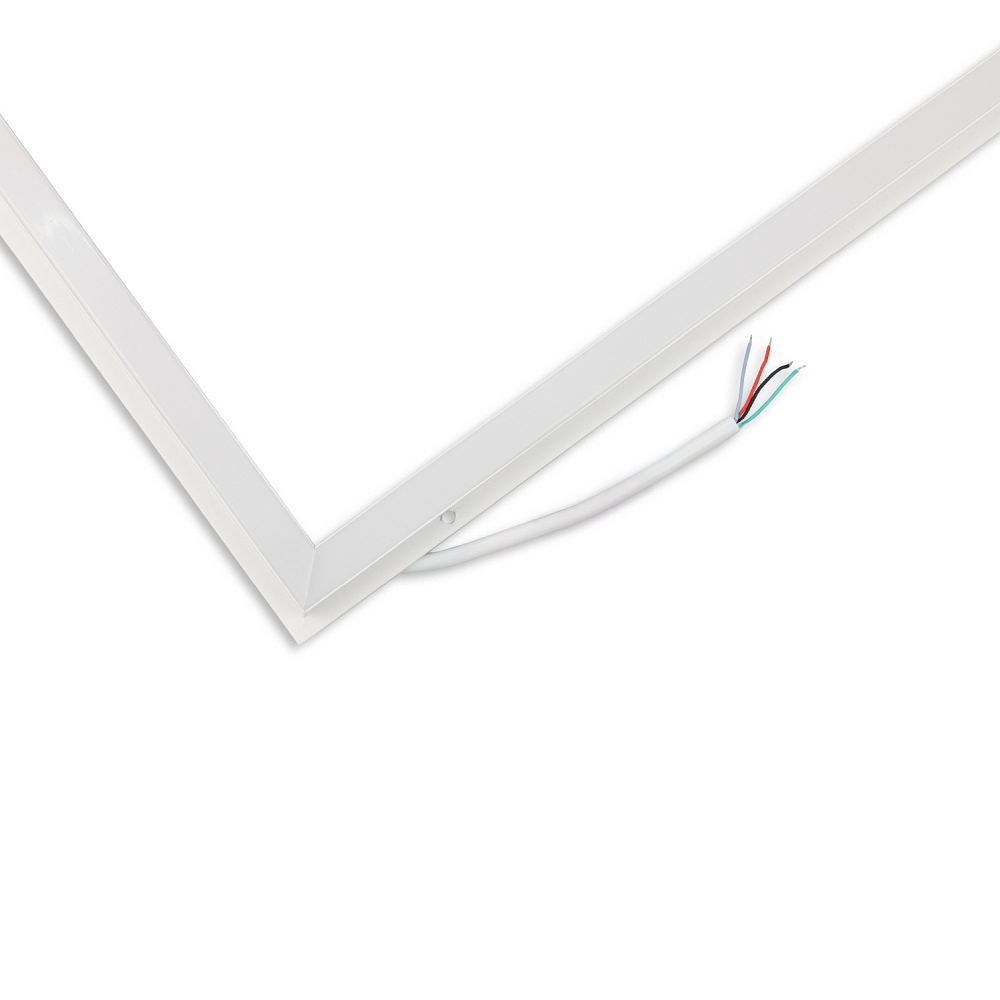

The control of the LED panel is done via a 24V DC operating voltage with a 3-channel RGB output, which is available separately as an accessory. Dimmability is achieved through PWM (pulse-width modulation), allowing the light to be continuously adjusted depending on the control device used. This enables precise adjustment of light intensity and, therefore, an individual atmosphere. The panel is equipped with protection class 3 and operates with safe low-voltage direct current (SELV), ensuring safe handling.

Versatile Applications and Accessories

The DECO FRAME 625 RGB is particularly versatile and can be used as a pendant or surface-mounted luminaire through optional accessories. This allows it to adapt flexibly to various lighting concepts and room designs. The illuminated frame is ideal as a decorative and effective lighting solution that sets vivid color accents through RGB color control. The necessary power supply and controller are not included in the delivery but can be purchased separately to ensure full functionality.

Technical Details and Easy Integration

With a beam angle of 120°, the LED panel ensures even light distribution. The IP40 protection rating provides sufficient protection against dust, while the ambient temperature range of -20 to +40 °C allows for a wide range of applications. Weighing only 1.75 kg and featuring a slim design, installation is easy. The combination of aluminum and plastic makes the panel robust and durable. Overall, the DECO FRAME 625 RGB offers a modern, energy-efficient, and flexible lighting solution with easy integration into existing ceiling systems.
